General Information |
|
Summary |
Enhanced Networking Stability and Security

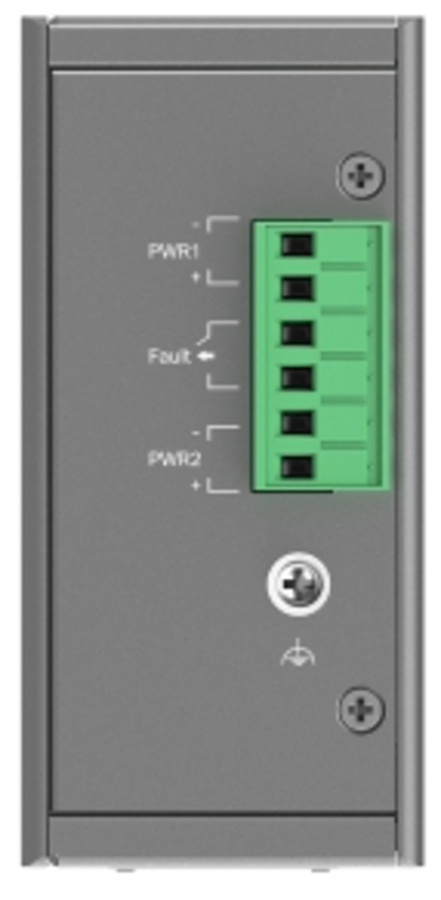

1+1 Redundant Power Input
Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.
Easy Operation and Maintenance with Omada’s Free Cloud Management |
|
Management features |
|
Switch type |
Managed |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|

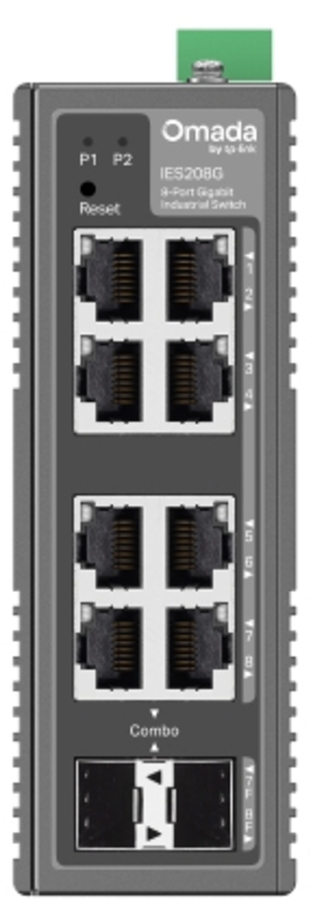

Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
6 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Combo SFP ports quantity |
2 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Spanning tree protocol |
Yes |
|
Auto-negotiation |
Yes |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
16 Gbit/s |
|
Forwarding rate |
11.9 Mpps |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
15000 |
|
Security |
|
IGMP snooping |
Yes |
|
Static port security |
Yes |
|
Design |
|

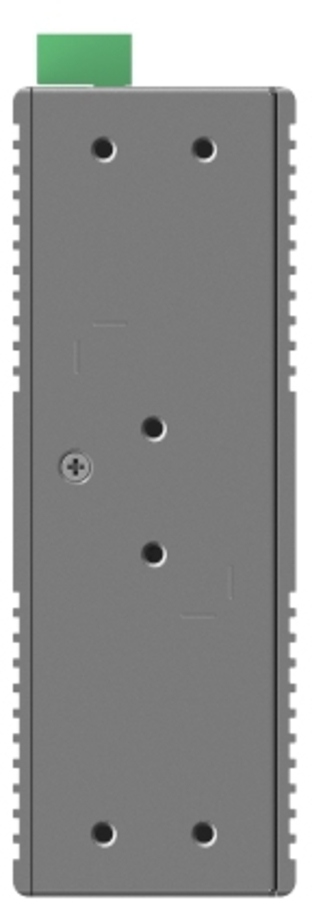

Wall mountable |
Yes |
|
DIN rail mounting |
Yes |
|
Power |
|
Power source |
DC |
|
Redundant power supply (RPS) support |
Yes |
|
DC input voltage |
9.6 - 60 V |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Weight & dimensions |
|
Width |
129 mm |
|
Depth |
95 mm |
|
Height |
45 mm |
