General Information |
|
Summary |

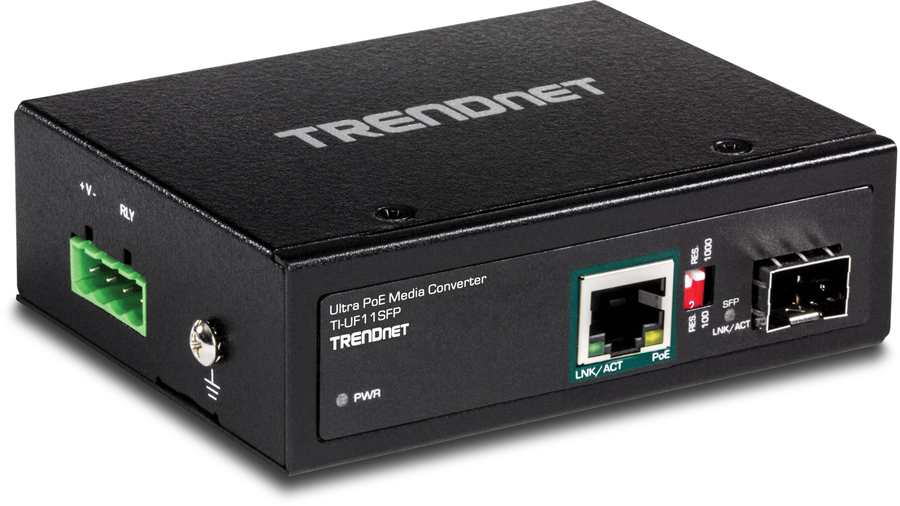

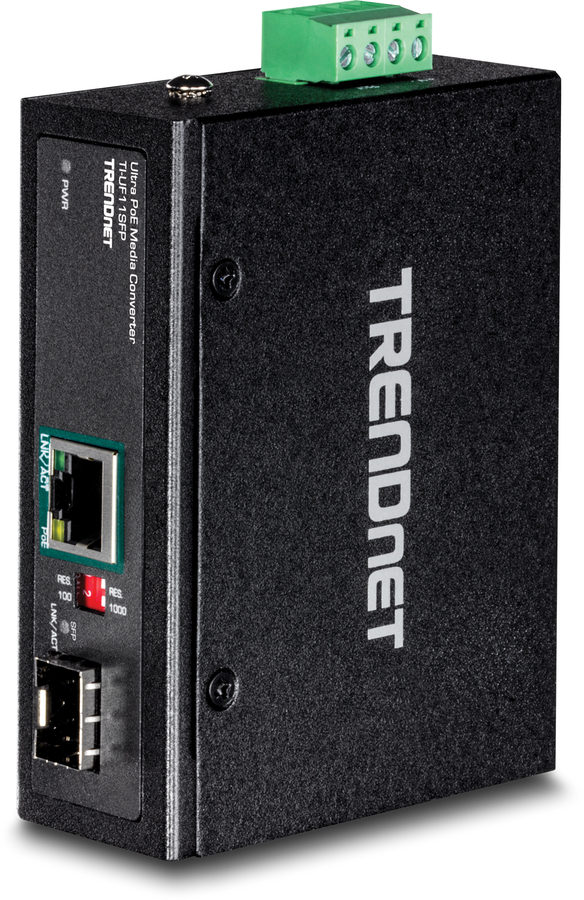

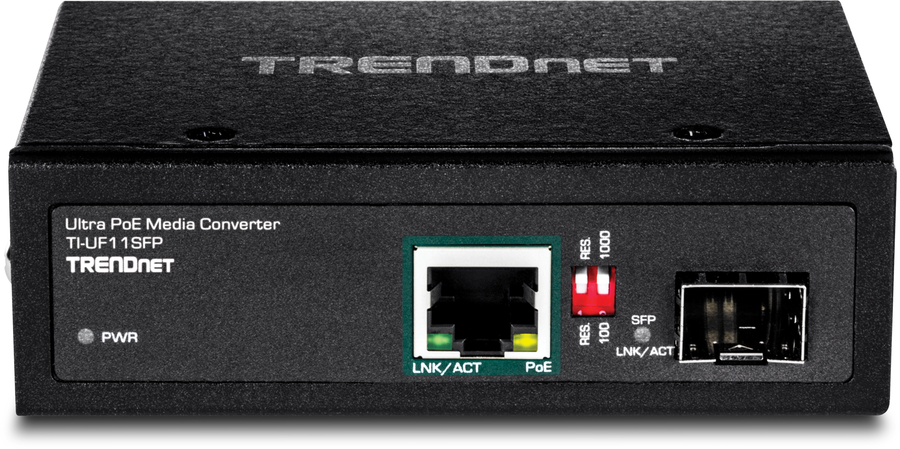

Hardened Industrial SFP to Gigabit UPoE Media Converter |
|
Network |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
Ethernet interface type |
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10 Mbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9 |
|
Auto-negotiation |
Yes |
|
Duplex system |
Full, Half |
|
Performance |
|
Maximum transfer distance |
4000 m |
|
Buffer size |
1000 KB |
|
Mean time between failures (MTBF) |
510.304 h |
|
Features |
|
Internal |
Yes |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Housing material |
Aluminium |
|
International Protection (IP) code |
IP30 |
|

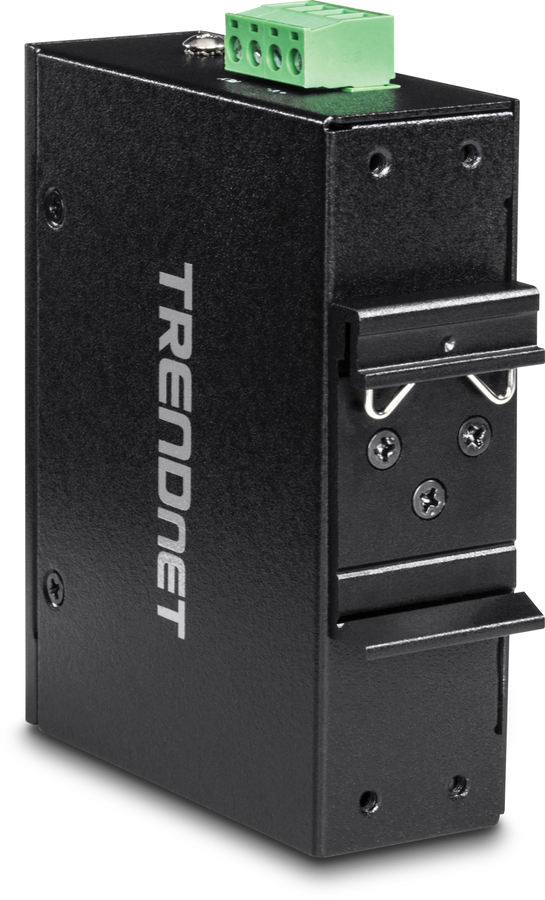

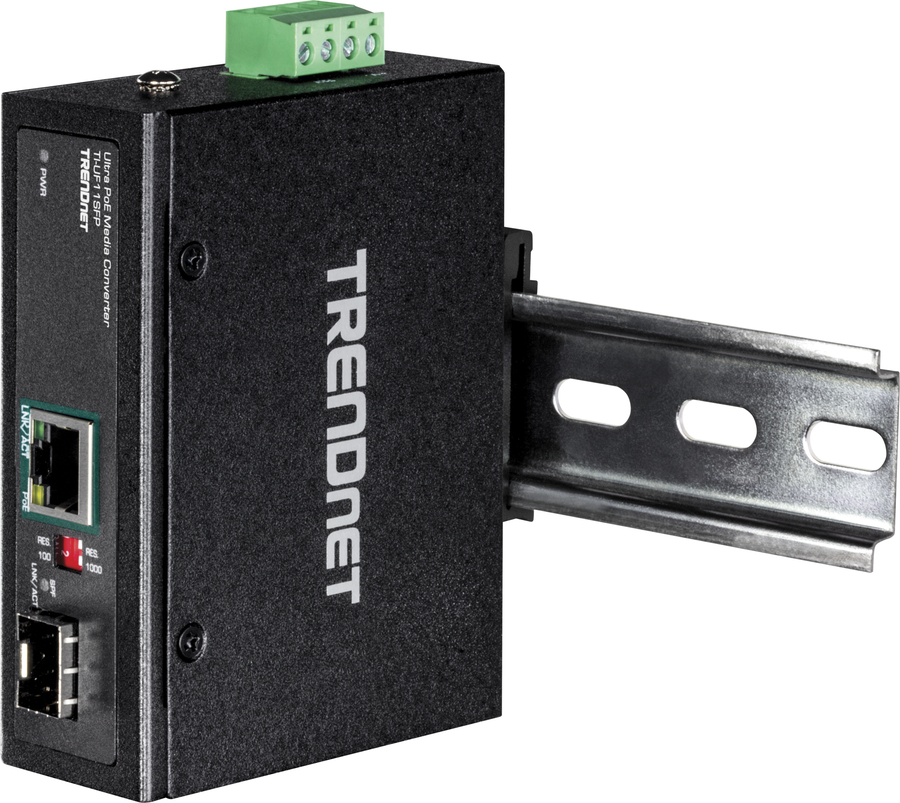

DIN rail mounting |
Yes |
|
Ports & interfaces |
|
Fiber optic connector |
SFP |
|
Connectivity technology |
Wired |
|
Power over Ethernet (PoE) ports quantity |
1 |
|

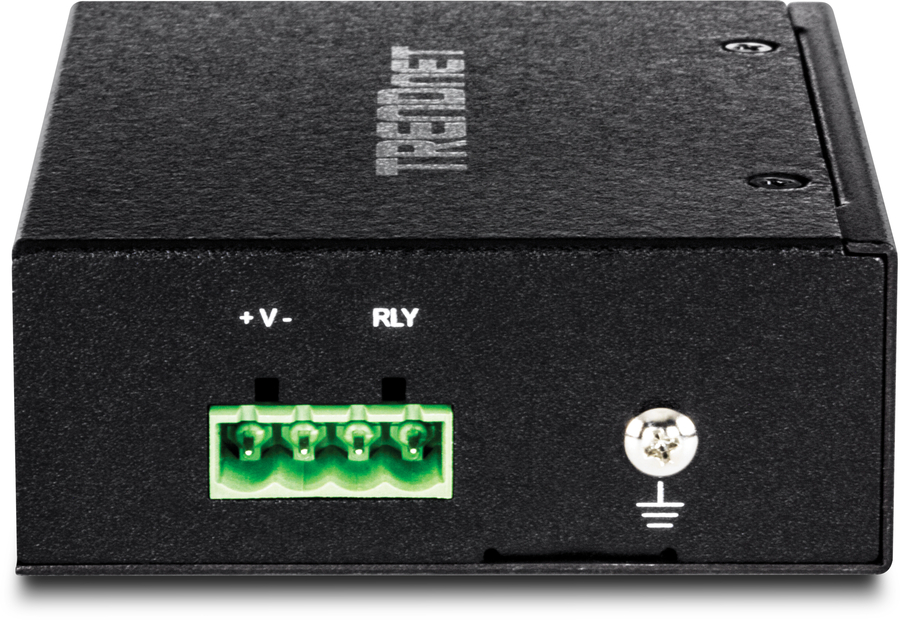

DC-in jack |
Yes |
|
Power |
|
Input voltage |
48 - 56 V |
|
Power consumption (max) |
72 W |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
60 W |
|
Weight & dimensions |
|
Width |
103.5 mm |
|
Depth |
81.5 mm |
|
Height |
32 mm |
|
Weight |
153 g |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Packaging content |
|
Quick installation guide |
Yes |
|
Certificates |
|
Certification |
FCC, CE, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), EN60950-1 (LVD) |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
