General Information |
|
Summary |

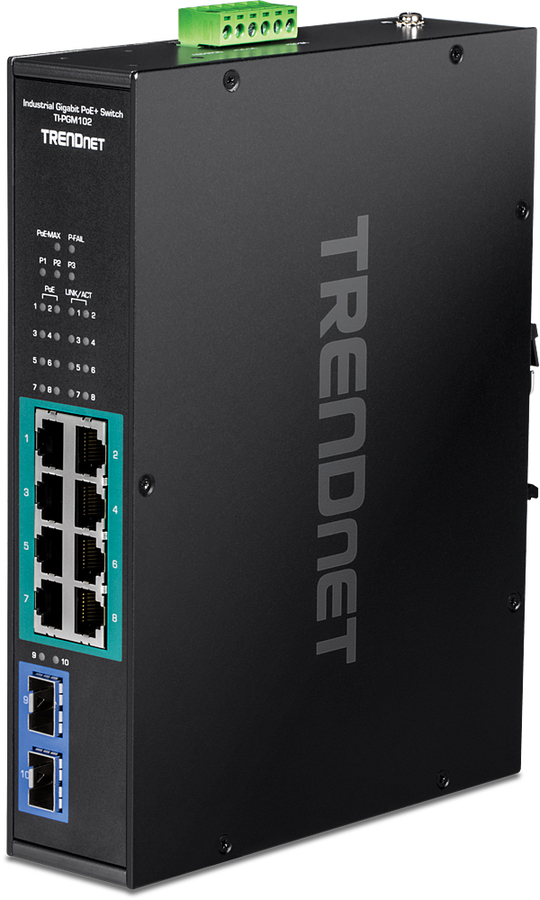

10port Industrial Gigabit PoE+ DINRail Switch 20 65 C 4 149 F |
|

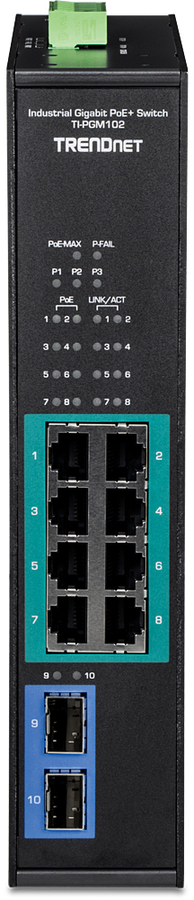

Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
2 |
|
Gigabit Ethernet (copper) ports quantity |
8 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
|
Full duplex |
Yes |
|
Half duplex |
Yes |
|
Auto-negotiation |
Yes |
|
MAC address auto-learning supported |
Yes |
|
MAC address auto-aging supported |
Yes |
|
Data transmission |
|
MAC address table |
4000 entries |
|
Switching capacity |
20 Gbit/s |
|
Forwarding rate |
14.88 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
1 |
|
Packet buffer memory |
1.5 MB |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP30 |
|
Wall mountable |
Yes |
|

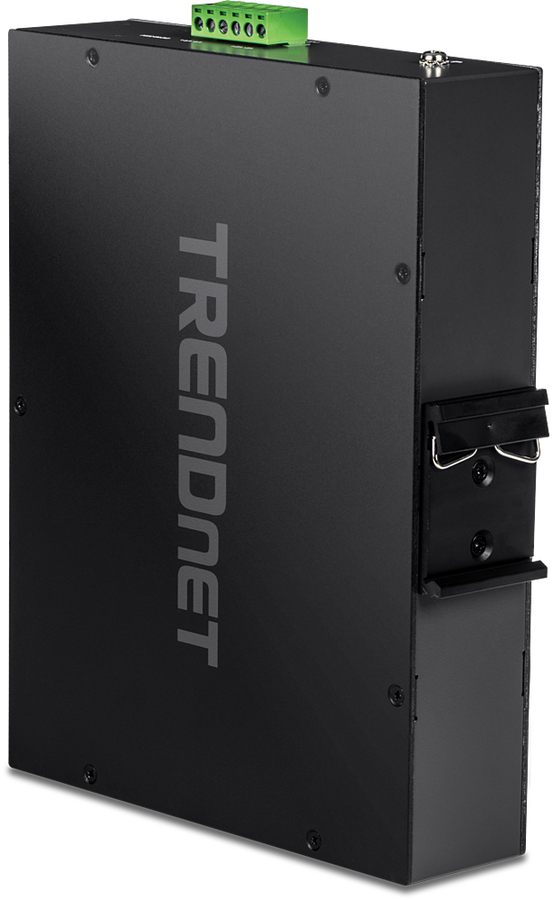

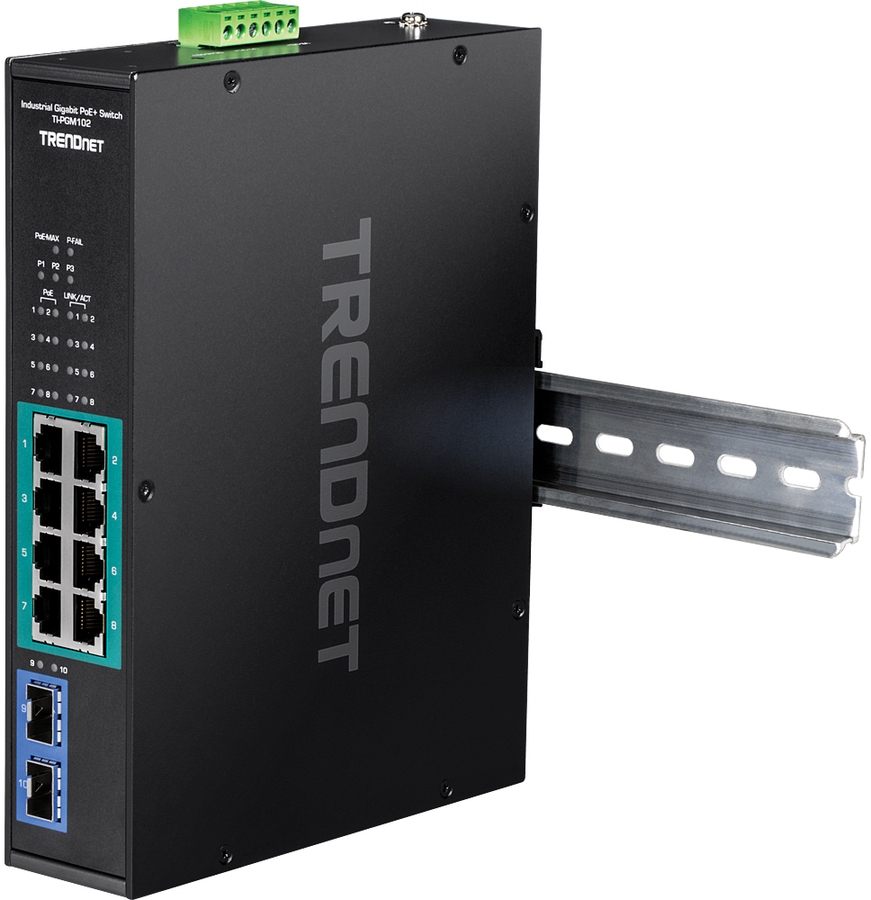

DIN rail mounting |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
1000000 h |
|

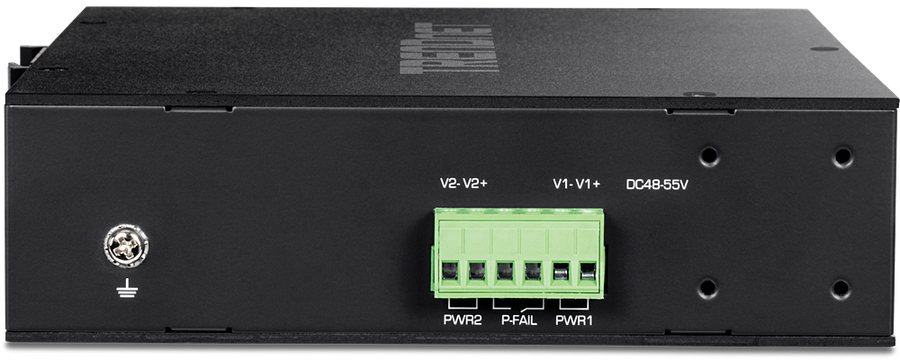

Power |
|
Power source |
DC |
|
Power supply included |
No |
|
Redundant power supply (RPS) support |
Yes |
|
DC input voltage |
48 - 55 V |
|
Power consumption (max) |
6.38 W |
|
Power protection features |
Overload |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
8 |
|
Total Power over Ethernet (PoE) budget |
240 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 65 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
210 mm |
|
Depth |
160 mm |
|
Height |
45 mm |
|
Weight |
1.1 kg |
|
Packaging content |
|
Quick start guide |
Yes |
|
Rack mount kit |
Yes |
