General Information |
|
Summary |
5Port Industrial Gigabit PoE + DINRail Switch |
|
Management features |
|
Switch type |
Unmanaged |
|
Quality of Service (QoS) support |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
System event log |
Yes |
|
User operation log |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
4 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Copper ethernet cabling technology |
1000BASE-T |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
IP routing |
Yes |
|
Policy-based routing |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Ethernet LAN data rates |
10,100,480,800,1000 Mbit/s |
|
Auto-negotiation |
Yes |
|
VLAN support |
Yes |
|
Data transmission |
|
MAC address table |
2000 entries |
|
Switching capacity |
10 Gbit/s |
|
Forwarding rate |
7.44 Mpps |
|
Store-and-forward |
Yes |
|
Static route |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Packet buffer memory |
0.128 MB |
|
Security |
|
DHCP features |
DHCP client, DHCP server |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
IP-MAC-Port binding |
Yes |
|
Password protection |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
No |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
Wall mountable |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
538451 h |
|
Power |
|
Power supply included |
No |
|
DC input voltage |
48 - 56 V |
|
Power consumption (max) |
2.24 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
Active PoE |
|
Power over Ethernet plus (PoE+) ports quantity |
4 |
|
Power over Ethernet (PoE) power per port |
30 W |
|
Total Power over Ethernet (PoE) budget |
120 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Operating relative humidity (H-H) |
10 - 95% |
|
Weight & dimensions |
|
Width |
104 mm |
|
Depth |
32 mm |
|
Height |
82 mm |
|
Weight |
190 g |
|
Packaging content |
|
Quick start guide |
Yes |
|

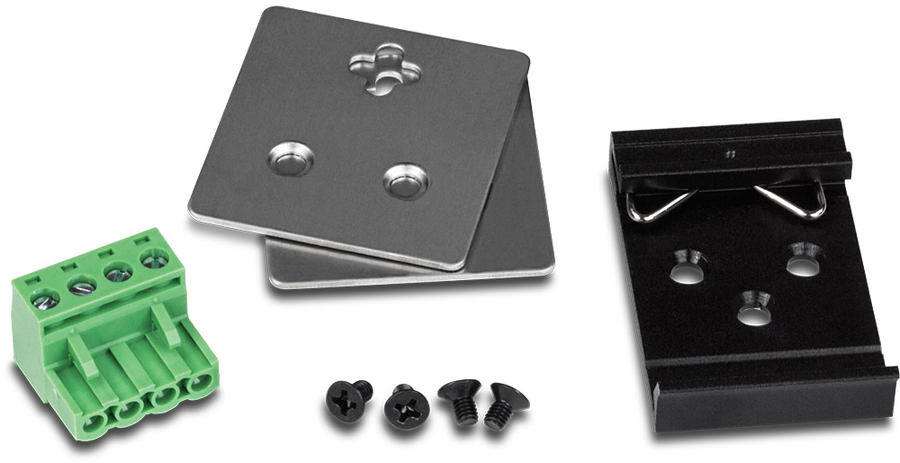

Rack mount kit |
Yes |
|
Certificates |
|
Certification |
CE, FCC, UL, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
