General Information |
|
Summary |

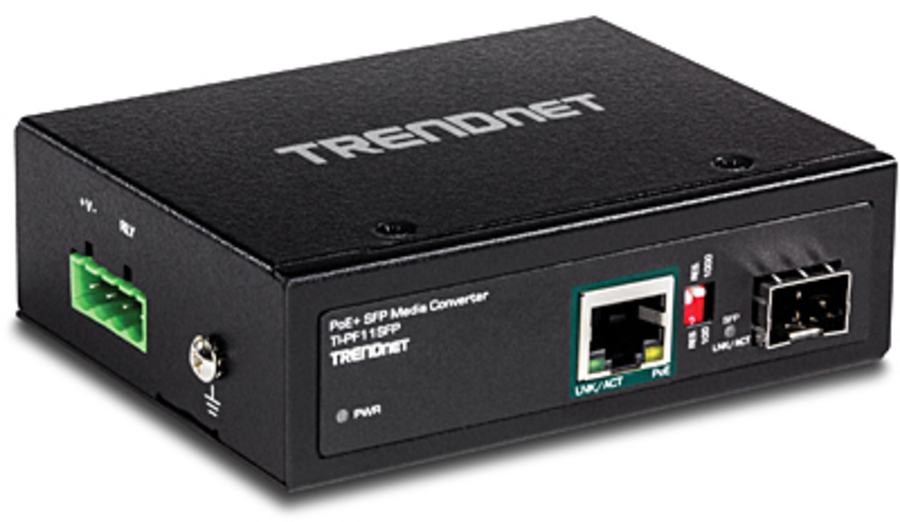

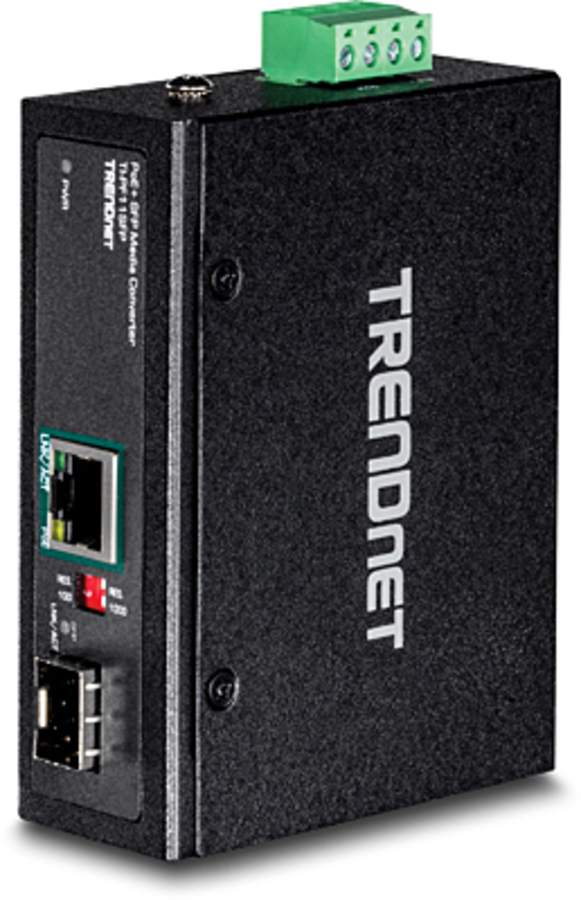

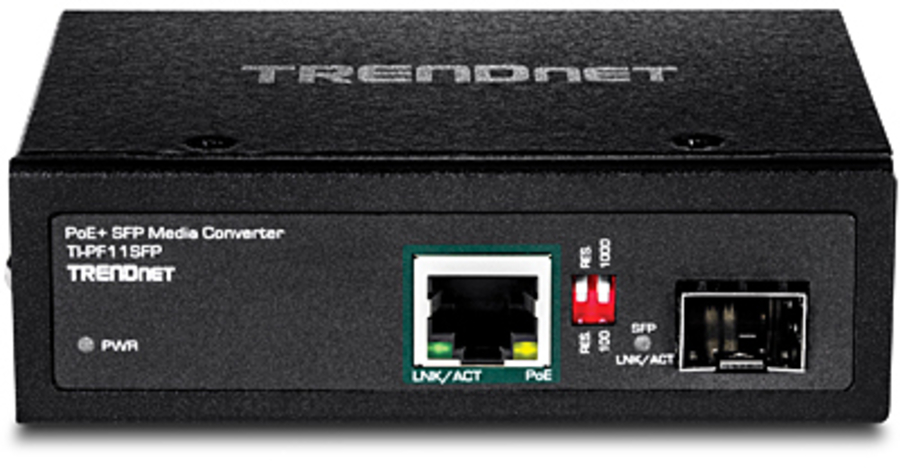

Hardened Industrial SFP to Gigabit PoE+ Media Converter |
|
Network |
|
Maximum data transfer rate |
2000 Mbit/s |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9 |
|
Auto-negotiation |
Yes |
|
Store-and-forward |
Yes |
|
Duplex system |
Full, Half |
|
Performance |
|
Wavelength |
0.56 nm |
|
Buffer size |
1000 KB |
|
Mean time between failures (MTBF) |
500000 h |
|
Features |
|
Internal |
No |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Housing material |
Aluminium |
|
International Protection (IP) code |
IP30 |
|

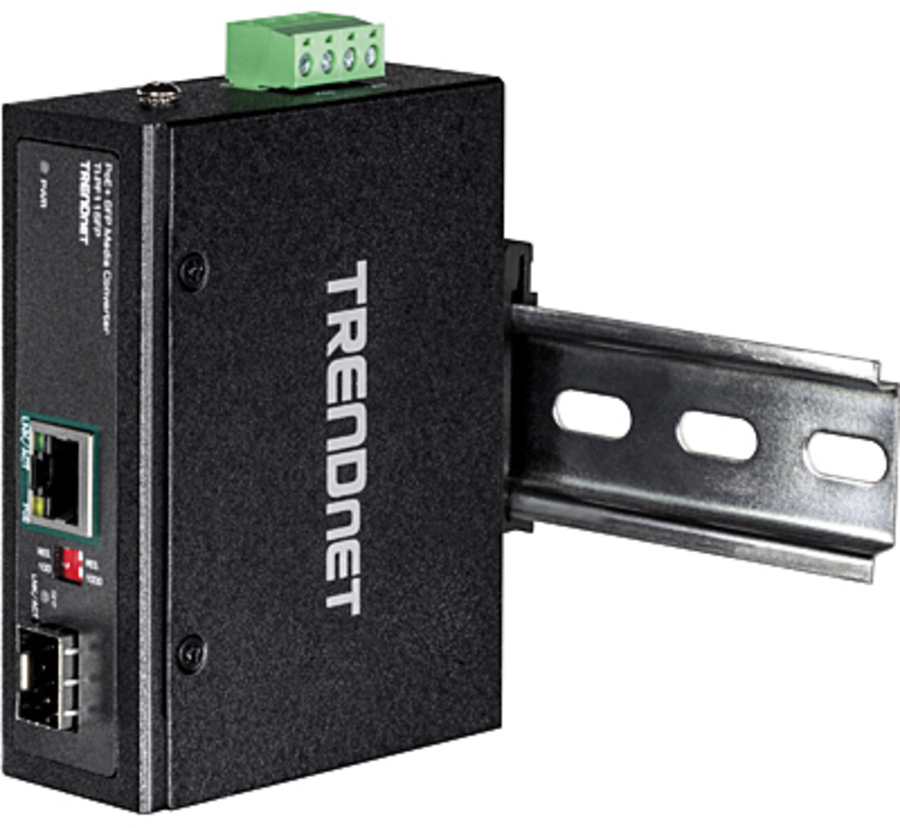

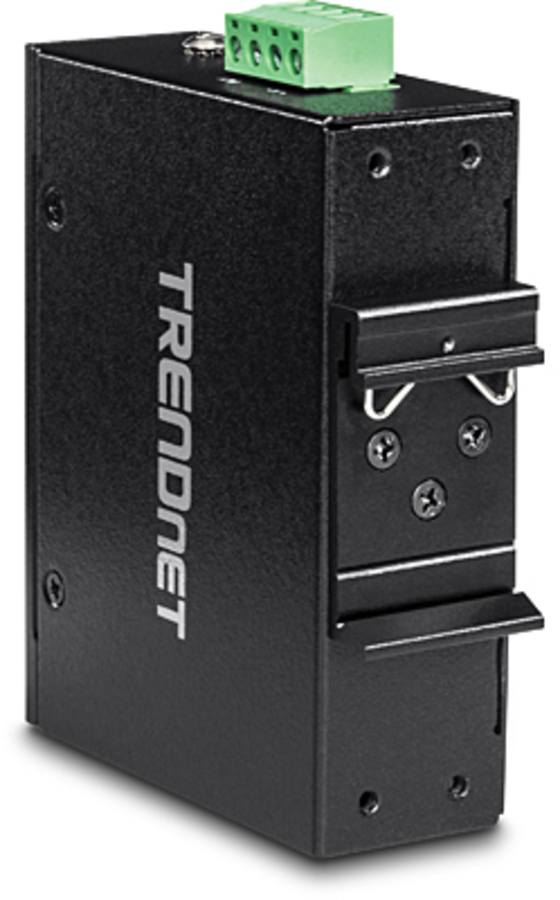

DIN rail mounting |
Yes |
|
Ports & interfaces |
|
Fiber optic connector |
SFP |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|
Power over Ethernet plus (PoE+) ports quantity |
1 |
|
Power |
|
Input voltage |
48 - 56 V |
|
Power consumption (typical) |
2 W |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
30 W |
|
Weight & dimensions |
|
Width |
32 mm |
|
Depth |
81 mm |
|
Height |
104 mm |
|
Weight |
154 g |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Packaging content |
|
Quick installation guide |
Yes |
|
Certificates |
|
Certification |
CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN60950-1 |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
