General Information |
|
Summary |

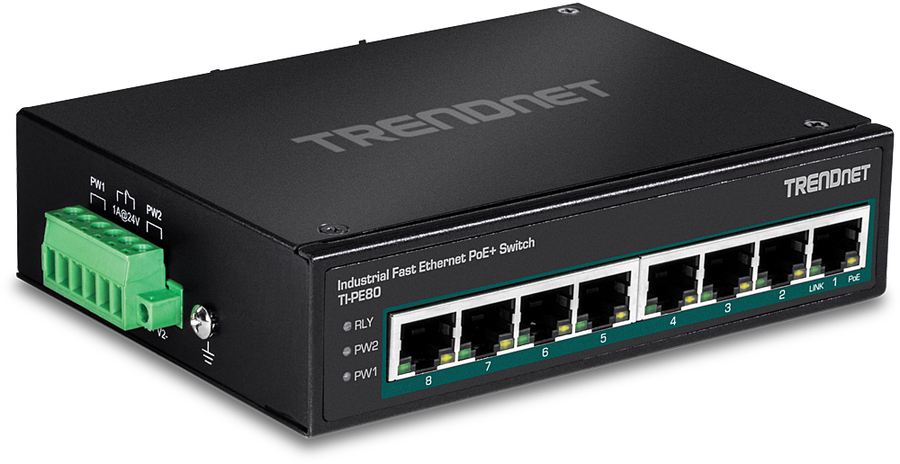

8Port Industrial Fast Ethernet PoE+ DINRail Switch |
|
Management features |
|
Switch type |
Unmanaged |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Full duplex |
Yes |
|
Data transmission |
|
MAC address table |
1000 entries |
|
Switching capacity |
1.6 Gbit/s |
|
Forwarding rate |
1.19 Mpps |
|
Packet buffer memory |
1 MB |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP30 |
|
Wall mountable |
Yes |
|

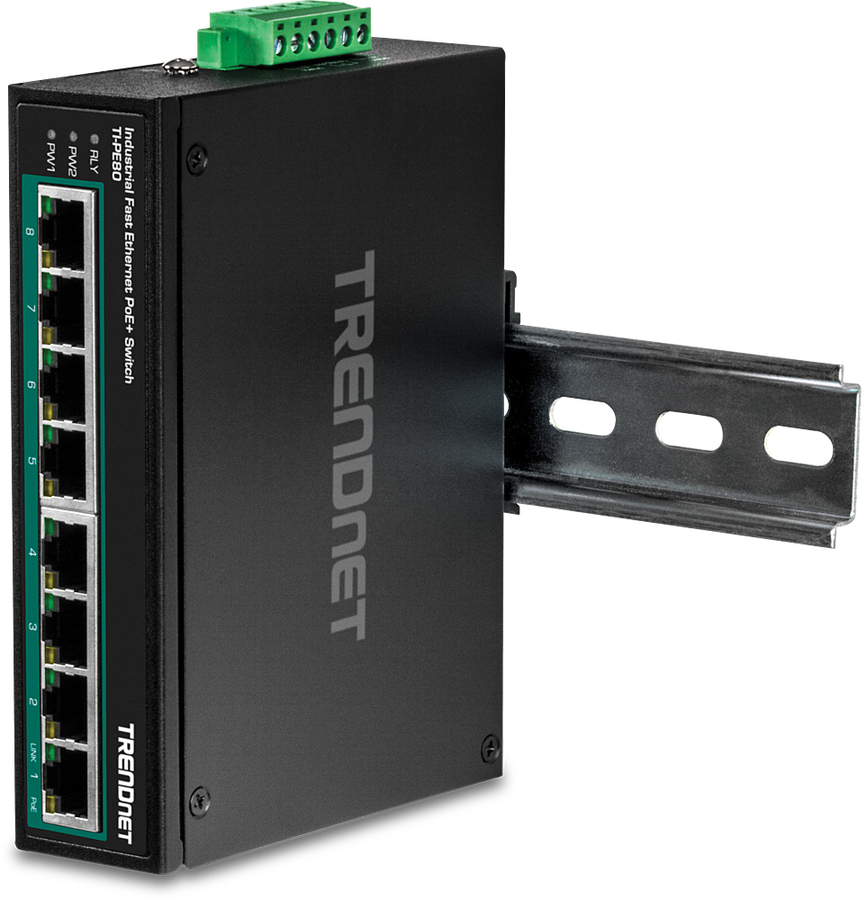

DIN rail mounting |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
510304 h |
|
Power |
|
Redundant power supply (RPS) support |
Yes |
|
DC input voltage |
48 - 56 V |
|
Power consumption (max) |
5.76 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
8 |
|
Total Power over Ethernet (PoE) budget |
200 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
142 mm |
|
Depth |
105 mm |
|
Height |
37 mm |
|
Weight |
486 g |
|
Packaging content |
|
Quick start guide |
Yes |
|
Certificates |
|
Certification |
CE
FCC
UL
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6 |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
