General Information |
|
Summary |

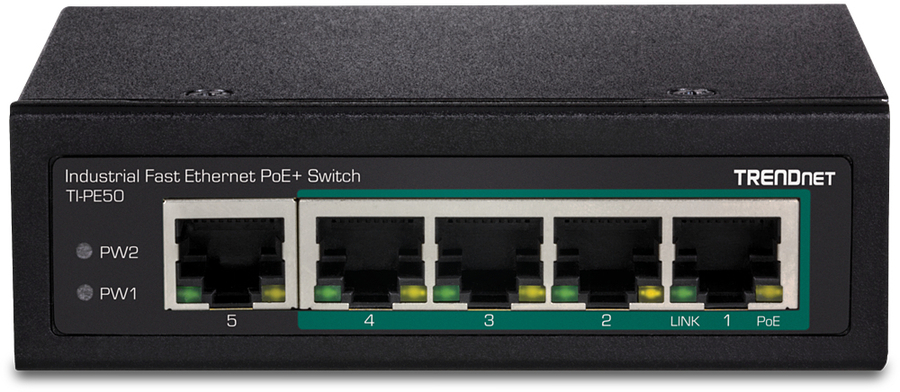

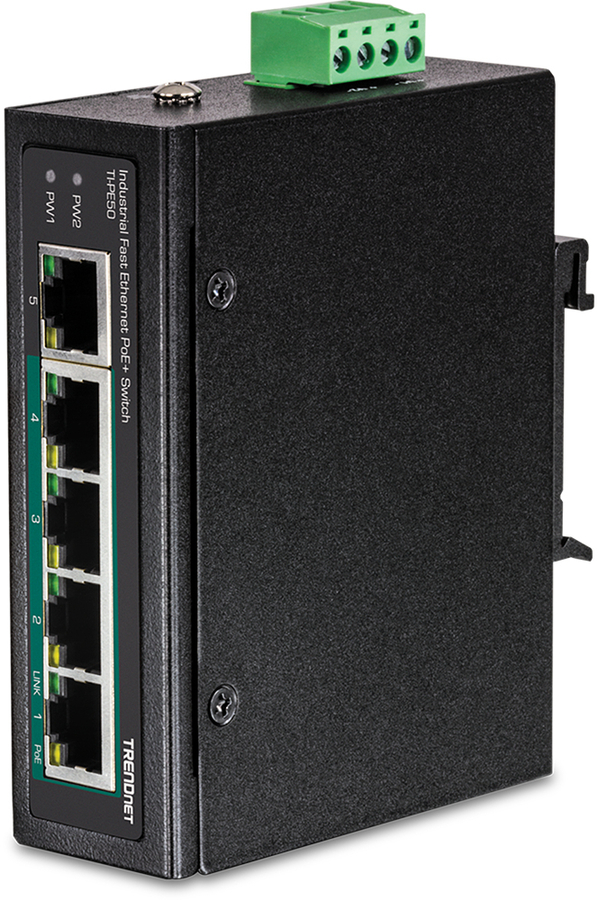

5Port Industrial Fast Ethernet PoE+ DINRail Switch |
|
Management features |
|
Switch type |
Unmanaged |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
|
Fast Ethernet (copper) ports quantity |
5 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
|
Full duplex |
Yes |
|
Auto-negotiation |
Yes |
|
MAC address auto-learning supported |
Yes |
|
MAC address auto-aging supported |
Yes |
|
Data transmission |
|
MAC address table |
1024 entries |
|
Switching capacity |
1 Gbit/s |
|
Forwarding rate |
0.1488 Mpps |
|
Store-and-forward |
Yes |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP30 |
|
Wall mountable |
Yes |
|

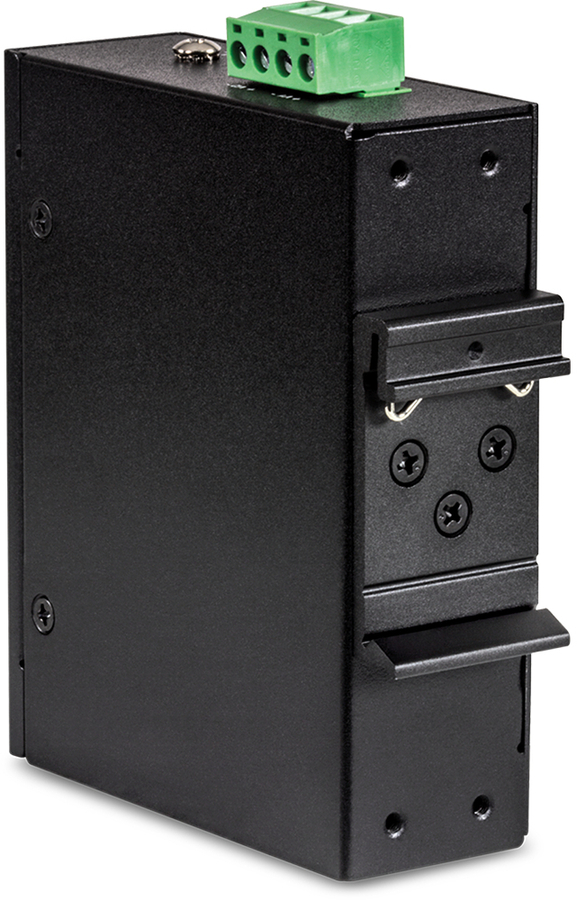

DIN rail mounting |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
708903 h |
|
Power |
|

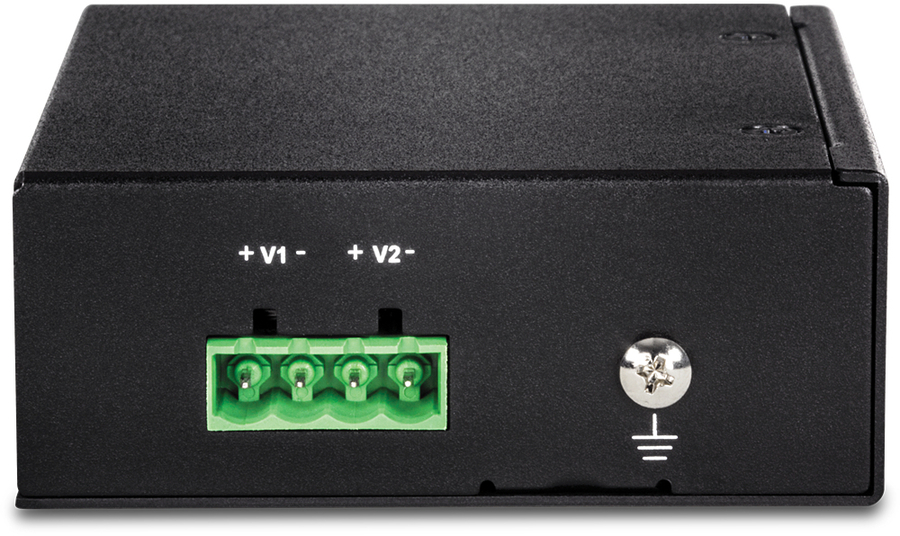

Redundant power supply (RPS) support |
Yes |
|
DC input voltage |
48 - 56 V |
|
Power consumption (max) |
2.24 W |
|
Power protection features |
Overload |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
4 |
|
Total Power over Ethernet (PoE) budget |
90 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Weight & dimensions |
|
Width |
103 mm |
|
Depth |
82 mm |
|
Height |
31 mm |
|
Weight |
160 g |
|
Packaging content |
|
Quick start guide |
Yes |
|
Certificates |
|
Certification |
CE, FCC |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
