General Information |
|
Summary |

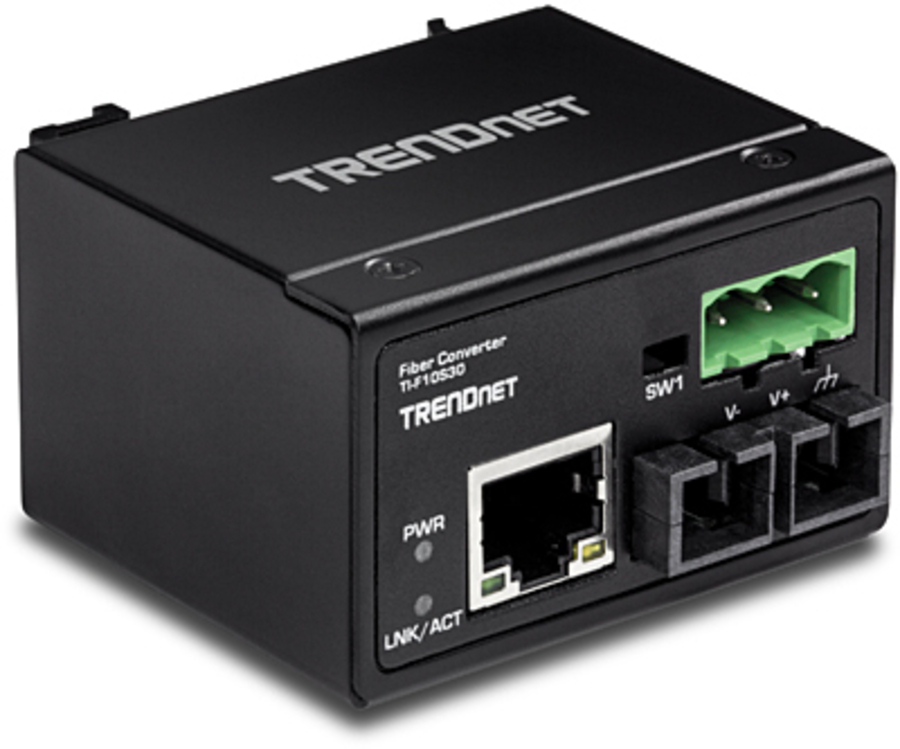

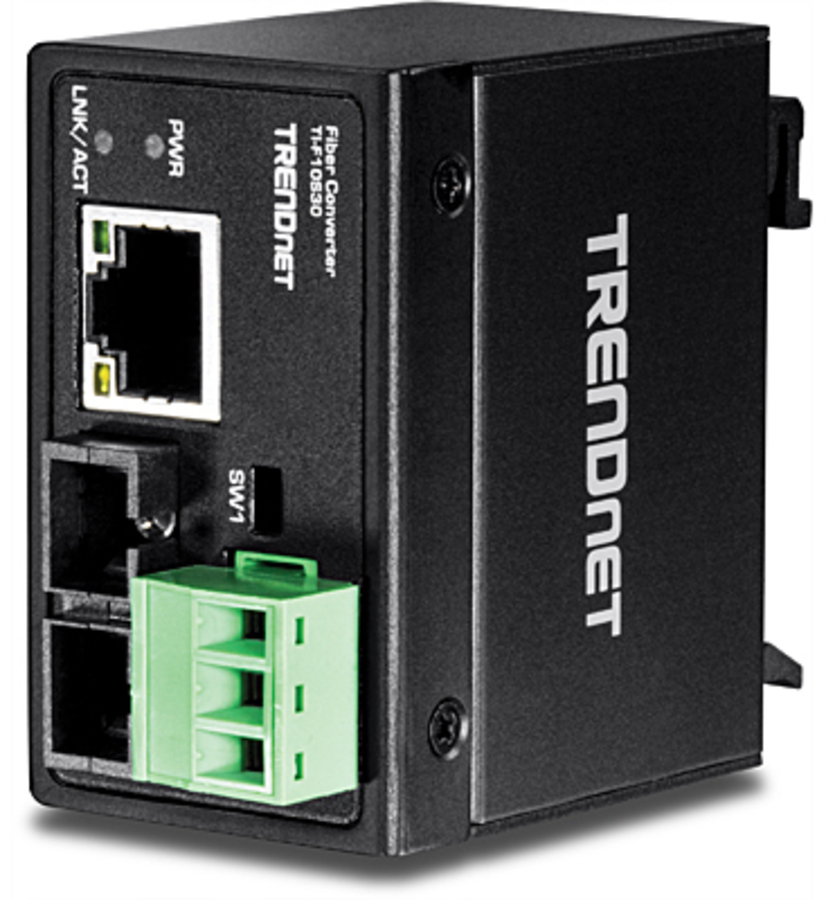

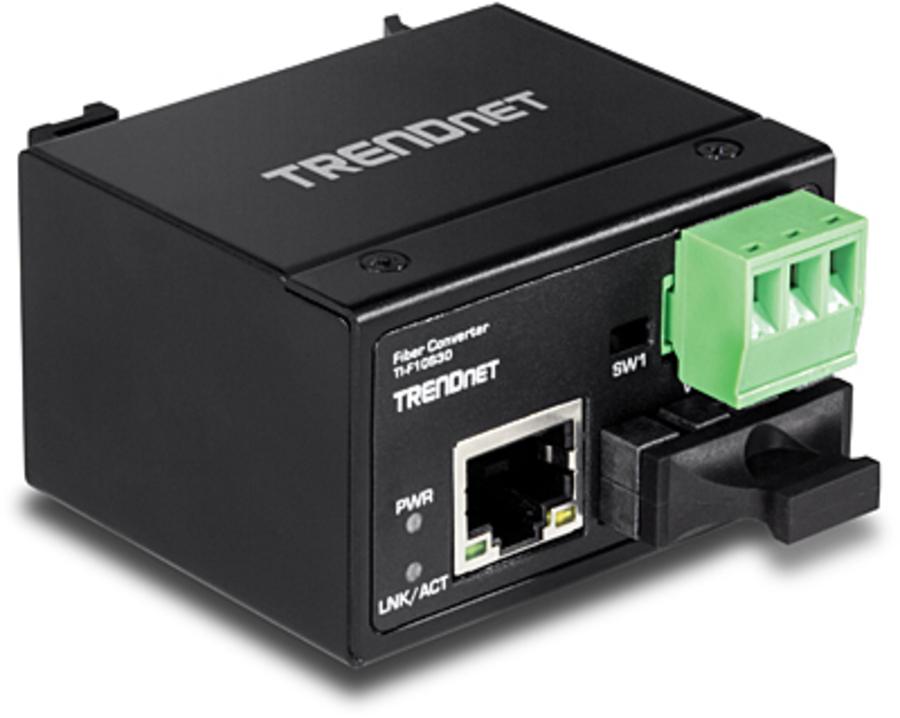

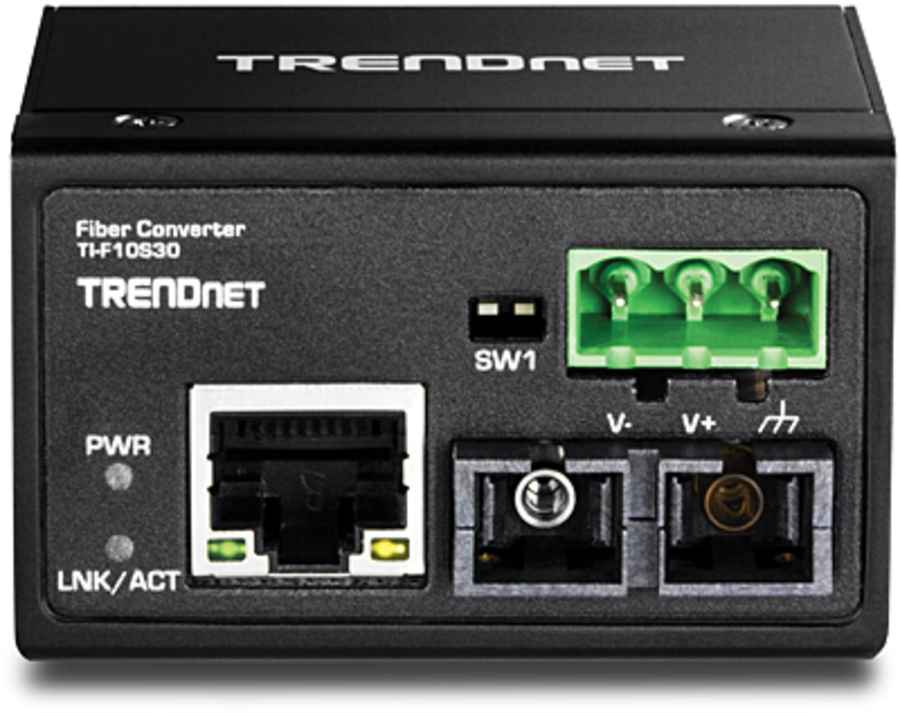

Hardened Industrial 100BaseFX SingleMode SC Fiber Converter |
|
Network |
|
Maximum data transfer rate |
200 Mbit/s |
|
Converter input interface |
100Base-TX |
|
Converter output interface |
100Base-FX |
|
Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
Ethernet interface type |
Fast Ethernet |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
|
Fiber ethernet cabling technology |
100BASE-FX |
|
Flow control support |
Yes |
|
Auto-negotiation |
Yes |
|
Duplex system |
Full, Half |
|
Performance |
|
Maximum transfer distance |
30000 m |
|
Wavelength |
1310 nm |
|
Fiber mode structure |
Single-mode |
|
Fiber cable diameters supported (core/cladding) |
9/125 µm |
|
Link budget |
7 dB |
|
Features |
|
Internal |
No |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Housing material |
Metal |
|
International Protection (IP) code |
IP40 |
|

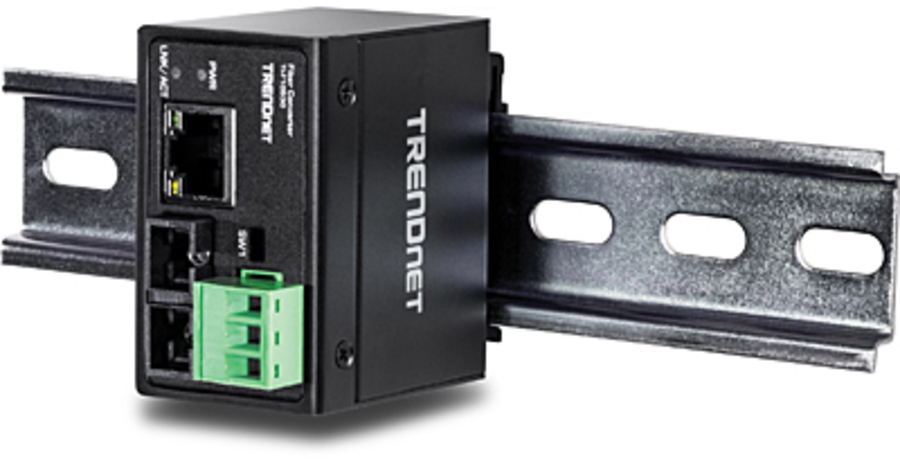

DIN rail mounting |
Yes |
|
Ports & interfaces |
|
Fiber optic connector |
SC |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|
Power |
|
Input voltage |
12 - 60 V |
|
Power consumption (max) |
1.92 W |
|
Weight & dimensions |
|
Width |
60 mm |
|
Depth |
50 mm |
|
Height |
35 mm |
|
Weight |
90 g |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|

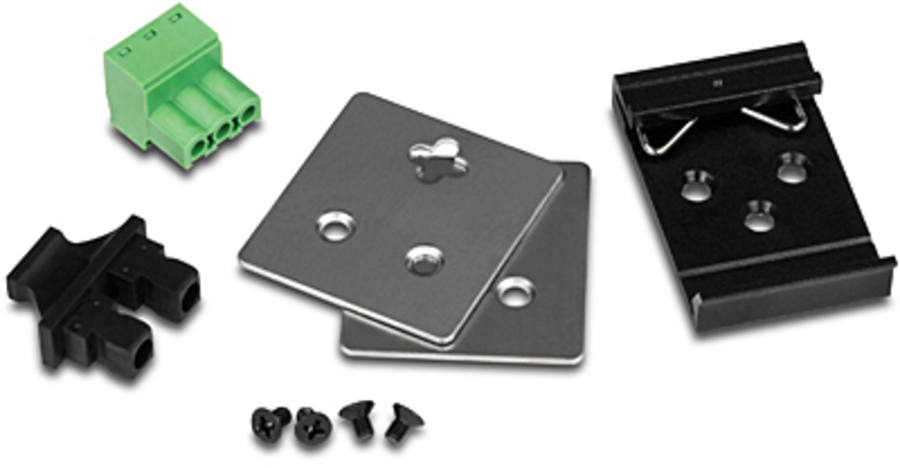

Packaging content |
|
Quick installation guide |
Yes |
|
Certificates |
|
Certification |
FCC, CE |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
