General Information |
|
Summary |

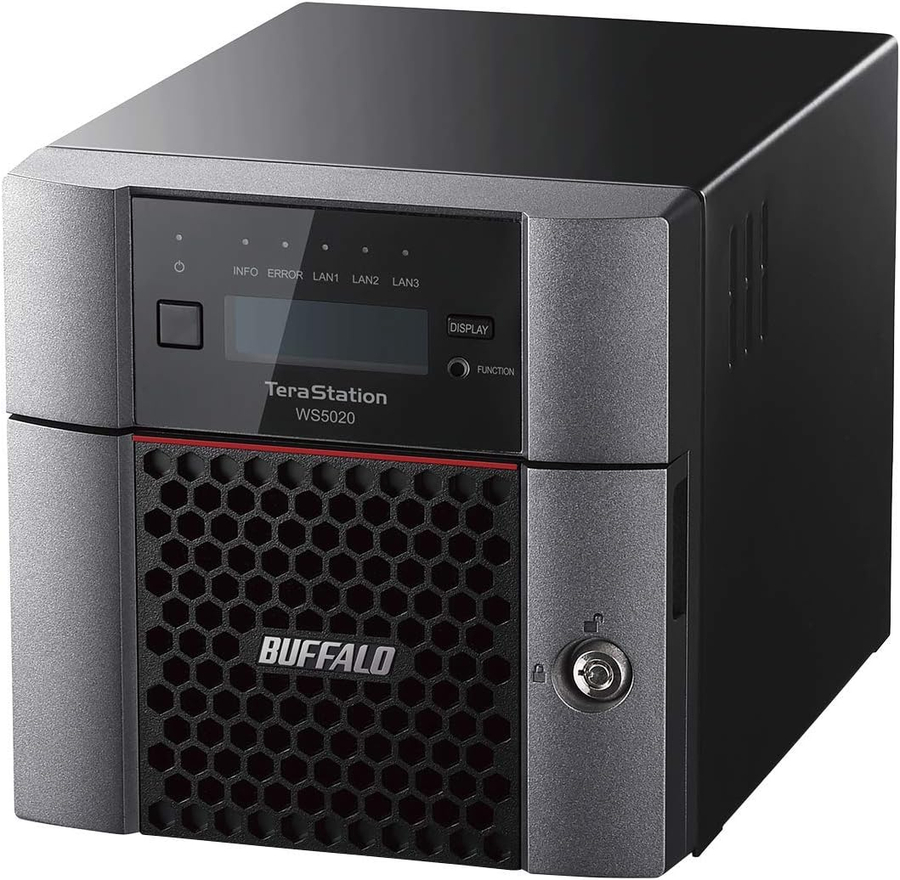

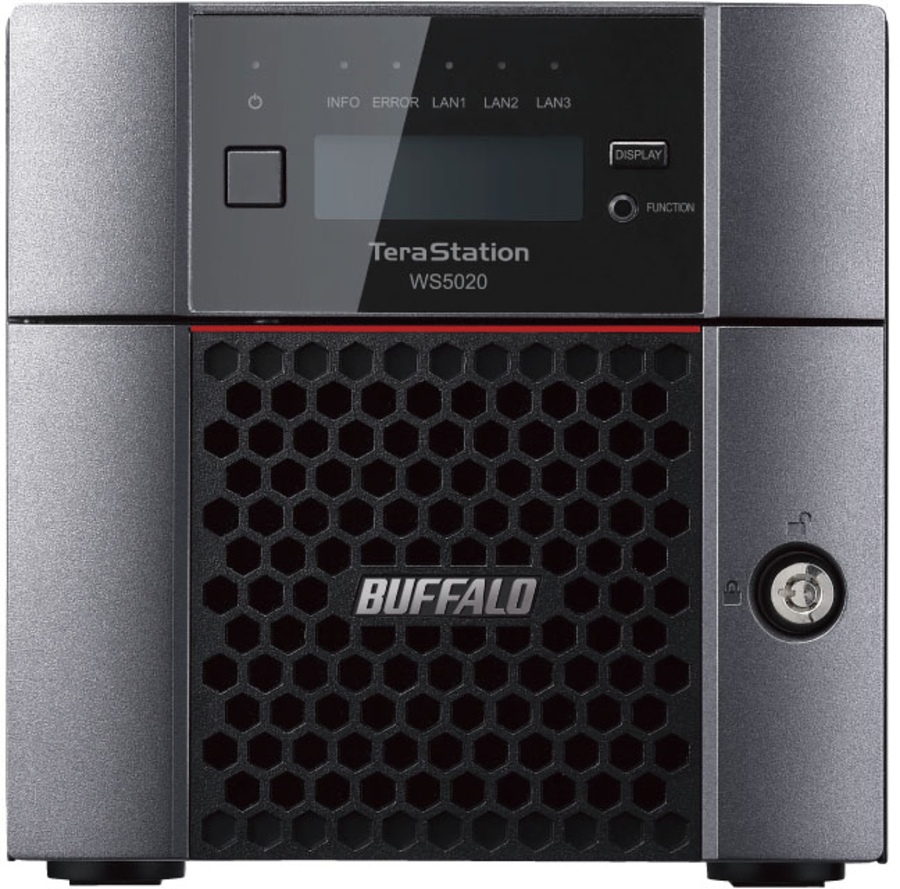

WS5220DN 2025 NAS 8TB (2x4TB) The WS IoT 2025 TeraStation series NAS utilizes a specialized version of Windows Server IoT 2025 that is designed for small storage solutions. The NAS delivers smarter and more efficient data management, with enhanced backup and security features to optimize your data storage experience. Seamless compatibility with Windows software and cloud services means you can integrate it effortlessly into your existing ecosystem. And unlike traditional Windows Server, no Client Access Licenses (CALs) are required, which cuts installation costs today and helps reduce extra fees as your business grows. |
|
Storage |
|
Storage drives installed |
Yes |
|
Total installed storage capacity |
8 TB |
|
Number of storage drives installed |
2 |
|
Number of storage drives supported |
2 |
|
Installed storage drive type |
HDD |
|
Supported storage drive types |
HDD |
|
Storage drive capacity |
4 TB |
|
Storage drive interface |
Serial ATA III |
|
RAID support |
Yes |
|
RAID levels |
0, 1, JBOD |
|
Processor |
|
Processor family |
Intel Atom® |
|
Processor manufacturer |
Intel |
|
Processor model |
C3338 |
|
Processor frequency |
2.2 GHz |
|
Processor cores |
2 |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
ECC |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
100,1000,10,10000 Mbit/s |
|
Ethernet LAN data rate supported (max) |
10000 Mbit/s |
|
Copper ethernet cabling technology |
10GBASE-T, 1000BASE-T, 2.5GBASE-T, 100BASE-TX, 10BASE-T |
|
iSCSI support |
Yes |
|
Supported network protocols |
TCP/IP |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
3 |
|
USB port |
Yes |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
Design |
|
Chassis type |
Desktop |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Performance |
|
Type |
NAS |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Security algorithms |
SNMP |
|
Software |
|
Operating system installed |
Windows Server IoT 2025 |
|
Windows operating systems supported |
Windows 11, Windows 10, Windows 8.1 |
|
Mac operating systems supported |
Mac OS X 10.12 Sierra |
|
Server operating systems supported |
Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012 |
|
Power |
|
Power consumption (max) |
85 W |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50/60 Hz |
|
Weight & dimensions |
|
Width |
170.1 mm |
|
Depth |
231.1 mm |
|
Height |
170.1 mm |
|
Weight |
4.72 kg |
|
Package width |
309.8 mm |
|
Package depth |
358.1 mm |
|
Package height |
320 mm |
|
Package weight |
4.99 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Other features |
|
Digital Living Network Alliance (DLNA) certified |
Yes |
