General Information |
|
Summary |

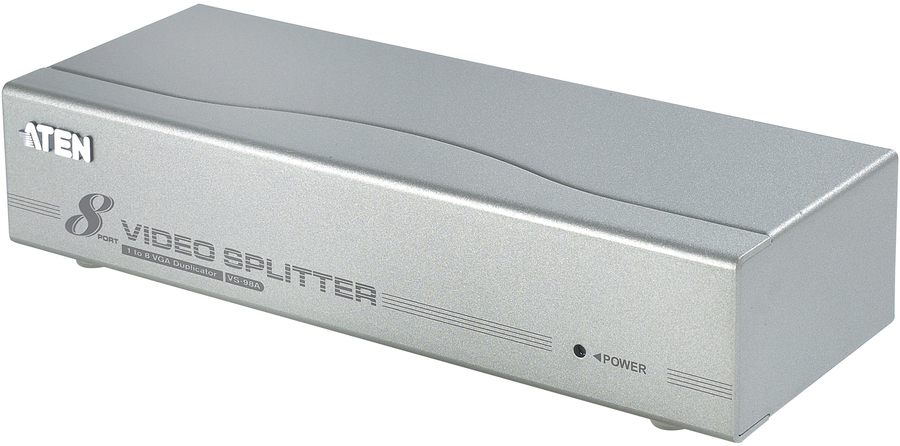

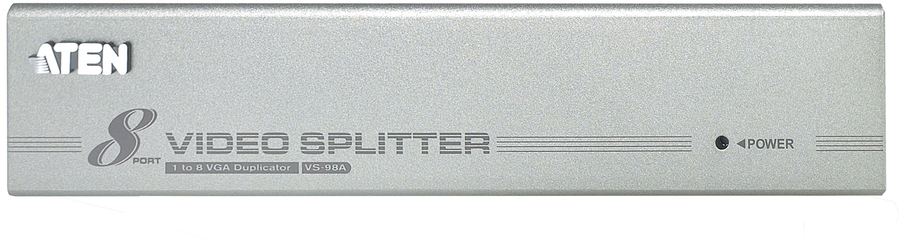

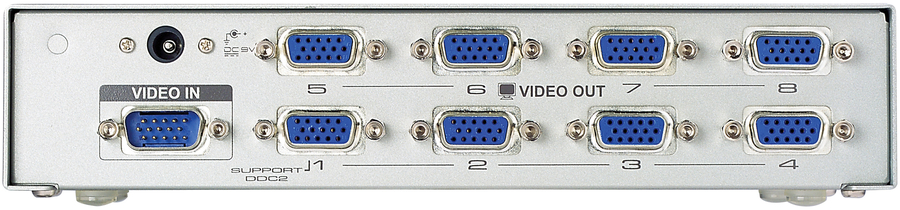

350MHz 8 Port VGA Video Splitter |
|
Ports & interfaces |
|
Video ports quantity |
8 |
|
Video port type |
VGA |
|
Video out |
8x VGA |
|
Ethernet LAN (RJ-45) ports |
0 |
|
Audio ports quantity |
0 |
|
Connector(s) |
HDB-15 |
|
Serial ports quantity |
0 |
|
DC-in jack |
Yes |
|
Features |
|
Maximum resolution |
1600 x 1200 pixels |
|
Product colour |
Silver |
|
3D |
No |
|
Maximum operating distance |
65 m |
|
Bandwidth |
350 MHz |
|
Remote control included |
No |
|
HDCP |
No |
|
Power LED |
Yes |
|
Network |
|
Ethernet LAN |
No |
|
Power |
|
Power consumption (typical) |
3.6 W |
|
USB powered |
No |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
200 x 75 x 45 mm |
|
Weight |
690 g |
|
Packaging content |
|
Manual |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
