General Information |
|
Summary |

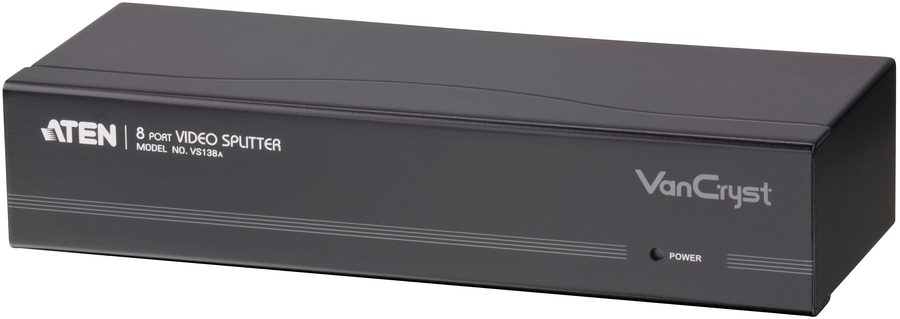

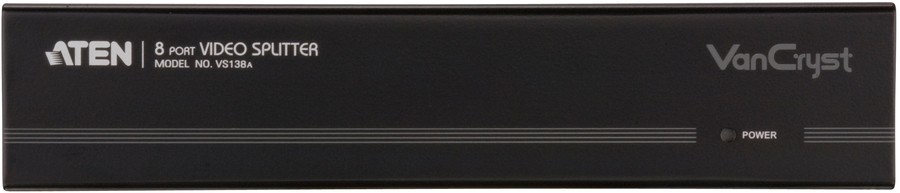

450MHz 8 Port VGA Video Splitter |
|
Ports & interfaces |
|
Video ports quantity |
8 |
|
Video port type |
VGA |
|

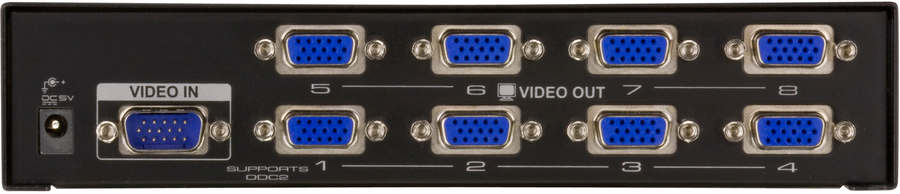

Video out |
8x VGA |
|
Video in |
1 x HDB-15 Male (Blue) |
|
Audio ports quantity |
0 |
|
DC-in jack |
Yes |
|
Features |
|
Maximum resolution |
2048 x 1536 pixels |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Maximum operating distance |
30 m |
|
Bandwidth |
450 MHz |
|
Power |
|
AC input voltage |
5 V |
|
Power consumption (typical) |
2.25 W |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
200 x 75.1 x 44 mm |
|
Weight |
690 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
