General Information |
|
Summary |

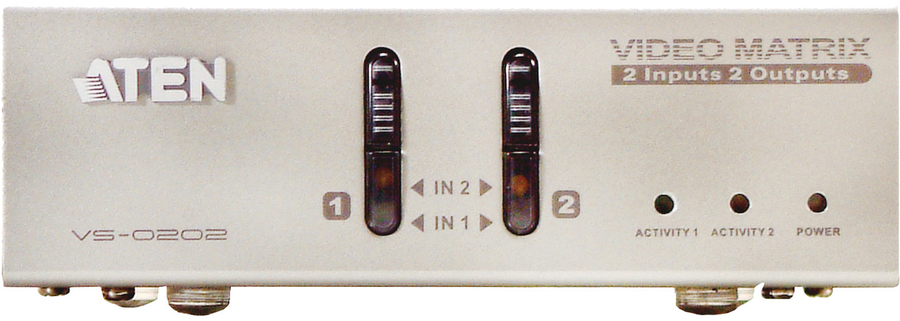

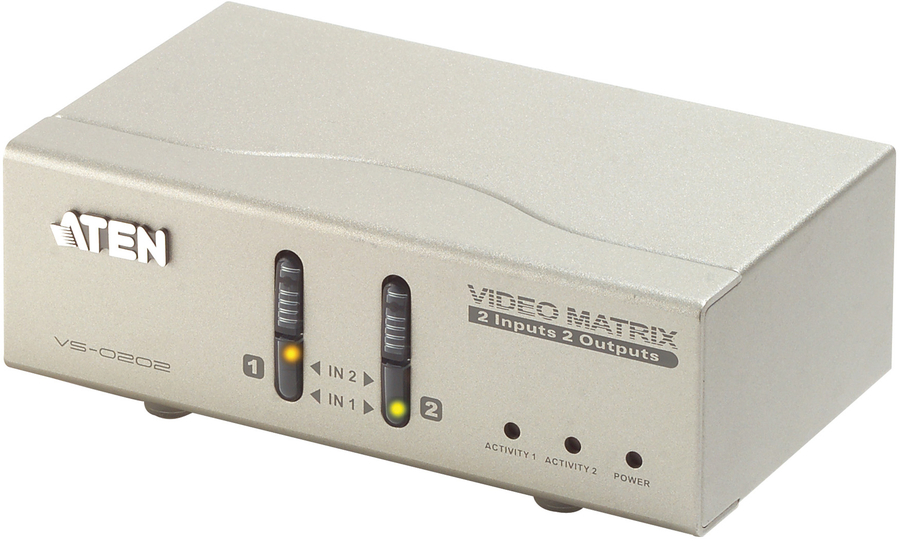

2x2 VGA and Audio Matrix Switch |
|
Ports & interfaces |
|
Video port type |
VGA |
|
Video in |
2 x HDB-15 Male (Blue) |
|
Video out |
2 x HDB-15 Female (Blue) |
|
Features |
|
Material |
Metal |
|
Product colour |
Silver |
|
Maximum operating distance |
30 m |
|
Rack mounting |
Yes |
|
Bandwidth |
200 MHz |
|
Maximum resolution |
1920 x 1200 pixels |
|
Rack capacity |
1U |
|
Input impedance |
75 Ω |
|
Output impedance |
75 Ω |
|
Power |
|
Power consumption (typical) |
2.39 W |
|
Weight & dimensions |
|
Width |
130 mm |
|
Depth |
76.1 mm |
|
Height |
44 mm |
|
Weight |
470 g |
|
Packaging content |
|
User guide |
Yes |
|
Cables included |
VGA |
|
AC adapter included |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Technical details |
|
Compliance certificates |
RoHS |
