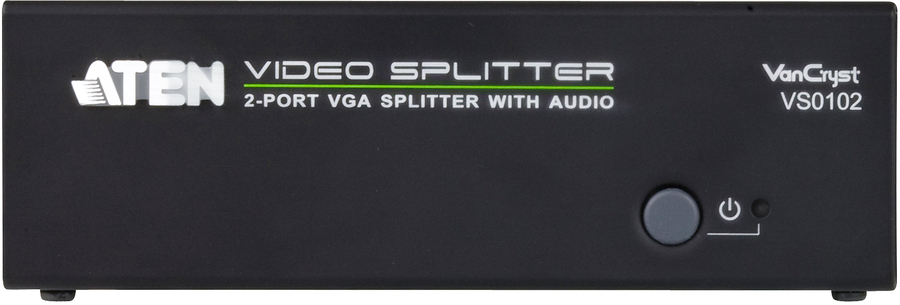

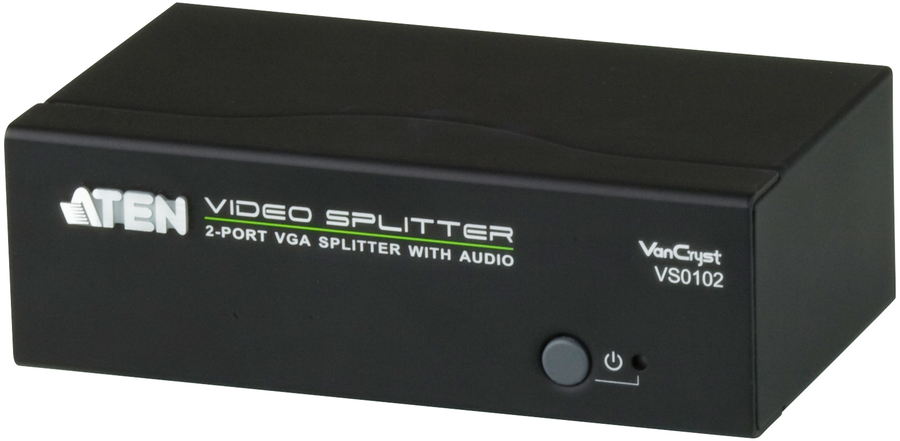

Aten VS0102 2-Port VGA/Audio Splitter
|
|
Price: $96.00
Manufacturer:
Aten
2-Port VGA/Audio Splitter (450MHz)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60177683
|
VS0102
|
4710423778856 |
Active
|
Details
|
General Information |
|
Summary |
2port VGA splitter with RS232 |
|

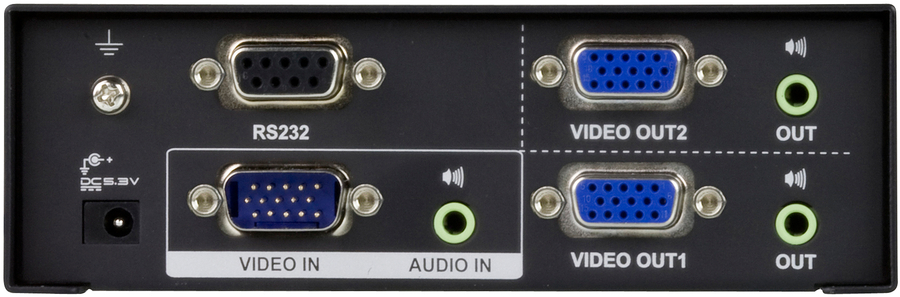

Ports & interfaces |
|
Video ports quantity |
3 |
|
Video port type |
VGA |
|
Video out |
2x VGA |
|
Audio ports quantity |
3 |
|
Serial ports quantity |
1 |
|
DC-in jack |
Yes |
|
Features |
|
Maximum resolution |
1920 x 1440 pixels |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Maximum operating distance |
30 m |
|
Maximum refresh rate |
60 Hz |
|
Bandwidth |
450 MHz |
|
Extended display identification data (EDID) |
Yes |
|
Plug and Play |
Yes |
|
Network |
|
Ethernet LAN |
No |
|
Power |
|
Output voltage |
5.3 V |
|
Power consumption (max) |
0.74 W |
|
Weight & dimensions |
|
Width |
76.1 mm |
|
Depth |
130 mm |
|
Height |
44 mm |
|
Weight |
460 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
