General Information |
|
Summary |

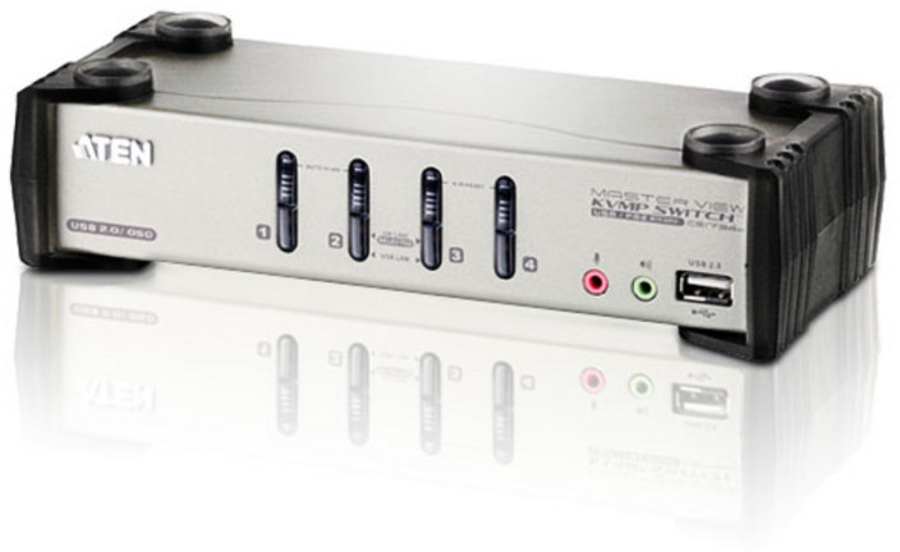

4Port USB2.0 KVMP Switch with Audio Support, Cables Included |
|
Ports & interfaces |
|
Number of computers controlled |
4 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|
Video port type |
VGA |
|
USB 2.0 Type-A hub ports quantity |
4 |
|
USB connector type |
USB Type-A |
|
Audio connections |
Yes |
|
Headphone outputs |
5 |
|
Number of microphone inputs |
5 |
|
Performance |
|
HD type |
2K Ultra HD |
|
Maximum resolution |
2048 x 1536 pixels |
|
Maximum digital resolution |
2048 x 1536 pixels |
|
Video bandwidth |
60 Hz |
|
Scan interval |
1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s |
|
Firmware upgradeable |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Black, Grey |
|
Housing material |
Metal |
|
Wired remote switch |
No |
|
LED indicators |
Activity, USB |
|
Display switch button |
Yes |
|
Hot keys |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
DC |
|
Output voltage |
5.3 V |
|
Power consumption (typical) |
3.4 W |
|
External power adapter |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
210 mm |
|
Depth |
88 mm |
|
Height |
55.5 mm |
|
Weight |
780 g |
|
Logistics data |
|
Harmonized System (HS) code |
85176200 |
|
