General Information |
|
Summary |
SUPREME AND QUIET COOLING

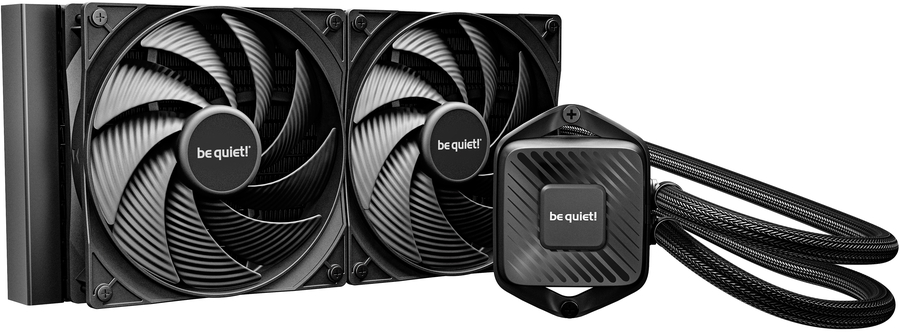

Pure Loop 3 280mm is the impressively high-performing and silent All-in-One water cooling unit for users with overclocked systems. |
|
Performance |
|
Suitable location |
Processor |
|
Type |
All-in-one liquid cooler |
|
Fan diameter |
14 cm |
|
Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
|
Compatible processor series |
AMD Ryzen 9000 Series, Intel® Core™ i9 |
|
Noise level (low speed) |
16.5 dB |
|
Noise level (high speed) |
36.6 dB |
|
Maximum airflow |
72.2 cfm |
|
Airflow |
122.6 m³/h |
|
Maximum air pressure |
2.44 mmH2O |
|
Pulse-width modulation (PWM) support |
Yes |
|
Pump connector |
4-pin |
|
Quantity per pack |
1 pc(s) |
|
Pump motor speed |
5500 RPM |
|
Pump motor speed (min) |
3000 RPM |
|
Pump motor speed (max) |
5500 RPM |
|

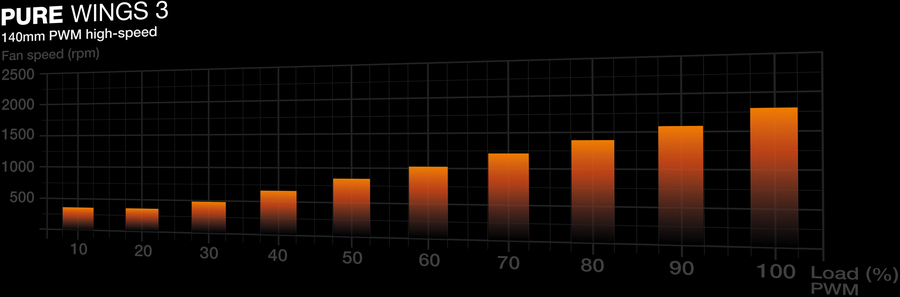

Fan speed (max) |
1800 RPM |
|
Fan's mean time to failure (MTTF) |
80000 h |
|
Design |
|
Product colour |
Black |
|

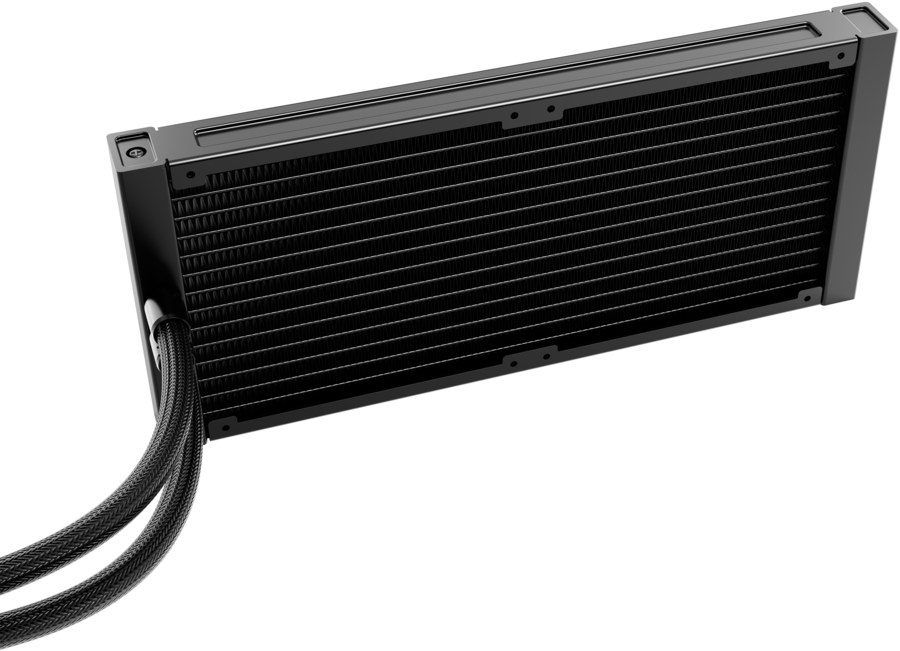

Radiator material |
Aluminum |
|
Base plate material |
Copper |
|
Number of fans |
2 fan(s) |
|
Number of fan blades |
9 |
|
Illumination LED |
No |
|
Daisy chain |
Yes |
|
Power |
|
Voltage |
12 V |
|
Fan power consumption |
5.4 W |
|
Maximum current |
0.45 A |
|
Fan current |
0.13 A |
|

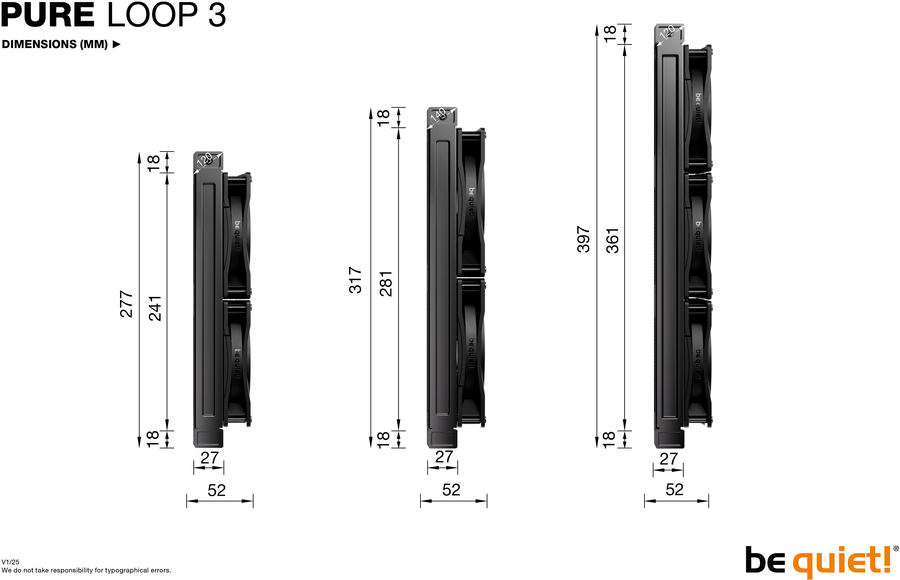

Weight & dimensions |
|
Radiator width |
14 cm |
|
Radiator depth |
5.2 cm |
|
Radiator height |
31.7 cm |
|
Tube length |
40 cm |
|
Waterblock width |
9.34 cm |
|
Waterblock depth |
4.49 cm |
|
Waterblock height |
6.85 cm |
|
Height |
52 mm |
|
Weight |
1.06 kg |
|
Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
|
Package width |
205 mm |
|
Package depth |
365 mm |
|
Package height |
152 mm |
|
Package weight |
1.95 kg |
|
Technical details |
|
Sustainability certificates |
Triman |
|
Doesn't contain |
Cadmium, Lead, Mercury |
|
Warranty period |
3 year(s) |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, UKCA |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|

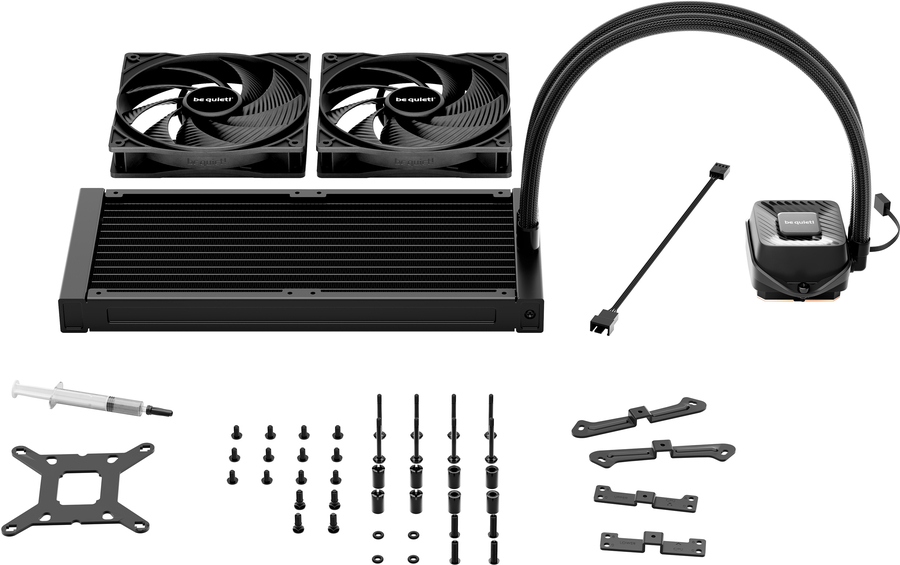

Packaging content |
|

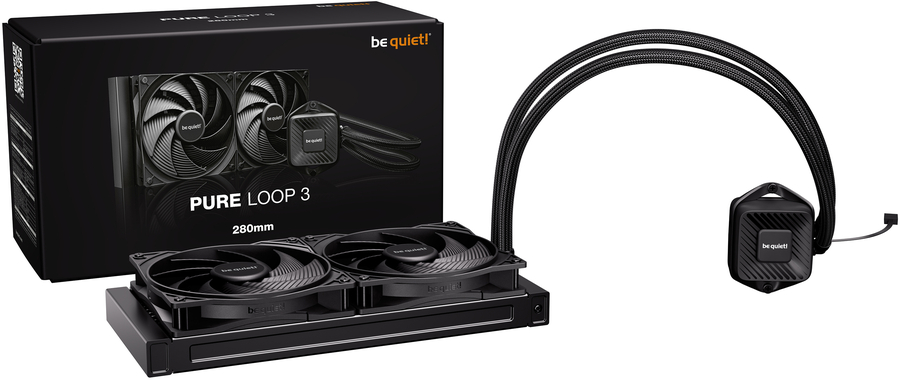

Package type |
Box |
|
Cables included |
4-pin |
|
Mounting kit |
Yes |
|
Manual |
Yes |
|
Other features |
|
Thermal grease |
Yes |
|
Logistics data |
|
Products per shipping (inner) case |
6 pc(s) |
|
Shipping (inner) case width |
38 cm |
|
Shipping (inner) case length |
47.6 cm |
|
Shipping (inner) case height |
43.8 cm |
|
Shipping (inner) case gross weight |
13.1 kg |
