General Information |
|
Summary |

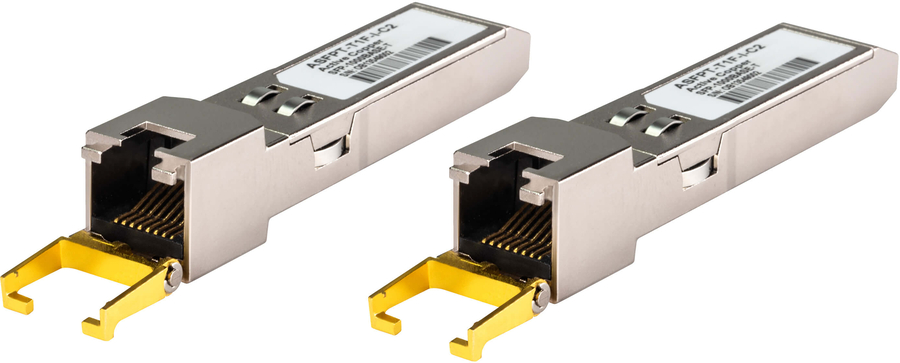

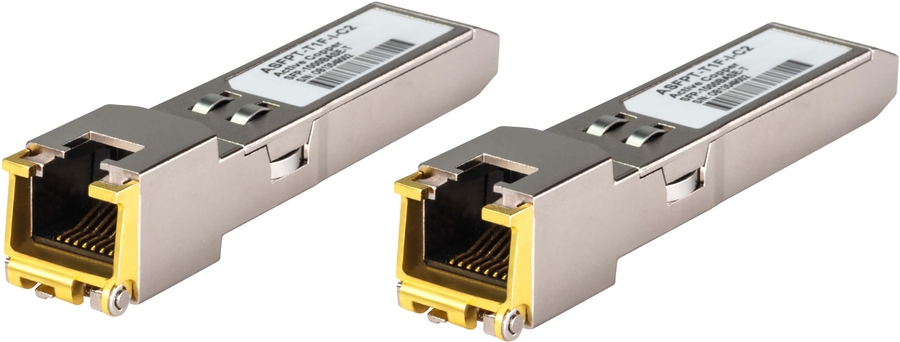

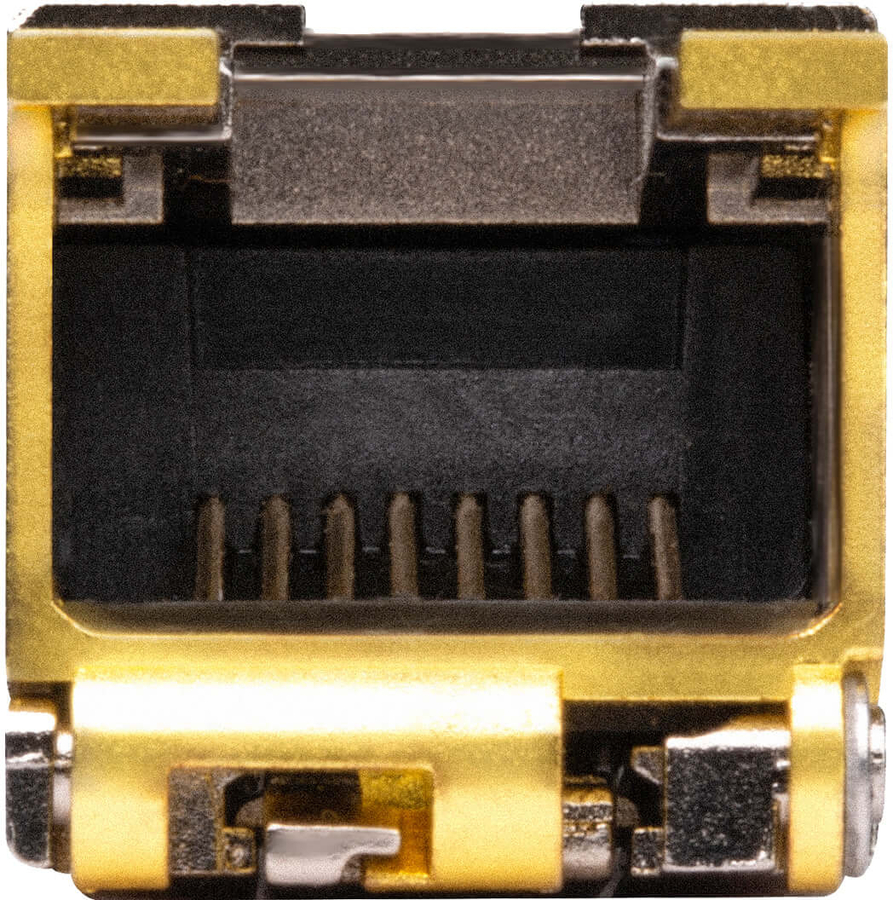

The 2A-143G 1Gb Ethernet Copper SFP Transceiver is designed for 1 Gigabit Ethernet environments, enabling standard Cat 5e/6/6a UTP copper cable connections through a network switch’s SFP port. Supporting transmission distances of up to 100 meters, the 2A-143G features a hot-pluggable form factor with a standard RJ-45 interface for flexible deployment in copper-based infrastructures. Compliant with IEEE 802.3ab specifications, it is a cost-effective, high-performance solution for extending Ethernet connectivity in environments where fiber is unavailable or unnecessary. It’s ideal for office environments or IT deployments that rely on existing copper infrastructure.
|
|
Performance |
|
SFP transceiver type |
Copper |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Interface type |
SFP |
|
Maximum transfer distance |
100 m |
|
Ethernet LAN |
Yes |
|
Networking standards |
IEEE 802.3ab |
|
Copper ethernet cabling technology |
1GBASE |
|
Features |
|
Product colour |
Metallic |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 85 °C |
|
Storage temperature (T-T) |
-45 - 90 °C |
|
Weight & dimensions |
|
Width |
12 mm |
|
Depth |
68.5 mm |
|
Height |
13.8 mm |
|
Weight |
20 g |
|
Logistics data |
|
Customs product code (TARIC) |
90309000 |
|
Country of origin |
Taiwan |
