General Information |
|
Summary |

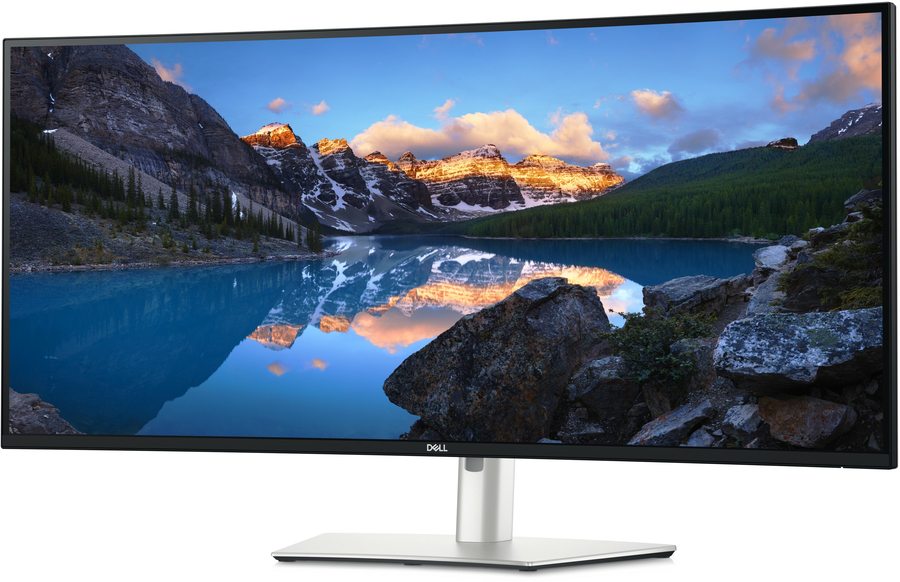

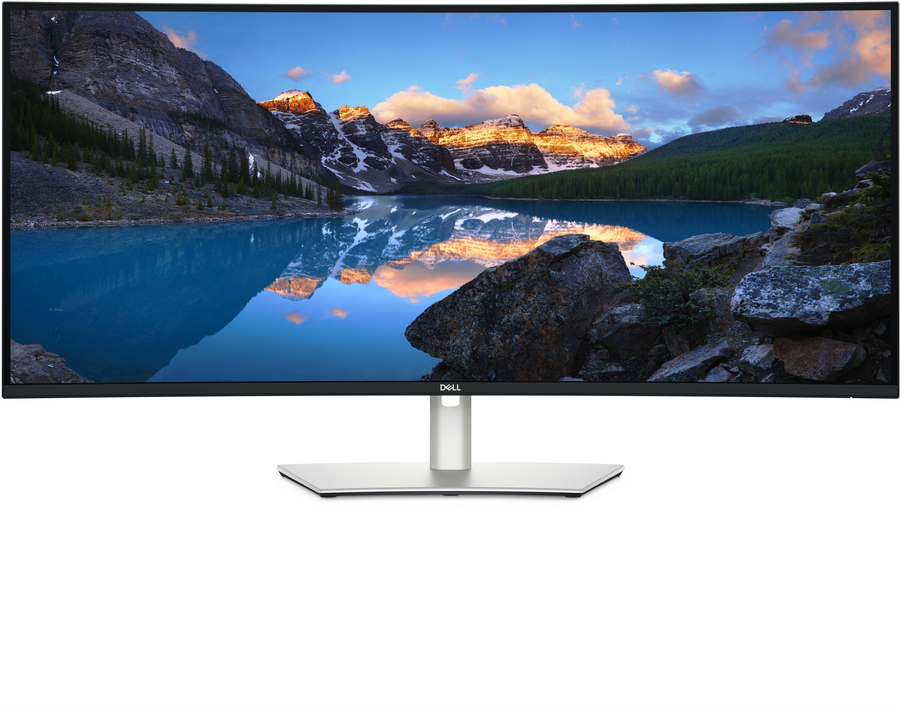

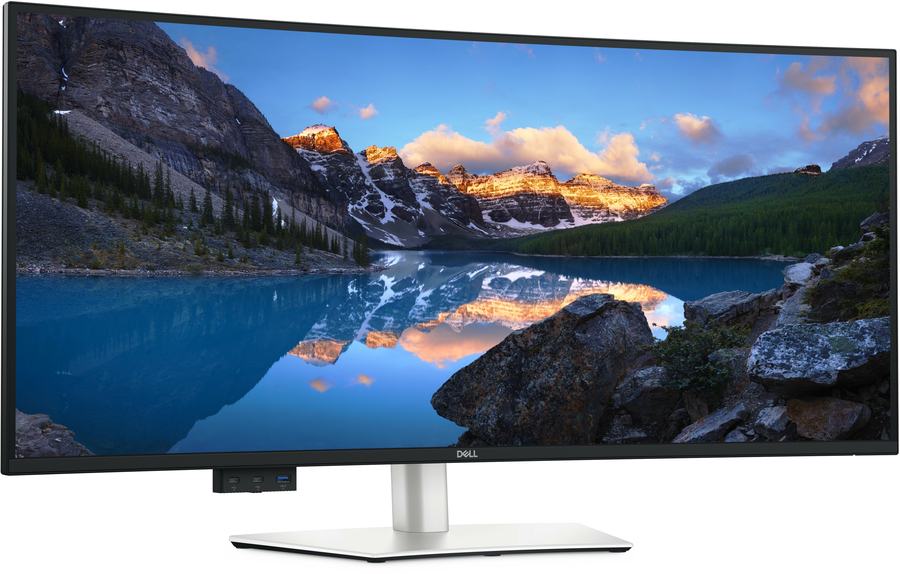

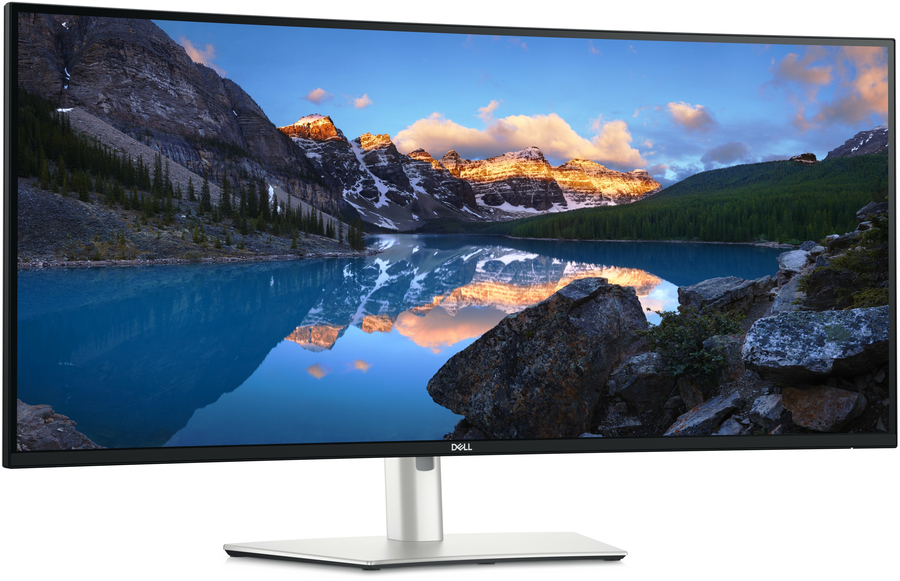

Dell UltraSharp 40 Curved Thunderbolt Hub Monitor |
|
Display |
|
Display diagonal |
101.6 cm (40") |
|
Display resolution |
5120 x 2160 pixels |
|
Native aspect ratio |
21:9 |
|
Display technology |
LCD |
|
Touchscreen |
No |
|
HD type |
5K Ultra HD |
|
Panel type |
IPS |
|
Response time |
8 ms |
|
Screen shape |
Curved |
|
Contrast ratio (typical) |
2000:1 |
|
Maximum refresh rate |
120 Hz |
|
Display number of colours |
1.07 billion colours |
|
Backlight type |
LED |
|
Display brightness (peak) |
600 cd/m² |
|
Display brightness (typical) |
450 cd/m² |
|
Anti-glare screen |
Yes |
|
Screen curvature rating |
2500R |
|
Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800, 1600 x 1200, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2048 x 1280, 2560 x 1080, 3840 x 2160, 4096 x 2160, 5120 x 2160 |
|
Supported video modes |
480p, 720p, 1080p |
|
Viewing angle, horizontal |
178° |
|
Viewing angle, vertical |
178° |
|
Response time (fast) |
5 ms |
|
Pixel pitch |
0.1815 x 0.1815 mm |
|
Pixel density |
140 ppi |
|
Horizontal scan range |
25 - 280 kHz |
|
Vertical scan range |
48 - 120 Hz |
|
Viewable size, horizontal |
92.9 cm |
|
Viewable size, vertical |
39.2 cm |
|
Viewable size diagonal |
100.9 cm |
|
High Dynamic Range (HDR) supported |
Yes |
|
Surface hardness |
3H |
|
Colour gamut standard |
DCI-P3 |
|
Colour gamut |
99% |
|
sRGB coverage (typical) |
100% |
|
Dual ambient light sensor |
Yes |
|
Dell ComfortView technology |
Yes |
|
Heat dissipation |
134.8 BTU/h |
|
Performance |
|
AMD FreeSync |
No |
|
Flicker-free technology |
Yes |
|
Low Blue Light technology |
Yes |
|
Windows operating systems supported |
Windows 10, Yes |
|
Mac operating systems supported |
MacOS |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
Built-in camera |
No |
|
Number of speakers |
2 |
|
RMS rated power |
18 W |
|
Design |
|
Product colour |
Silver |
|
Front bezel colour |
Black |
|
Feet colour |
Silver |
|

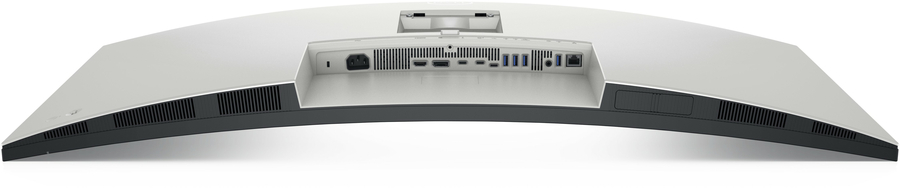

Ports & interfaces |
|

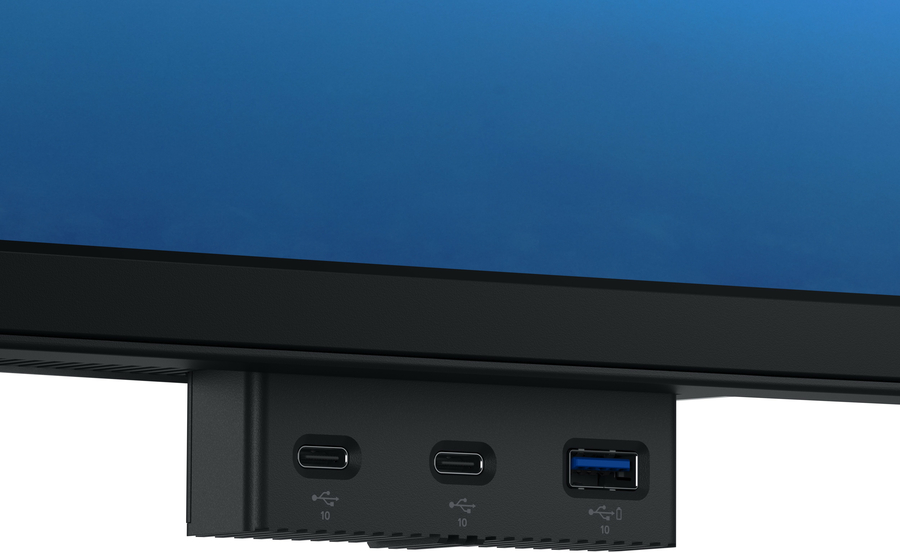

Built-in USB hub |
Yes |
|
HDMI |
Yes |
|
Headphone out |
No |
|
Number of USB Type-C upstream ports quantity |
2 |
|
USB Type-A downstream ports quantity |
5 |
|
USB Type-C downstream ports quantity |
3 |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery up to |
140 W |
|
HDMI ports quantity |
1 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Thunderbolt 4 ports quantity |
2 |
|
Audio output |
Yes |
|
Built-in KVM switch |
Yes |
|
HDCP |
Yes |
|
HDCP version |
1.4/2.3 |
|
DC-in jack |
Yes |
|

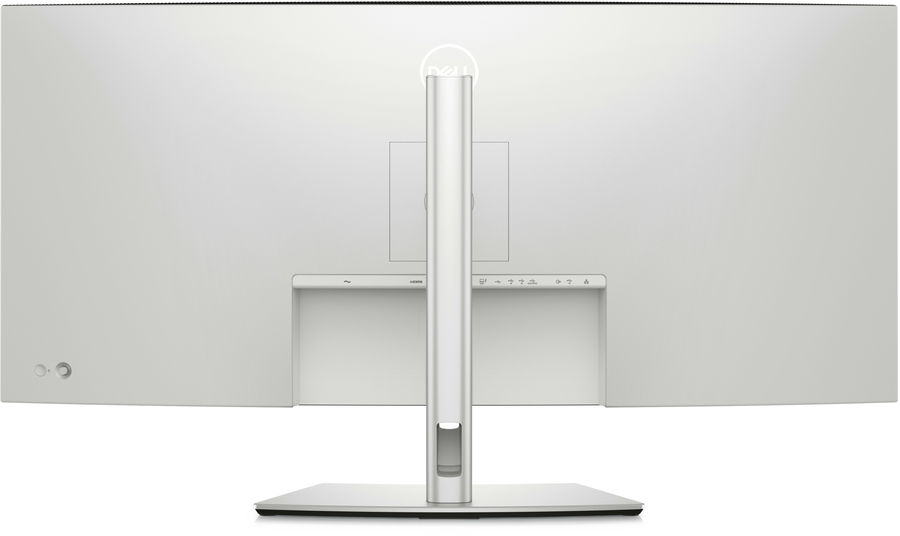

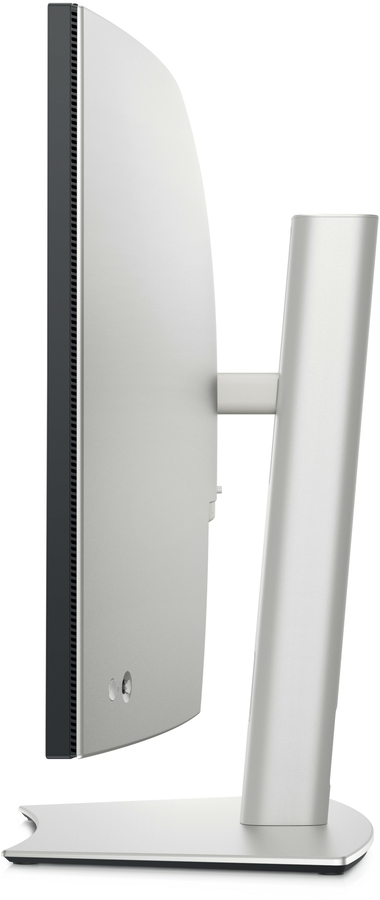

Ergonomics |
|
VESA mounting |
Yes |
|
Cable lock slot |
Yes |
|
Height adjustment |
Yes |
|
Panel mounting interface |
100 x 100 mm |
|
Cable management |
Yes |
|
Cable lock slot type |
Kensington |
|

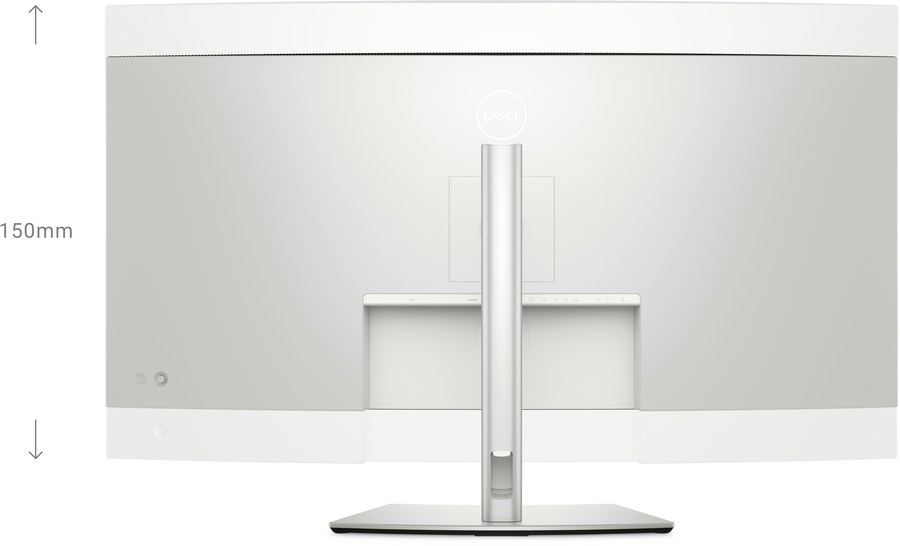

Adjustable height (max) |
15 cm |
|
Swivelling |
Yes |
|

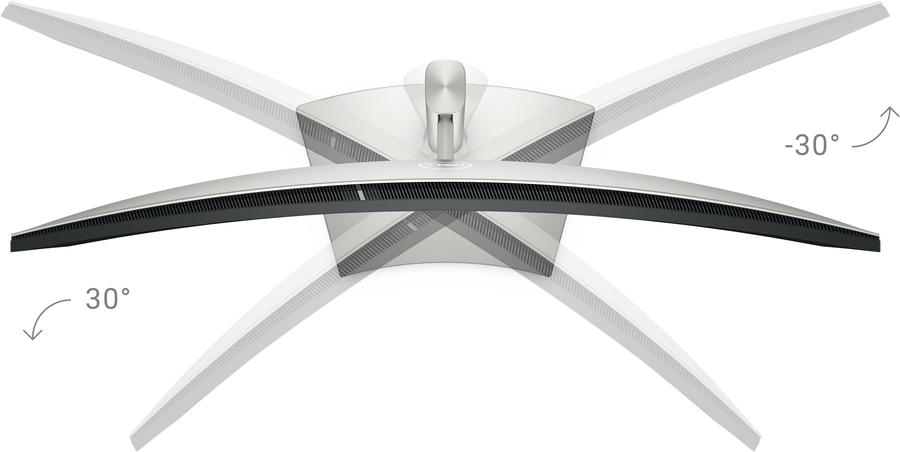

Swivel angle range |
-30 - 30° |
|
Tilt adjustment |
Yes |
|

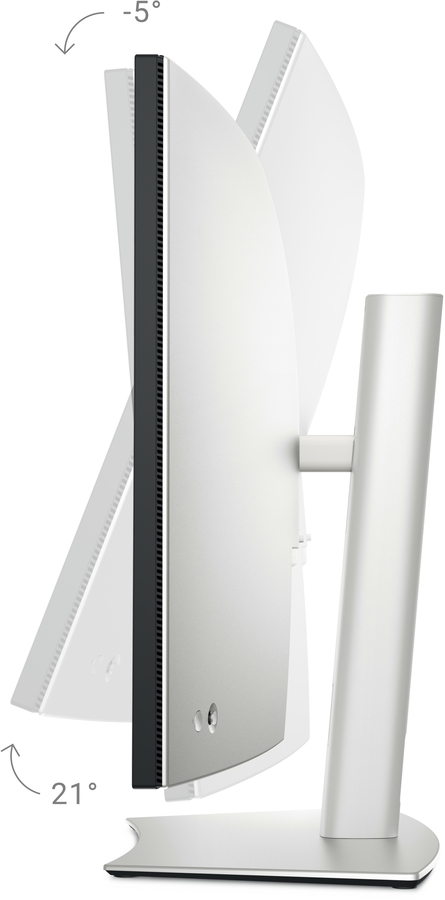

Tilt angle range |
-5 - 21° |
|
Picture-in-Picture |
Yes |
|
On Screen Display (OSD) |
Yes |
|
Plug and Play |
Yes |
|
LED indicators |
Yes |
|
Power |
|
Energy efficiency class (SDR) |
F |
|
Energy efficiency class (HDR) |
G |
|
Energy consumption (SDR) per 1000 hours |
40 kWh |
|
Energy consumption (HDR) per 1000 hours |
62 kWh |
|
Power consumption (typical) |
39.5 W |
|
Power consumption (standby) |
0.4 W |
|
Power consumption (max) |
380 W |
|
Power consumption (off) |
0.3 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Input current |
4.2 A |
|
Power supply type |
Internal |
|
Energy efficiency scale |
A to G |
|
European Product Registry for Energy Labelling (EPREL) code |
1821612 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 80% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Operating altitude |
0 - 5000 m |
|
Non-operating altitude |
0 - 12192 m |
|
Weight & dimensions |
|
Width (with stand) |
946.6 mm |
|
Depth (with stand) |
252.8 mm |
|
Height (with stand) |
472.3 mm |
|
Weight (with stand) |
11.7 kg |
|
Width (without stand) |
946.6 mm |
|
Depth (without stand) |
108 mm |
|
Height (without stand) |
419.1 mm |
|
Weight (without stand) |
8.35 kg |
|
Bezel width (side) |
1.13 cm |
|
Bezel width (top) |
1.13 cm |
|
Bezel width (bottom) |
1.58 cm |
|
Packaging data |
|
Package weight |
19 kg |
|
USB cable length |
1 m |
|
Packaging content |
|
Stand included |
Yes |
|
Cables included |
AC, DisplayPort, HDMI, Thunderbolt, USB Type-A to USB Type-C |
|
Quick start guide |
Yes |
|
DisplayPort cable length |
1.8 m |
|
HDMI cable length |
1.8 m |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR, TCO |
|
Doesn't contain |
PVC/BFR |
|
Carbon footprint |
|
Total carbon footprint (kg of CO2e) |
480 |
|
Carbon emissions, manufacturing (kg of CO2e) |
196.8 |
|
Carbon emissions, logistics (kg of CO2e) |
35.52 |
|
Carbon emissions, energy usage (kg of CO2e) |
192.48 |
|
Carbon emissions, end-of-life (kg of CO2e) |
55.2 |
|
PAIA version |
GaBi version 1, 2024 |
|
Other features |
|
Picture-by-Picture (PbP) |
Yes |
|
Heavy metals free |
Hg (mercury) |
|
Automatic brightness control |
Yes |
|
Compliance certificates |
RoHS |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Brand-specific features |
|
Dell Display Manager (DDM) compatibility |
Yes |
