Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1851 (Socket V1) |
|
Compatible processor series |
Intel Core Ultra (Series 2) |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
64 GB |
|
Memory slots type |
DIMM |
|
Memory slot pin count |
288 |
|
Memory voltage |
1.1 V |
|
ECC сompatibility |
ECC & Non-ECC |
|
Supported memory clock speeds |
4400,4800,5600 MHz |
|
Storage controllers |
|
Supported storage drive interfaces |
SATA III |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
On-board graphics card |
Yes |
|
Graphics card family |
ASPEED |
|
Graphics card |
AST2600 |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
|
Number of SATA III connectors |
8 |
|
TPM connector |
Yes |
|

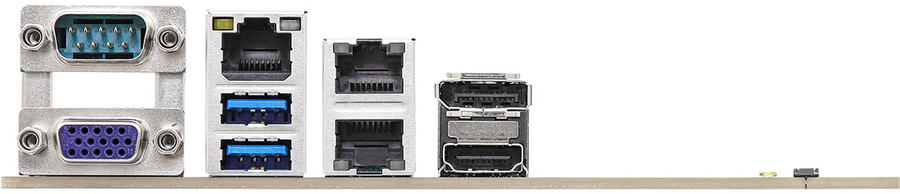

Rear panel I/O ports |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
IPMI LAN (RJ-45) port |
Yes |
|
DisplayPorts quantity |
1 |
|
Serial ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
LAN controller |
Intel I210 |
|
Features |
|
Component for |
Server |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel W880 |
|
Expansion slots |
|
PCI Express x16 (Gen 5.x) slots |
1 |
|
BIOS |
|
BIOS type |
AMI |
|
ACPI version |
6.4 |
|
System Management BIOS (SMBIOS) version |
2.3 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Operating relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
243.8 mm |
|
Depth |
243.8 mm |
