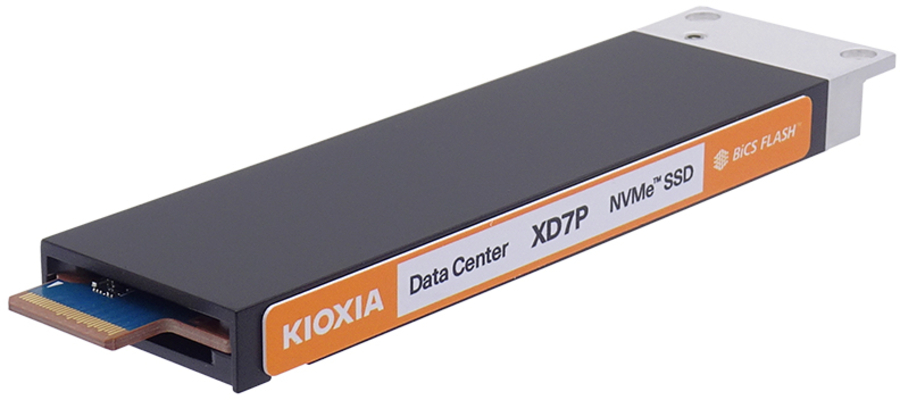

Kioxia KXDZDRJ93T84 3840GB E1.S 15mm PCIe XD7P SED 1DWPD Bare SSD
|
|
Regularly: $1006.00
On Sale: $975.82
Sale Ends:
November 16th, 2025
Manufacturer:
Kioxia
3840 GB, E1.S, PCIe 5.0, NVMe 2.0, BiCS FLASH TLC, 7200 MB/s, 20 W
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60225613
|
KXDZDRJ93T84
|
- |
Active
|
Details
|
General Information |
|
Summary |

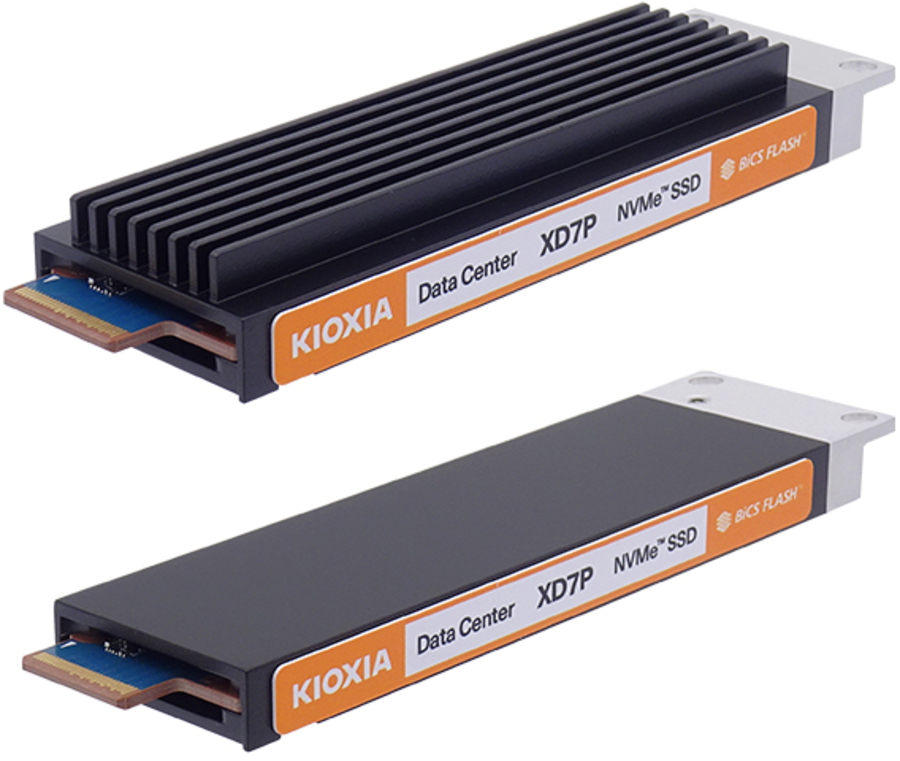

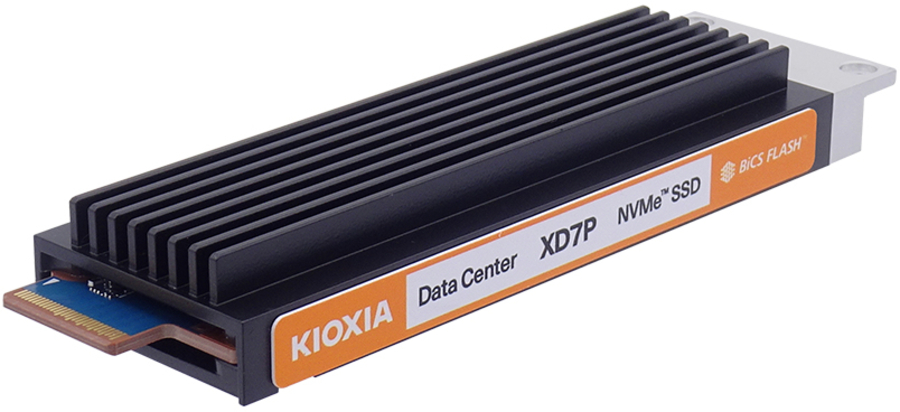

KIOXIA XD7P Series E1.S SSDs are designed to the Enterprise and Datacenter Standard Form Factor (EDSFF) E1.S specification to address the specific requirements of hyperscale applications, including the performance, power and thermal requirements of the Open Compute Project (OCP) Datacenter NVMe™ SSD Specification. In addition to 9.5 mm thickness E1.S, 15 mm thickness E1.S with the heatsink is also supported. Designed to optimize system density and efficiency, the XD7P Series SSDs represent the future of flash storage for servers and storage systems in cloud and hyperscale data centers, and support storage capacities up to 7.68 TB. |
|
Features |
|
SSD capacity |
3.84 TB |
|
SSD form factor |
E1.S |
|
Interface |
PCI Express 5.0 |
|
NVMe |
Yes |
|
Memory type |
BiCS FLASH TLC |
|
Component for |
PC |
|
Hardware encryption |
Yes |
|
NVMe version |
2.0 |
|
Data transfer rate |
64 Gbit/s |
|
Random read (4KB) |
1650000 IOPS |
|
Random write (4KB) |
180000 IOPS |
|
Sequential read speed (ATTO) |
7200 MB/s |
|
Sequential write speed (ATTO) |
4800 MB/s |
|
Mean time between failures (MTBF) |
2000000 h |
|
Drive writes per day (DWPD) |
1 |
|
Power |
|
Power consumption (max) |
20 W |
|
Weight & dimensions |
|
Width |
33 mm |
|
Depth |
118 mm |
|
Height |
15 mm |
|
Weight |
90 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 75 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating vibration |
1.24 G |
|
Operating shock |
700 G |
|
