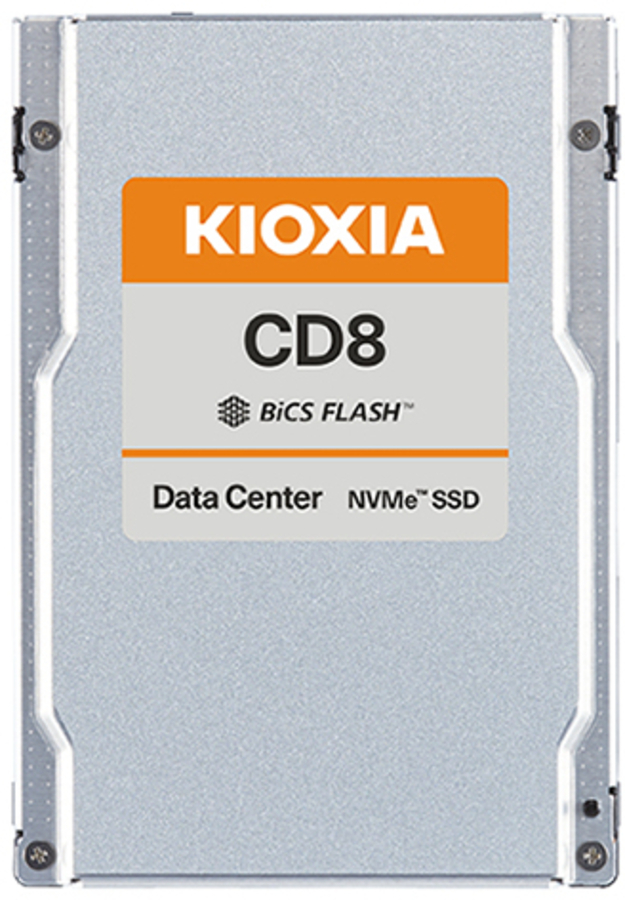

Kioxia KCD8DRUG1T92 1920GB 2.5-inch PCIe4 CD8-R 15mm 1DWPD SED Bare
|
|
Regularly: $585.00
On Sale: $567.45
Sale Ends:
November 16th, 2025
Manufacturer:
Kioxia
2,5", 1920 GB, PCIe 4.0, NVMe 1.4, BiCS FLASH TLC, 7200 MB/s read, 3500 MB/s write
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60225615
|
KCD8DRUG1T92
|
- |
Active
|
Details
|
General Information |
|
Summary |
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications. |
|
Features |
|
SSD capacity |
1.92 TB |
|
SSD form factor |
2.5" |
|
Interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
Memory type |
BiCS FLASH TLC |
|
Component for |
Server/workstation |
|
Hardware encryption |
Yes |
|
NVMe version |
1.4 |
|
Read speed |
7200 MB/s |
|
Write speed |
3500 MB/s |
|
Random read (4KB) |
1250000 IOPS |
|
Random write (4KB) |
150000 IOPS |
|
PCI Express interface data lanes |
x4 |
|
Mean time between failures (MTBF) |
2500000 h |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (max) |
13 W |
|
Weight & dimensions |
|
Width |
69.8 mm |
|
Depth |
100.5 mm |
|
Height |
15 mm |
|
Weight |
130 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 75 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Minimum operating temperature |
0 °C |
|
Maximum operating temperature |
75 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating vibration |
2.17 G |
|
Operating shock |
1000 G |
|
Other features |
|
Warranty period |
5 year(s) |
|
