General Information |
|
Summary |

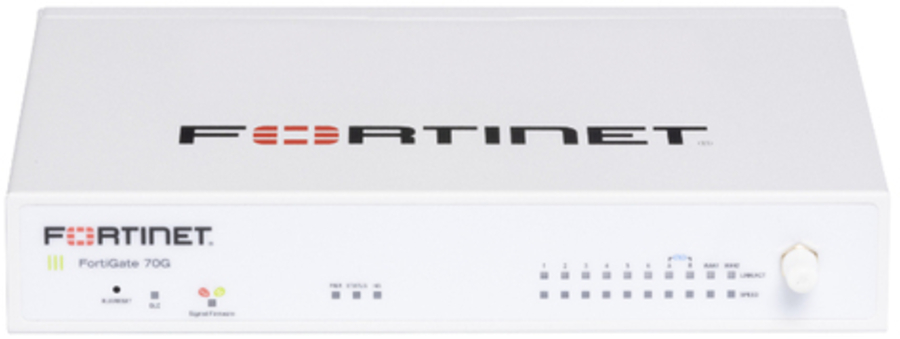

The FortiGate FortiWiFi 70G series integrate firewalling, SD‑WAN, and security in one appliance, making them perfect for building secure networks at distributed enterprise sites and transforming WAN architecture at any scale.
The 70G series runs on FortiOS, the industry’s first converged networking and security operating system. This single OS approach enables businesses to gain benefits of operational efficiency and unified protection from the seamless integration of Fortinet Solutions within a Hybrid Mesh Firewall architecture.
As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI‑Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 70G family is built on the patented SD‑WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70G family to optimize secure connections and deliver a robust user experience at branch locations. |
|
Data transmission |
|
Firewall throughput |
10 Gbit/s |
|
Firewall (UDP 1518) throughput |
10 Gbit/s |
|
IPS/IDS throughput |
2500 Mbit/s |
|
Threat protection throughput |
1300 Mbit/s |
|
SSL inspection throughput |
1400 Mbit/s |
|
Maximum firewall connections |
1400000 |
|
Maximum firewall connections per second |
100000 |
|
Firewall latency |
2.46 µs |
|
Default number of virtual firewalls |
10 |
|
Maximum number of virtual firewalls |
10 |
|
Network |
|
Networking standards |
IEEE 802.3at |
|
Management features |
|
LED indicators |
Yes |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
USB 2.0 ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
10 |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Console port |
RJ-45 |
|
WAN connection |
Ethernet (RJ-45) |
|
DC-in jack |
Yes |
|
Design |
|
Form factor |
Desktop |
|
Power |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50/60 Hz |
|
Input current |
0.4 A |
|
DC input voltage |
12 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-35 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
216 mm |
|
Depth |
160 mm |
|
Height |
40.5 mm |
|
Weight |
973 g |
