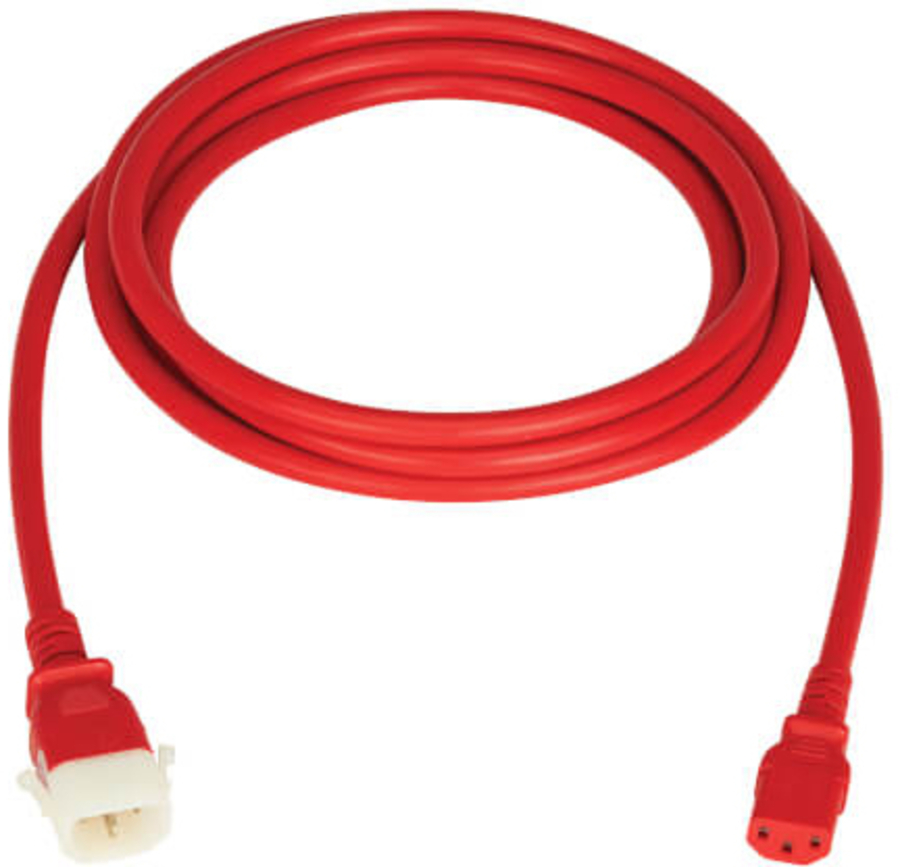

Tripp Lite P005-E10-ARD-6 10-foot C13 To P-Lock C14 Heavy Duty PDU Power Cord Red 6-pack
|
|
Regularly: $370.00
On Sale: $358.90
Sale Ends:
November 23rd, 2025
Manufacturer:
Tripp Lite
PDU Power Cords, C13 to P-Lock C14 - Heavy-Duty, 15A, 250V, 14 AWG, 10 ft. (3.1 m), Red, 6 Pack
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60308140
|
P005-E10-ARD-6
|
37332292858 |
Active
|
Details
|
General Information |
|
Summary |
Connect computers, servers or switches to a PDU with a P-Lock C13 or C39 power connector and extend existing power connections by 10 ft.

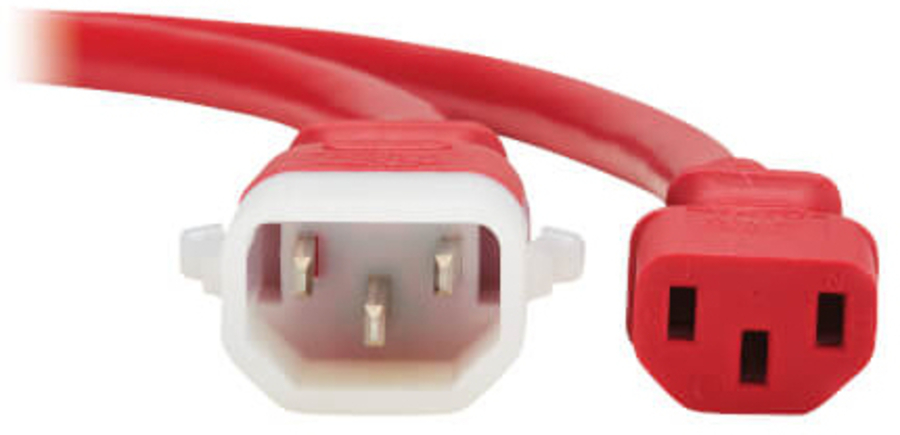

C13-to-C14 Power Cables for Network Devices That Require a Heavy-Gauge Connection
These power extension cords feature 14 AWG wire suitable for high power connections, making them a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. The P005-E10-ARD-6 can be used to power computers, servers, switches or other devices commonly found in a small data center, office workstation or other lower-amp application. The 10-foot (3.1-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU in a crowded rack enclosure. Six PDU power cables are included, an ideal pack for large-scale equipment rollouts.
Forms a Special Locking Connection with a P-Lock Outlet
The P-Lock C14 connector forms a secure connection with a PDU with a P-Lock outlet, including Eaton G4 and newer PDUs with C13 and C39 outlets. The P-Lock connection helps reduce costly downtime caused by accidental cable disconnections in a crowded rack or PDU space. The P005-E10-ARD-6 lets you replace a non-locking C14/C13 cable or upgrade an entire PDU application by pairing with an Eaton PDU or other PDU with P-Lock outlets.
Red Jackets Help Avoid Misidentification That Can Cause Costly Downtime
The UL-listed cables have a red PVC jacket with fully molded red ends, which is easy to identify quickly in a crowded PDU or UPS system and helps prevent the cables from becoming accidentally disconnected.
|
|
Features |
|
Product colour |
Red |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Cable length |
3.1 m |
|
Connector 1 |
C14 coupler |
|
Connector 2 |
C13 coupler |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector 1 lockable |
No |
|
Connector 2 lockable |
No |
|
Suitable for use in country/location |
North America |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
AWG wire size |
14 |
|
Cable type |
SJT |
|
Number of conductors |
3 |
|
Plug and Play |
Yes |
|
Power |
|
Input voltage |
250 V |
|
Input current |
15 A |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 70 °C |
|
Storage temperature (T-T) |
10 - 60 °C |
|
Operating relative humidity (H-H) |
35 - 85% |
|
Storage relative humidity (H-H) |
35 - 85% |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|
Compliance certificates |
UL, cUL |
|
Weight & dimensions |
|
Diameter |
9.3 mm |
|
Packaging data |
|
Quantity per pack |
6 pc(s) |
|
Package width |
360 mm |
|
Package depth |
12.7 mm |
|
Package height |
460 mm |
|
