StarTech 2030B8H-RACK-PDU-IC 20-outlet 1U Rackmount PDU
|
|
Regularly: $349.00
On Sale: $338.53
Sale Ends:
November 23rd, 2025
Manufacturer:
StarTech
StarTech.com 20-Outlet Rackmount PDU, 1U Server Power Strip, 8x Front and 12x Rear Ports, Mounted Power Distribution Unit
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60308157
|
2030B8H-RACK-PDU-IC
|
65030920919 |
Active
|
Details
|
General Information |
|
Summary |
Add twenty power outlets to a 19in server rack or cabinet
Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U 20-port rackmount PDU features IEC C13 and IEC C19 outlets, built-in circuit breakers, and versatile mounting options, making it a dependable power backbone for critical deployments.

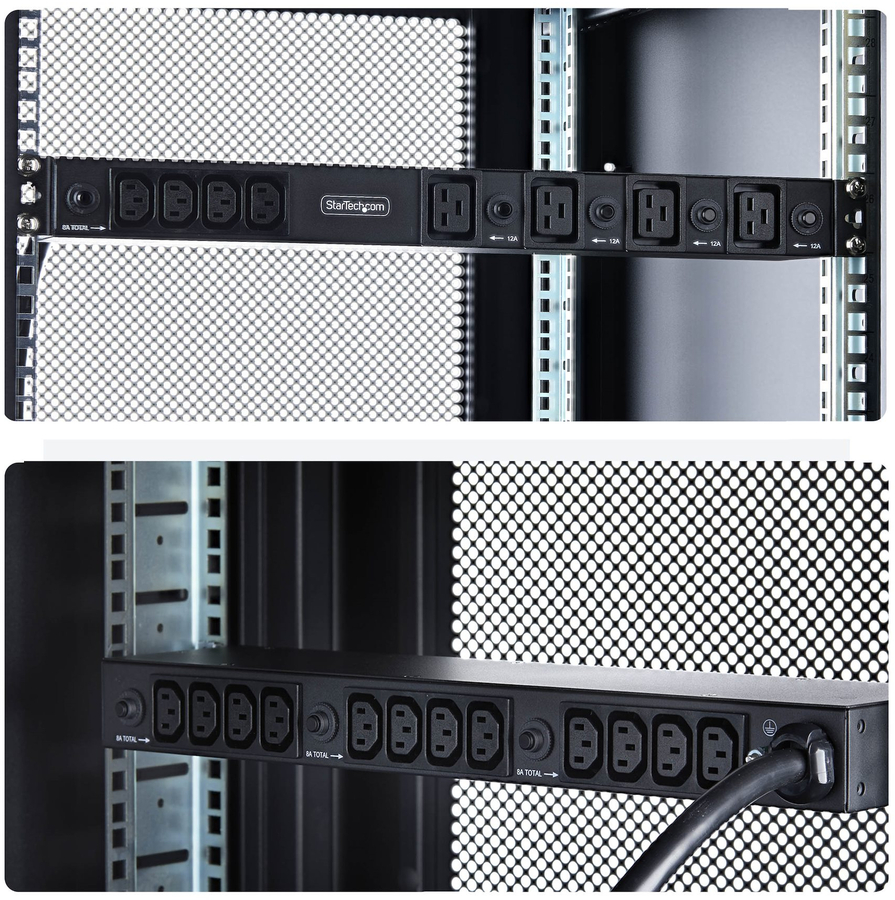

Maximize Connectivity in High-Density Racks

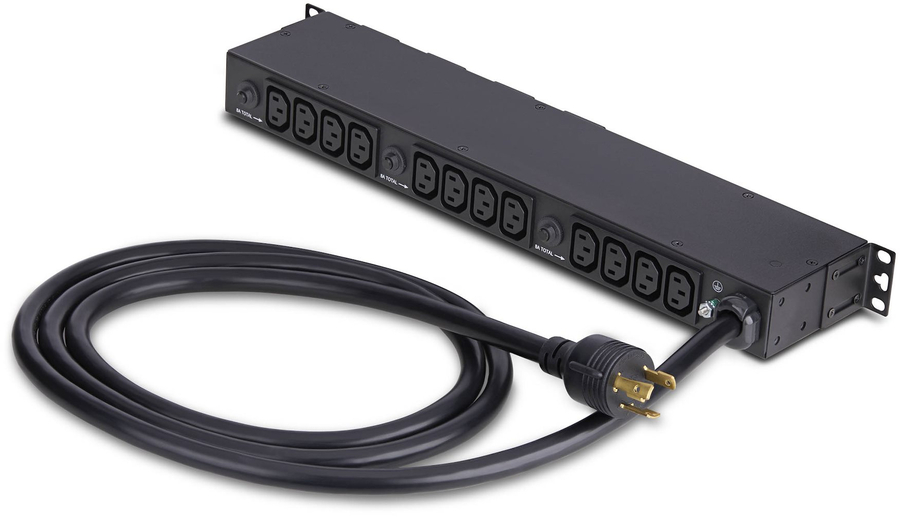

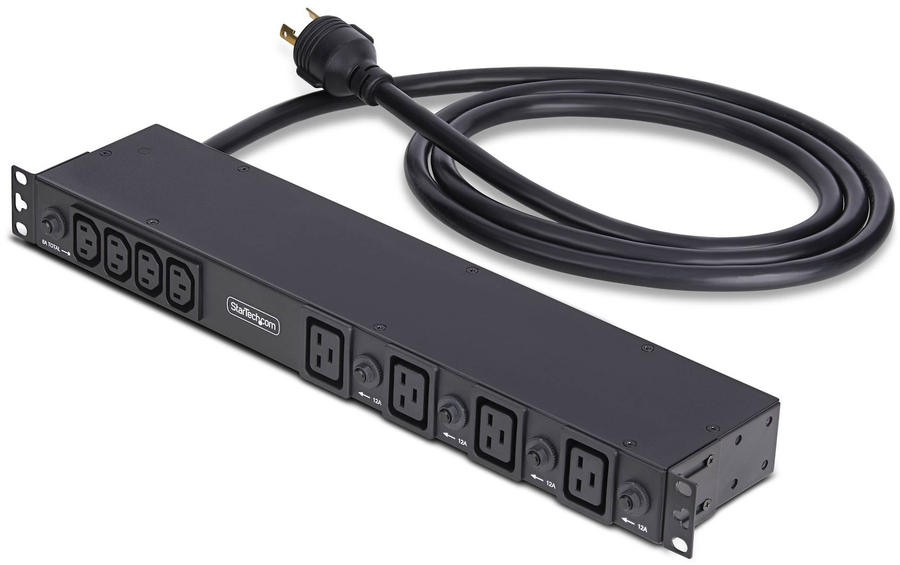

Designed for dense IT and AV environments, this unit powers up to 20 devices through 16 IEC C13 outlets (4x front / 12x rear) and 4x IEC C19 outlets (front). The built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Built-In Circuit Protection for Critical Hardware
User-resettable 15A breakers safeguard each IEC C19 outlet individually and every group of four IEC C13 outlets. If the total current draw exceeds safe operating limits, the integrated circuit breakers automatically cut power to prevent damage to the equipment.

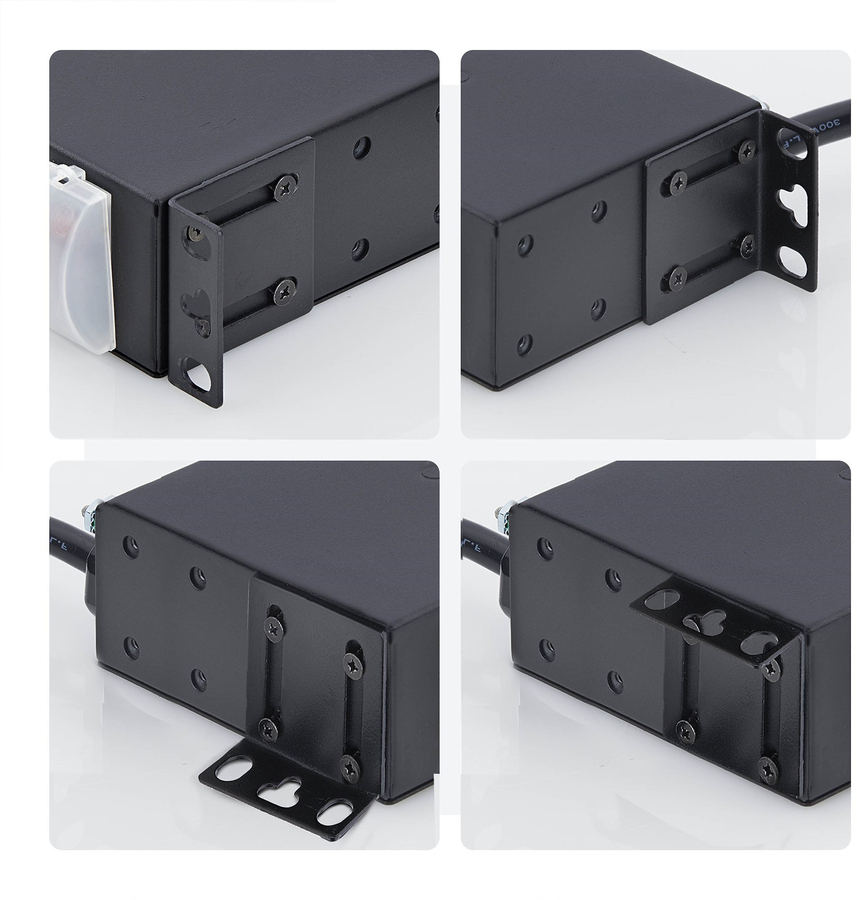

Flexible Mounting

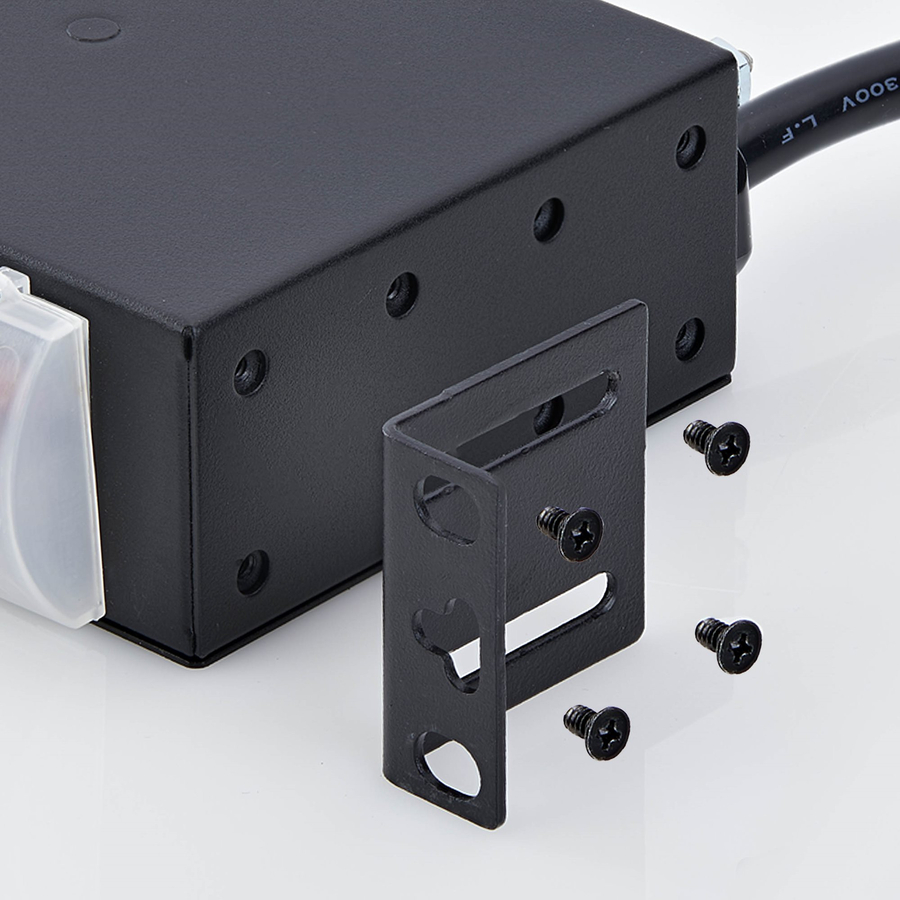

Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations. |
|
Design |
|
PDU types |
Basic |
|
Rack capacity |
1U |
|
Housing material |
Steel |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
20 AC outlet(s) |
|
AC outlet types |
C13 coupler, C19 coupler |
|
Features |
|
Cable length |
2.4 m |
|
Power |
|
Nominal input voltage |
40V |
|
Circuit breaker |
Yes |
|
Weight & dimensions |
|
Width |
43.3 mm |
|
Depth |
500 mm |
|
Height |
95.2 mm |
|
Weight |
3.34 kg |
|
Packaging content |
|
Manual |
Yes |
|
Screws included |
Yes |
|
Number of screws |
4 |
|
Screw nuts included |
Yes |
|
Number of screw nuts |
4 |
|
Rack mount kit |
Yes |
|
Packaging data |
|
Package weight |
3.6 kg |
|
Package width |
511 mm |
|
Package depth |
281 mm |
|
Package height |
76 mm |
|
Logistics data |
|
Master (outer) case width |
528 mm |
|
Master (outer) case length |
500 mm |
|
Master (outer) case height |
299 mm |
|
Products per master (outer) case |
6 pc(s) |
|
