StarTech 1215B8H-RACK-PDU-RA 12-outlet 1U Rackmount PDU
|
|
Regularly: $125.00
On Sale: $121.25
Sale Ends:
November 23rd, 2025
Manufacturer:
StarTech

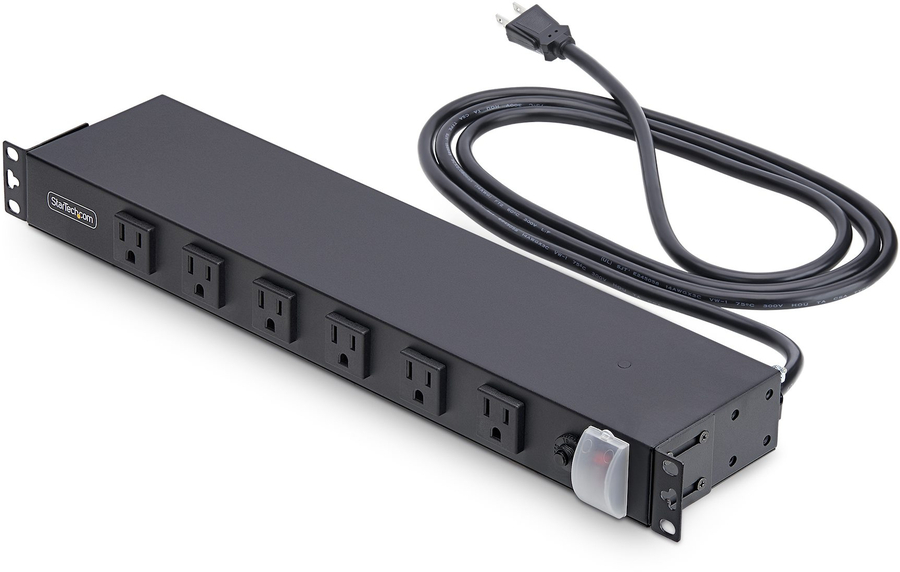

StarTech.com 12-Outlet Rackmount PDU, 1U Server Power Strip, Wide-Spaced Right-Angle Ports, Mounted Power Distribution Unit
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60308158
|
1215B8H-RACK-PDU-RA
|
65030920940 |
Active
|
Details
|
General Information |
|
Summary |
Add twelve power outlets to a 19in server rack or cabinet
Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U rackmount PDU features 12 NEMA 5-15 right-angle outlets with generous spacing for oversized adapters, a built-in circuit breaker, and versatile mounting options, making it a dependable power backbone for critical deployments.
Maximize Connectivity in High-Density Racks

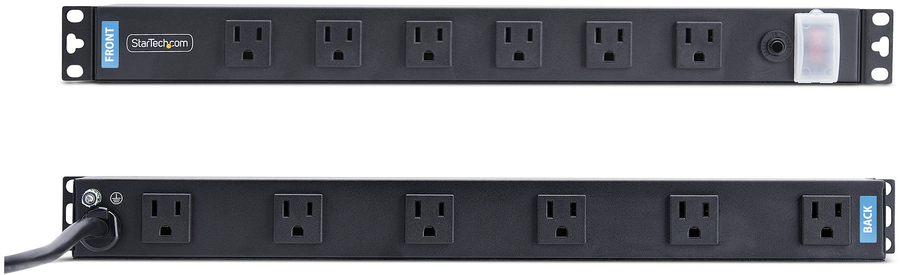

Designed for dense IT and AV environments this unit powers up to 12 devices through 6x front and 6x rear-facing NEMA 5-15 outlets. The right-angle ports create a 2-inch (5.1cm) spacing between outlets letting you accommodate oversized plugs without blocking neighboring outlets.
Built-in circuit Protection for Critical Hardware

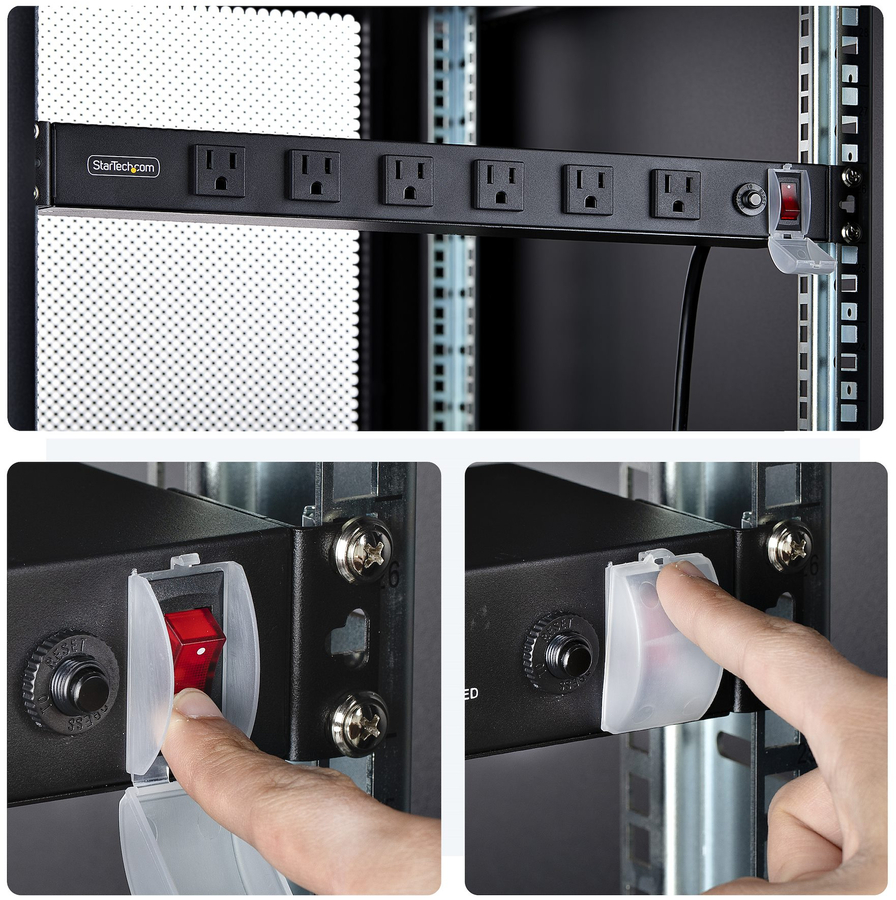

The integrated 15A circuit breaker helps protect connected equipment by automatically cutting power if the total current draw exceeds safe operating limits. The illuminated power switch makes it easy to verify power status at-a-glance, even in dimly lit environments, and has a protective cover to help prevent accidental shutdowns during day-to-day tasks around the connected equipment.
Flexible Mounting

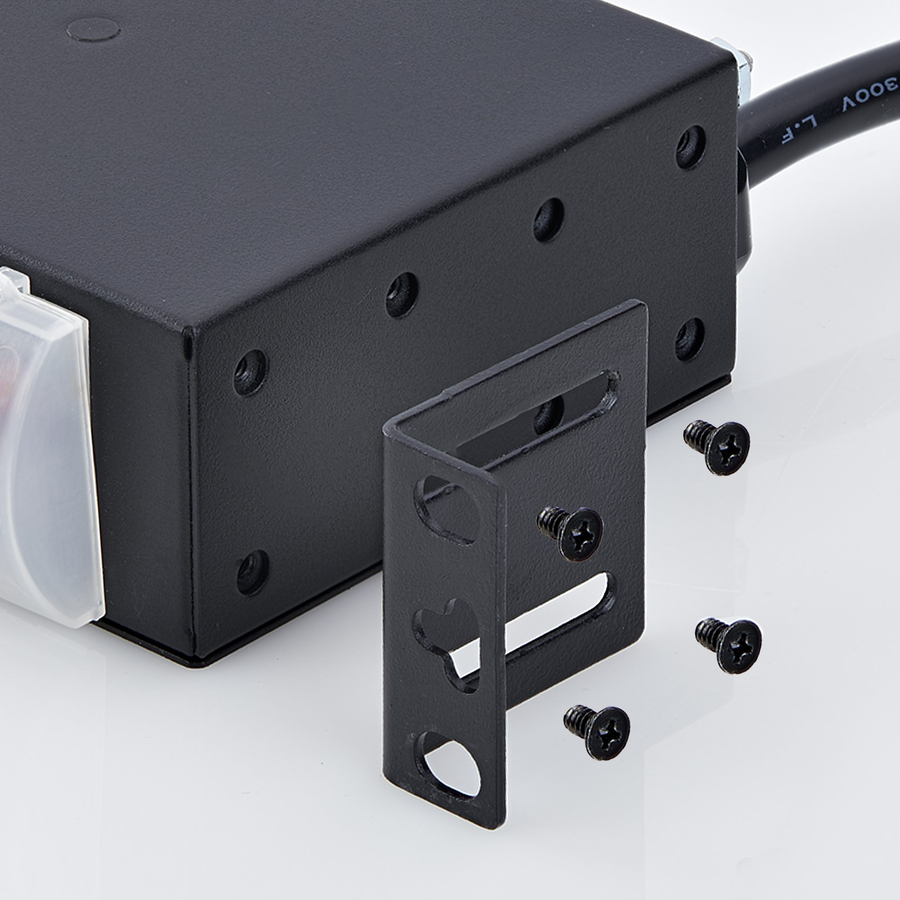

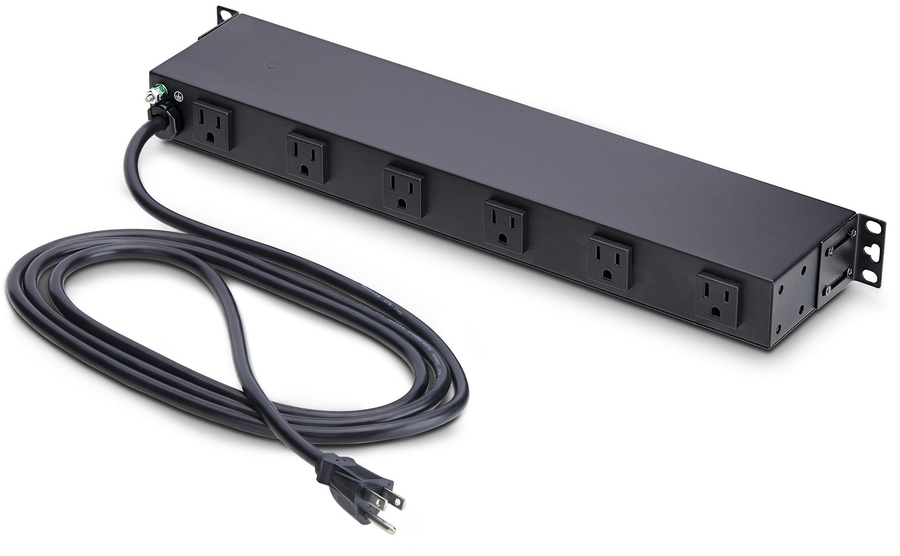

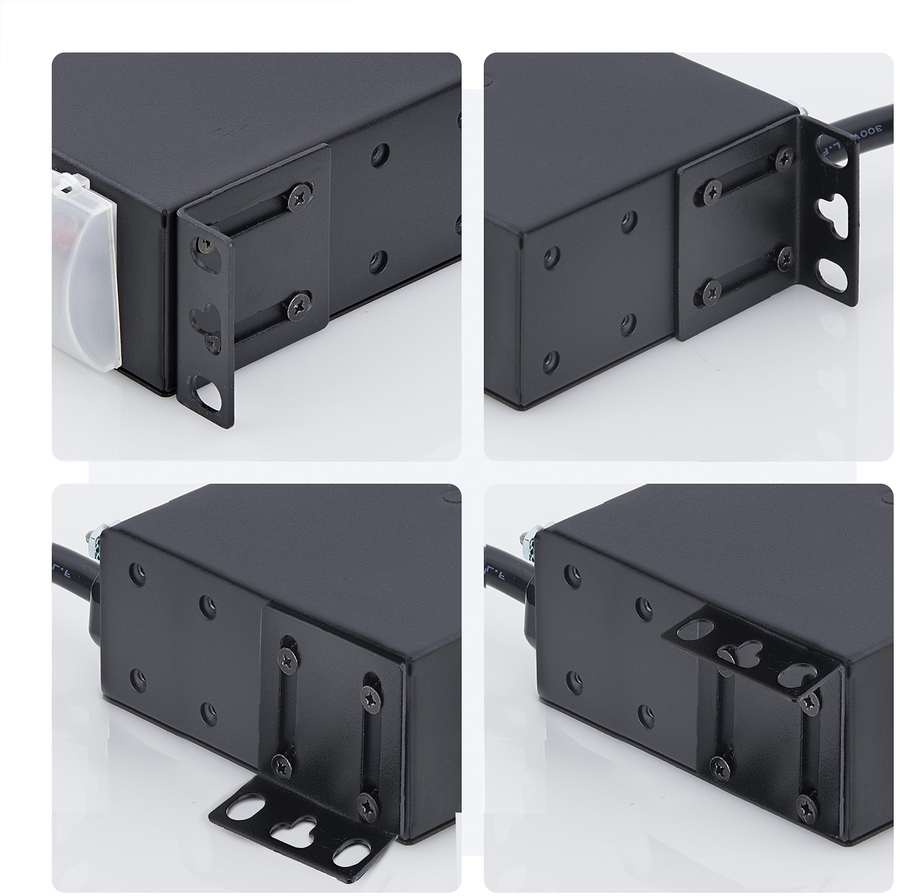

Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations. |
|
Design |
|
PDU types |
Basic |
|
Rack capacity |
1U |
|
Housing material |
Steel |
|
Product colour |
Black |
|
On/off switch |
Yes |
|
Ports & interfaces |
|
AC outlets quantity |
12 AC outlet(s) |
|
AC outlet types |
NEMA 5-15R |
|
Power plug |
NEMA 5-15P |
|
Features |
|
Cable length |
2.4 m |
|
Power |
|
Nominal input voltage |
120 V |
|
Maximum current |
15 A |
|
Nominal output voltage |
120 V |
|
Output voltage |
125 V |
|
Load capacity |
1500 VA |
|
Maximum total current draw per phase |
15 A |
|
Circuit breaker |
Yes |
|
Certificates |
|
Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
|
Weight & dimensions |
|
Width |
95.2 mm |
|
Depth |
477.2 mm |
|
Height |
43.3 mm |
|
Weight |
1.62 kg |
|

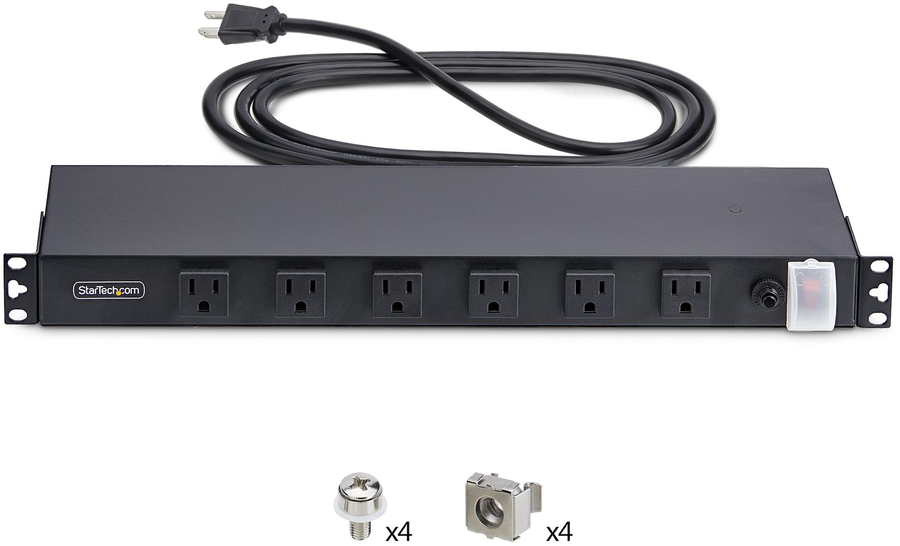

Packaging content |
|
Manual |
Yes |
|
Screws included |
Yes |
|
Number of screws |
4 |
|
Screw nuts included |
Yes |
|
Number of screw nuts |
4 |
|
Rack mount kit |
Yes |
|
Packaging data |
|
Package weight |
2.1 kg |
|
Package width |
515 mm |
|
Package depth |
235 mm |
|
Package height |
52 mm |
|
Logistics data |
|
Master (outer) case width |
528 mm |
|
Master (outer) case length |
350 mm |
|
Master (outer) case height |
250 mm |
|
Products per master (outer) case |
6 pc(s) |
|
