General Information |
|
Summary |
Precision, Clarity, Enduring Performance

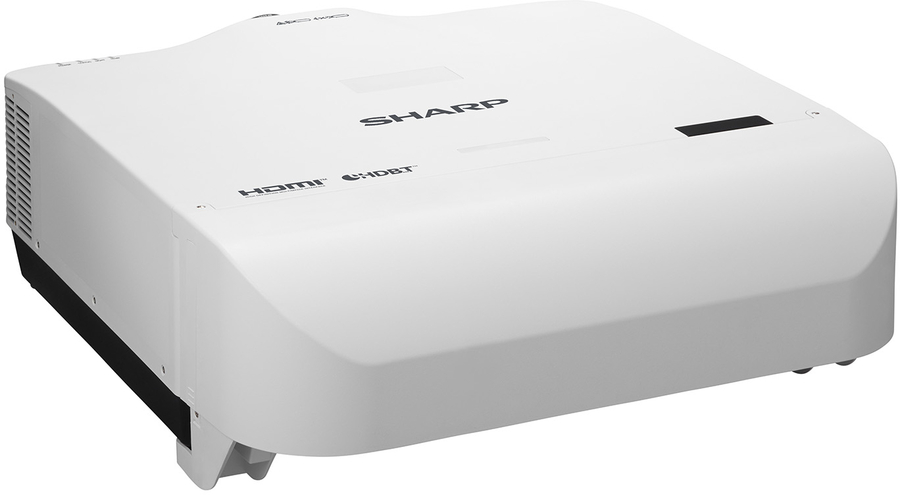

Delivering consistent, reliable performance with vivid colour and clarity, the Sharp A Series is engineered for fixed installations that require dependable image quality and low maintenance.
With precise white point calibration and an extended colour space, the A Series uses 12-bit colour signal processing to achieve rich saturation and deep contrast, perfect for detailed visual content in education, public displays, and simulation environments. Its super-silent operation makes it well suited to acoustically sensitive spaces such as lecture halls, museums, and contol rooms.
The sealed optical engine, rated IP5X against dust ingress, maintains stable image quality and sustained brightness over time. The filter-less LCD design combined with a laser light source removes the need for lamp replacements, minimising service costs and enabling up to 20,000 hours of operation.
Installation is streamlined with Sharp's ProAssist software, enabling remote setup and adjustment even when the projector is inaccessible. Wide lens shift, along with advanced features such as HDBaseT-out, blending, and stacking capabilities, ensures flexible integration in complex environments. |
|
Projector |
|
Projector brightness |
7500 ANSI lumens |
|
Projection technology |
3LCD |
|
Projector native resolution |
WUXGA (1920x1200) |
|
Contrast ratio (typical) |
3000000:1 |
|
Native aspect ratio |
16:10 |
|
Screen size compatibility |
1016 - 12700 mm (40 - 500") |
|
Supported aspect ratios |
16:10 |
|
Projection distance |
0.7 - 50.9 m |
|
Horizontal scan range |
15 - 153 kHz |
|
Vertical scan range |
24 - 120 Hz |
|
Keystone correction, horizontal |
-40 - 40° |
|
Keystone correction, vertical |
-40 - 40° |
|
Light source |
|
Light source type |
Laser |
|
Service life of light source |
20000 h |
|
Lens system |
|
Focus |
Motorized |
|
Horizontal lens shift range |
-20 - 20% |
|
Vertical lens shift range |
-50 - 10% |
|

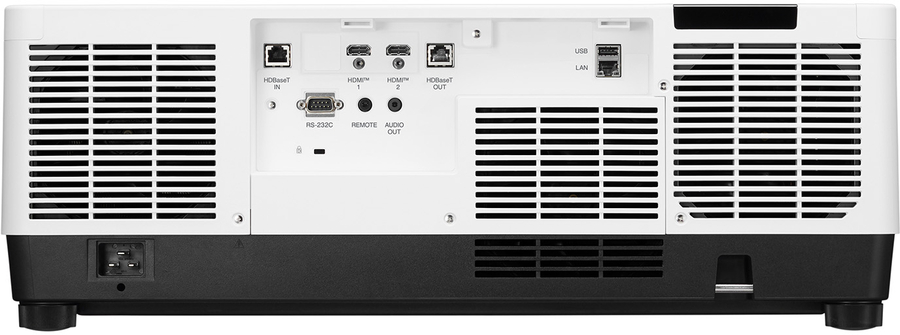

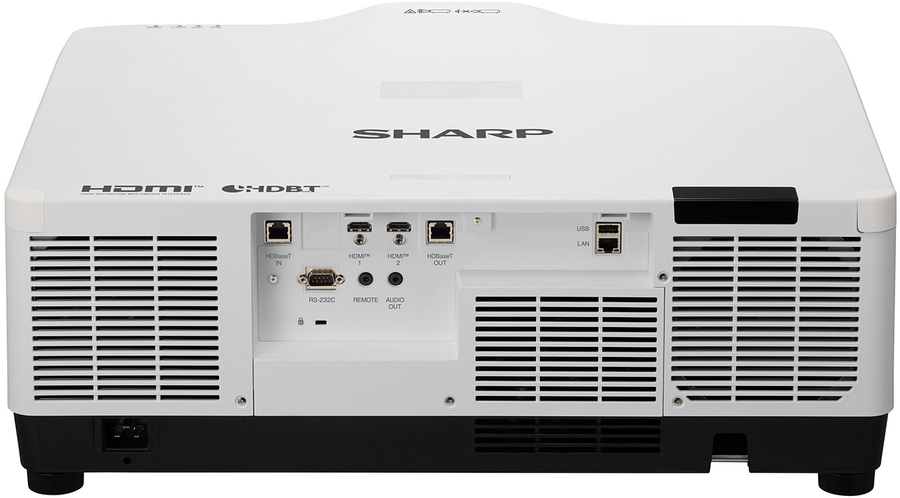

Ports & interfaces |
|
HDMI ports quantity |
2 |
|
Audio (L/R) in |
1 |
|
Serial interface type |
RS-232 |
|
USB 2.0 Type-A ports quantity |
1 |
|
Audio (L/R) out |
2 |
|
3G-SDI input |
1 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Features |
|
Noise level |
34 dB |
|
Noise level (economic mode) |
28 dB |
|
HDCP |
Yes |
|
Design |
|
Product type |
Standard throw projector |
|
Product colour |
White |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
615 W |
|
Power consumption (standby) |
0.28 W |
|
Power consumption (economy mode) |
560 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 50 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
20 - 80% |
|
Weight & dimensions |
|
Weight |
24.1 kg |
|
Width |
599 mm |
|
Depth |
490 mm |
|
Height |
208 mm |
|
Packaging content |
|
Remote control included |
Yes |
|
Remote control type |
IR |
|
Cables included |
AC |
