General Information |
|
Summary |

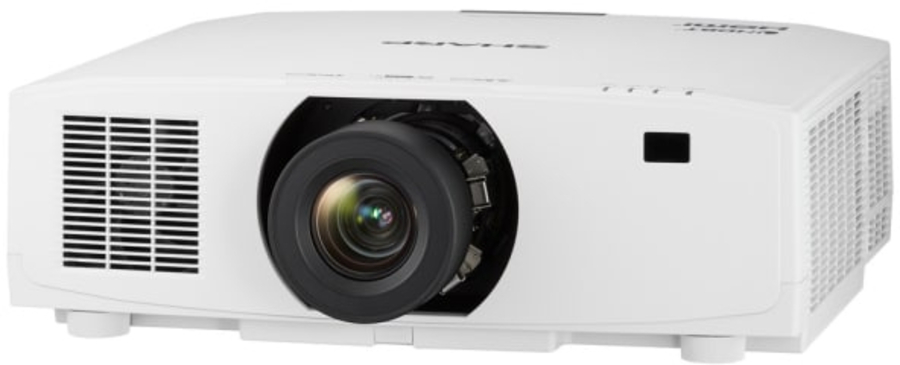

Cost-effective LCD-based laser projector with interchangeable lenses
3LCD technology generates brilliantly vivid colour, which, at 7300 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.
The V731U offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same lenses as the A/PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the V731U offers outstanding value for higher education, corporate, leisure and hospitality sectors. |
|
Projector |
|
Projector brightness |
7300 ANSI lumens |
|
Projection technology |
3LCD |
|
Projector native resolution |
WUXGA (1920x1200) |
|
Contrast ratio (typical) |
3000000:1 |
|
Native aspect ratio |
16:10 |
|
Smart projector |
Yes |
|
Screen size compatibility |
1016 - 12700 mm (40 - 500") |
|
Supported aspect ratios |
16:10 |
|
Projection distance |
0.7 - 50.9 m |
|
Horizontal scan range |
24 - 153 kHz |
|
Vertical scan range |
50 - 120 Hz |
|
Keystone correction, horizontal |
30° |
|
Keystone correction, vertical |
30° |
|
Light source |
|
Light source type |
Laser |
|
Service life of light source |
20000 h |
|
Lens system |
|
Focus |
Motorized |
|
Zoom capability |
Yes |
|
Zoom type |
Auto/Manual |
|
Horizontal lens shift range |
0 - 20% |
|
Vertical lens shift range |
0 - 50% |
|
Video |
|
Full HD |
Yes |
|
3D |
Yes |
|
Supported graphics resolutions |
1280 x 768, 1920 x 1200 (WUXGA), 3840 x 2160 |
|
Supported video modes |
480p, 576p, 720p, 1080i, 1080p |
|
Video colour modes |
DICOM simulation mode |
|

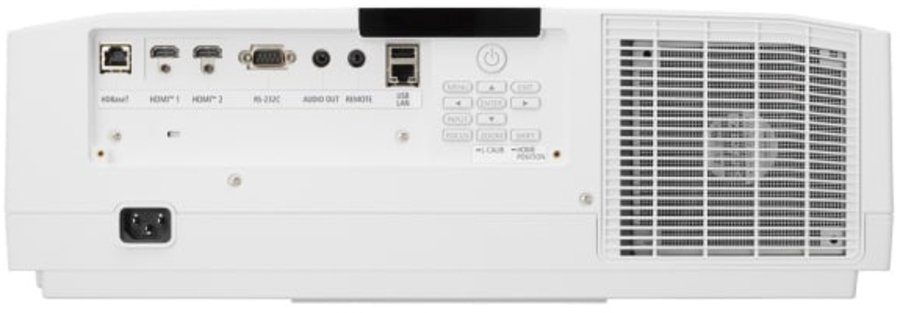

Ports & interfaces |
|
HDMI ports quantity |
2 |
|
Audio (L/R) in |
1 |
|
Serial interface type |
RS-232 |
|
HDBaseT port |
Yes |
|
USB 2.0 Type-A ports quantity |
1 |
|
Audio (L/R) out |
1 |
|
DC-in jack |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Features |
|
Noise level |
40 dB |
|
Noise level (economic mode) |
31 dB |
|
HDCP |
Yes |
|
Test patterns |
Yes |
|
Sleep timer |
Yes |
|
Standby timer |
Yes |
|
Air filter |
Yes |
|
Password protection |
Yes |
|
Design |
|
Product type |
Standard throw projector |
|
Product colour |
White |
|
Housing material |
Plastic |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
434 W |
|
Power consumption (standby) |
0.5 W |
|
Power consumption (economy mode) |
403 W |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50-60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 50 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
20 - 80% |
|
Weight & dimensions |
|
Weight |
11.2 kg |
|
Width |
499 mm |
|
Depth |
407 mm |
|
Height |
164 mm |
|
Packaging content |
|
Remote control included |
Yes |
|
Remote control type |
IR |
|
Cables included |
Power |
|
Manual |
Yes |
|
Mounting brackets included |
Yes |
|
Technical details |
|
Sustainability certificates |
ErP |
|
Warranty period |
3 year(s) |
|
Compliance certificates |
CE, EAC, RoHS |
|
Logistics data |
|
Quantity per pack |
1 pc(s) |
