General Information |
|
Summary |
ENSURED PRODUCTIVITY FOR PROFESSIONALS
AI-Assisted Performance
Supercharge your workflow with the ThinkCentre M70q Gen 6 Tiny PC. Powered by Intel® Core™ Ultra processors, it features Intel vPro® for security and IT manageability. Lenovo AI Now drives AI acceleration, while the AI Turbo Engine allocates workloads between CPU, GPU, and NPU for peak performance. Plus, WiFi 7 ensures blazing-fast connectivity.
BIG POWER & FLEXIBILITY
Multitask Like a Pro
Enjoy unmatched productivity with faster USB speeds and multiple ports. Connect the ThinkCentre M70q Tiny PC to up to four displays to power through tasks with vast memory and expandable storage. With an optional USB-C® (Thunderbolt™ 4) port and Neural Processing Unit (NPU), enhance hybrid and digital workplace expansion for a broadened ecosystem.
ALL-AROUND SAFETY IN PLACE
Robust Security & Manageability
This secured-core PC (L3) features ThinkShield security, encompassing hardware and software solutions. Get additional safeguards with a self-healing BIOS, dTPM chip, Kensington Security Slot™, and Smart USB Protection. Choose Intel vPro® security for advanced threat protection while securing your data and business with ThinkCentre Customization.
DURABILITY YOU CAN RELY ON
Intentional Engineering to Boost Efficiency
This PC uses the US Department of Defense MIL-STD-810H for a balance of reliability and durability. With TüV anti-dust, low surface, and shock-resistance certifications, it stands strong in tough environments, while ensuring safety through IEC Electrical Safety and Electromagnetic certifications, offering first-class manageability for any workspace.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications may vary depending upon region / model. |
|
Processor |
|
Processor family |
Intel Core Ultra 5 |
|
Processor manufacturer |
Intel |
|
Processor model |
235T |
|
Processor generation |
Intel Core Ultra (Series 2) |
|
Processor cores |
14 |
|
Processor threads |
14 |
|
Processor boost frequency |
5 GHz |
|
Performance cores |
6 |
|
Efficient cores |
8 |
|
Performance-core Max Turbo Frequency |
5 GHz |
|
Efficient-core Max Turbo Frequency |
4.4 GHz |
|
Performance-core base frequency |
2.2 GHz |
|
Efficient-core base frequency |
1.6 GHz |
|
Processor cache |
24 MB |
|
Processor cache type |
Smart Cache |
|
Number of processors installed |
1 |
|
Processor base power |
35 W |
|
Maximum turbo power |
114 W |
|
Neural processor unit (NPU) |
|
Neural processor unit (NPU) |
Intel AI Boost |
|
Sparsity support |
Yes |
|
Windows Studio effects support |
Yes |
|
AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|
Total processor performance up to |
27 TOPs |
|
NPU performance up to |
13 TOPs |
|
GPU performance up to |
6 TOPs |
|
Memory |
|
Internal memory |
32 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory layout (slots x size) |
1 x 32 GB |
|
Memory slots |
2x SO-DIMM |
|
Memory clock speed |
5600 MHz |
|
Memory channels |
Single-channel |
|
Storage |
|
Total storage capacity |
512 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Number of storage drives installed |
1 |
|
Total SSDs capacity |
512 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
512 GB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
Card reader integrated |
No |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
100,1000 Mbit/s |
|
Cabling technology |
10/100/1000Base-T(X) |
|
LAN controller |
Intel® I219-LM |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
WLAN controller manufacturer |
Intel |
|
WLAN controller model |
Intel Wi-Fi 6E AX211 |
|
Antenna type |
2x2 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Wake-on-LAN ready |
Yes |
|

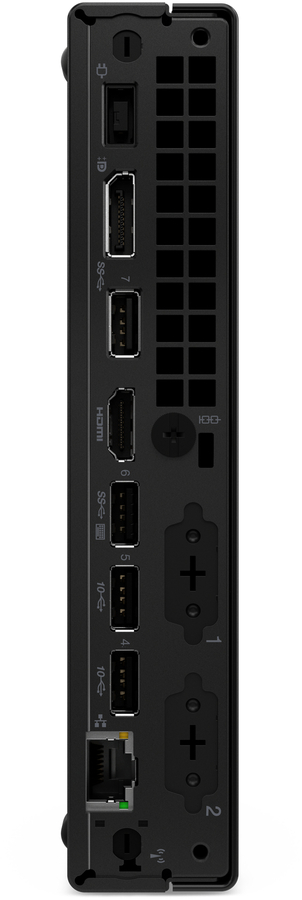

Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
DVI port |
Yes |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Combo headphone/mic port |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Colour name |
Raven black |
|
Volume |
1 L |
|
Placement supported |
Horizontal/Vertical |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
Mini PC |
|
Motherboard chipset |
Intel Q870 |
|
Built-in speaker(s) |
Yes |
|
Password protection |
Yes |
|
Password protection type |
BIOS, HDD, Power on, Supervisor |
|
Fingerprint reader |
No |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system language |
English, Polish |
|
Power |
|
Power supply |
90 W |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Operating altitude |
0 - 3048 m |
|
Non-operating altitude |
0 - 12192 m |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR, TCO |
|
Weight & dimensions |
|
Width |
179 mm |
|
Depth |
182.9 mm |
|
Height |
36.5 mm |
|
Weight |
1.18 kg |
|
Package width |
250 mm |
|
Package depth |
490 mm |
|
Package height |
128 mm |
|
Package weight |
3.2 kg |
|
Packaging content |
|
Mouse included |
Yes |
|
Mouse connectivity |
Wired |
|
Keyboard included |
Yes |
|
Keyboard connectivity |
Wired |
|
Display |
|
Display included |
No |
