General Information |
|
Summary |

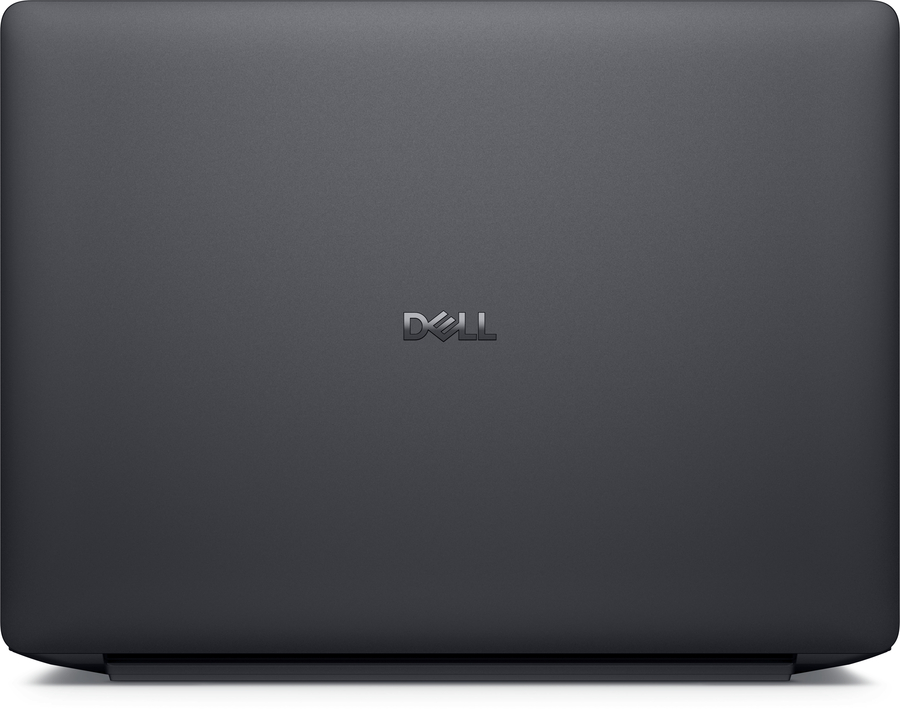

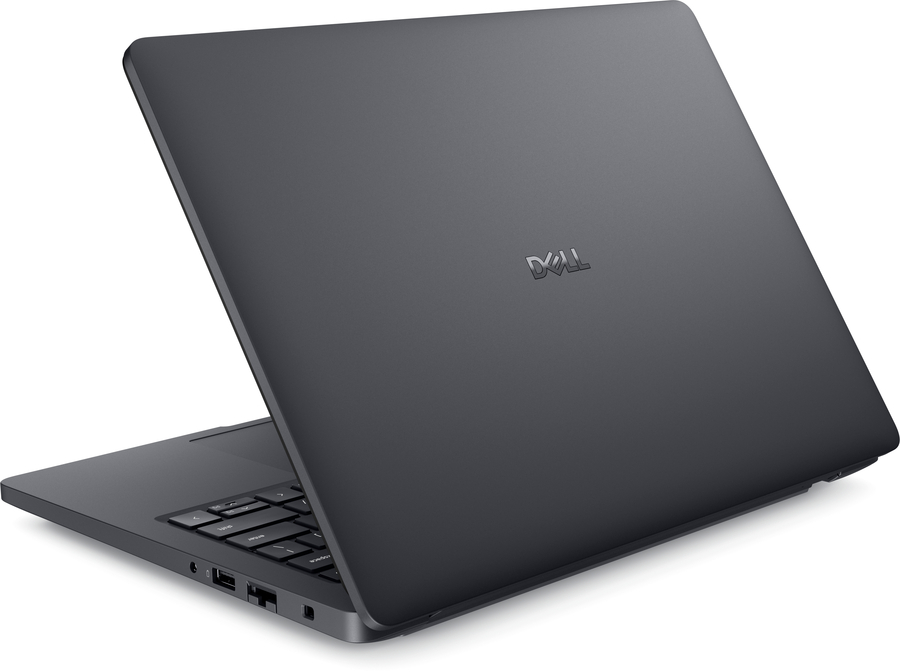

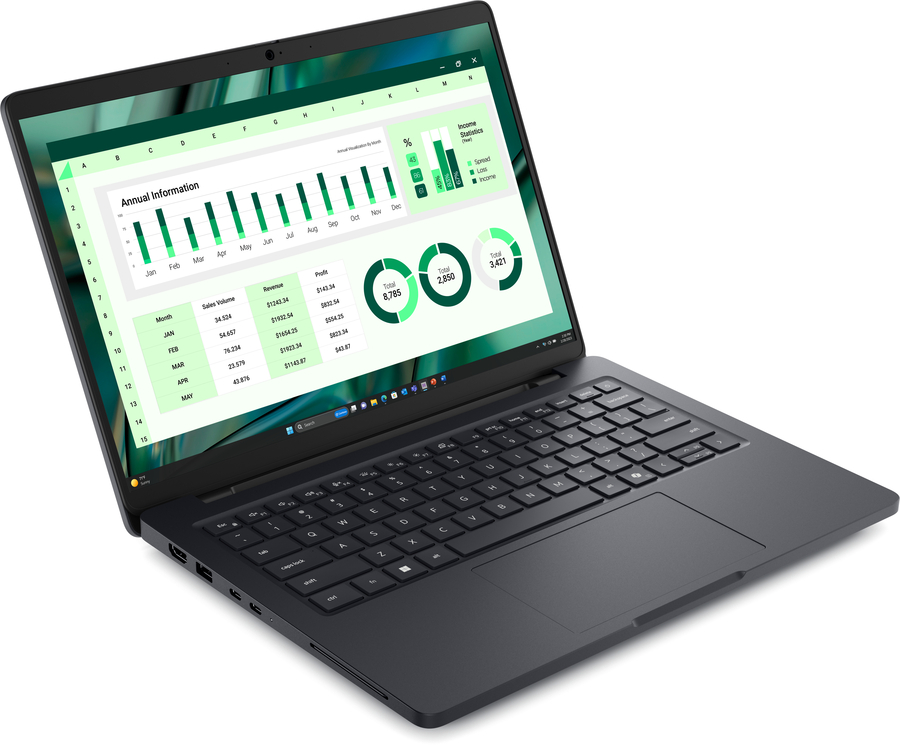

Experience performance and portability with the Dell Pro Max 14 laptop. Designed for power users, light design and creative applications in the office or on the go.
|
|
Design |
|
Product type |
Mobile workstation |
|
Product colour |
Black |
|
Form factor |
Clamshell |
|
Display |
|
Display diagonal |
35.6 cm (14") |
|
Display resolution |
1920 x 1200 pixels |
|
Touchscreen |
Yes |
|
HD type |
Full HD+ |
|
Panel type |
WVA |
|
LED backlight |
Yes |
|
Native aspect ratio |
16:10 |
|
Anti-glare screen |
Yes |
|
Display brightness |
300 cd/m² |
|
Pixel density |
162 ppi |
|
RGB colour space |
sRGB |
|
Colour gamut |
100% |
|
Display response rise/fall |
35 ms |
|
Maximum refresh rate |
60 Hz |
|
Contrast ratio (typical) |
800:1 |
|
Processor |
|
Processor family |
Intel Core Ultra 7 |
|
Processor manufacturer |
Intel |
|
Processor model |
255H |
|
Processor generation |
Intel Core Ultra (Series 2) |
|
Processor cores |
16 |
|
Processor threads |
16 |
|
Processor boost frequency |
5.1 GHz |
|
Performance cores |
6 |
|
Efficient cores |
8 |
|
Low Power Efficient-cores |
2 |
|
Performance-core Max Turbo Frequency |
5.1 GHz |
|
Efficient-core Max Turbo Frequency |
4.4 GHz |
|
Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
|
Performance-core base frequency |
2 GHz |
|
Efficient-core base frequency |
1.5 GHz |
|
Low Power Efficient-core Base Frequency |
700 MHz |
|
Processor cache |
24 MB |
|
Processor base power |
28 W |
|
Maximum turbo power |
115 W |
|
Neural processor unit (NPU) |
|
Neural processor unit (NPU) |
Intel AI Boost |
|
Sparsity support |
Yes |
|
Windows Studio effects support |
Yes |
|
AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|
Total processor performance up to |
96 TOPs |
|
NPU performance up to |
13 TOPs |
|
GPU performance up to |
74 TOPs |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
LPDDR5x-SDRAM |
|
Memory layout (slots x size) |
1 x 16 GB |
|
Memory channels |
Dual-channel |
|
Memory data transfer rate |
7467 MT/s |
|
Non-ECC |
Yes |
|
Storage |
|
Total storage capacity |
512 GB |
|
Storage media |
SSD |
|
Optical drive type |
No |
|
Total SSDs capacity |
512 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
512 GB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
SSD performance class |
35 |
|
M.2 SSD size |
2230 (22 x 30 mm) |
|
Graphics |
|
On-board graphics card |
Yes |
|
Discrete graphics card |
No |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel Arc 140T |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel Arc Graphics |
|
Audio |
|
Audio chip |
Realtek ALC3329 |
|
Audio system |
MaxxAudio Pro |
|
Number of built-in speakers |
2 |
|
Speakers manufacturer |
Waves |
|
Speaker power |
2 W |
|
Built-in microphone |
Yes |
|
Number of microphones |
2 |
|
Camera |
|
Front camera |
Yes |
|
Front camera resolution (numeric) |
2.07 MP |
|
Front camera resolution |
1920 x 1080 pixels |
|
Front camera HD type |
Full HD |
|
Video capturing speed |
30 fps |
|
Infrared (IR) camera |
Yes |
|
Privacy camera |
Yes |
|
Privacy type |
Privacy shutter |
|
Network |
|
Mobile network connection |
No |
|
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
|
Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
|
Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
|
Wi-Fi data rate (max) |
5760 Mbit/s |
|
WLAN controller model |
Intel Wi-Fi 7 BE201 |
|
WLAN controller manufacturer |
Intel |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Bluetooth |
Yes |
|

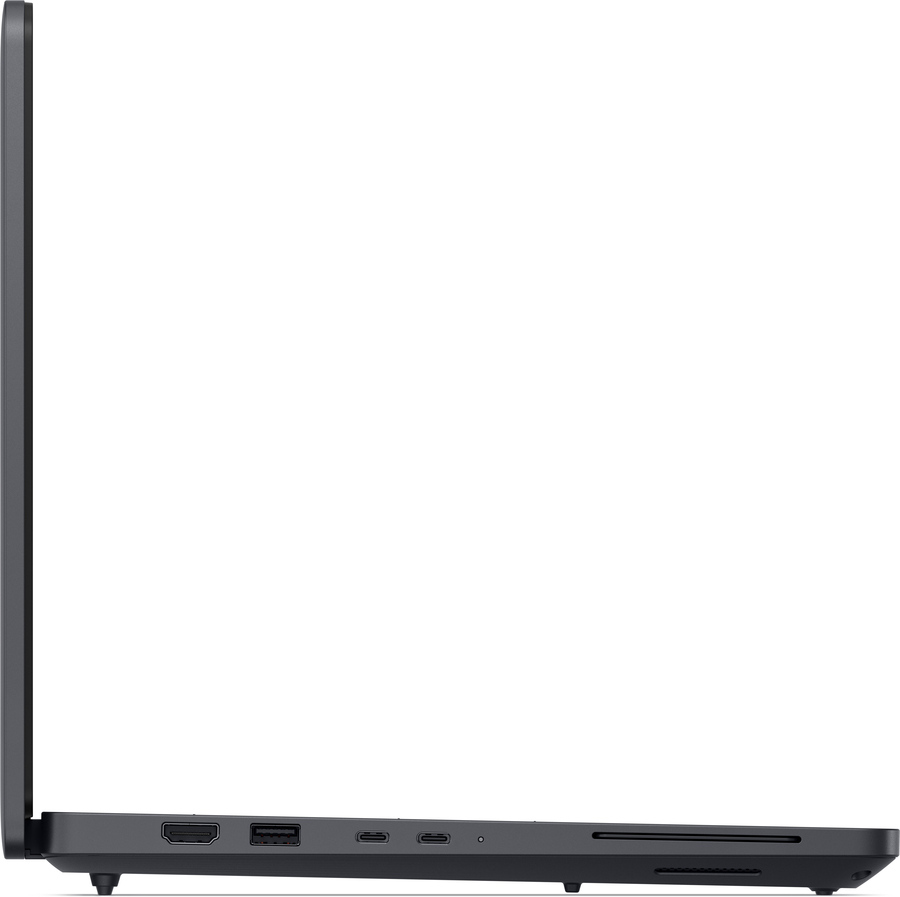

Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI version |
2.1 |
|
Thunderbolt 4 ports quantity |
2 |
|
Combo headphone/mic port |
Yes |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
PowerShare |
Yes |
|
Performance |
|
Motherboard chipset |
Intel SoC |
|
Accelerometer |
Yes |
|
Hall sensor |
Yes |
|

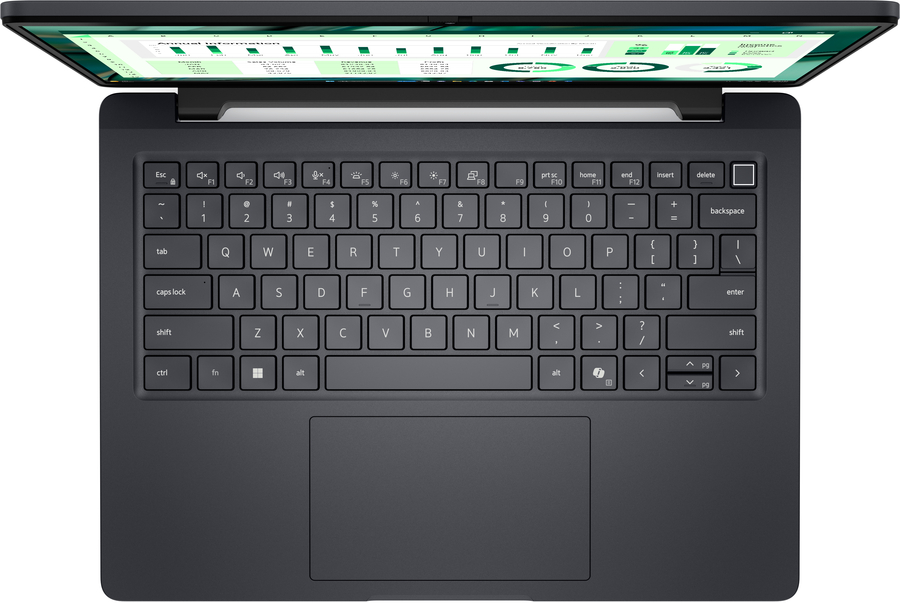

Keyboard |
|
Numeric keypad |
No |
|
Pointing device |
Touchpad |
|
Keyboard backlit |
Yes |
|
Copilot key |
Yes |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system architecture |
64-bit |
|
Brand-specific features |
|
Brand specific technologies |
Control Vault 3+, Express Charge Boost capable |
|
Battery |
|
Battery capacity |
72 Wh |
|
Battery technology |
Lithium Polymer (LiPo) |
|
Number of battery cells |
4 |
|
Battery voltage |
15.6 V |
|
Battery recharge time |
3 h |
|
Fast charging |
Yes |
|
Battery weight |
270 g |
|
Power |
|
USB Type-C charging port |
Yes |
|
USB Type-C required charging power (min) |
45 W |
|
USB Type-C required charging power (max) |
71 W |
|
AC adapter power |
100 W |
|
AC adapter frequency |
50/60 Hz |
|
AC adapter input voltage |
100 - 240 V |
|
USB Power Delivery (USB PD) |
Yes |
|
Security |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Wedge |
|
Fingerprint reader |
Yes |
|
Smart card reader |
Yes |
|
Windows Hello |
Yes |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Storage temperature (T-T) |
-40 - 65 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
-15.2 - 3048 m |
|
Non-operating altitude |
-15.2 - 10668 m |
|
Operating shock |
110 G |
|
Non-operating shock |
160 G |
|
Operating vibration |
0.66 G |
|
Non-operating vibration |
1.3 G |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold |
|
Weight & dimensions |
|
Weight |
1.83 kg |
|
Width |
313 mm |
|
Depth |
227.3 mm |
|
Height (front) |
1.48 cm |
|
Height (rear) |
1.89 cm |
|
Packaging content |
|
AC adapter included |
Yes |
|
Cables included |
AC |
