General Information |
|
Summary |

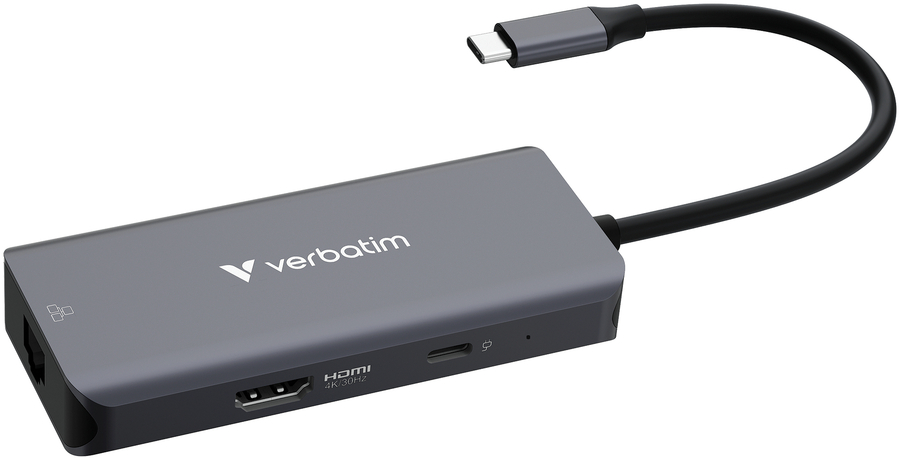

Expand Your Network and Connections

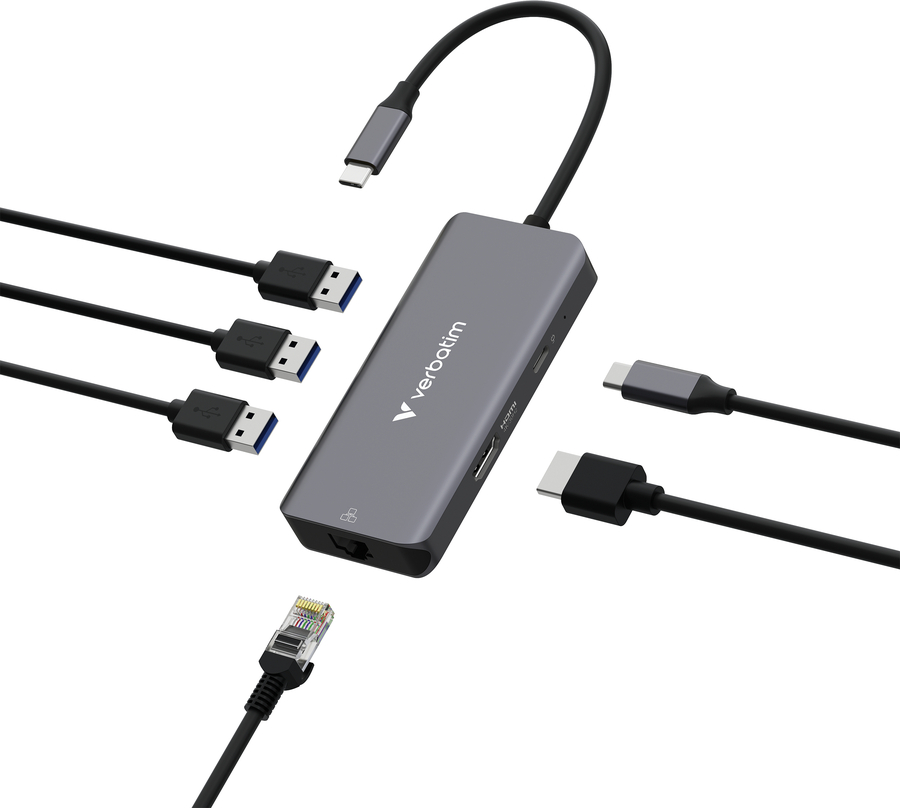

Effortlessly convert a single USB-C® port into six diverse ports, including an RJ45 Ethernet, HDMI, USB-C PD 3.0 and multiple USB-A 3.2 Gen 1 ports. This hub is designed for users who need stable network access and extensive connectivity options.
Data Performance
Leverage USB 3.2 Gen 1 technology for fast data transfers up to 5Gb/s. The RJ45 Ethernet port ensures a reliable, high-speed internet connection up to 1Gb/s, ideal for uninterrupted online activities.
Exceptional Video Quality
Connect to a 4K display via the HDMI port for vivid and sharp visuals. Perfect for presentations, video conferences, or enjoying high-definition media, this hub delivers a superior viewing experience.
|
|
Ports & interfaces |
|
Ports quantity |
6 |
|
Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|
Hub interfaces |
HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Features |
|
Data transfer rate |
5000 Mbit/s |
|
Supported graphics resolutions |
3840 x 2160 |
|
Maximum resolution (HDMI) |
3840 x 2160 pixels |
|
Product colour |
Grey |
|
Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery revision |
3.0 |
|
USB Power Delivery up to |
100 W |
|
HD type |
4K Ultra HD |
|
Number of displays supported |
1 |
|
Cable type |
Round cable |
|
Cable length |
0.15 m |
|
Plug and Play |
Yes |
|
Country of origin |
China |
|
Network |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
100,1000 Mbit/s |
|
Power |
|
Power supply type |
USB |
|
Input voltage |
5 - 20 V |
|
Output voltage |
5 V |
|
Output current |
0.9 A |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8 |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
|
Linux operating systems supported |
Yes |
|
Other operating systems supported |
Android |
|
Weight & dimensions |
|
Width |
47 mm |
|
Depth |
105 mm |
|
Height |
16.4 mm |
|
Weight |
80 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
85 mm |
|
Package depth |
155 mm |
|
Package height |
22 mm |
|
Package weight |
130 g |
|
Package type |
Box |
|
Packaging content |
|
Quick start guide |
Yes |
|
Operational conditions |
|
Minimum operating temperature |
0 °C |
|
Maximum operating temperature |
40 °C |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Logistics data |
|
Pallet gross width |
100 cm |
|
Pallet gross length |
120 cm |
|
Pallet gross height |
120 cm |
|
Pallet gross weight |
310 kg |
|
Master (outer) case width |
256 mm |
|
Master (outer) case length |
345 mm |
|
Master (outer) case height |
236 mm |
|
Master (outer) case gross weight |
6.58 kg |
|
Technical details |
|
Pallet net height |
12 cm |
|
Pallet net length |
120 cm |
|
Pallet net width |
100 cm |
|
Pallet net weight |
12 kg |
|
Compliance certificates |
CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, UKCA |
