General Information |
|
Summary |

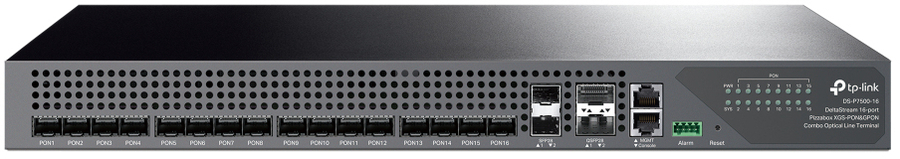

The DS-P7500-16 is a DeltaStream 16-port Pizza-Box XGS-PON&GPON Combo Optical Line Terminal with full L2 and advanced L3 features designed to meet a wide range of business needs. The pizza-box OLT supports a higher number of ONUs and its dual power supply redundancy design further improves the stability of the OLT network. |
|
Features |
|
Switch layer |
L2/L3 |
|
Static route |
Yes |
|
DHCP server |
Yes |
|
DHCP relay |
Yes |
|
IGMP snooping |
Yes |
|
Multicast Listener Discovery (MLD) snooping |
Y |
|
Quality of Service (QoS) support |
Yes |
|
Voice VLAN |
Yes |
|
GPON split ratio (max) |
1:256 |
|
Maximum operating distance (GPON) |
60000 m |
|
Reset button |
Yes |
|
Access Control List (ACL) |
Yes |
|
MAC address entries |
Dynamic MAC address entries, Static MAC address entries |
|
Ports & interfaces |
|
Networking standards |
IEEE 802.1p, IEEE 802.1x |
|
Upstream ports |
10G Ethernet, Gigabit Ethernet |
|
Ethernet LAN (RJ-45) ports |
2 |
|
GPON ports quantity |
16 |
|
SFP/SFP+ slots quantity |
4 |
|
Power |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
DC voltage range |
38.4 - 72 V |
|
Power consumption (max) |
165 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC) |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
380 mm |
|
Height |
44 mm |
|
Packaging content |
|
Cables included |
Power |
|
Quick start guide |
Yes |
|
Mounting brackets included |
Yes |
