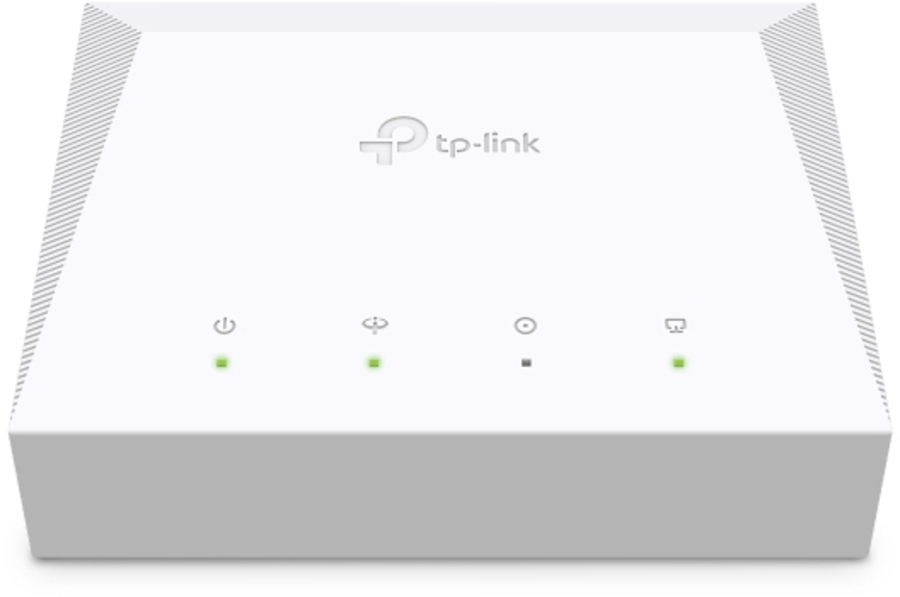

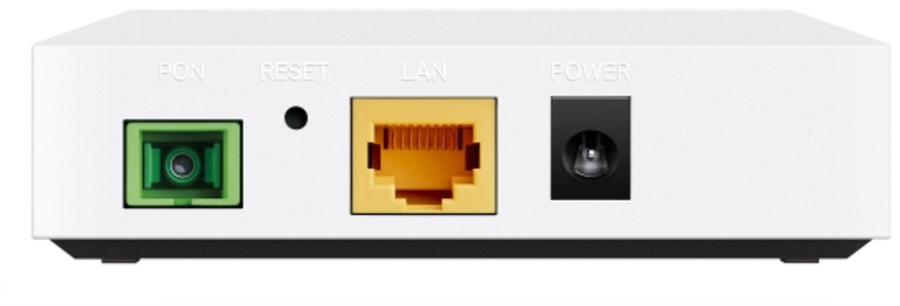

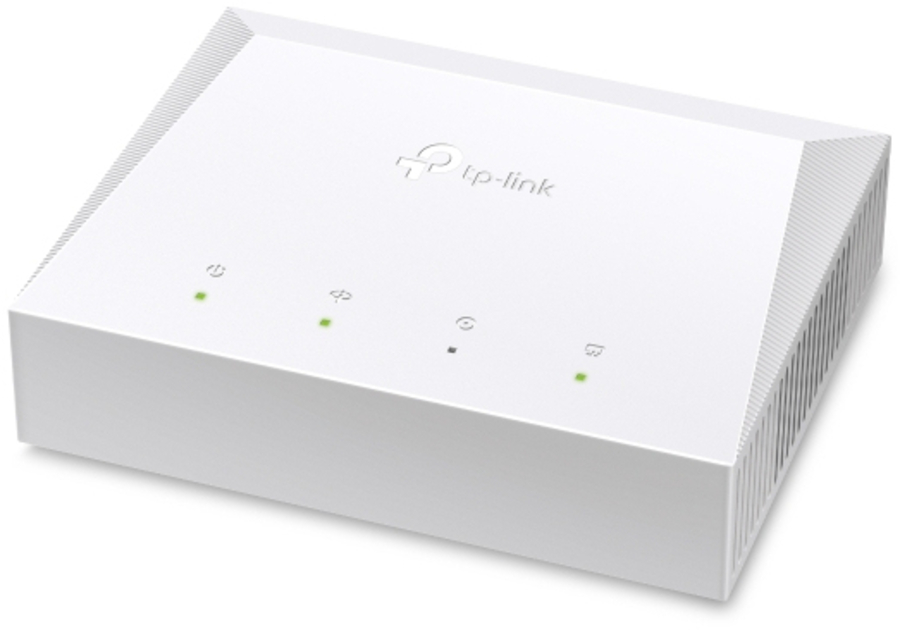

TP-Link XZ000-G6 1-Port Gigabit XPON Terminal
|
|
Price: $24.00
Manufacturer:
TP-Link
PON, LAN, 9VDC, DFB, 20km
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60330802
|
XZ000-G6
|
1210002607704 |
Active
|
Details
|
General Information |
|
Summary |
Gig+ Fiber Access
Crafted with GPON + EPON dual-mode capability, XZ000-G6 delivers up to 2.5 Gbps of internet access via GPON, catering to your high-speed home networking needs, while the EPON mode improves flexibility with automatic detection and switch.
Gigabit Wired Connectivity
XZ000-G6 features a gigabit Ethernet LAN port that utilizes XPON technology, delivering transmission speeds of up to 1 Gbps for high-speed internet access and a flawless streaming experience—ideal for FTTH (Fiber to the Home) applications.
Centralized Remote Management
Service providers can remotely configure and manage devices using the OMCI (ONU Management Control Interface) protocol, streamlining operations and delivering a smoother service experience for home users.
Backed by a Comprehensive FTTH
(Fiber-to-the-Home) Solution
Under the Aginet flagship, TP-Link offers comprehensive one-stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience. |
|
Design |
|
Product type |
Optical network terminal (ONT) |
|
Product colour |
White |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u |
|
ITU standards |
G.984.2, G.984.3, G.984.4, G.988 |
|
Upstream data rate |
1250 Mbit/s |
|
Downstream data rate |
1250 Mbit/s |
|
Transmission distance (max) |
20 km |
|
Wireless LAN features |
|
Wi-Fi |
No |
|
Management features |
|
Reset button |
Yes |
|
Ports & interfaces |
|
Fiber ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Certificates |
|
Compliance certificates |
CE, RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
95 mm |
|
Depth |
75 mm |
|
Height |
29.3 mm |
|
