General Information |
|
Summary |
Wide View, Sharp Zoom, Full Protection

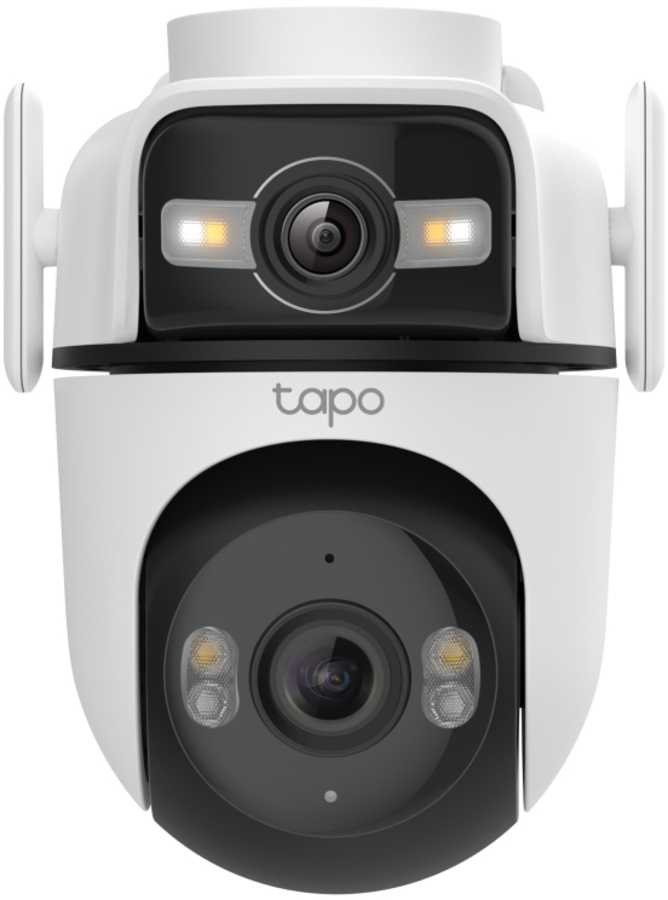

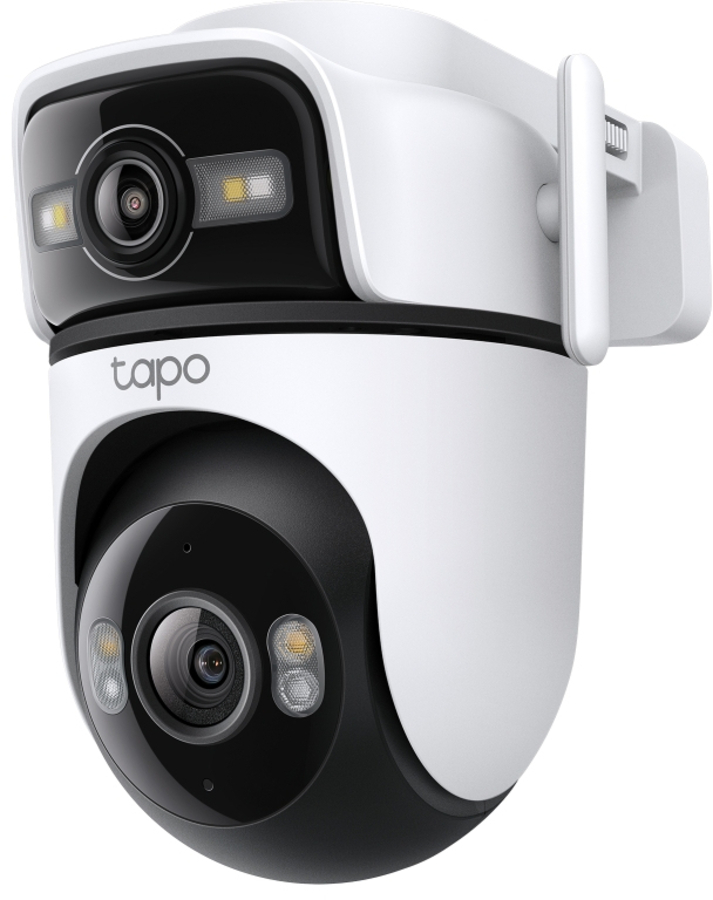

Outdoor Dual Lens Pan/Tilt Security Camera
Pan, Tilt, and Capture It All

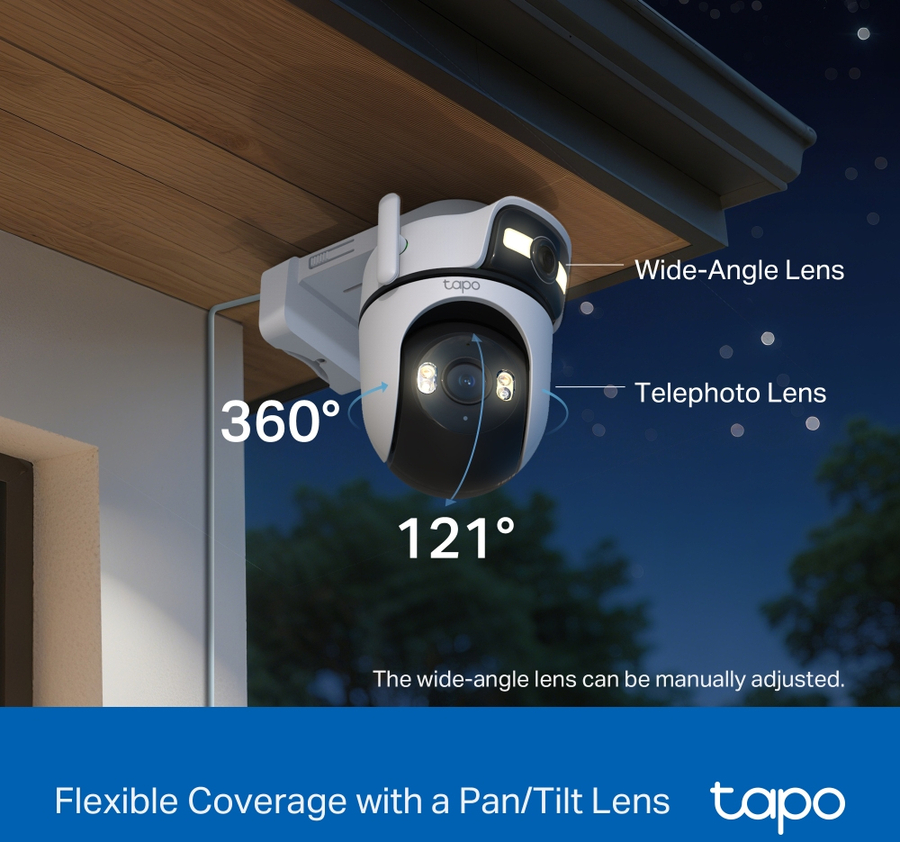

The top wide-angle lens is fixed in place but supports manual Pan (270°) and Tilt (-30° to -10°) adjustment for the best viewing angle. The bottom telephoto lens features automatic pan and tilt to follow motion or shift focus between different areas as needed.

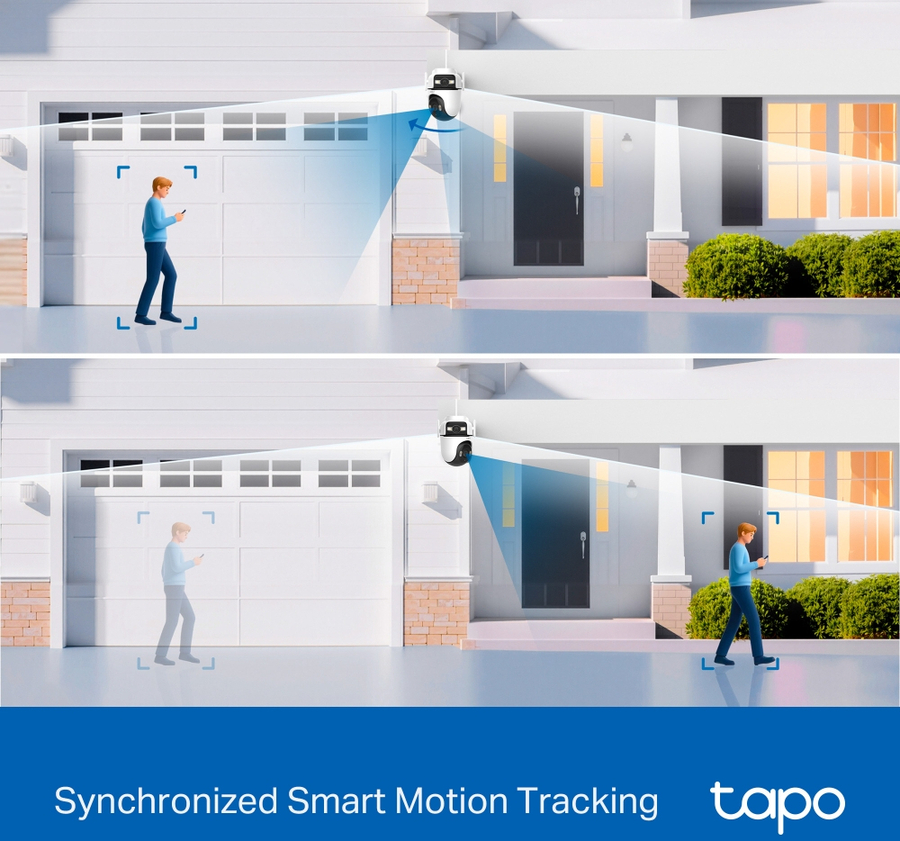

Synchronised Smart Tracking
The two cameras dynamically work together to seamlessly follow movement–when the fixed lens detects events like motion, people, and pets, the pan/tilt lens will automatically pivot to focus on and track the moving object.

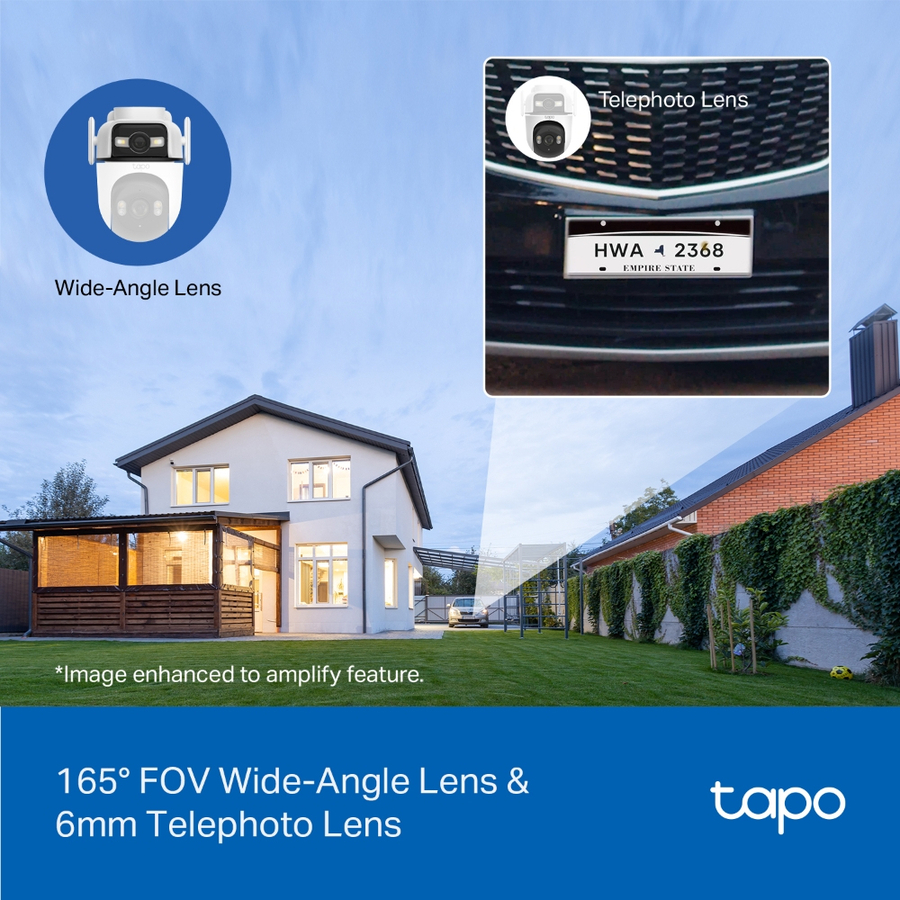

Magnify Details with Telephoto Lens
The 6mm telephoto lens delivers 3× clarity compared to standard lens and supports up to 10.8× digital zoom, ensuring every detail is clearly visible when you zoom in.

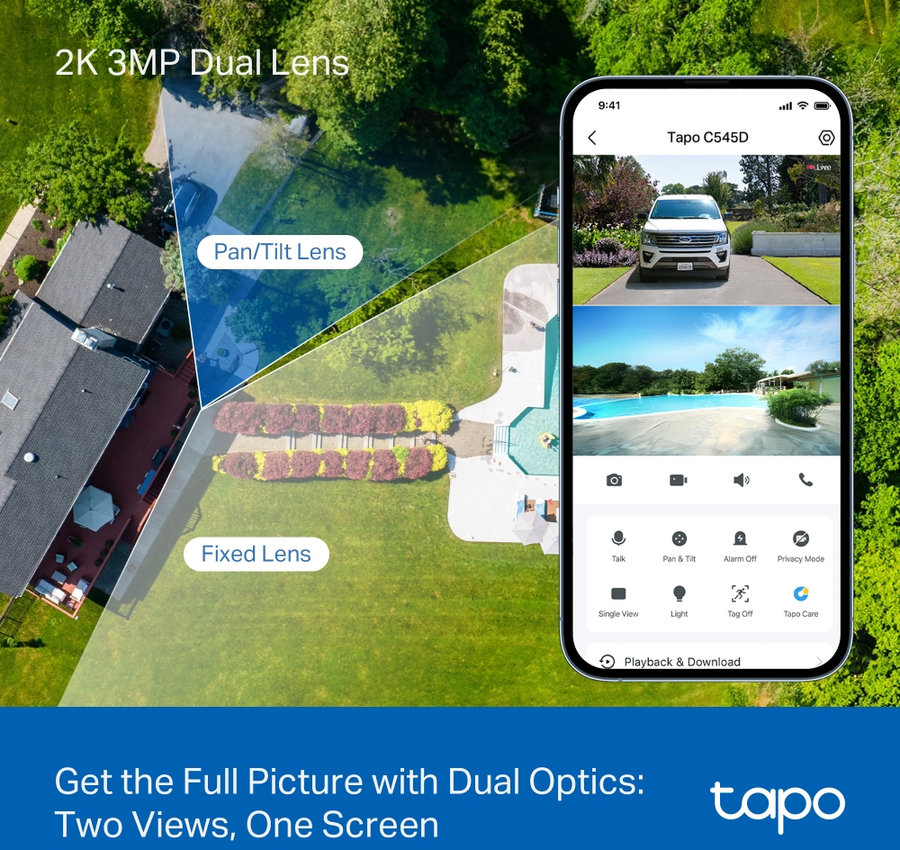

Panoramic Coverage of Two Areas, Simultaneously
Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots and get a more thorough, comprehensive overview of your home.

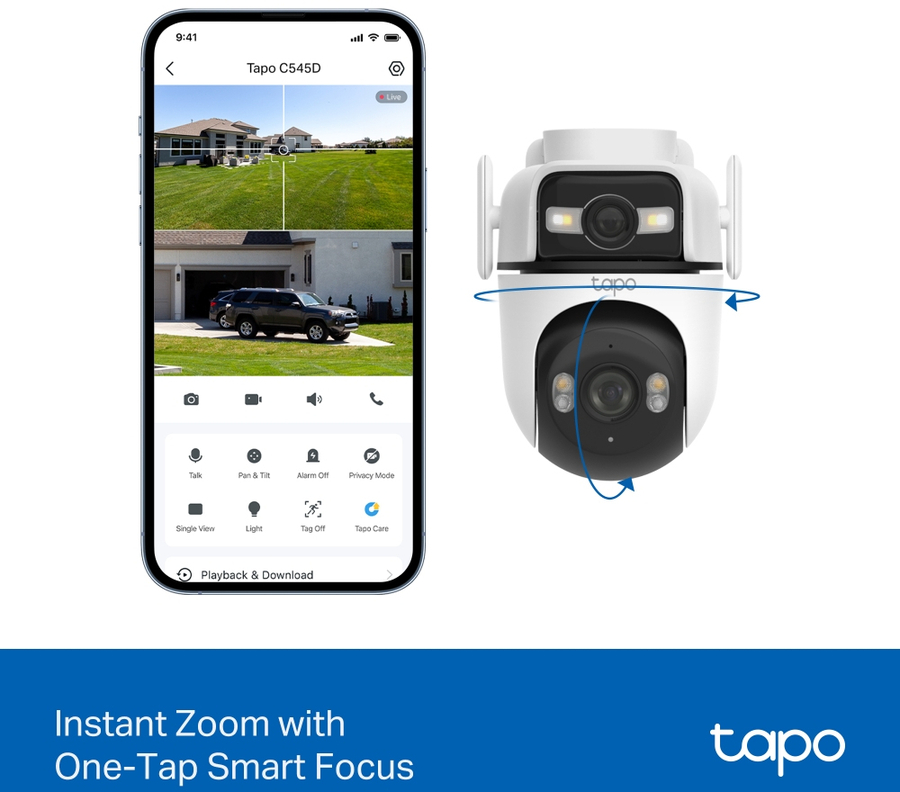

Instant Detail with One-Tap Smart Focus
One tap for instant clarity: select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.
Smarter, More Accurate Notifications Powered by AI
Stay informed with smart AI detection that recognises and notifies you of people, pets, and vehicles – all without any subscription fees. Tailor your alerts by selecting which types of detection will trigger notifications.

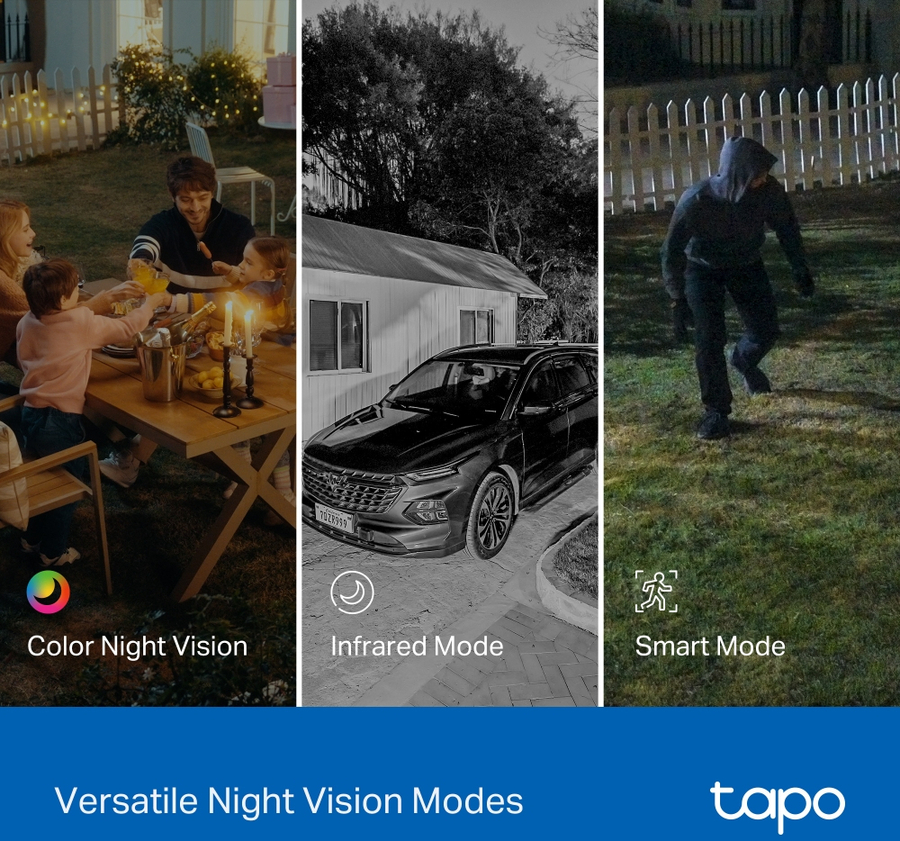

Smart & Versatile Night Vision Modes
Choose from vibrant full-colour with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on AI light detection for optimal clarity in any nighttime scenario.
Reliable Connectivity with Ethernet Support
Ensure a more stable and consistent connection for your camera with Ethernet support. Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission.
Patrol Mode
Set the camera to automatically move between up to 8 preset viewing points at set times.

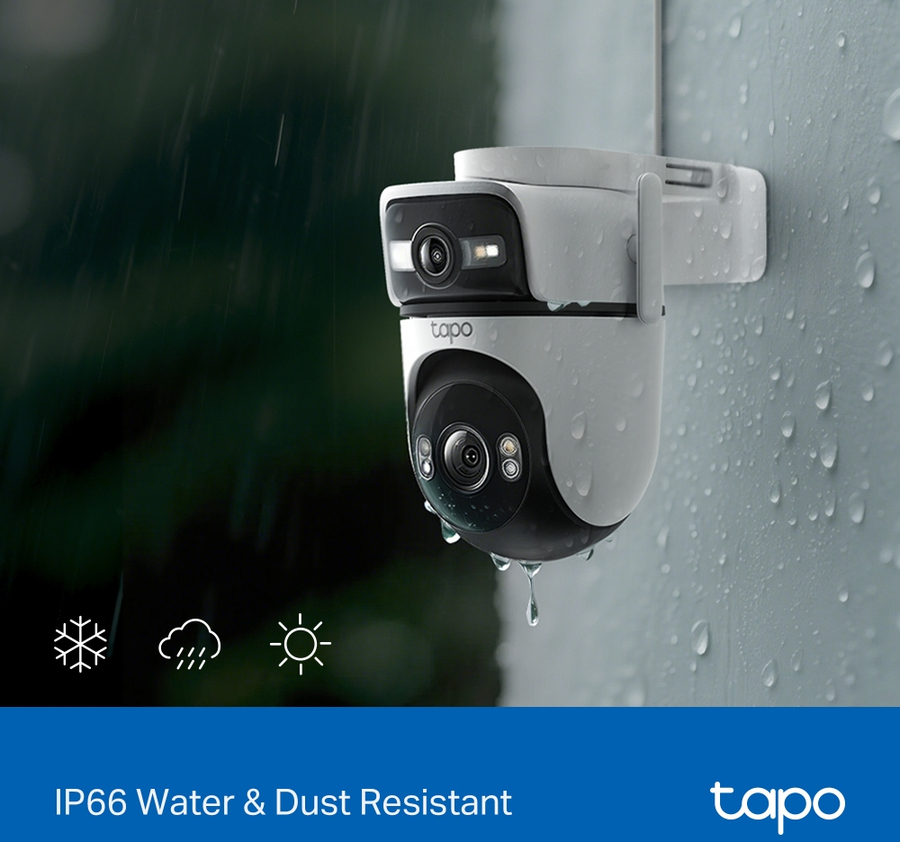

Engineered for Weather Resilience
Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.
Pair with Smart Assistants
Includes seamless integration with Amazon Alexa, Google Assistant, and Samsung SmartThings. View live streams on your Echo Show or Chromecast.
Two-Way Audio
Built-in premium microphone and speakers ensure you can hear and be heard with exceptional clarity.

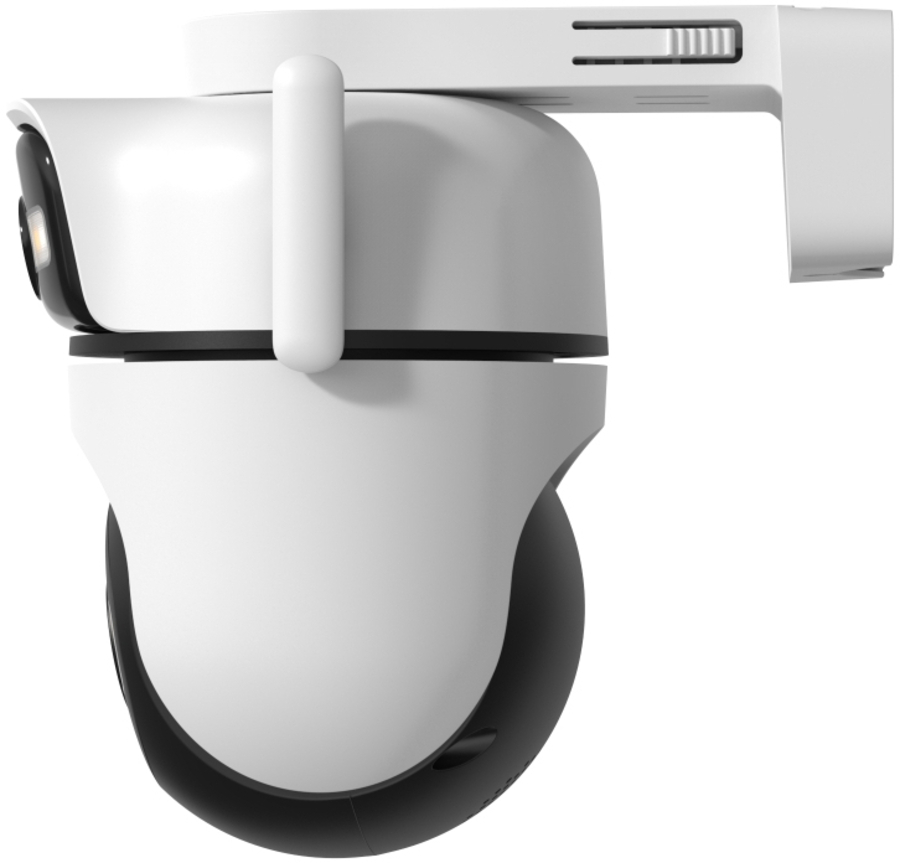

Adaptable Installation Options
Tapo C545D can be securely mounted on a wall, affixed to the celling, or even held by a rod - designed to withstand the elements and deliver dependable monitoring across diverse outdoor settings. |
|
Performance |
|
Type |
IP security camera |
|
Placement supported |
Outdoor |
|
Connectivity technology |
Wired & Wireless |
|
Auto-tracking |
Yes |
|
Wide Dynamic Range (WDR) |
Yes |
|
Day/night mode |
Yes |
|
Infrared (IR) cut-off filter |
Yes |
|
Design |
|
Mounting type |
Ceiling/Wall/Pole |
|
Product colour |
White |
|
Form factor |
Spherical |
|
Protection features |
Dust resistant, Water resistant |
|
International Protection (IP) code |
IP66 |
|
Camera |
|
Lens viewing angle, horizontal |
57.3 - 137.6° |
|
Lens viewing angle, vertical |
31.7 - 73° |
|
Lens viewing angle, diagonal |
66.5 - 165.1° |
|
Image sensor |
|
Sensor type |
CMOS |
|
Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
|
Progressive scan |
Yes |
|
Lens system |
|
Number of lenses |
2 |
|
Focal length range |
2.53 - 6 mm |
|
Maximum aperture number |
1.6 |
|
Night vision |
|
Night vision |
Yes |
|
Colour night vision distance |
29.9 m |
|
LED type |
IR |
|
Infra-red wavelength |
850 nm |
|
Video |
|
Maximum resolution |
2304 x 1296 pixels |
|
Total megapixels |
3 MP |
|
Video compression formats |
H.264 |
|
Frame rate |
15 fps |
|
Noise reduction |
Yes |
|
Noise reduction technology |
3D noise reduction |
|
Audio |
|
Built-in speaker(s) |
Yes |
|
Audio system |
2-way |
|
Built-in microphone |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Bluetooth |
No |
|
Ethernet interface type |
Fast Ethernet |
|
Supported network protocols |
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
|
Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
|
Wi-Fi data rate (max) |
144 Mbit/s |
|
Frequency band |
2.4 GHz |
|
Works with the Google Assistant |
Yes |
|
Works with Amazon Alexa |
Yes |
|
Live view |
Yes |
|
Storage |
|
Built-in HDD |
No |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
MicroSD (TransFlash) |
|
Maximum memory card size |
512 GB |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Security |
|
Built-in siren |
Yes |
|
Siren noise level |
99 dB |
|
Video motion detection |
Yes |
|
Active tampering alarm |
Yes |
|
Security algorithms |
128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3 |
|
Alert notification type |
Snapshot alert message |
|
Privacy protection |
Yes |
|
Intelligent Video Surveillance (IVS) system features |
Human detection, Line crossing detection, Pet detection, Vehicle detection |
|
Management features |
|
Reset button |
Yes |
|
Power |
|
Power source type |
DC |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Power consumption (typical) |
5.3 W |
|
Power consumption (max) |
11.2 W |
|
DC output voltage |
12 |
|
DC output current |
1 A |
|
Operational conditions |
|
Operating temperature (T-T) |
-30 - 60 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
0 - 90% |
|
Weight & dimensions |
|
Width |
114.6 mm |
|
Depth |
152.1 mm |
|
Height |
159.6 mm |
|
Weight |
491 g |
|
Cable length |
3 m |
|
Packaging data |
|
Package width |
196 mm |
|
Package depth |
235 mm |
|
Package height |
136 mm |
|
Package weight |
890 g |
|
Packaging content |
|
Number of cameras |
1 |
|
Mounting kit |
Yes |
|
Screws included |
Yes |
|
Drilling template included |
Yes |
|
AC adapter included |
Yes |
|
Anchors included |
Yes |
|
Quick start guide |
Yes |
|
Waterproof connector |
Yes |
