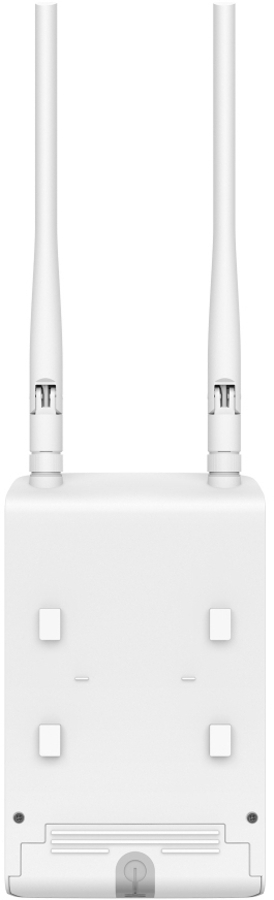

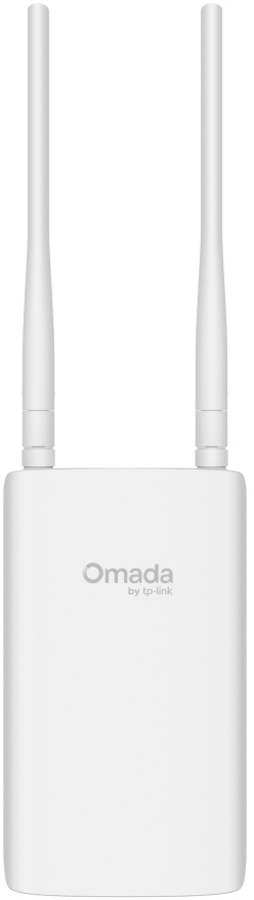

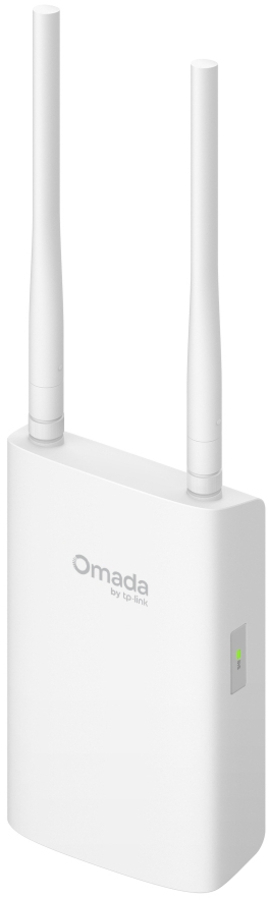

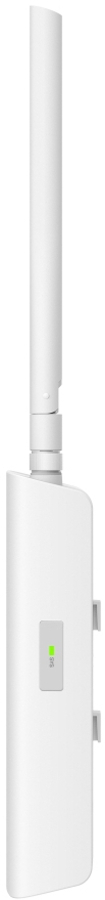

TP-Link EAP603-OUTDOOR AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
|
|
Price: $121.00
Manufacturer:
TP-Link
1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45), Wi-Fi 6 2.4 - 5 GHz, 300m, 230 × 207.5 × 69.7 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60330810
|
EAP603-OUTDOOR
|
1210002605731 |
Active
|
Details
|
Features |
|
2.4 GHz |
Yes |
|
5 GHz |
Yes |
|
6 GHz |
No |
|
Maximum data transfer rate |
1800 Mbit/s |
|
Maximum data transfer rate (2.4 GHz) |
573 Mbit/s |
|
Maximum data transfer rate (5 GHz) |
1201 Mbit/s |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Bluetooth |
Yes |
|
Maximum outdoor range |
300 m |
|
Security |
|
Security algorithms |
EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
|
MAC address filtering |
Yes |
|
IP address filtering |
Yes |
|
Service Set Identifier (SSID) features |
Multiple SSIDs |
|
Number of SSID supported |
16 |
|
Guest access |
Yes |
|
Remote Authentication Dial-In User Service (RADIUS) |
Yes |
|
Access Control List (ACL) |
Yes |
|
Management features |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|
Backup function |
Yes |
|
Ports & interfaces |
|

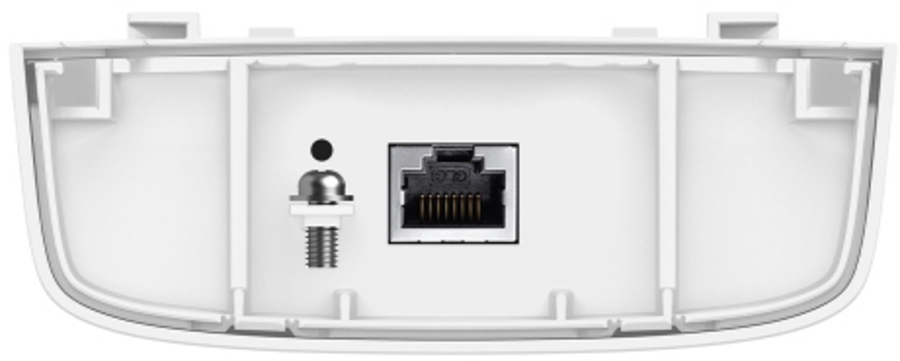

Ethernet LAN (RJ-45) ports |
1 |
|
Power |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
Passive PoE |
|
DC voltage range |
42.5 - 57 V |
|
Input current |
0.36 A |
|
Power consumption (max) |
4.8 W |
|
Design |
|
Placement |
Pole, Wall |
|
Product colour |
White |
|
International Protection (IP) code |
IP65, IP66 |
|
Antenna |
|
Antenna type |
Internal & external |
|
Antenna direction type |
Omni-directional |
|
Antennas quantity |
4 |
|
Antenna gain level (max) |
5 dBi |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
|
Weight & dimensions |
|
Width |
230 mm |
|
Depth |
207.5 mm |
|
Height |
69.7 mm |
|
Packaging content |
|
PoE adapter included |
Yes |
|
Mounting kit |
Yes |
|
Quick start guide |
Yes |
|
Operational conditions |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Operating temperature (T-T) |
-30 - 70 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Storage relative humidity (H-H) |
5 - 90% |
|
