General Information |
|
Summary |
Simplify Connections

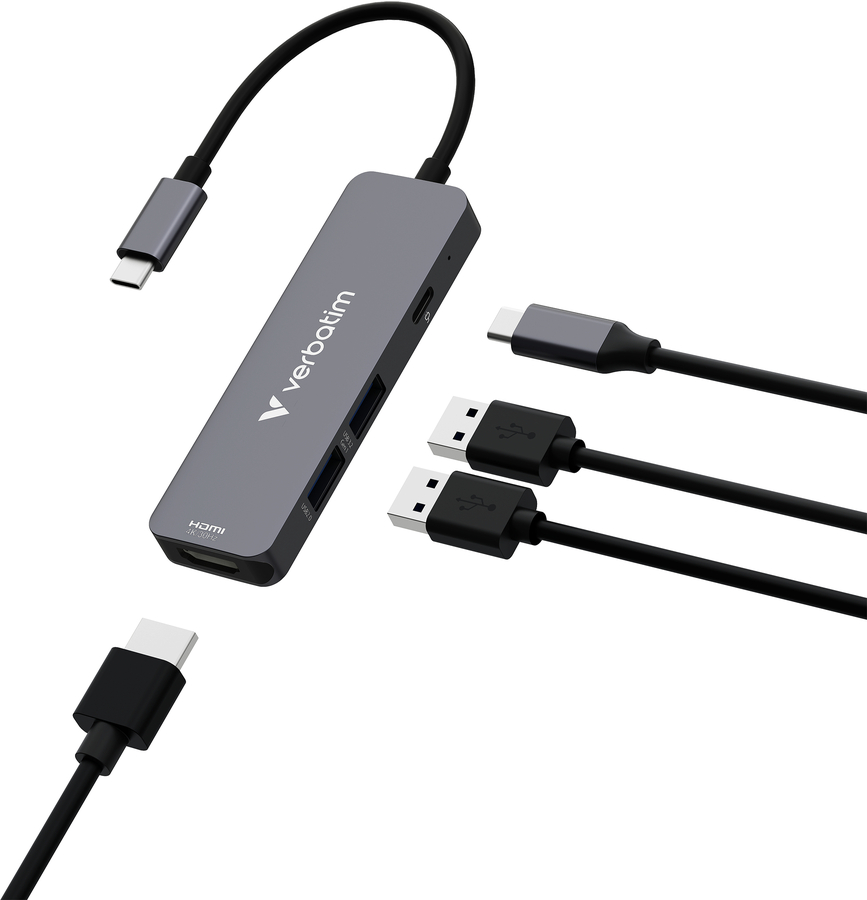

Easily expand your connectivity with four essential ports, including HDMI, USB-C® PD 3.0, USB-A 3.2 Gen 1, and USB-A 2.0. This hub is designed to connect your laptop to external displays, USB drives, and other peripherals, making it a versatile addition to your workspace.
High-Speed Data Transfer
With USB 3.2 Gen 1, enjoy data transfer speeds up to 5Gb/s. This enables quick sharing of files and efficient syncing of devices. The additional USB-A 2.0 port offers compatibility with older devices at speeds up to 480Mbps.
Impressive Display Output
Connect to an external display with the HDMI port, which supports 4K resolution at 30Hz. This allows for an enhanced viewing experience, perfect for presentations, video conferencing, or streaming content.
|
|
Ports & interfaces |
|
Ports quantity |
4 |
|
Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|
Hub interfaces |
HDMI, USB 2.0 Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
|
USB 2.0 ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
Features |
|
Data transfer rate |
5000 Mbit/s |
|
Supported graphics resolutions |
3840 x 2160 |
|
Maximum resolution (HDMI) |
3840 x 2160 pixels |
|
Product colour |
Grey |
|
Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery revision |
3.0 |
|
USB Power Delivery up to |
100 W |
|
HD type |
4K Ultra HD |
|
Number of displays supported |
1 |
|
Cable type |
Round cable |
|
Cable length |
0.15 m |
|
Plug and Play |
Yes |
|
Country of origin |
China |
|
Power |
|
Power supply type |
USB |
|
Input voltage |
5 - 20 V |
|
Output voltage |
5 V |
|
Output current |
0.9 A |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8 |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
|
Linux operating systems supported |
Yes |
|
Other operating systems supported |
Android |
|
Weight & dimensions |
|
Width |
29.7 mm |
|
Depth |
96.7 mm |
|
Height |
11 mm |
|
Weight |
51 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
85 mm |
|
Package depth |
155 mm |
|
Package height |
20 mm |
|
Package weight |
100 g |
|
Package type |
Box |
|
Packaging content |
|
Quick start guide |
Yes |
|
Operational conditions |
|
Minimum operating temperature |
0 °C |
|
Maximum operating temperature |
40 °C |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 85 °C |
|
Operating relative humidity (H-H) |
20 - 90% |
|
Logistics data |
|
Pallet gross width |
100 cm |
|
Pallet gross length |
120 cm |
|
Pallet gross height |
120 cm |
|
Pallet gross weight |
255 kg |
|
Master (outer) case width |
256 mm |
|
Master (outer) case length |
345 mm |
|
Master (outer) case height |
236 mm |
|
Master (outer) case gross weight |
5.3 kg |
|
Technical details |
|
Pallet net height |
12 cm |
|
Pallet net length |
120 cm |
|
Pallet net width |
100 cm |
|
Pallet net weight |
12 kg |
|
Compliance certificates |
CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, UKCA |
