General Information |
|
Summary |
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Environment-friendly Materials
By utilizing green materials like post-consumer recycled (PCR) plastic and sourcing renewable energy for our factory, we ensure the durability of our products and demonstrate a strong commitment to creating a greener world.
Built for Sustainability
The Cubi NUC Series blends business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. Our commitment extends to incorporating sustainable materials in both our product design and packaging, protecting the earth through our actions. By utilizing sustainable materials such as PCR plastics, recycled pulp from FSC™-certified forests, more active management of substances used in manufacturing processes, and the continued use of renewable energy in production processes, we ensure the products' durability and a commitment to a greener world.
The Cubi NUC Series embodies sustainable value and heightened productivity.
42.9% Post-consumer Recycled (PCR) Plastic
The Cubi NUC mini PC contains 42.9% PCR plastic, reducing plastic waste sent to landfills and contributing to environmental conservation.
Sustainably Sourced Wood Pulp with FSC Certification
FSC-certified cartons are made from sustainably sourced wood pulp, ensuring responsible forest management. This certification guarantees that the materials are renewable and low-carbon, promoting environmental sustainability.
By using FSC-certified cartons, MSI supports sustainable practices and contributes to the preservation of forests for future generations
Renewable Energy - Solar and Wind Power
Since 2021, MSI has installed solar power systems in its facilities and gradually increased the proportion of purchased renewable energy.
By 2024, it has achieved a carbon reduction of over 70%, with more than 99% of the electricity used in its factories coming from renewable sources. This demonstrates MSI's commitment to achieving net-zero sustainability by 2050.

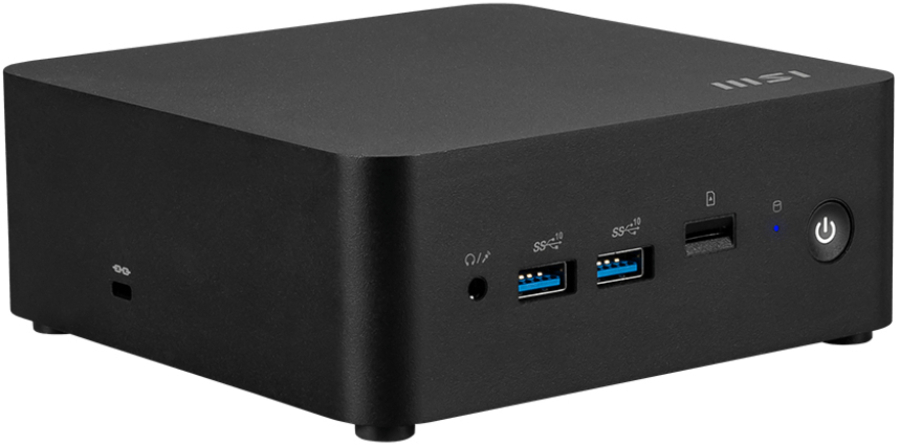

Mini Yet Powerful
The Cubi NUC is the ideal solution for confined spaces. It confidently handles a myriad of tasks, from basic computing to multimedia streaming and multitasking, leveraging their compact size.
Maximize Space with the Versatile Cubi NUC
The Cubi NUC is perfect for spaces with limited room, featuring a 0.826-liter chassis. It can be mounted behind a monitor, on a wall, or in digital signage, freeing up desk space and creating a tidier workspace.
Tailored for Professional Users
Equipped with up to Intel® Core™ 7 Processor 150U with 10 cores and 12 threads, it provides faster and more reliable performance. It also features 5.40 GHz with Intel Turbo Boost Max Technology 3.0, which allows users to multitask a variety of applications with ease.
DDR5 Dual-Channel Memory
DDR5 memory with dual-channel can enhance work efficiency and quality, processing large amounts of data and complex multitasking quickly and reducing waiting times and delays.
Thunderbolt 4:
A Single Cable to Serve All
Thunderbolt 4 supports power delivery input of up to 100W, making it an excellent choice for both powering and displaying through a single port.
Quadruple Display Support
Supporting up to 4 displays with HDMI™-out and Thunderbolt 4 allows for increased productivity by providing more screen space to manage multiple applications simultaneously.

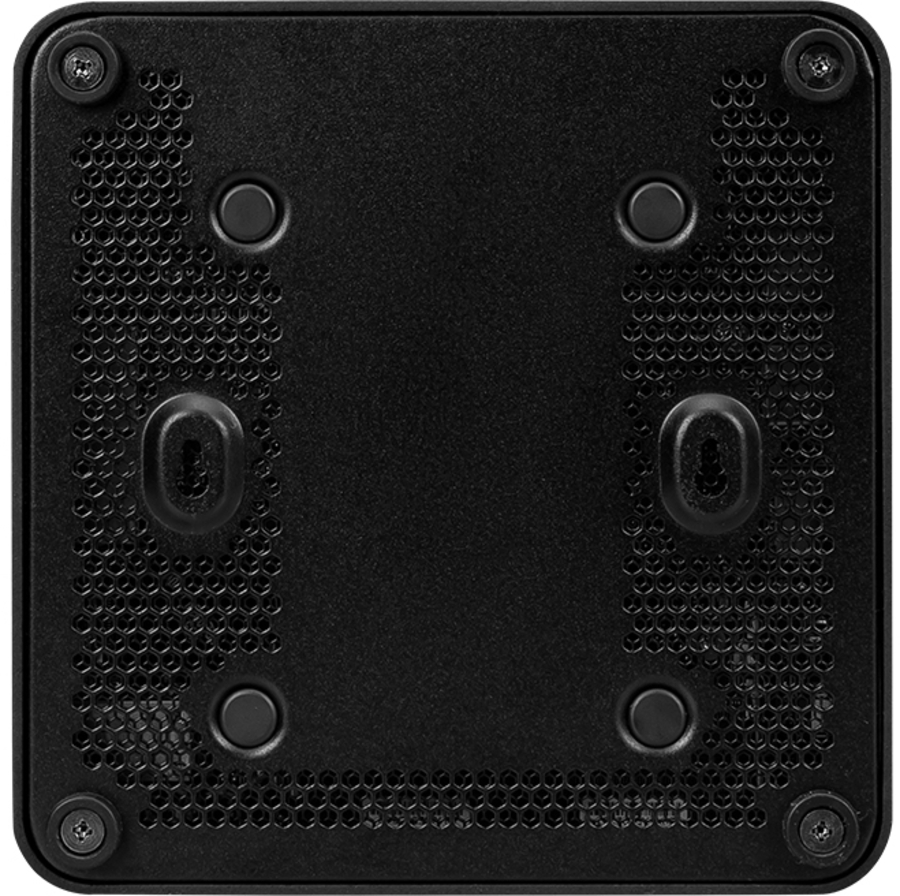

VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.

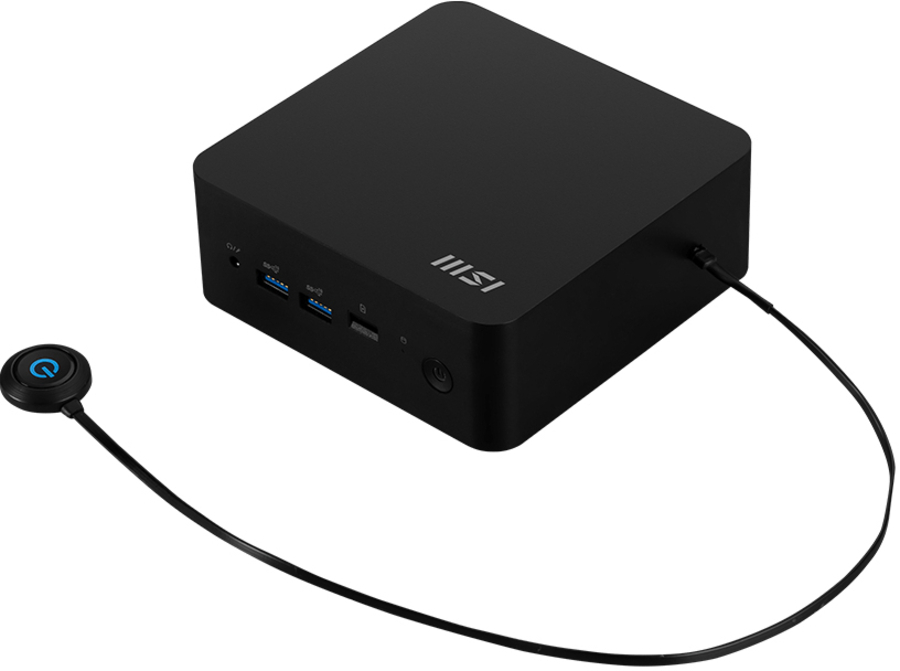

MSI Power Link
The Cubi NUC Series can be powered on using the power button on the MSI-selected monitor to bring the most convenient user experience.
Reliable Choice for Business
Ensuring top quality is not just a catchphrase for us; it is our utmost priority to deliver a hassle-free and high-quality product.

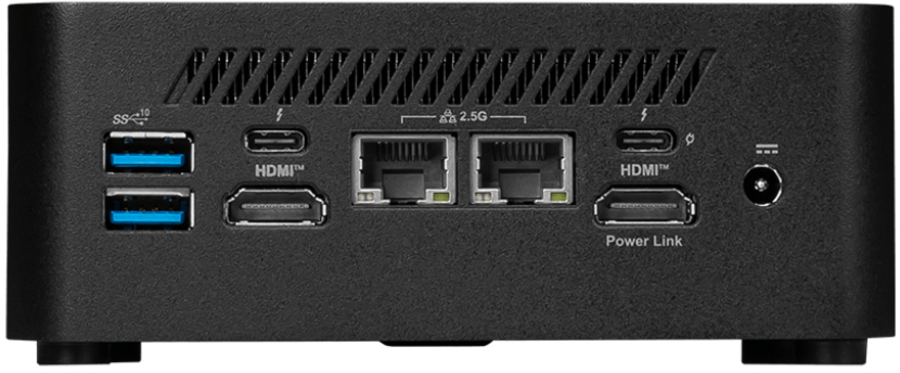

Dual 2.5G LAN
Experience the blazing speed of dual 2.5G LAN, which streamlines troubleshooting and enhances redundancy, network segmentation, security, and load balancing for users.
24 / 7
Qualified Reliability Test
Our relentless commitment to quality is reflected in our extensive reliability testing, which generates over 246,000 hours of MTBF (Mean Time Between Failures). We assure 24/7 reliability and availability,
delivering an effortless user experience.
Quality is not just a buzzword for us, it's our top priority to deliver a hassle-free and high-quality product.
Performance Assurance
MIL-STD-1916 testing guarantees MSI products meet high-performance standards, providing reliable and professional experiences with desktop PCs at their best.
Performance Assurance
MIL-STD-1916 testing ensures MSI products meet high performance standards, providing a reliable gaming experience with desktops at their best.
Durability
MIL-STD-1916 testing ensures every component meets strict durability standards, making MSI products capable of lasting through extended gaming and work sessions while delivering reliable performance.
Precision
We employ automation and advanced technology to achieve the highest level of precision. This technology-driven approach allows us to create and test products with unparalleled accuracy.
Reliability
In the world of business, reliability and dependability are crucial. MSI products go through rigorous testing and quality checks to minimize the chances of failure, ensuring an uninterrupted workflow.
Optimized for Versatility & Convenience
Streamlining operations to achieve maximum productivity with minimal wasted effort or expense.

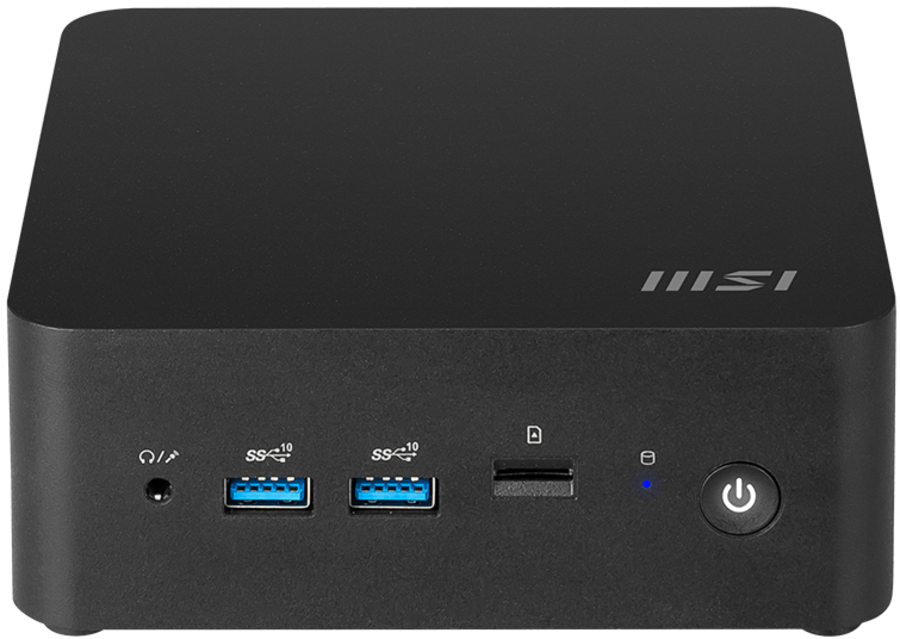

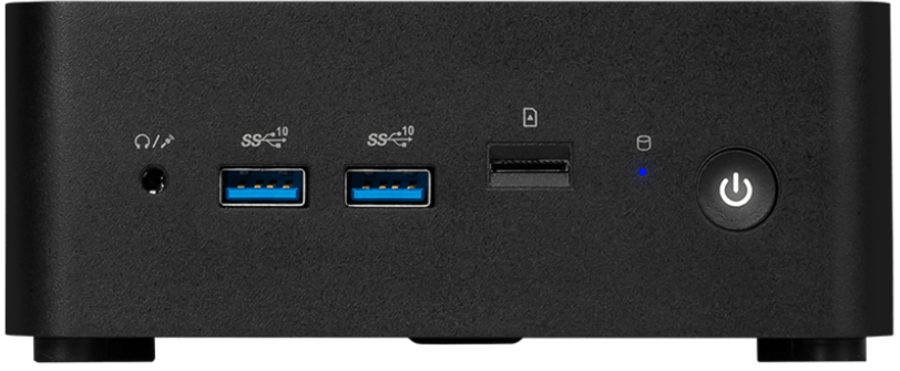

Various I/O Ports
With a various array of I/O ports, it can connect all devices users need at the same time so they can multi-task with those devises to make them work more efficiently.
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
|
|
Processor |
|
Processor family |
Intel Core Ultra 5 |
|
Processor manufacturer |
Intel |
|
Processor model |
125H |
|
Processor generation |
Intel® Core™ Ultra (Series 1) |
|
Processor cores |
14 |
|
Processor threads |
18 |
|
Processor boost frequency |
4.5 GHz |
|
Performance cores |
4 |
|
Efficient cores |
8 |
|
Low Power Efficient-cores |
2 |
|
Performance-core Max Turbo Frequency |
4.5 GHz |
|
Efficient-core Max Turbo Frequency |
3.6 GHz |
|
Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
|
Performance-core base frequency |
1.2 GHz |
|
Efficient-core base frequency |
0.7 GHz |
|
Low Power Efficient-core Base Frequency |
700 MHz |
|
Processor cache |
18 MB |
|
Processor cache type |
Smart Cache |
|
Number of processors supported |
1 |
|
Processor base power |
28 W |
|
Maximum turbo power |
115 W |
|
Neural processor unit (NPU) |
|
Neural processor unit (NPU) |
Intel AI Boost |
|
Sparsity support |
Yes |
|
Windows Studio effects support |
Yes |
|
AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory layout (slots x size) |
2 x 8 GB |
|
Memory slots |
2x SO-DIMM |
|
Memory clock speed |
5600 MHz |
|
Supported memory types |
DDR5-SDRAM |
|
Storage |
|
Total storage capacity |
1 TB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
1 TB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
1 TB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel Arc Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel Arc Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
LAN controller |
Intel I226-V |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
WLAN controller model |
Intel Wi-Fi 6E AX211 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
2 |
|
Intel® Thunderbolt 4 |
Yes |
|
Thunderbolt 4 ports quantity |
2 |
|
VGA (D-Sub) ports quantity |
0 |
|
DVI port |
No |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
Microphone in |
No |
|
Combo headphone/mic port |
Yes |
|
DC-in jack |
Yes |
|
Design |
|
Product colour |
Black |
|
VESA mounting |
Yes |
|

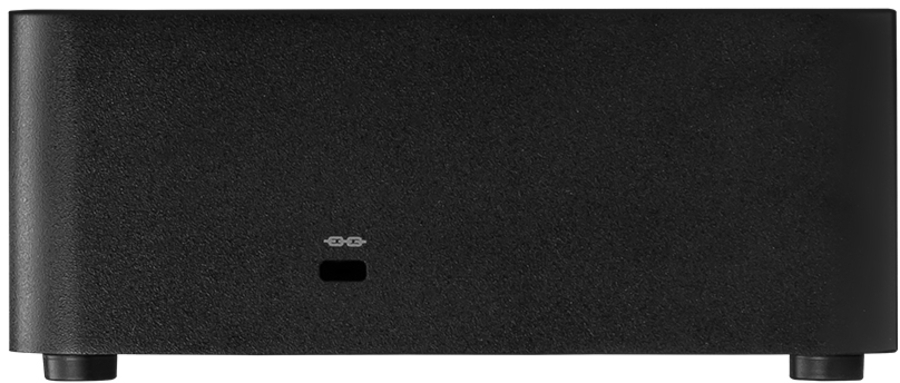

Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Housing material |
Plastic |
|
Performance |
|
Product type |
Mini PC |
|
Motherboard chipset |
Intel SoC |
|
Motherboard form factor |
NUC |
|
Built-in speaker(s) |
No |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Power |
|
Power supply |
120 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Storage relative humidity (H-H) |
0 - 90% |
|
Certificates |
|
Certification |
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
|
Weight & dimensions |
|
Width |
119.6 mm |
|
Depth |
115.2 mm |
|
Height |
37.5 mm |
|
Weight |
630 g |
|
Package width |
205 mm |
|
Package depth |
220 mm |
|
Package height |
94 mm |
|
Package weight |
1.45 kg |
|
Packaging content |
|
Mouse included |
No |
|
Keyboard included |
No |
|
AC adapter included |
Yes |
|
Power cord included |
Yes |
|
Display |
|
Display included |
No |
|
Other features |
|
Power supply type |
External AC adapter |
|
Panel mounting interface |
100 x 100 mm |
|
Graphics card family |
Intel |
|
Cooling type |
Active |
|
Number of displays supported |
4 |
|
Number of M.2 (M) slots |
2 |
|
Warranty period |
3 year(s) |
