General Information |
|
Summary |
Maximum productivity, rock-solid reliability

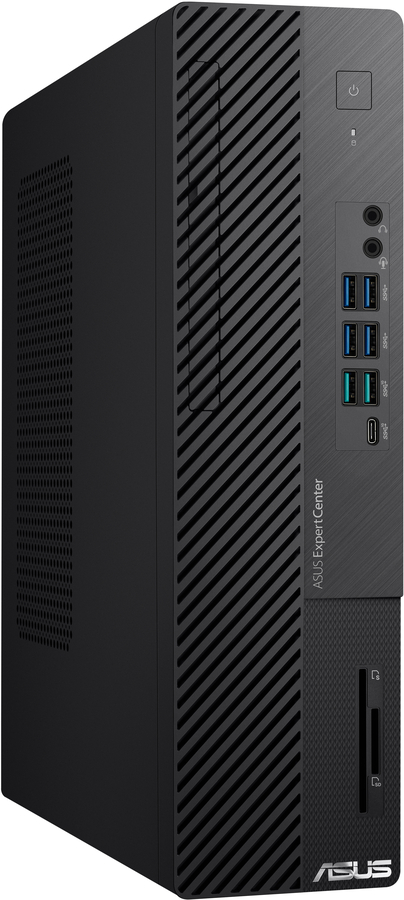

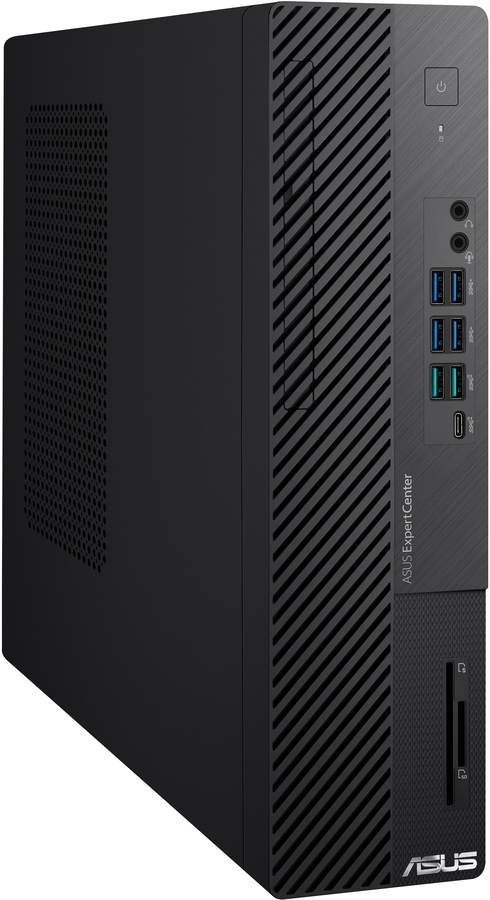

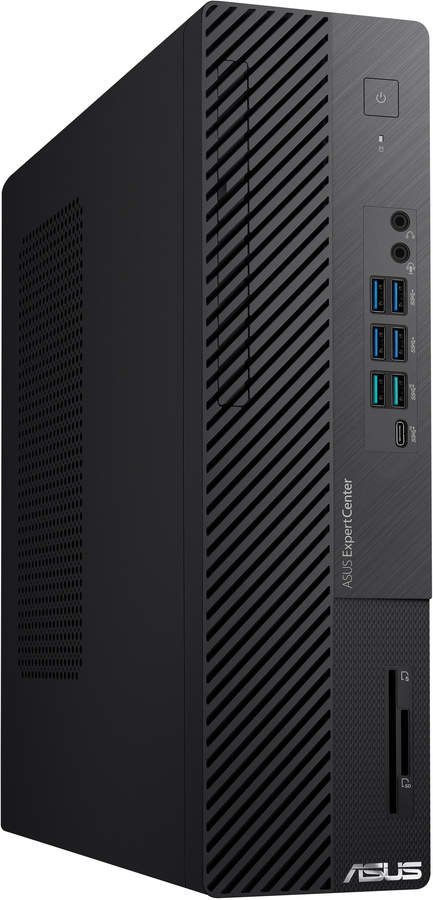

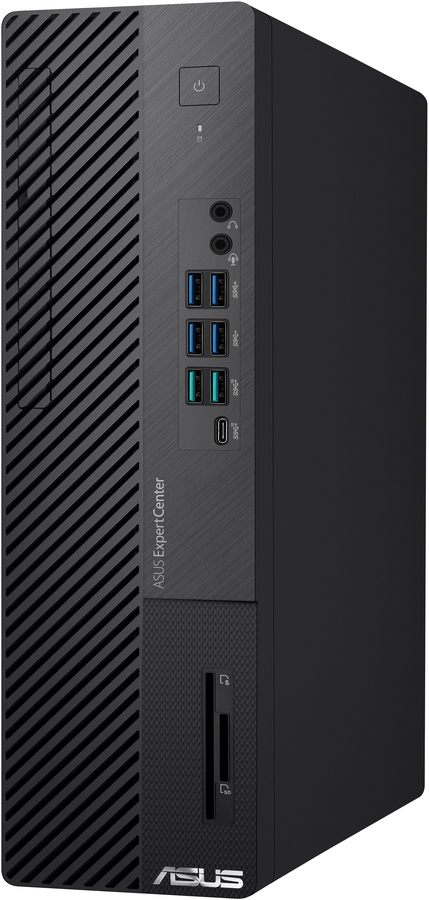

Built to perform and easy to manage for enterprises, ExpertCenter D9 SFF delivers serious business horsepower with Intel vPro® with Intel® Core™ 14th gen processor, up to professional-grade discrete graphics, and comprehensive connectivity. ExpertCenter D9 SFF is also simple to configure and upgrade to meet any needs, so it’s ready to serve your business today and long into the future. |
|
Processor |
|
Processor family |
Intel® Core™ i7 |
|
Processor manufacturer |
Intel |
|
Processor model |
i7-14700 |
|
Processor generation |
Intel® Core™ i7 (14th gen) |
|
Processor cores |
20 |
|
Processor threads |
28 |
|
Processor boost frequency |
5.4 GHz |
|
Performance cores |
8 |
|
Efficient cores |
12 |
|
Performance-core Max Turbo Frequency |
5.3 GHz |
|
Efficient-core Max Turbo Frequency |
4.2 GHz |
|
Performance-core base frequency |
2.1 GHz |
|
Efficient-core base frequency |
1.5 GHz |
|
Processor cache |
33 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
65 W |
|
Maximum turbo power |
219 W |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
128 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory layout (slots x size) |
2 x 8 GB |
|
Memory slots |
4x DIMM |
|
Storage |
|
Total storage capacity |
1 TB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
1 TB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
1 TB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
MMC, SD |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel UHD Graphics 770 |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® UHD Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000Base-T(X) |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
Antenna type |
2x2 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI version |
1.4 |
|
DisplayPorts quantity |
2 |
|
DisplayPort version |
1.4 |
|
PS/2 ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
Yes |
|
Headphone outputs |
1 |
|
Combo headphone/mic port |
Yes |
|

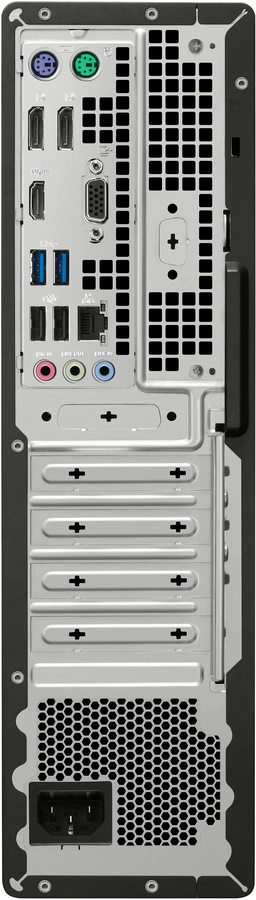

Number of rear USB ports |
4 |
|

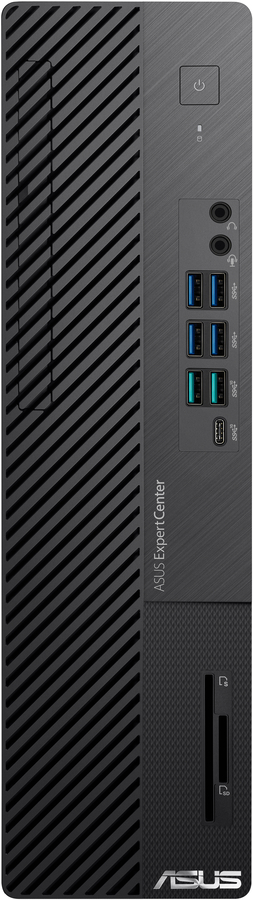

Number of front USB ports |
7 |
|
Number of front audio ports |
2 |
|
Number of rear audio ports |
3 |
|
Number of SATA III connectors |
4 |
|
Expansion slots |
|
PCI Express x1 (Gen 3.x) slots |
2 |
|
PCI Express x16 (Gen 3.x) slots |
1 |
|
PCI Express x16 (Gen 4.x) slots |
1 |
|
Design |
|
Chassis type |
SFF |
|
Product colour |
Black |
|
Colour name |
Black |
|
Number of 3.5" bays |
1 |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Introduction year |
2025 |
|
Performance |
|
Product type |
PC |
|
Market positioning |
Business |
|
Motherboard chipset |
Intel Q670 |
|
Audio system |
High Definition Audio |
|
Audio output channels |
7.1 channels |
|
Password protection |
Yes |
|
Password protection type |
BIOS, HDD, User |
|
Trusted Platform Module (TPM) |
Yes |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system architecture |
64-bit |
|
Power |
|
Power supply |
330 W |
|
80 PLUS certification |
80 PLUS Platinum |
|
Certificates |
|
Compliance certificates |
REACH |
|
Sustainability |
|
Sustainability certificates |
EPEAT Silver |
|
Weight & dimensions |
|
Width |
94.6 mm |
|
Depth |
292.6 mm |
|
Height |
339.6 mm |
|
Weight |
5 kg |
|
Display |
|
Display included |
No |
