General Information |
|
Summary |

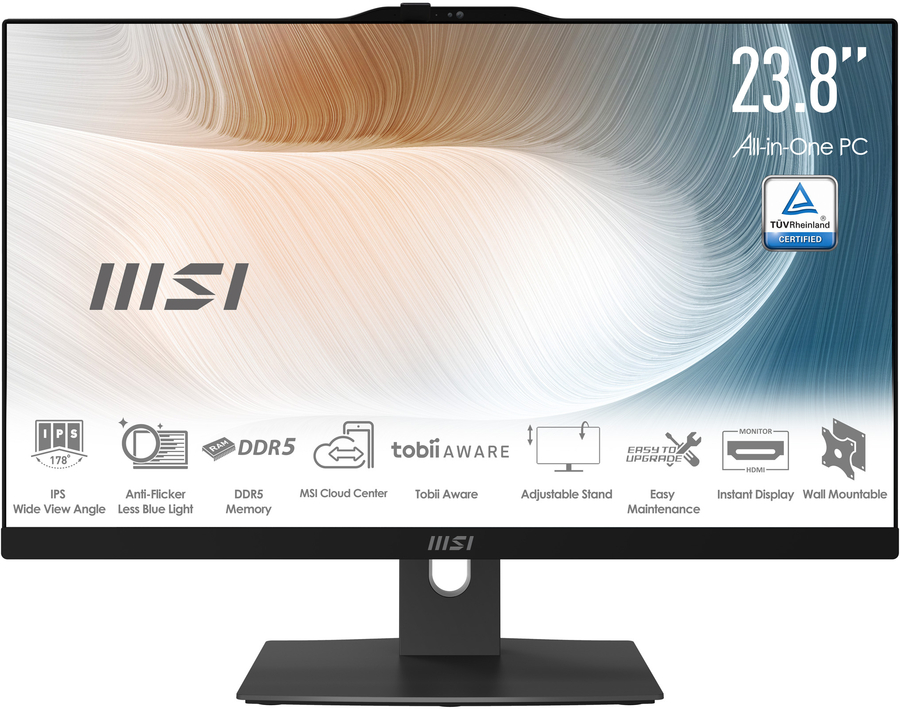

Connect To The World Safely With a Webcam Cover
No matter you’re learning, working or cooking at home, you can connect to the world with a built-in webcam which brings you the best video chatting quality and you can cover the webcam anytime to prevent any concern you have.
When a sound is heard, it automatically recognizes and separates vocal sound from background noises; hence, filtering out all the unwanted Noise.

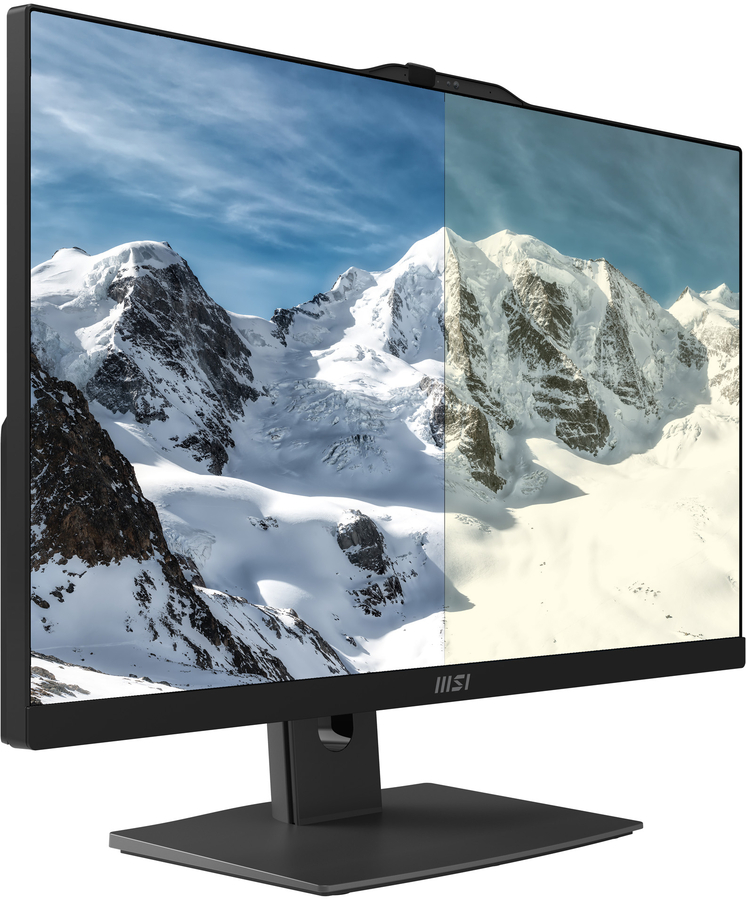

Anti-Flicker With Eye-Care Technology
Thanks to MSI’s Anti-Flicker technology, it eliminates flickering and effectively reduces eye fatigue caused by prolonged screen time while enhancing the productivity at home or in the office.
See More, Do More At Home
Thanks to MSI’s Instant Display Technology, Modern AM242 series can also be used as a monitor without booting up its system. When devices are connected to the HDMI-in port, the screen will be turned on immediately.

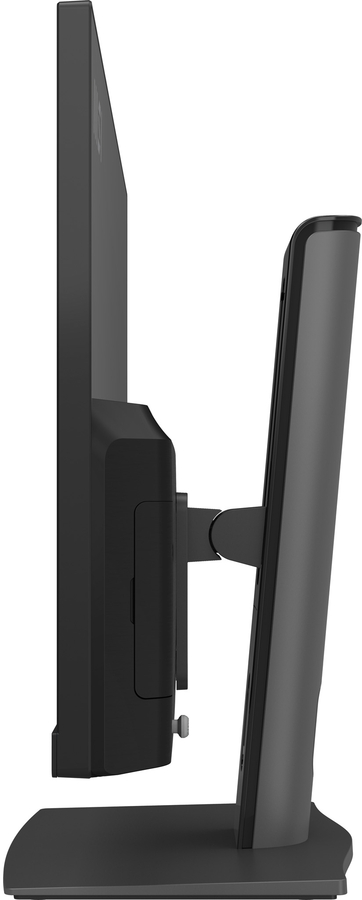

The Best Position While Working & Learning At Home
You are able to learn or manage your E-commerce with a comfortable viewing position and can always adjust the tilt & height according to different situations.

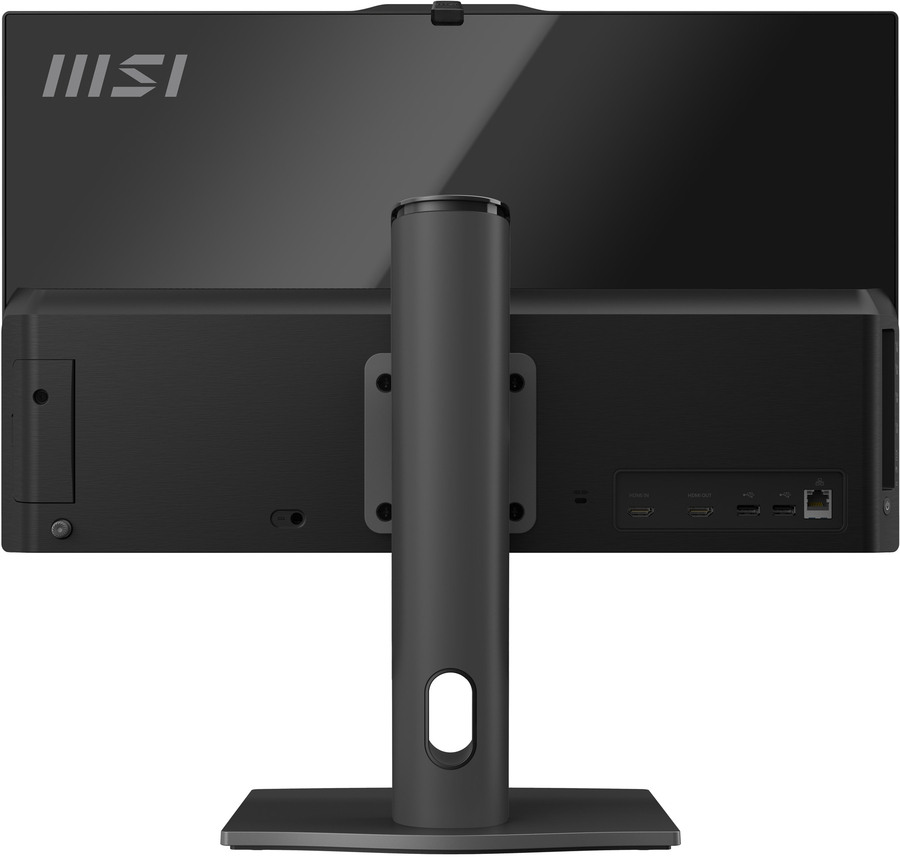

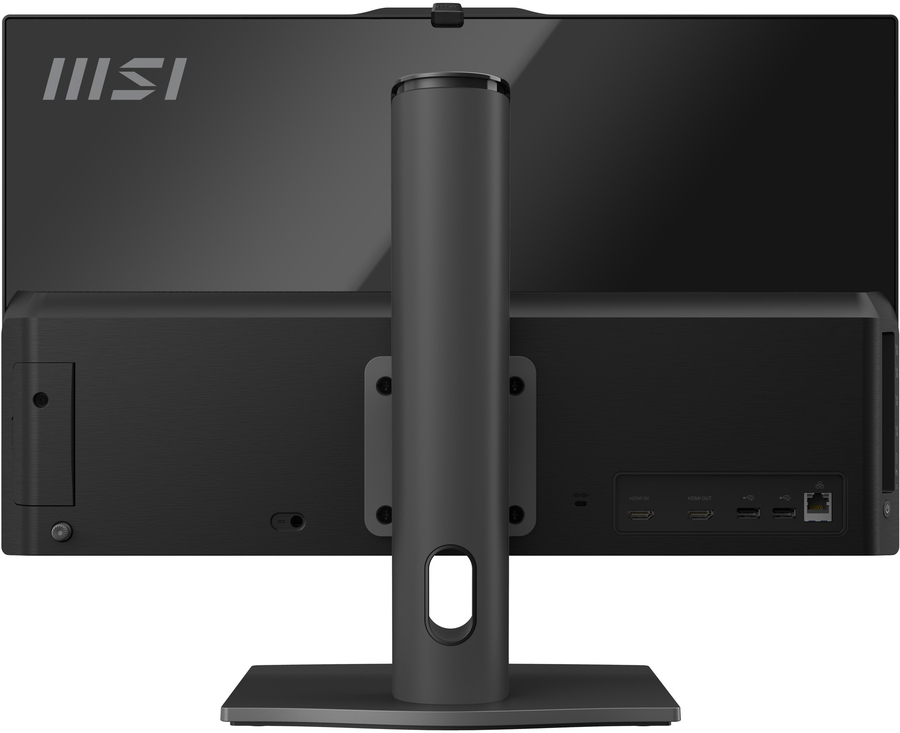

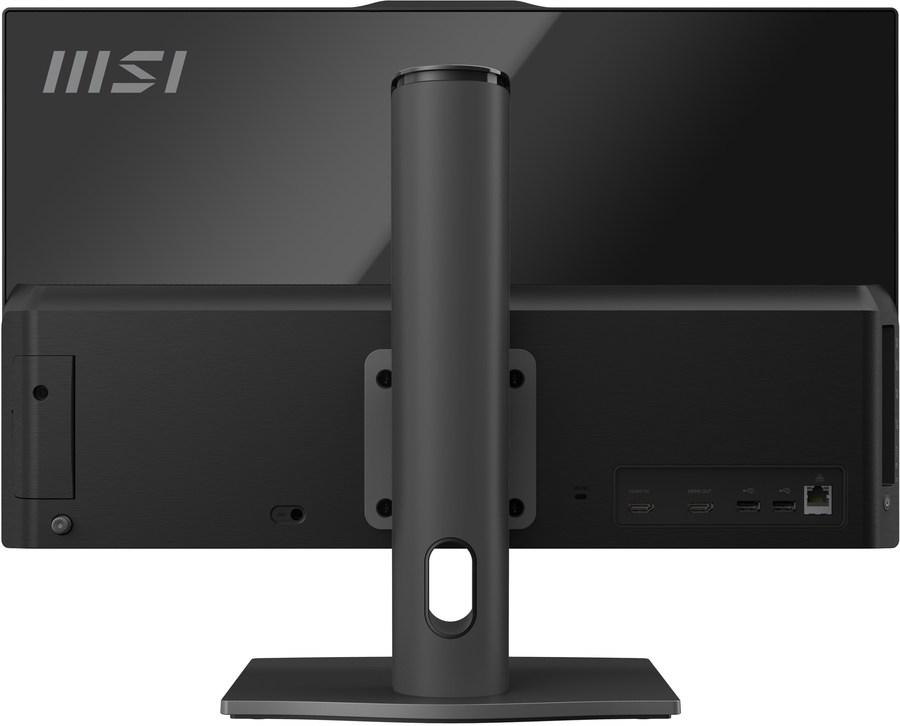

Mount With MSI VESA Arm
Enjoy a clean cable management with the MSI MT81 which supports the VESA standards, you can share any information or e-learning material with family at home or in the office.

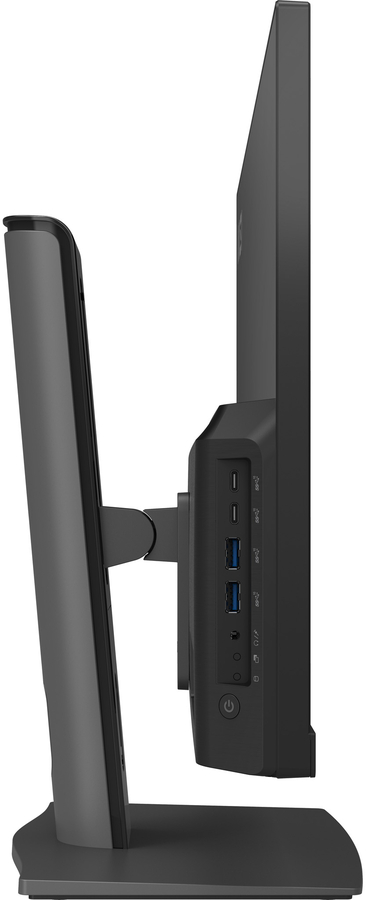

Reversible Type-C With USB 3.2 Gen 2
When backup your projects at home you can get all the performance benefits from USB 3.2 Gen2, combined with the convenience of the USB Type-C connector.
The reversible USB Type C also allows for effortless connecting of USB devices.
5-Way Navigator OSD Control
The World’s First All-in-One PC with 5-Way Navigator for an easy OSD Control.
Easy Maintenance Design
With the Storage Rapid Upgrade Design, maintaining or upgrading your 2.5” storage on Modern AM242 series will not be a nightmare any more.
Work From Home with IPS Grade Panel
Modern AM242 Series is equipped with IPS Grade Panel which not only instantly optimizes the screen colors and brightness , but also ensures that you have the best E-commerce management experience while working from home or learning its professional tasks at home.
Touch This World With Unlimited Opportunity Even When You're At Home
Intuitively rolling up the webpage with your fingers, the Modern AM242 series equipped with in-cell touch technology that provides the most comfortable touch experience and a longer lifecycle for your every opportunity.
Secure Your E-Commerce Data At Home & In The Office
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects. |
|
Display |
|
Display diagonal |
60.5 cm (23.8") |
|
Display resolution |
1920 x 1080 pixels |
|
Touchscreen |
No |
|
HD type |
Full HD |
|
Native aspect ratio |
16:9 |
|
Display brightness |
250 cd/m² |
|
Panel type |
IPS |
|
Pixel pitch |
0.2745 x 0.2745 mm |
|
Anti-glare screen |
Yes |
|
Tilt adjustment |
Yes |
|
Tilt angle range |
-4 - 20° |
|
Processor |
|
Processor family |
Intel Core 3 |
|
Processor manufacturer |
Intel |
|
Processor model |
100U |
|
Processor generation |
Intel Core (Series 1) |
|
Processor cores |
6 |
|
Processor threads |
8 |
|
Processor boost frequency |
4.7 GHz |
|
Performance cores |
2 |
|
Efficient cores |
4 |
|
Performance-core Max Turbo Frequency |
4.7 GHz |
|
Efficient-core Max Turbo Frequency |
3.3 GHz |
|
Performance-core base frequency |
1.2 GHz |
|
Efficient-core base frequency |
0.9 GHz |
|
Processor cache |
10 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
15 W |
|
Maximum turbo power |
55 W |
|
Memory |
|
Internal memory |
8 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory slots |
2 |
|
Memory slots type |
SO-DIMM |
|
Memory clock speed |
5600 MHz |
|
Memory layout (slots x size) |
1 x 8 GB |
|
Memory form factor |
DIMM/SO-DIMM |
|
Storage |
|
Total storage capacity |
512 GB |
|
Storage media |
SSD |
|
Optical drive type |
No |
|
Total SSDs capacity |
512 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
512 GB |
|
SSD interface |
PCI Express 3.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Graphics |
|
Discrete graphics card |
No |
|
Discrete graphics card model |
Not available |
|
On-board graphics card |
Yes |
|
On-board graphics card model |
Intel® Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® Graphics |
|
Audio |
|
Built-in speaker(s) |
Yes |
|
Number of speakers |
2 |
|
RMS rated power |
5 W |
|
Audio chip |
Realtek ALC256 |
|
Camera |
|
Built-in camera |
Yes |
|
Total megapixels |
2 MP |
|
Network |
|
Wi-Fi |
Yes |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Ethernet LAN |
Yes |
|
Bluetooth |
Yes |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
WLAN controller manufacturer |
Intel |
|
WLAN controller model |
Intel Wi-Fi 6E AX211 |
|
Bluetooth version |
5.3 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
|
USB4 Gen 3x2 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI version |
2.0 |
|
Microphone in |
Yes |
|
Combo headphone/mic port |
Yes |
|
Design |
|
Product colour |
Black |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
VESA mounting |
Yes |
|
Panel mounting interface |
75 x 75 mm |
|
Performance |
|
Product type |
All-in-One PC |
|
Market positioning |
Business |
|
Motherboard chipset |
Intel SoC |
|
Windows Hello |
Yes |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Power |
|
AC adapter power |
120 W |
|
Weight & dimensions |
|
Width (with stand) |
652 mm |
|
Depth (with stand) |
222 mm |
|
Height (with stand) |
455 mm |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Storage relative humidity (H-H) |
0 - 90% |
|
Other features |
|
Warranty period |
3 year(s) |
