General Information |
|
Summary |
Workstation might, desktop price

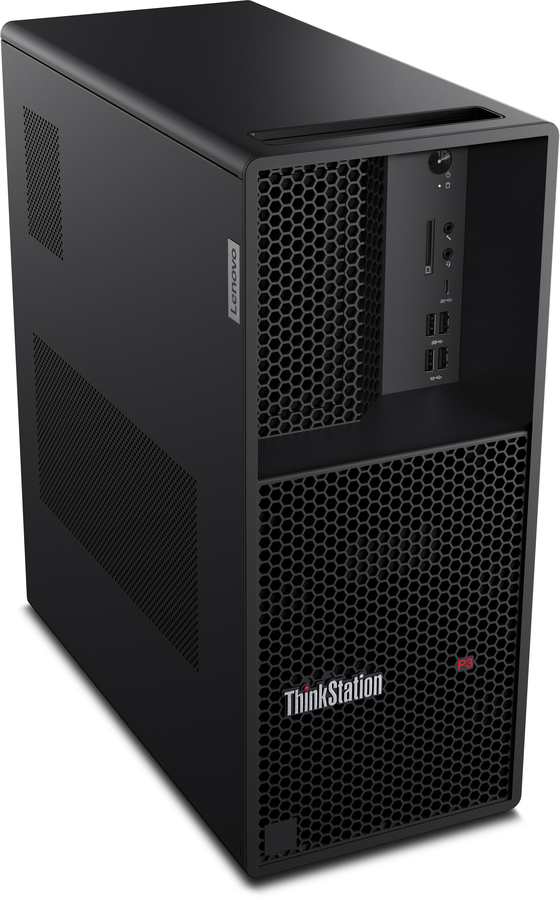

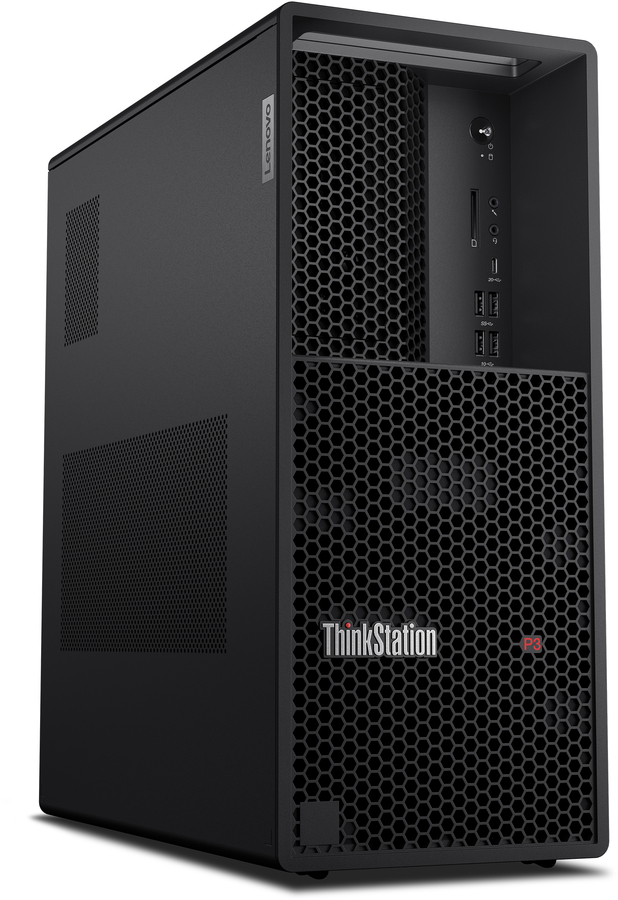

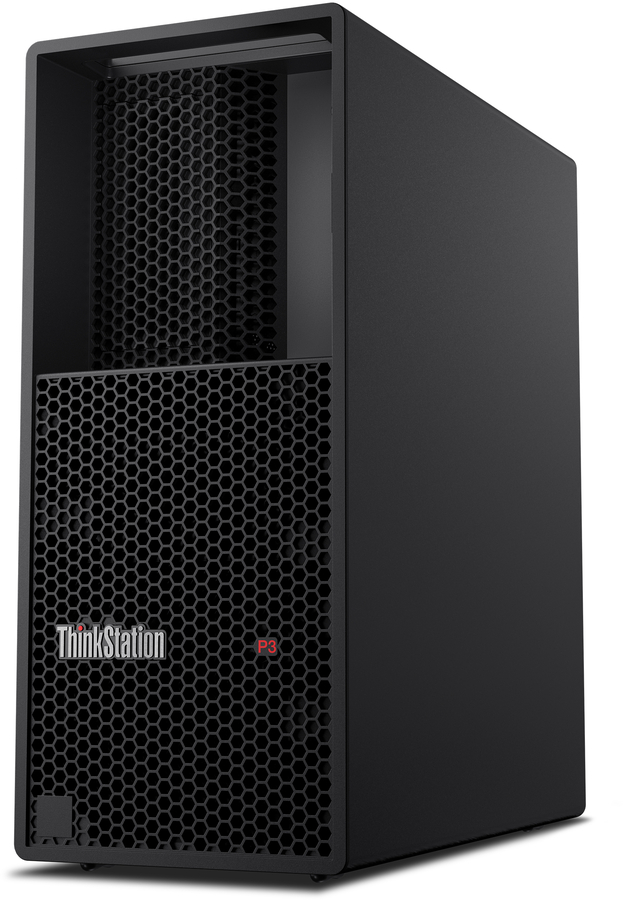

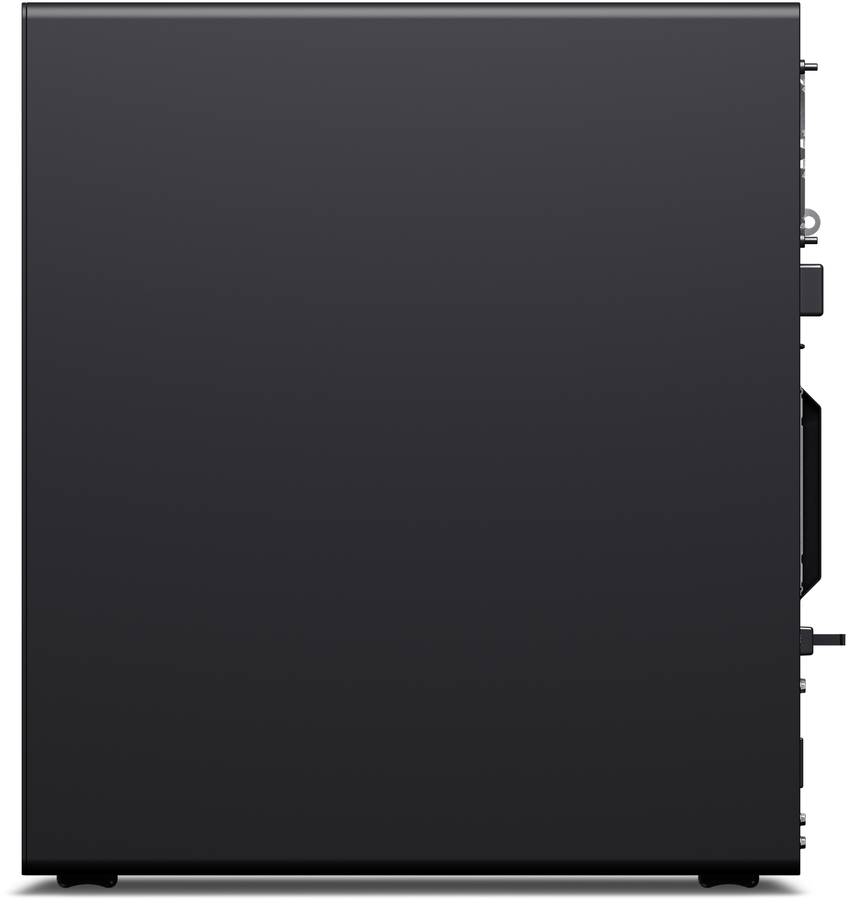

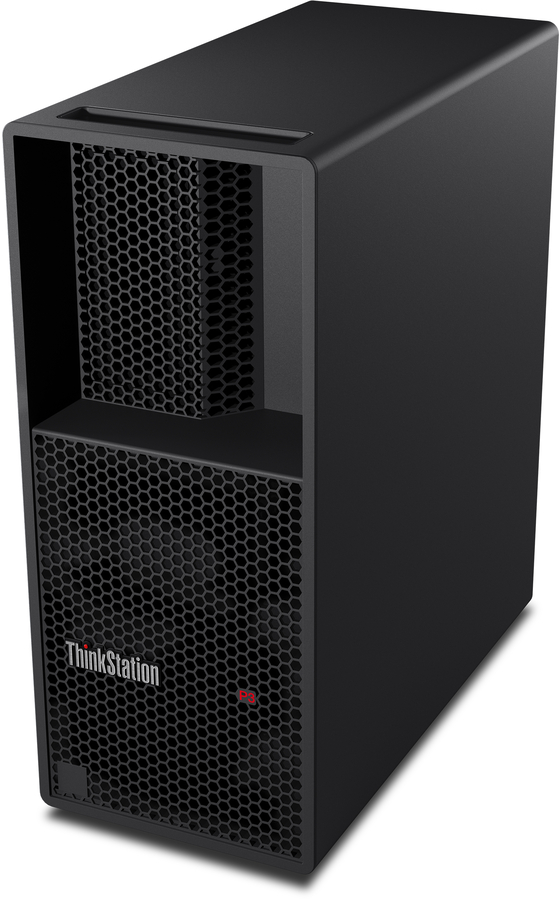

Designed by engineers for engineers, the Lenovo ThinkStation P3 Tower offers all the workhorse capabilities of a workstation for the price of a desktop. Built for tasks that require superior power and performance, it's equipped with Intel® Core™ processors with Intel vPro®, and supports professional NVIDIA® discrete graphics.
Delivering power & performance
The ThinkStation P3 Tower’s chassis has an advanced thermal design to promote extra power and performance, without overheating. It also comes with a choice of operating systems, including Windows 11 Pro and Linux®. In short, the P3 gives you the compute power to execute your visions, time and time again.
Configure it any which way

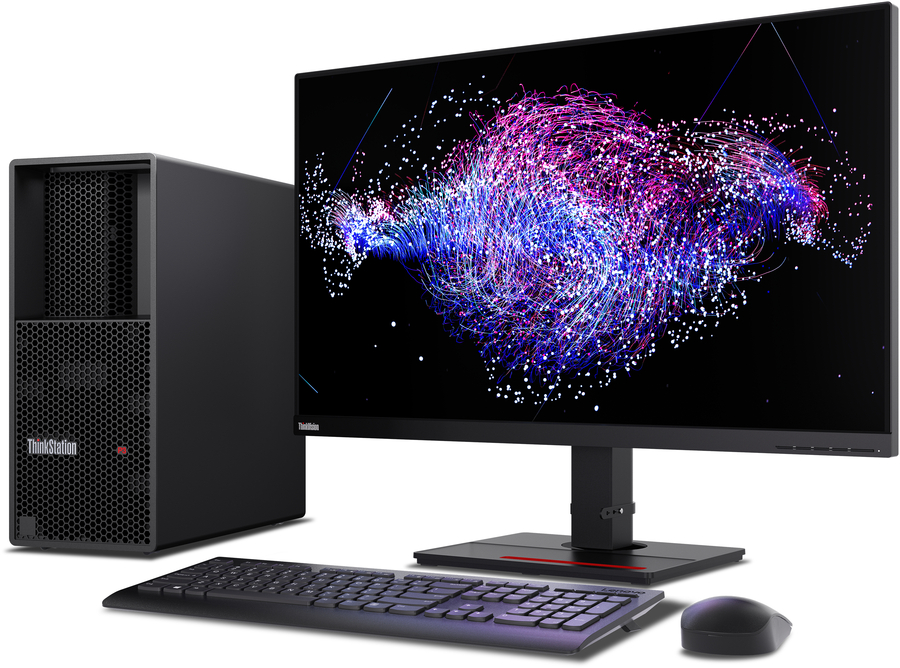

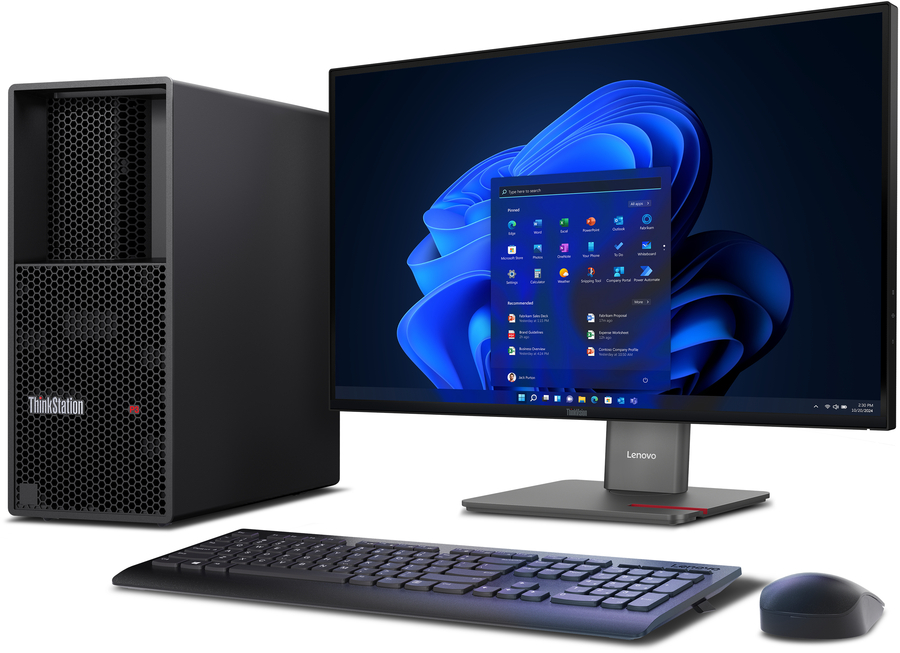

With three onboard DisplayPorts, plus the ability to configure up to eight more, the ThinkStation P3 Tower can support up to 12 independent displays. It also comes with a choice of operating systems, including Windows 11 Pro and Red Hat® Enterprise Linux®. And with heaps of speedy memory and SSD storage, plus five open PCIe slots, this workstation can be configured to tackle your most exacting workflows. It also comes with a USB mouse and keyboard.
Mission-critical performance, made easy
At the heart of every Lenovo ThinkStation is reliability. Proven to run in extreme conditions, the ThinkStation P3 Tower also boasts an array of independent software vendor (ISV) certifications. It's the perfect workstation for designers, engineers, and students looking for versatility, flexibility, and breakthrough performance to breeze through heavy workloads.
See the complete list of ISV certifications.
Security you can count on
The ThinkStation P3 Tower is protected with ThinkShield, a suite of hardware and software that work together to safeguard your workstation and data. This includes the discrete Trusted Platform Module (TPM) 2.0 to encrypt sensitive data, as well as various programs to prevent unauthorized access to the BIOS, plus self-healing software if the BIOS is corrupted or maliciously attacked. For extra peace of mind, it also supports Windows firmware updates.
Specifications may vary depending upon region / model. |
|
Processor |
|
Processor family |
Intel Core Ultra 7 |
|
Processor manufacturer |
Intel |
|
Processor model |
265 |
|
Processor generation |
Intel Core Ultra (Series 2) |
|
Processor cores |
20 |
|
Processor threads |
20 |
|
Processor boost frequency |
5.3 GHz |
|
Performance cores |
8 |
|
Efficient cores |
12 |
|
Performance-core Max Turbo Frequency |
5.2 GHz |
|
Efficient-core Max Turbo Frequency |
4.6 GHz |
|
Performance-core base frequency |
2.4 GHz |
|
Efficient-core base frequency |
1.8 GHz |
|
Processor cache |
30 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
65 W |
|
Maximum turbo power |
182 W |
|
Neural processor unit (NPU) |
|
Neural processor unit (NPU) |
Intel AI Boost |
|
Sparsity support |
Yes |
|
Windows Studio effects support |
Yes |
|
AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|
Total processor performance up to |
33 TOPs |
|
NPU performance up to |
13 TOPs |
|
GPU performance up to |
8 TOPs |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
256 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory layout (slots x size) |
1 x 16 GB |
|
Memory slots |
4x DIMM |
|
Memory clock speed |
5600 MHz |
|
Memory channels |
Dual-channel |
|
Storage |
|
Total storage capacity |
512 GB |
|
Optical drive type |
DVD±RW |
|
Storage media |
SSD |
|
Total SSDs capacity |
512 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
512 GB |
|
SSD interface |
PCI Express 5.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
SD |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
|
Wi-Fi standards |
Wi-Fi 7 (802.11be) |
|
WLAN controller manufacturer |
Intel |
|
Antenna type |
2x2 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.4 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
3 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
Yes |
|
Line-out |
Yes |
|
Combo headphone/mic port |
Yes |
|
Design |
|
Chassis type |
Tower |
|
Product colour |
Black |
|
Volume |
27 L |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
Workstation |
|
Motherboard chipset |
Intel W880 |
|
Audio chip |
Realtek ALC623-CG |
|
Audio system |
High Definition Audio |
|
Built-in speaker(s) |
Yes |
|
Number of speakers |
1 |
|
Password protection |
Yes |
|
Password protection type |
BIOS, Power on |
|
BIOS type |
UEFI |
|
Trusted Platform Module (TPM) |
Yes |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system language |
ENG-UK, US English |
|
Power |
|
Power supply |
750 W |
|
80 PLUS certification |
80 PLUS Platinum |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Operating altitude |
0 - 3048 m |
|
Non-operating altitude |
0 - 12192 m |
|
Certificates |
|
Certification |
ErP Lot 3
RoHS compliant
TCO Certified, generation 10 |
|
Weight & dimensions |
|
Width |
180 mm |
|
Depth |
370 mm |
|
Height |
415 mm |
|
Weight |
14.4 kg |
|
Packaging content |
|
Mouse included |
Yes |
|
Mouse connectivity |
Wired |
|
Keyboard included |
Yes |
|
Keyboard connectivity |
Wired |
|
Display |
|
Display included |
No |
