StarTech ARMPIVOT2 Desk Mount Monitor Arm
|
|
Price: $161.00
Manufacturer:
StarTech
StarTech.com Desk Mount Monitor Arm, Up to 40inch Screen/17.6lb (8kg), Mechanical Spring-Assisted Arm, Top-Down Installation
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60503320
|
ARMPIVOT2
|
65030921695 |
Active
|
Details
|
General Information |
|
Summary |

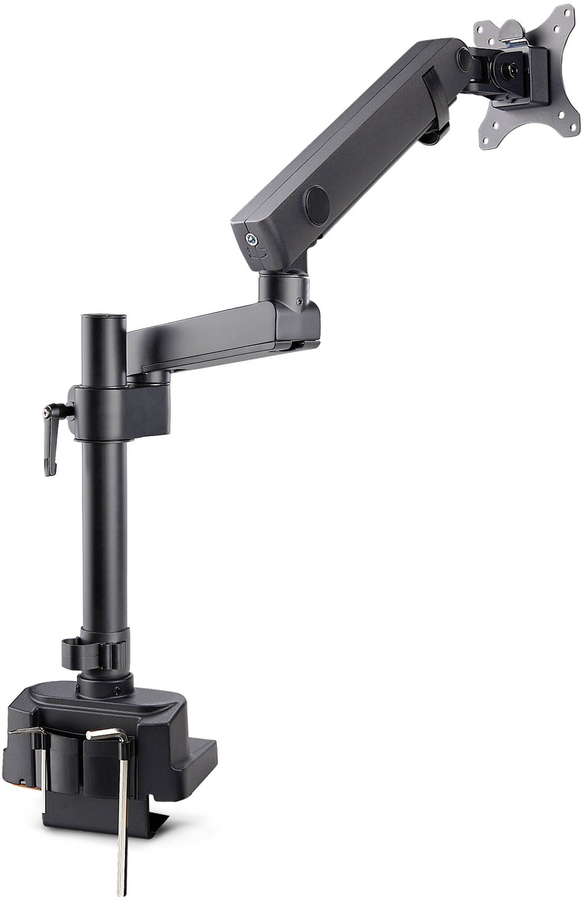

Monitor desk mount with support for up to 40" monitor with height adjustable spring arm
This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

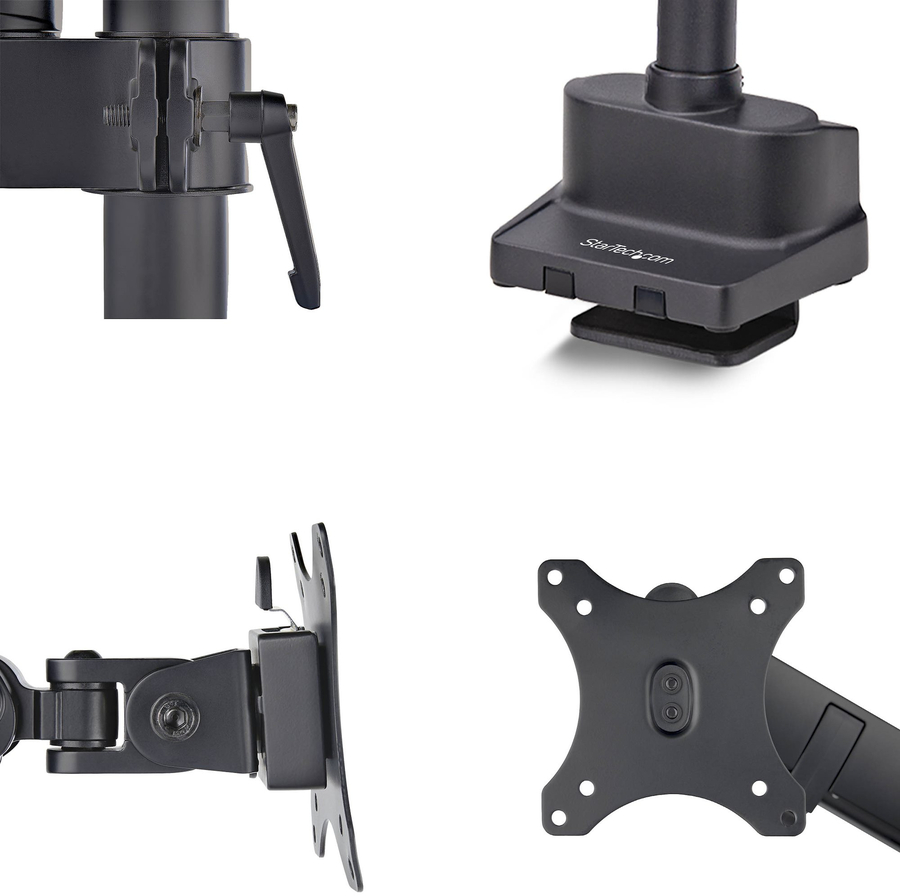

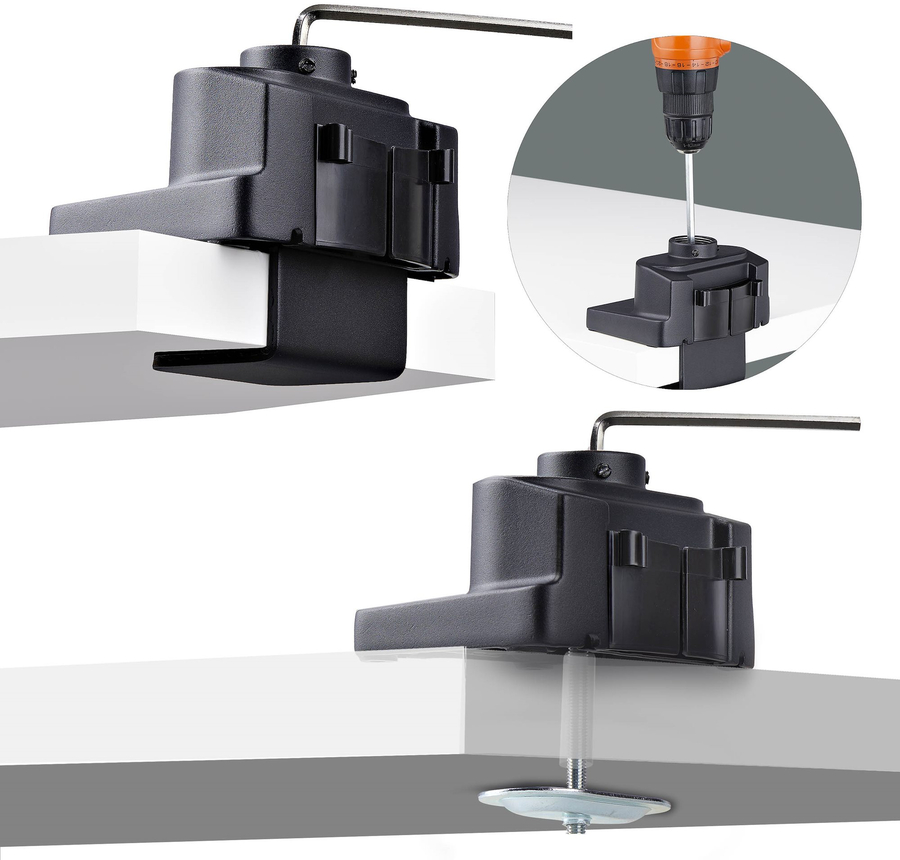

Top-Down Installation
The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.
Height Adjustment with One Smooth Motion
Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.
Range of Motion

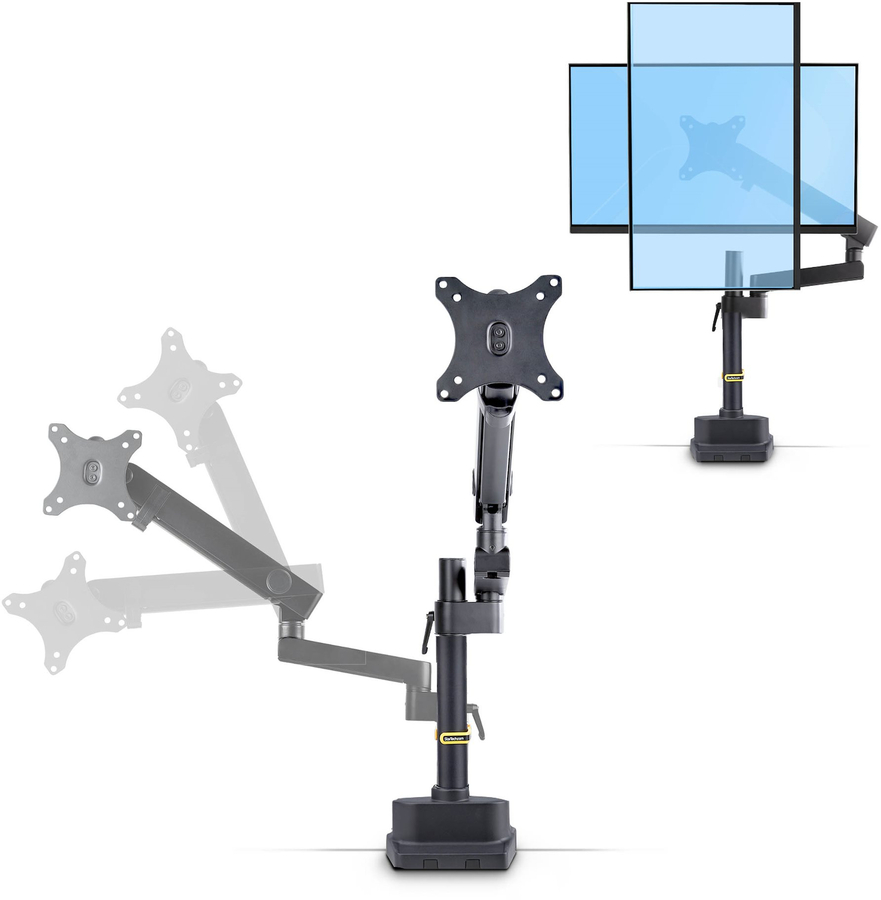

Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Cable Management
Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup. |
|
Mounting |
|
Number of displays supported |
1 |
|
Maximum weight capacity (per display) |
8 kg |
|
Maximum screen size |
101.6 cm (40") |
|
Maximum weight capacity |
8 kg |
|
Minimum screen size |
43.2 cm (17") |
|
Minimum VESA mount |
75 x 75 mm |
|
Maximum VESA mount |
100 x 100 mm |
|
Desk thickness (min) |
1 cm |
|
Desk thickness (max) |
5 cm |
|
Ergonomics |
|
Height adjustment |
Yes |
|
Height adjustment range |
180 - 620 mm |
|
Depth adjustment range |
419 - 594 mm |
|
Tilt adjustment |
Yes |
|
Tilt angle range |
-90 - 90° |
|
Swivelling |
Yes |
|
Swivel angle range |
-180 - 180° |
|
Rotating |
Yes |
|
Angle of rotation |
360° |
|
Cable management |
Yes |
|
Design |
|
Product colour |
Black |
|
Housing material |
Plastic, Steel |
|
Anti-theft function |
No |
|
Weight & dimensions |
|
Width |
115 mm |
|
Depth |
703 mm |
|
Height |
607 mm |
|
Weight |
3.6 kg |
|
Packaging data |
|
Package width |
435 mm |
|
Package depth |
240 mm |
|
Package height |
117 mm |
|
Package weight |
3.7 kg |
|

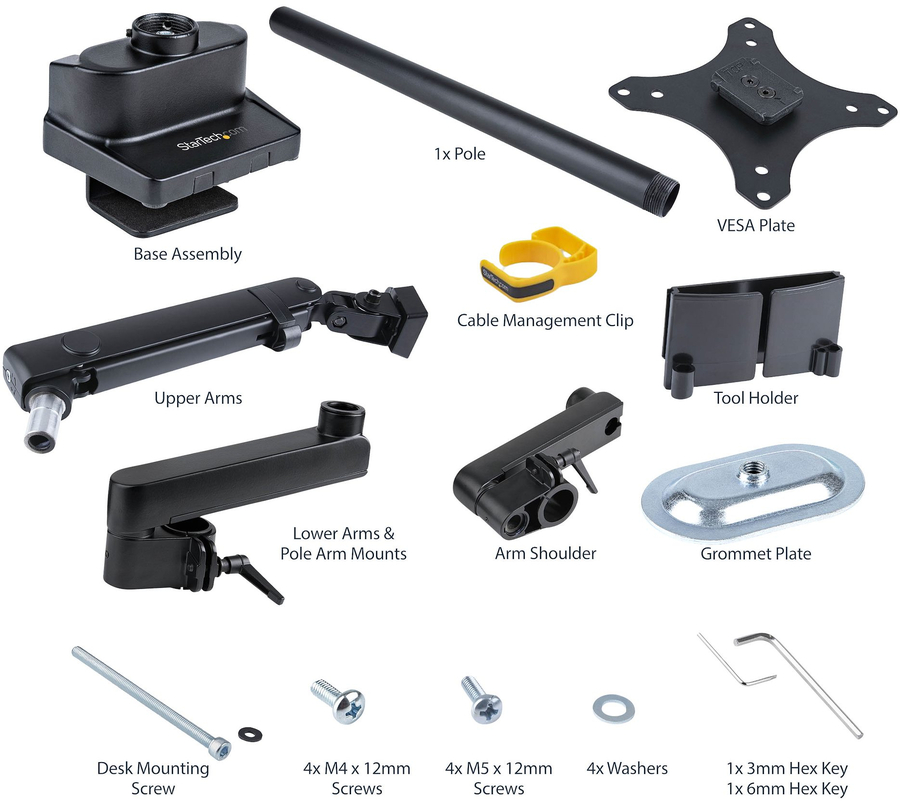

Packaging content |
|
VESA mount included |
Yes |
|
Number of cable clips |
1 |
|
Screws included |
Yes |
|
Number of screws |
9 |
|
Number of washers included |
4 |
|
Grommet plate included |
Yes |
|
Logistics data |
|
Master (outer) case width |
420 mm |
|
Master (outer) case length |
370 mm |
|
Master (outer) case height |
335 mm |
|
Products per master (outer) case |
4 pc(s) |
|
