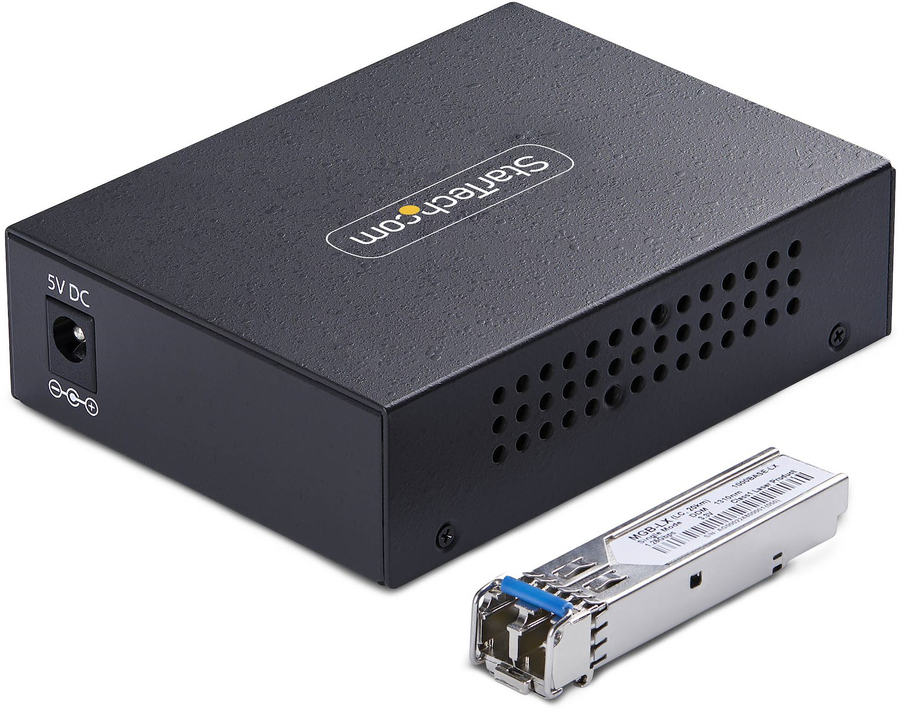

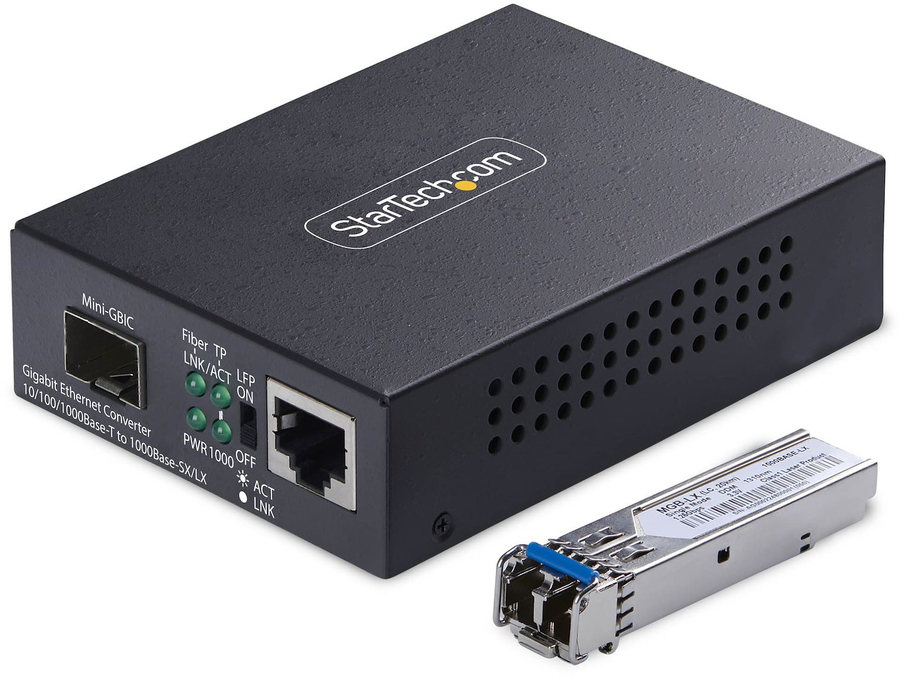

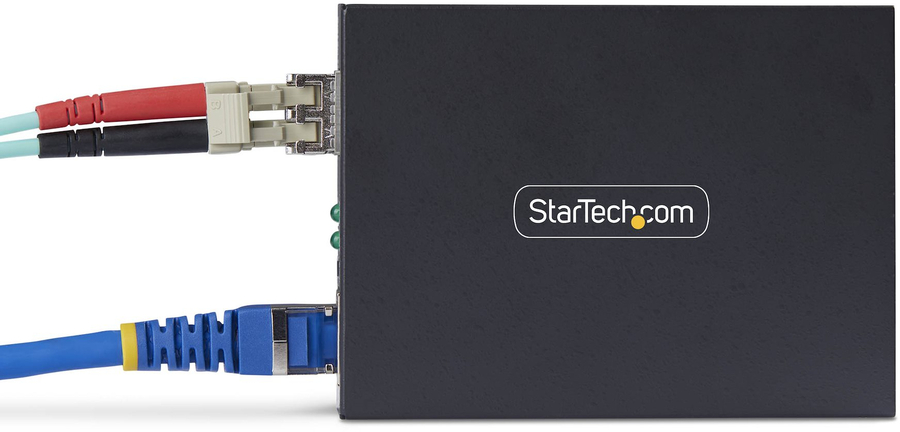

StarTech MCM1110SMLC40 Gigabit Ethernet Copper-to-Fiber Media Converter
|
|
Price: $272.00
Manufacturer:
StarTech
StarTech.com Gigabit Singlemode (SM) LC Fiber Media Converter, 10/100/1000 Mbps, 40km, RJ45 to LC, Full Metal, TAA Compliant
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60529514
|
MCM1110SMLC40
|
65030919876 |
Active
|
Details
|
General Information |
|
Summary |
Convert and extend a Gigabit Ethernet connection up to 24.8 miles (40km) over Single Mode LC fiber.
This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 40 km (24.8 mi.) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed.
Built for Versatility and Performance
Convert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments.
Smart Diagnostics and Rugged Design

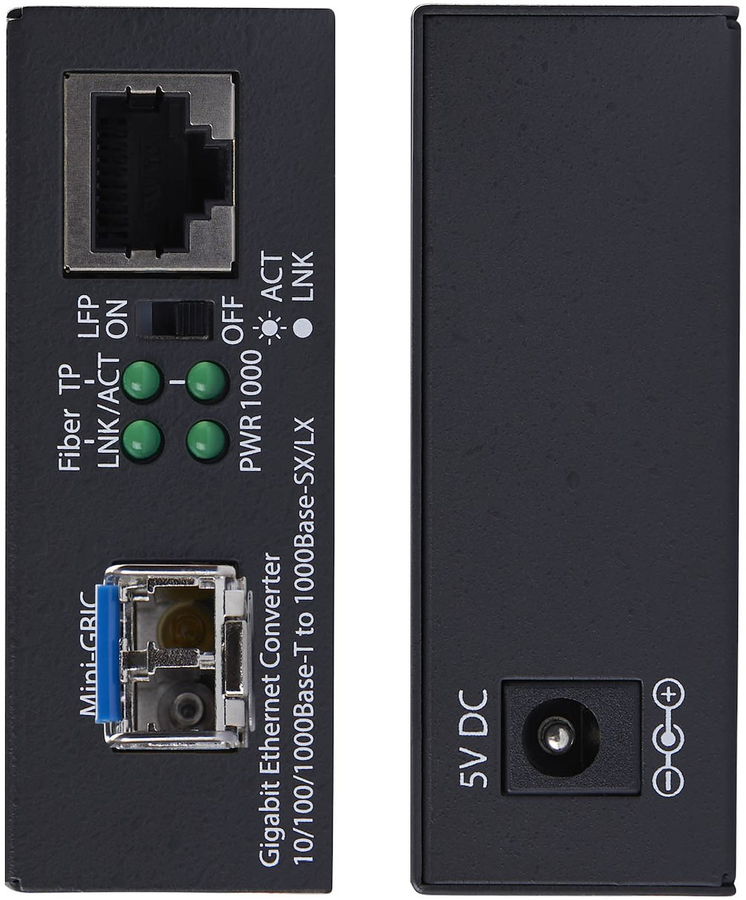

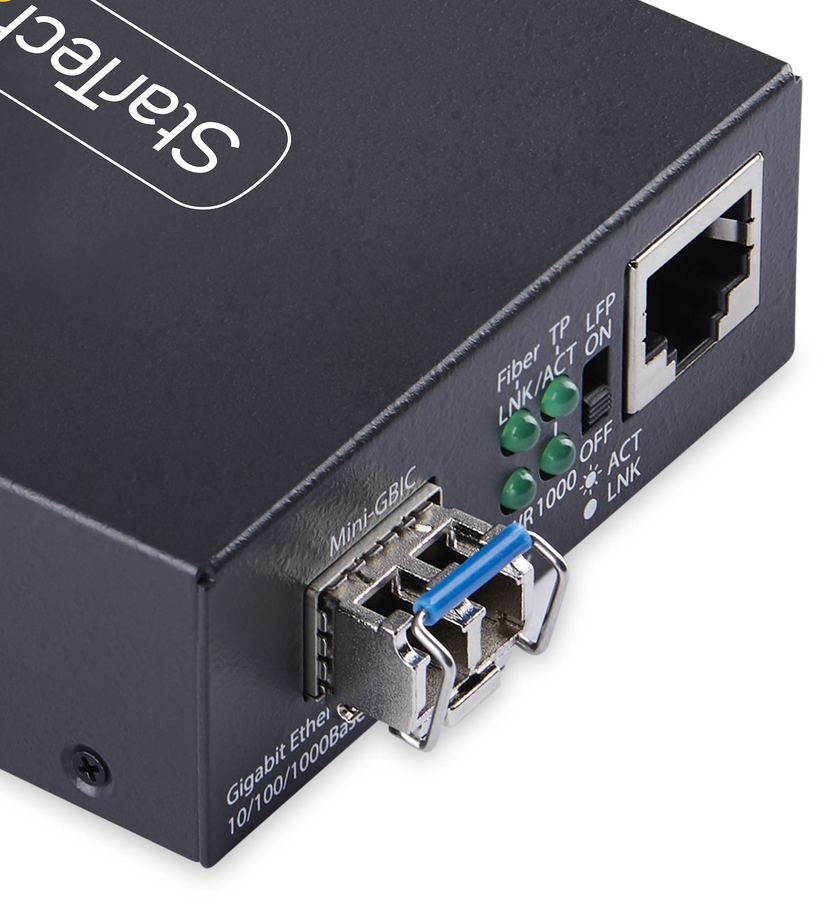

Built with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability.
Flexible Installation for Any Network Setup

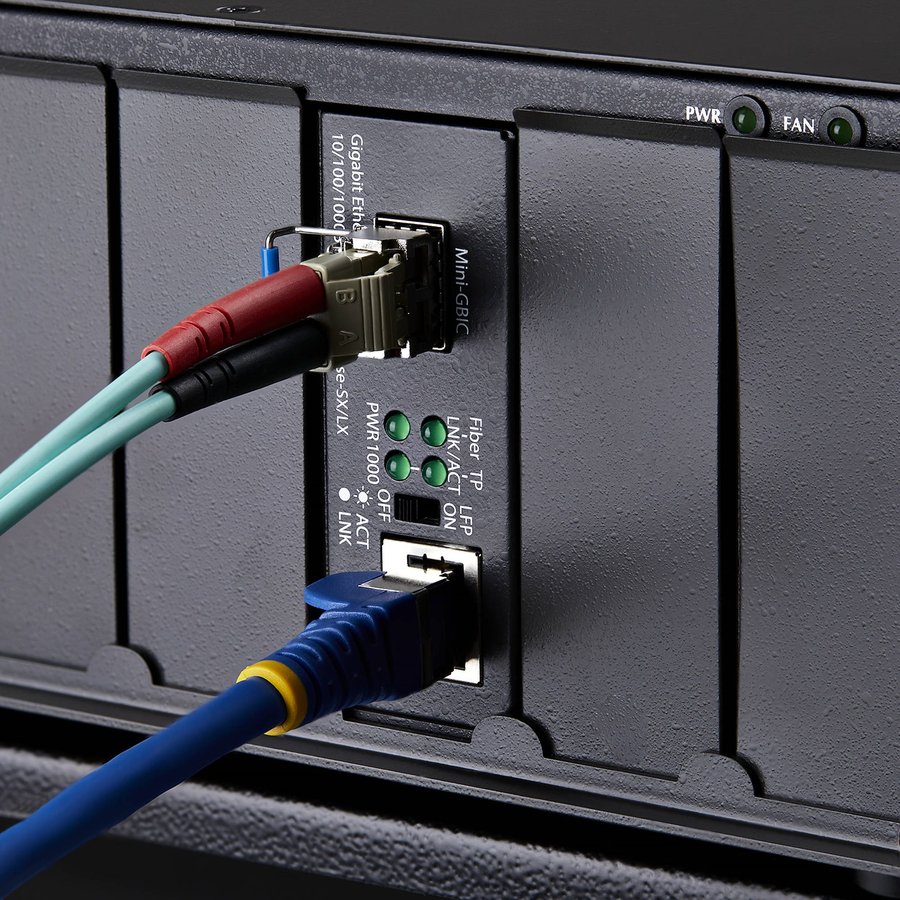

Deploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets. |
|
Network |
|
Maximum data transfer rate |
2000 Mbit/s |
|
Converter input interface |
10Base-T, 100Base-TX, 1000Base-T |
|
Converter output interface |
1000Base-LX |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
|
Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Flow control support |
No |
|
Auto MDI/MDI-X |
Yes |
|
Auto-negotiation |
Yes |
|
Duplex system |
Full, Half |
|
Link Fault Pass-through (LFP) |
Yes |
|
Performance |
|
Maximum transfer distance |
40000 m |
|
Wavelength |
1310 nm |
|
Wavelength-division multiplexing (WDM) |
No |
|
Fiber mode structure |
Single-mode |
|
Mean time between failures (MTBF) |
50000 h |
|
Features |
|
Internal |
No |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Ports & interfaces |
|
Fiber optic connector |
LC |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|
Power |
|
Input voltage |
100 - 240 V |
|
Input current |
0.4 A |
|
Output voltage |
5 V |
|
Output current |
2 A |
|
Power consumption (typical) |
4.6 W |
|
Power over Ethernet (PoE) |
No |
|
Weight & dimensions |
|
Width |
94 mm |
|
Depth |
79 mm |
|
Height |
26 mm |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Packaging content |
|
AC adapter included |
Yes |
|
User guide |
Yes |
|
Packaging data |
|
Package width |
133 mm |
|
Package depth |
280 mm |
|
Package height |
66 mm |
|
Package weight |
328 g |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
|
