StarTech MCM10G6SSFP 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter
|
|
Price: $543.00
Manufacturer:
StarTech
StarTech.com 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, 10G/5G/2.5G/1G/100M, Copper to 10GBASE-X SFP+, TAA
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60529523
|
MCM10G6SSFP
|
65030917094 |
Active
|
Details
|
General Information |
|
Summary |

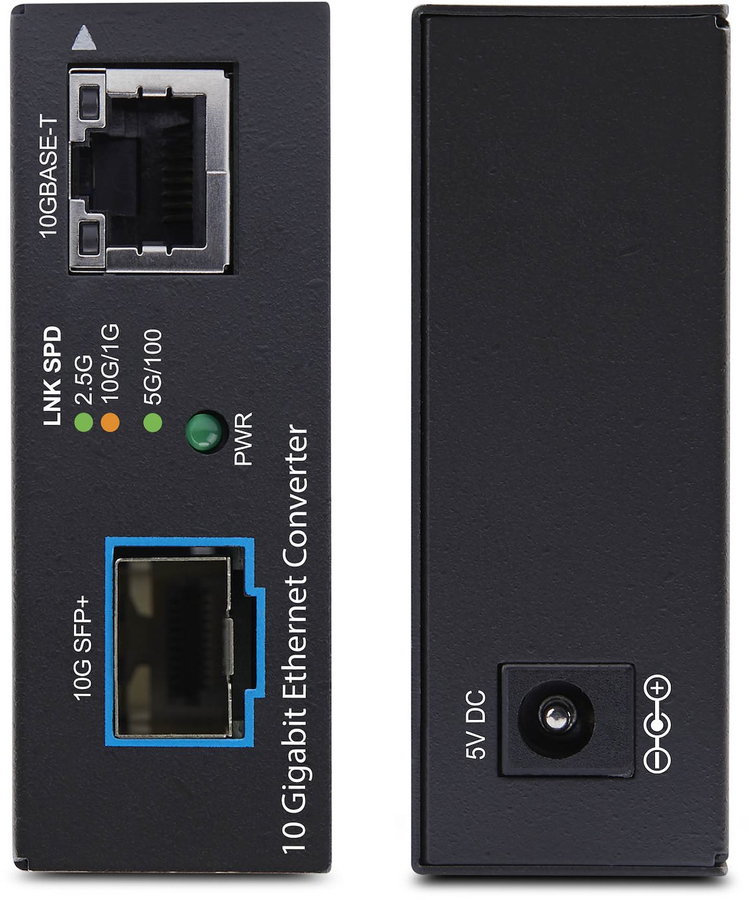

Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver.
Flexible, High-Speed Copper-to-Fiber Conversion
This compact 10G media converter enables seamless copper-to-fiber conversion for network upgrades or long-distance extension. Featuring an open SFP+ slot, it converts 100M to - 10GBASE-T RJ-45 to 10G fiber and supports both multi-mode and single-mode transceivers (10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.
Versatile Mounting and Deployment

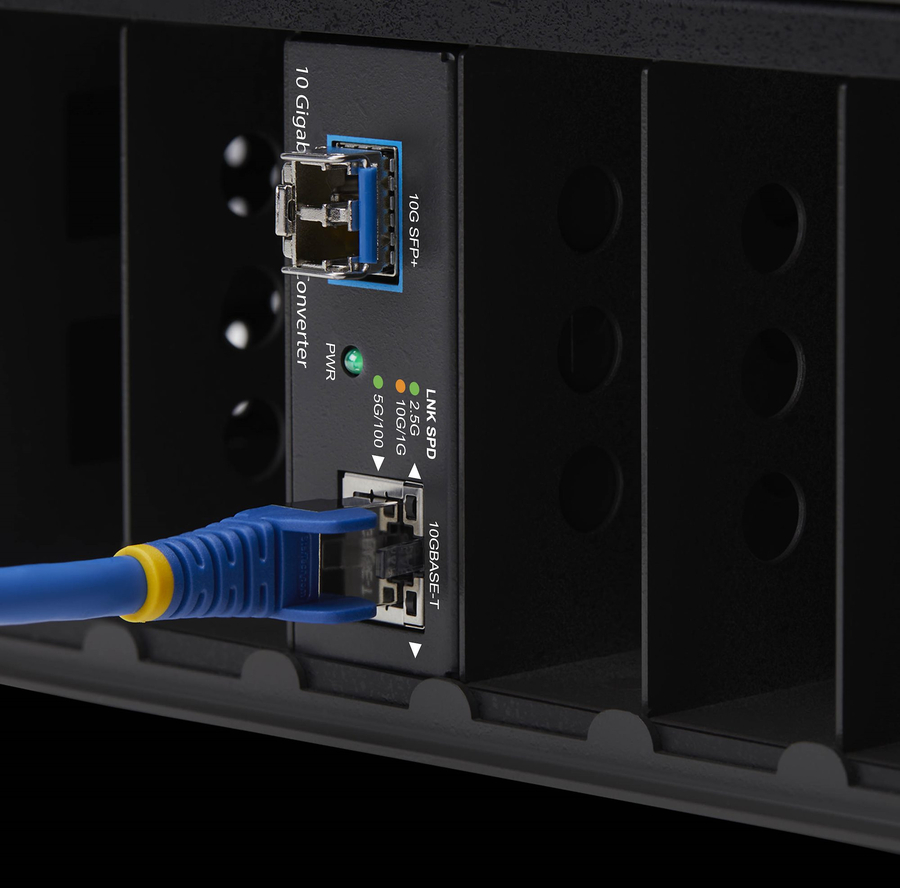

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.
Optimized for Mixed-Speed Networks
Built for maximum compatibility, the converter supports IEEE 802.3 standards, 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across legacy and high-speed links.
Efficient, Compact Design
With low 3.75W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments. |
|
Network |
|
Maximum data transfer rate |
10000 Mbit/s |
|
Converter input interface |
10GBase-T |
|
Converter output interface |
10GBase-X |
|
Networking standards |
IEEE 802.3 |
|
Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
100,1000,2500,5000,10000 Mbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
16000 |
|
Flow control support |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Auto-negotiation |
Yes |
|
Duplex system |
Full |
|
Performance |
|
Fiber mode structure |
Multi-mode, Single-mode |
|
Features |
|
Internal |
No |
|
Plug and Play |
Yes |
|
LED indicators |
Link, Power |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Ports & interfaces |
|
Fiber optic connector |
SFP+ |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Input voltage |
100 - 240 V |
|
Input current |
0.4 A |
|
Output voltage |
5 V |
|
Output current |
2 A |
|
Power consumption (typical) |
3.75 W |
|
External power adapter |
Yes |
|
Weight & dimensions |
|
Width |
94 mm |
|
Depth |
70 mm |
|
Height |
26 mm |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Packaging content |
|

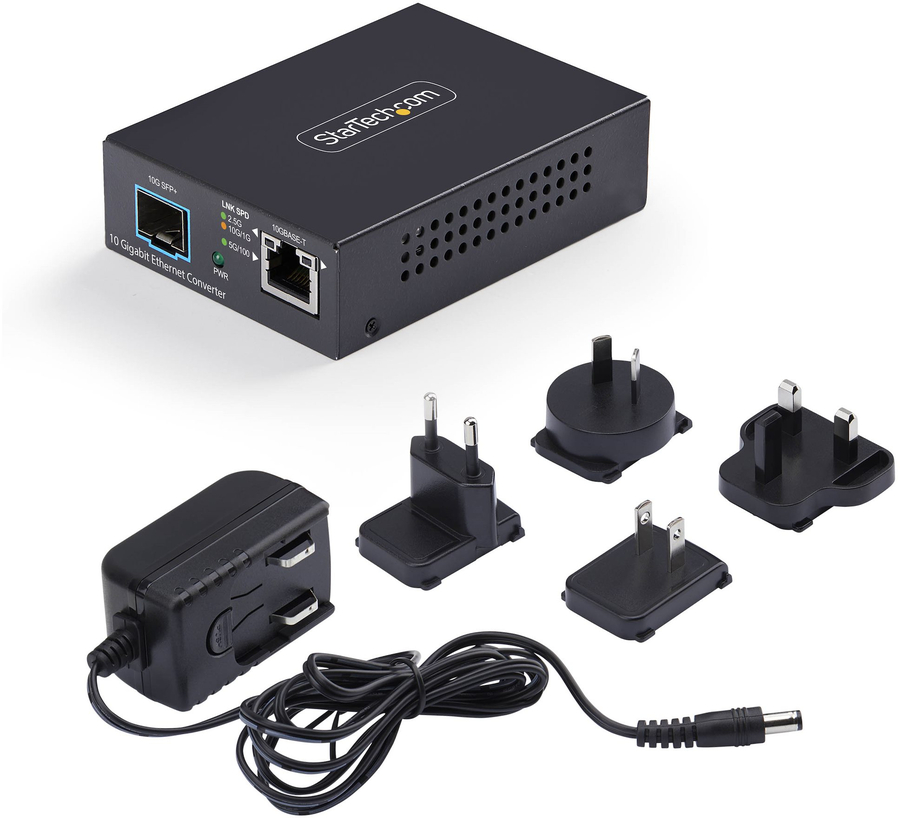

AC adapter included |
Yes |
|
User guide |
Yes |
|
Packaging data |
|
Package width |
70 mm |
|
Package depth |
94 mm |
|
Package height |
26 mm |
|
Package weight |
500 g |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
|
Logistics data |
|
Master (outer) case width |
133 mm |
|
Master (outer) case length |
281 mm |
|
Master (outer) case height |
66 mm |
|
Products per master (outer) case |
20 pc(s) |
|
