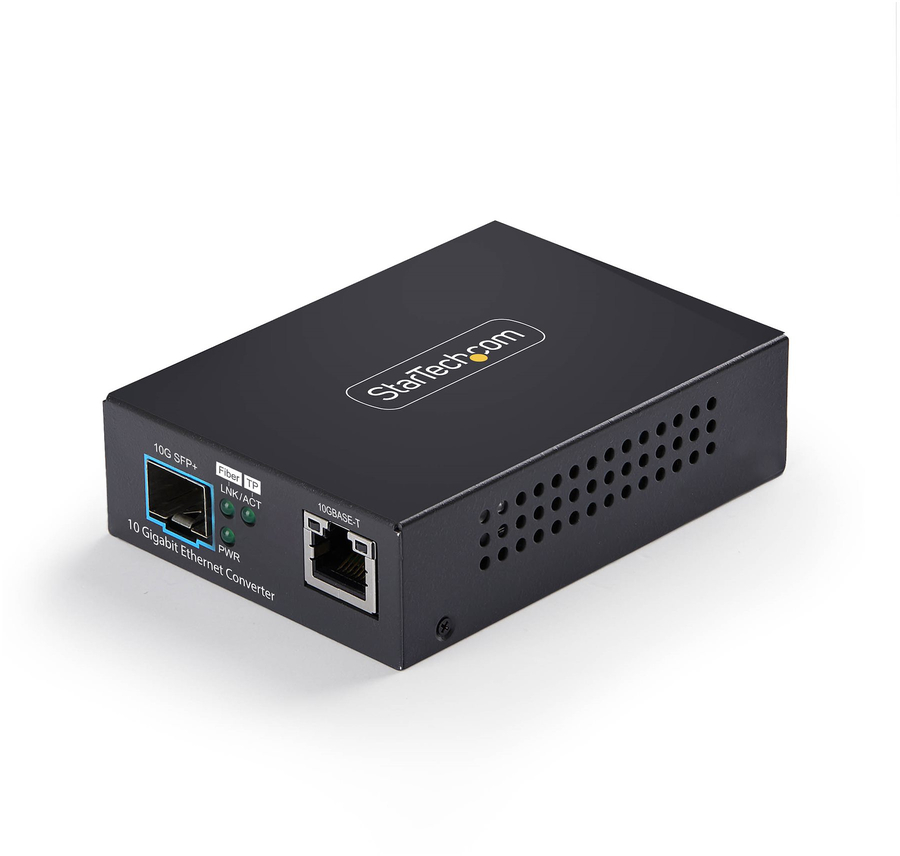

StarTech MCM10GSFP2 10GbE SFP+ Fiber Media Converter
|
|
Price: $407.00
Manufacturer:
StarTech
StarTech.com 10GbE SFP+ Fiber Media Converter, 10 Gigabit Ethernet RJ-45 to 10GBASE-X SFP+, Single-Mode, Multi-Mode, 16K Jumbo Frames, TAA Compliant
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60529524
|
MCM10GSFP2
|
65030916844 |
Active
|
Details
|
General Information |
|
Summary |
Connect a Gigabit copper network to a Gigabit fiber network using an SFP+ transceiver of your choice.
High-Speed Copper-to-Fiber Conversion
This compact 10G media converter enables seamless copper-to-fiber connectivity for high-speed network upgrades and extended reach. Featuring an open SFP+ slot, it converts 10GBASE-T (RJ-45) to 10G fiber and supports multi-mode or single-mode transceivers (e.g., 10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.
Versatile Mounting and Deployment

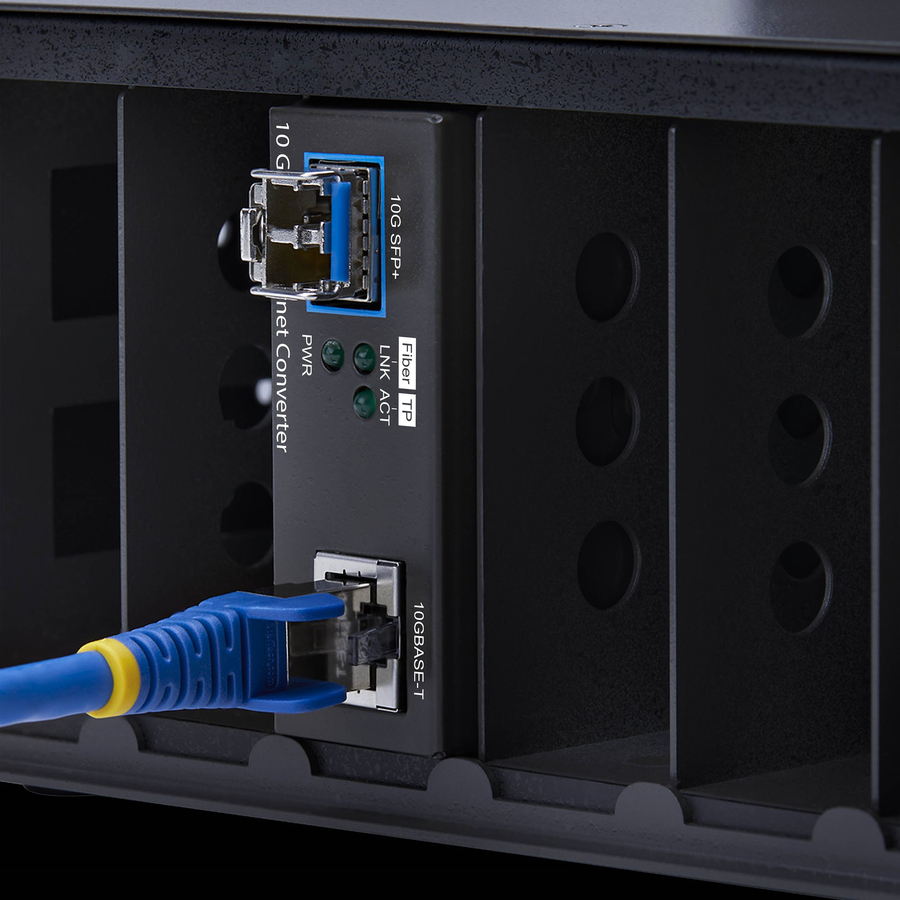

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.
Optimized for 10Gbps Networks
Built for 10G speeds, the converter supports 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across 10G links.
Efficient, Compact Design
With low 5.3W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments. |
|
Network |
|
Maximum data transfer rate |
10000 Mbit/s |
|
Converter input interface |
10GBase-T |
|
Converter output interface |
10GBase-X |
|
Networking standards |
IEEE 802.3 |
|
Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
100,1000,2500,5000,10000 Mbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
16000 |
|
Flow control support |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Auto-negotiation |
Yes |
|
Duplex system |
Full |
|
Performance |
|
Fiber mode structure |
Multi-mode, Single-mode |
|
Mean time between failures (MTBF) |
50000 h |
|
Features |
|
Internal |
No |
|
Plug and Play |
Yes |
|

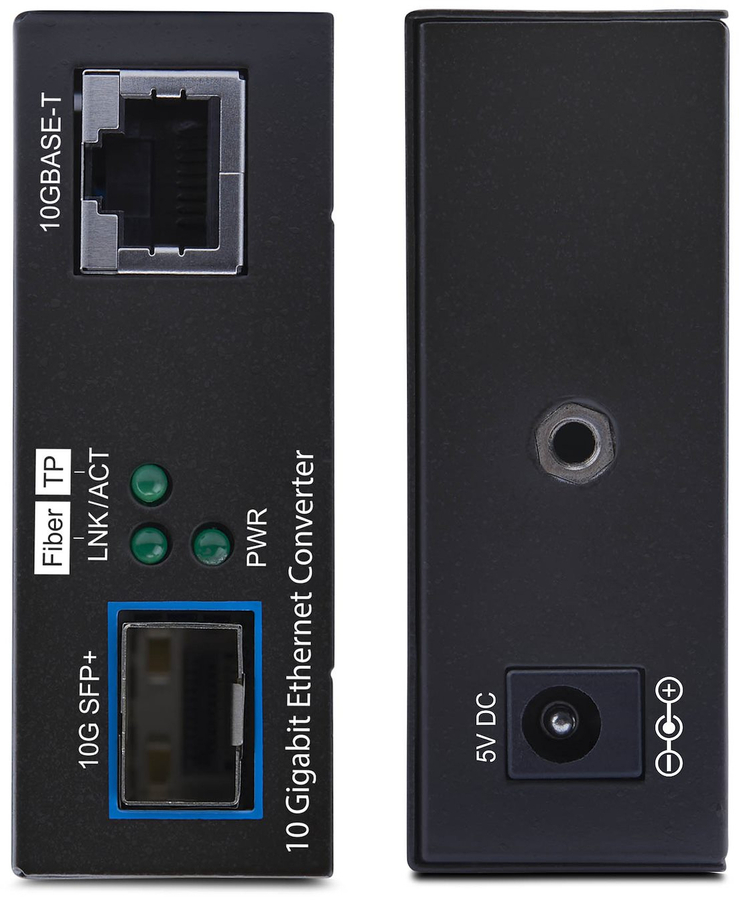

LED indicators |
Activity, Link, Power |
|
Product colour |
Black |
|
Ports & interfaces |
|
Fiber optic connector |
SFP+ |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|

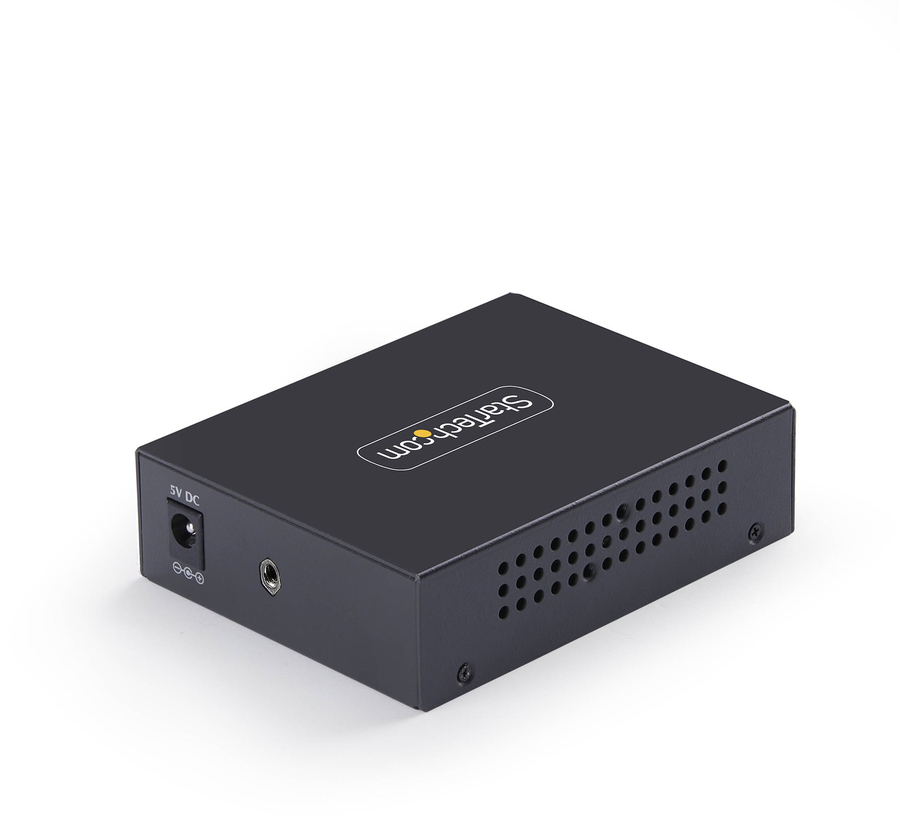

DC-in jack |
Yes |
|
Power |
|
Input voltage |
100 - 240 V |
|
Input current |
0.4 A |
|
Output voltage |
5 V |
|
Output current |
2 A |
|
External power adapter |
Yes |
|
Weight & dimensions |
|
Width |
93.5 mm |
|
Depth |
70 mm |
|
Height |
26 mm |
|
Weight |
216 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Packaging content |
|

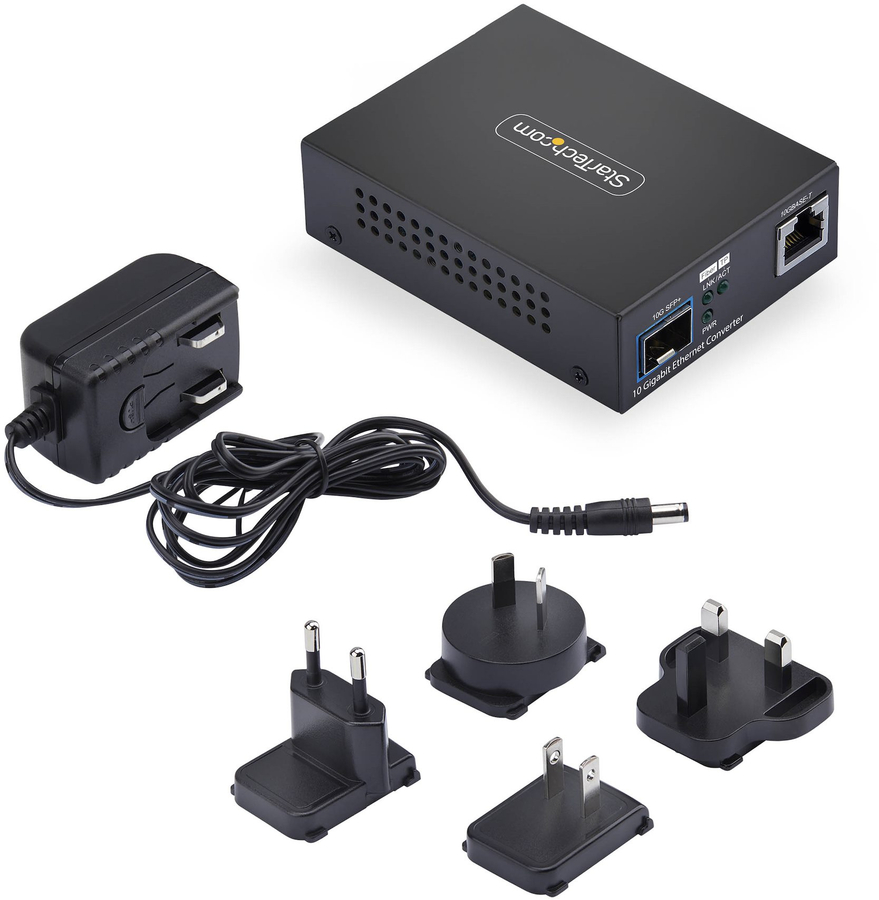

AC adapter included |
Yes |
|
User guide |
Yes |
|
Packaging data |
|
Package width |
95 mm |
|
Package depth |
149 mm |
|
Package height |
92 mm |
|
Package weight |
398 g |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
|
Logistics data |
|
Master (outer) case width |
405 mm |
|
Master (outer) case length |
490 mm |
|
Master (outer) case height |
330 mm |
|
Products per master (outer) case |
40 pc(s) |
|
