StarTech USB31CSAT3M2E USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter
|
|
Price: $60.00
Manufacturer:
StarTech
StarTech.com USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60529553
|
USB31CSAT3M2E
|
65030920575 |
Active
|
Details
|
General Information |
|
Summary |
Access Ultra-Fast M.2 NVMe drives and SATA HDD/SSD storage via USB 10Gbps
Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection. The 2-in-1 NVMe and SATA adapter enables simultaneous read and write access for fast data transfer, recovery, and upgrades. This hard drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe and legacy SATA drives.
External Drive Access over USB-C and USB-A

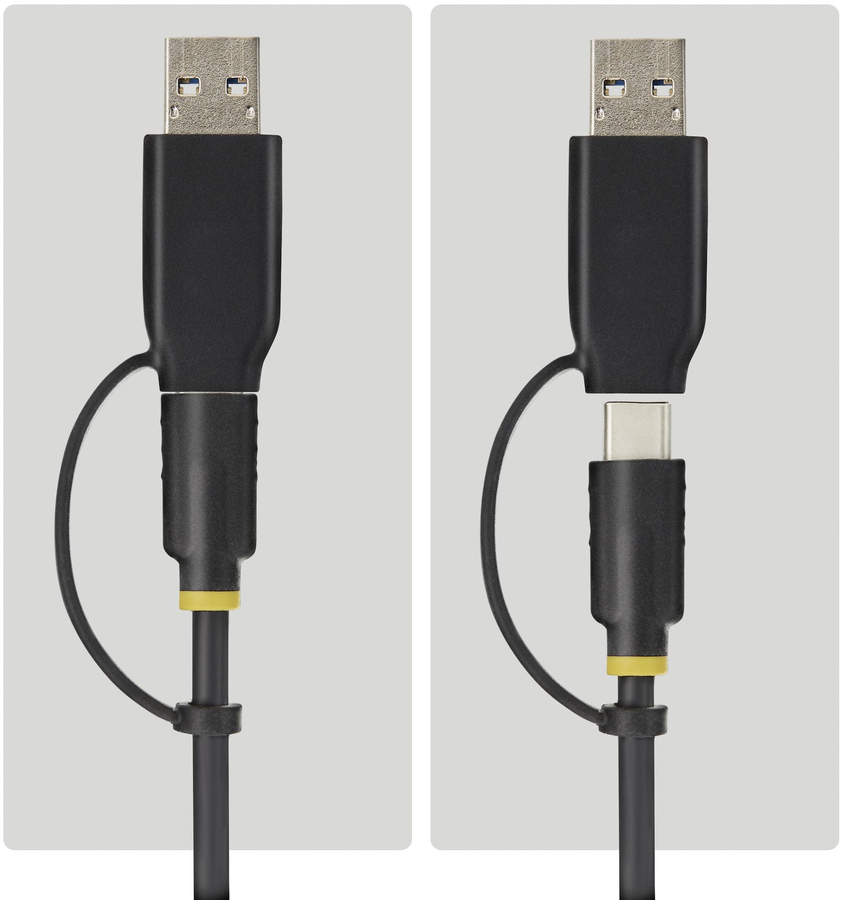

Connect the M.2 NVMe and SATA SSD Adapter directly to laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top M.2 slot maintains airflow for consistent performance during sustained workloads. The NVMe/SATA Adapter supports up to 700 MB/s write speeds over M.2 NVMe, and up to 6 Gbps over SATA III when connected to legacy 2.5in or 3.5in SATA drives. Please note that M.2 SATA drives are not supported.
Compact Form Factor

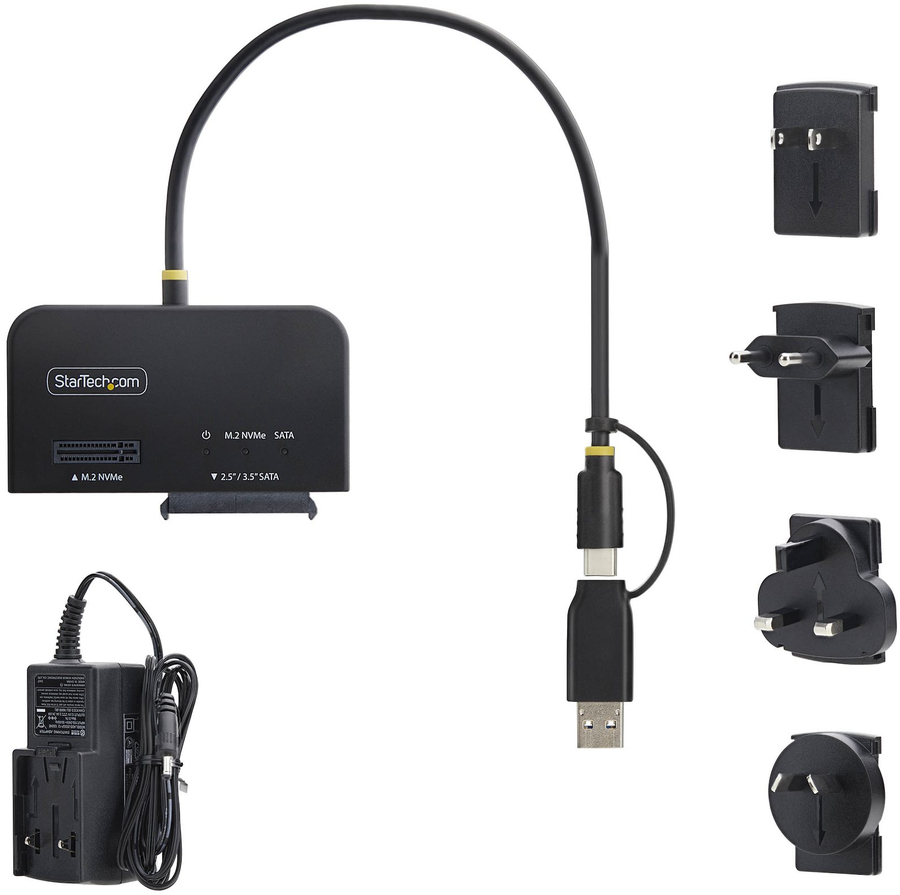

Lightweight and portable, the adapter fits easily into any IT toolkit or workspace. It runs on USB bus power for a single 2.5 in SATA or M.2 NVMe drive, and includes a universal power adapter required for 3.5 in SATA drives, for connecting two drives at once, or when a single drive draws more power than USB can provide. Ideal for IT technicians and end users needing portable, tool-free drive access. |
|
Hard drive |
|
Storage media type |
HDD, SSD |
|
Storage drive interface |
M.2, Serial ATA III |
|
Storage drive sizes supported |
2.5,3.5" |
|
Number of storage drives supported |
2 |
|
Ports & interfaces |
|
Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
|
Features |
|
Product colour |
Black |
|
Material |
Acrylonitrile butadiene styrene (ABS) |
|
Maximum data transfer rate |
10 Gbit/s |
|
Hot-swap |
Yes |
|
TRIM support |
Yes |
|
LED indicators |
Yes |
|
UASP support |
Yes |
|
Cooling |
|
Number of fans |
0 fan(s) |
|
Power |
|
AC input voltage |
12 V |
|
Input current |
2 A |
|
Output voltage |
12 V |
|
Output current |
2 A |
|
Power plug type |
Type H |
|
Weight & dimensions |
|
Width |
88.4 mm |
|
Depth |
360.6 mm |
|
Height |
14.1 mm |
|
Weight |
50 g |
|
Packaging data |
|
Package width |
190 mm |
|
Package depth |
123 mm |
|
Package height |
54 mm |
|
Package weight |
330 g |
|
Packaging content |
|
AC adapter included |
Yes |
|
Included power plug types |
ANZ, EU, JP, NA, UK |
|
Quick installation guide |
Yes |
|
Interface adapters included |
USB Type-A male - USB Type-C female |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Other features |
|
Chipset |
JMS581DC |
|
Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
|
Logistics data |
|
Master (outer) case width |
400 mm |
|
Master (outer) case length |
290 mm |
|
Master (outer) case height |
275 mm |
|
Products per master (outer) case |
20 pc(s) |
|
