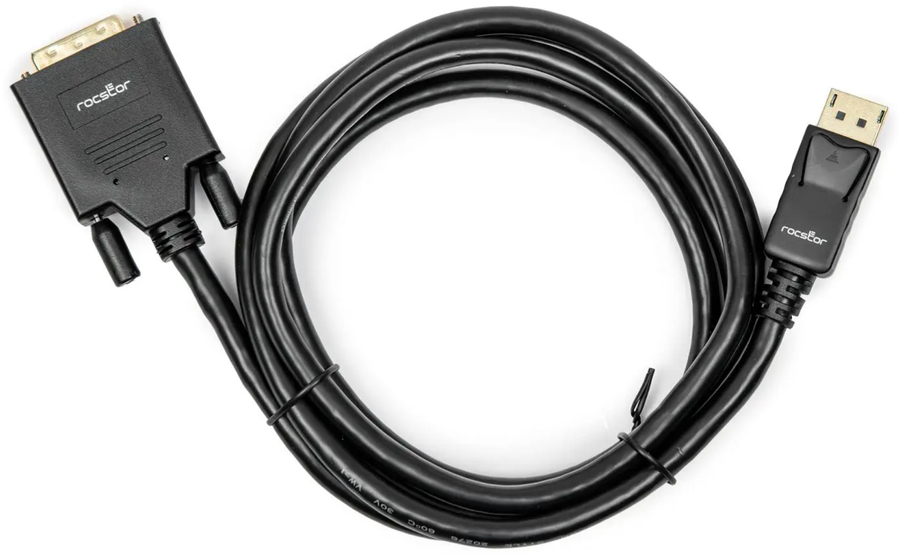

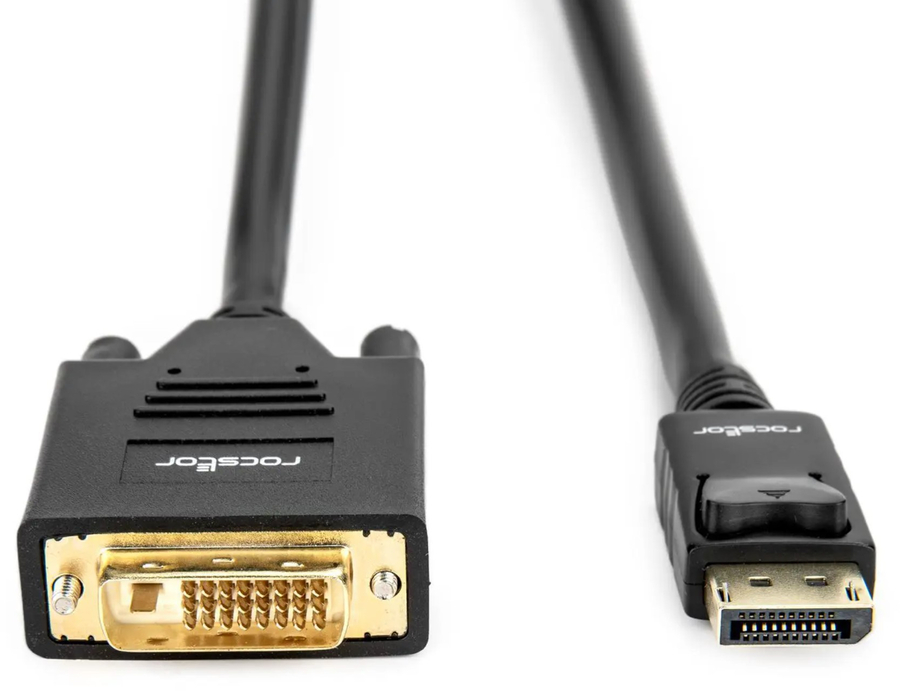

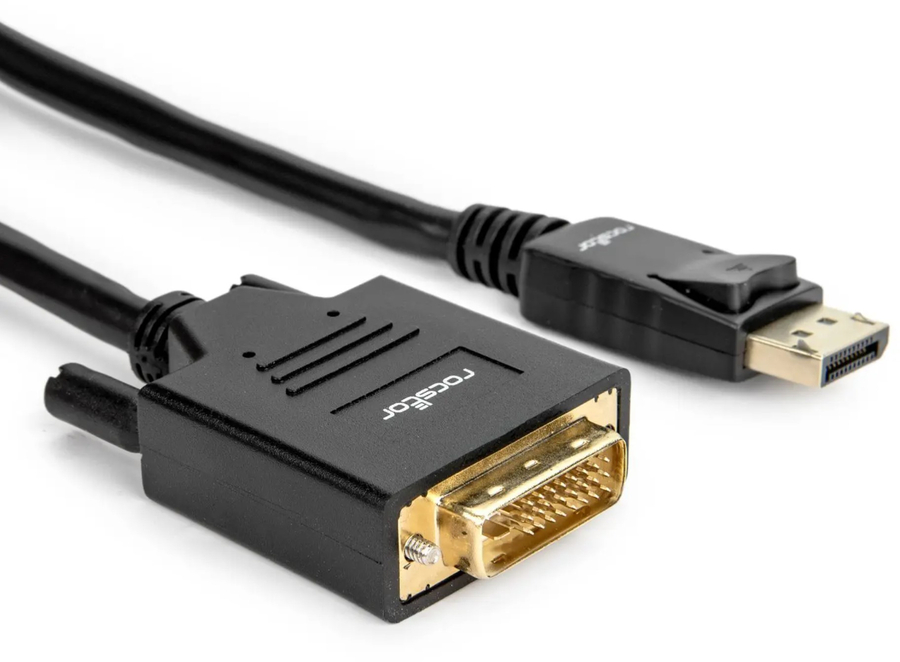

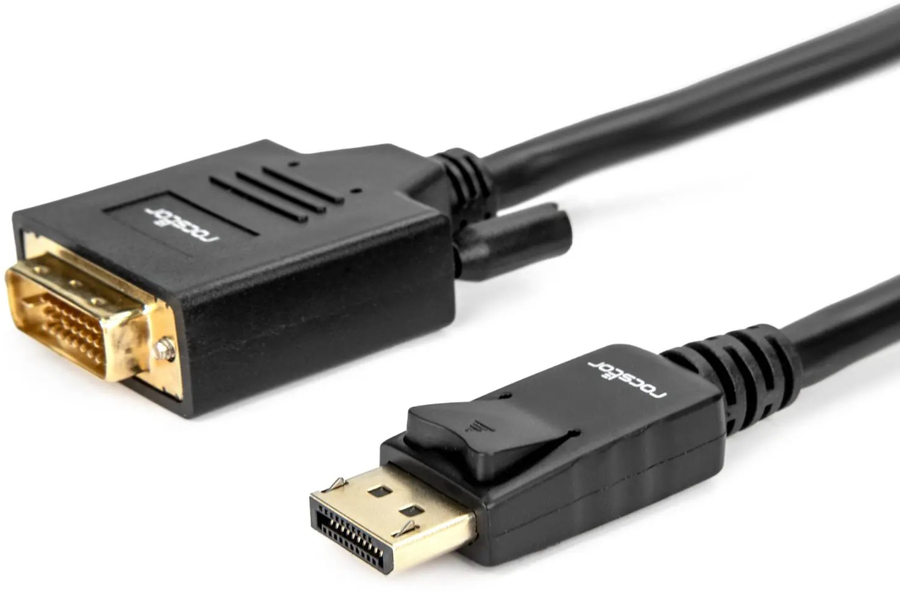

Rocstor DisplayPort 1.2 to DVI Active Video Cable Adapter M/M - Black - 6-Foot

Home :: Cables :: Cables - Audio & Video :: Cables - Video ::

Price: $19.00

Manufacturer: Rocstor

DisplayPort 1.2 to DVI, Active Video Cable, Adapter M/M, Black

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
60531769	Y10C150-B2	810606039843	Active

Details

General Information
Summary	Rocstor Premium 6ft (1.8m) DisplayPort to DVI Active Cable M/M – DP to DVI-D Active Adapter/Converter, Monitor Cable for DP/DP++ Source – 1920×1200/1080p 60Hz; DP 1.2 HBR2; EDID – Active DP 1.2 to DVI-D single-link cable – HBR2/HDCP 1.4; EDID – Black DisplayPort 1.2 to DVI Active Video Cable Adapter M/M – Black Rocstor Premium DisplayPort® to DVI® Active cable provides you with an easy solution to connect your DisplayPort source to a DVI-D display. The cable features a male DisplayPort connector on one end and a male DVI-D connector on the other end, eliminating the need for an extra adapter and simplifying the connection process. Supporting high resolution up to 1920 x 1200/1080p at 60Hz, it offers crisp and vivid video quality. The DisplayPort to DVI cable is an active DisplayPort video converter that works with a variety of devices as it supports both single mode (DP) and multimode (DP++) DisplayPort signals. This makes it a versatile solution for use with graphics cards that do not output DP++ signals, such as AMD Eyefinity. The premium cable is also HDCP 1.4 (High-Definition Content Protection) compliant, which is important for protecting copyrighted content. Moreover, it supports High Bit Rate (HBR2) and Extended Display Identification Data (EDID), ensuring undistorted signal transmission across the connection. With a 6ft (1.8m) long cable length, the converter cable makes convenient and strain-free connections to devices placed at an extended length or mounted high on the wall. The elegantly designed cable features firm-grip gold-plated DVI and DisplayPort connectors. In addition, the latching DisplayPort connector allows you to securely attach it to the port, ensuring a stable and secure connection and preventing accidental disconnections. It is an easy-to-use cable that requires no software or drivers for installation. Simply plug it into your DisplayPort source and connect it to your DVI-D display. Moreover, the flexible and lightweight design makes it easy to take with you on the go for professional or personal use. The premium 6ft (1.8m) DisplayPort® to DVI Active Cable is backed by Rocstor’s 3-year warranty and lifetime phone support. Rocstor equals Reliability.
Features
Cable length	1.8 m
Connector 1	DisplayPort
Connector 2	DVI
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
HDCP	Yes
HDCP version	1.4
DisplayPort version	1.2
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes	1080p
Maximum refresh rate	60 Hz
Refresh rate at maximum resolution	60 Hz
HBR2 support	Yes
Product colour	Black
Conductor material	Copper
Cable type	Round cable
Plug and Play	Yes
Converter type	Active video converter
Country of origin	Vietnam
Latching connectors	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Compliance certificates	RoHS
Weight & dimensions
Connector 1 dimensions (WxDxH)	20 x 51 x 11.7 mm
Connector 2 dimensions (WxDxH)	41 x 58 x 16 mm
Weight	168 g
Packaging data
Package width	178 mm
Package depth	240 mm
Package height	13 mm
Package weight	178 g
Package type	Polybag
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Warranty period	3 year(s)
Sustainability
Sustainability compliance	Yes
