General Information |
|
Summary |

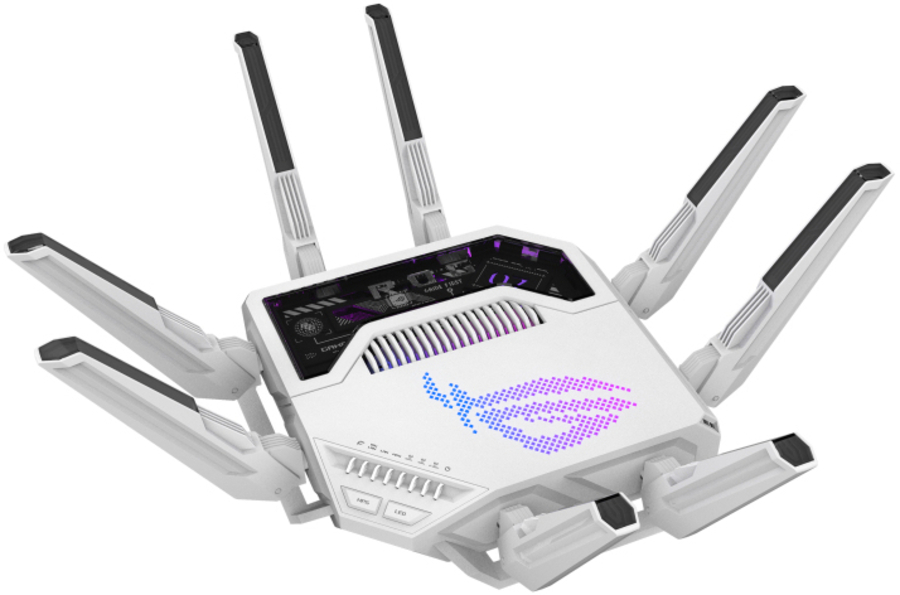

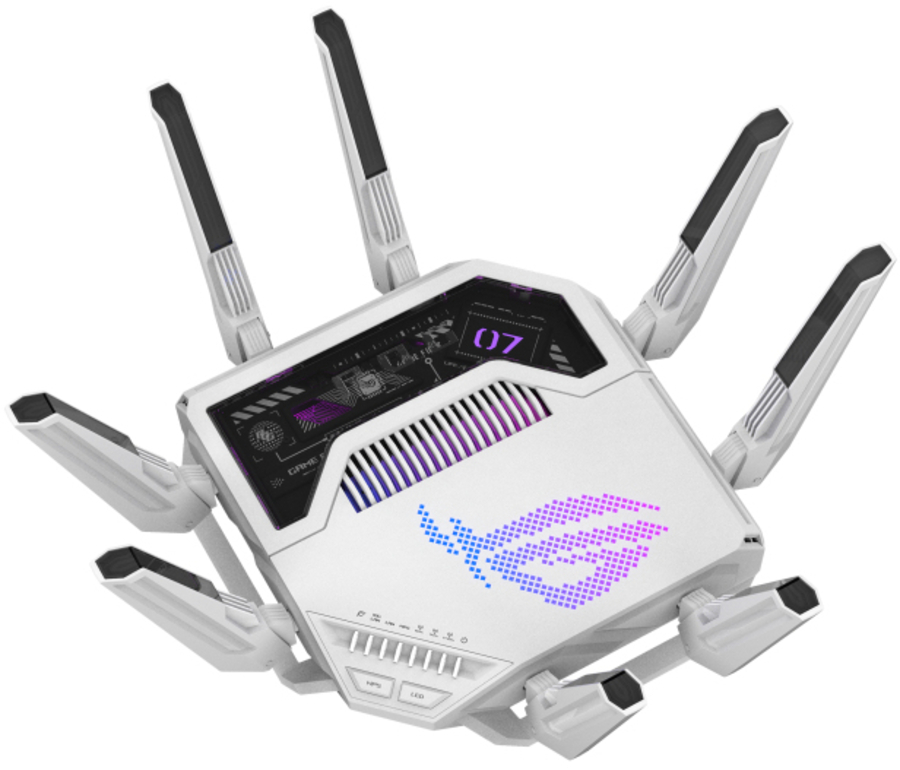

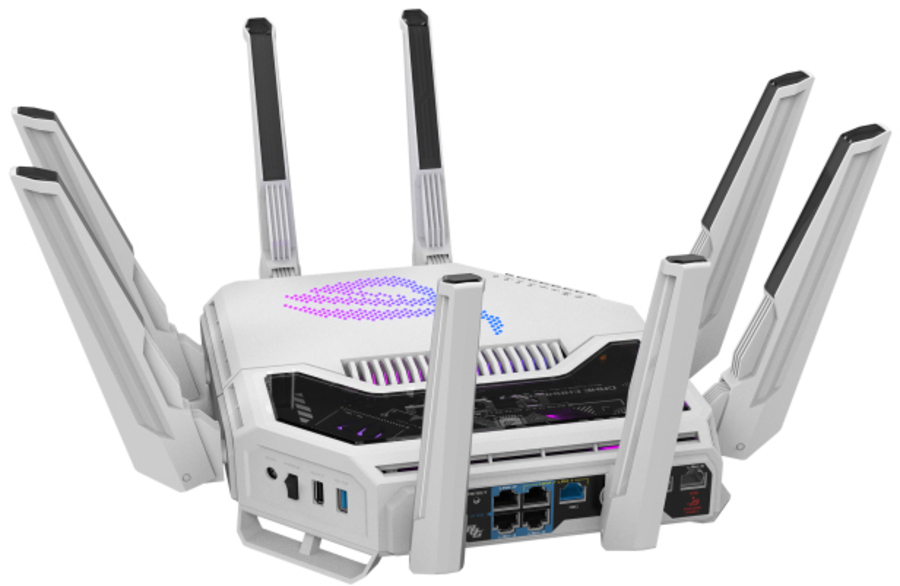

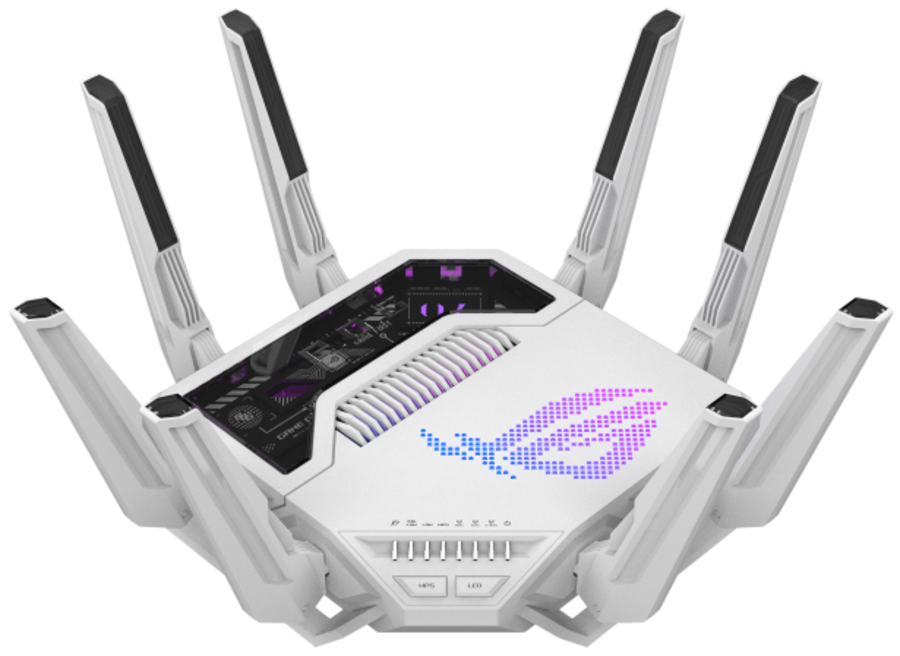

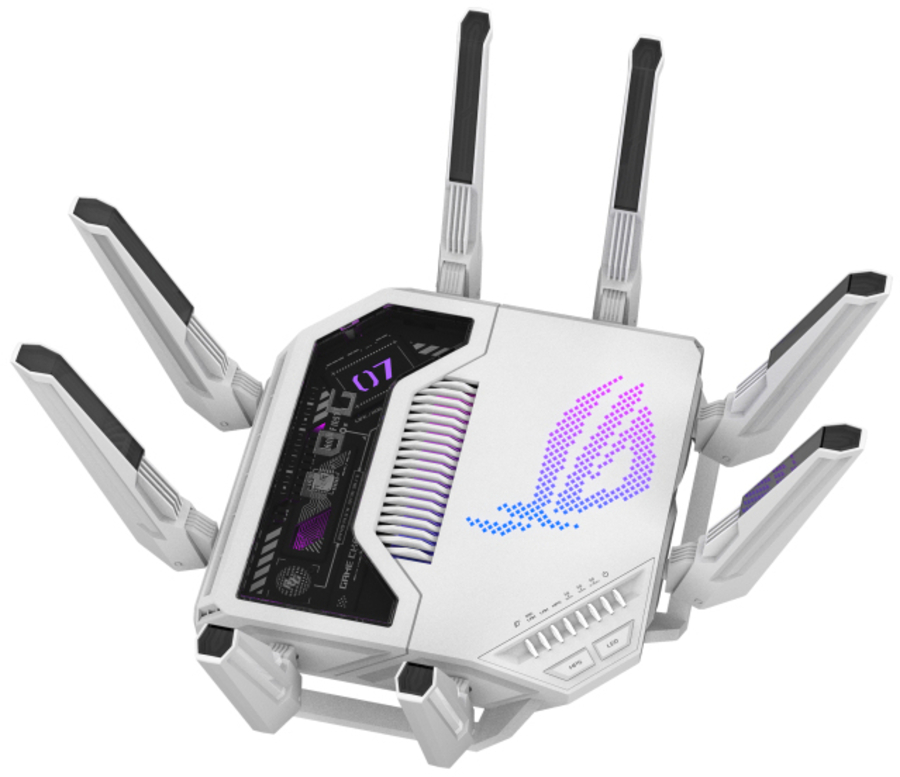

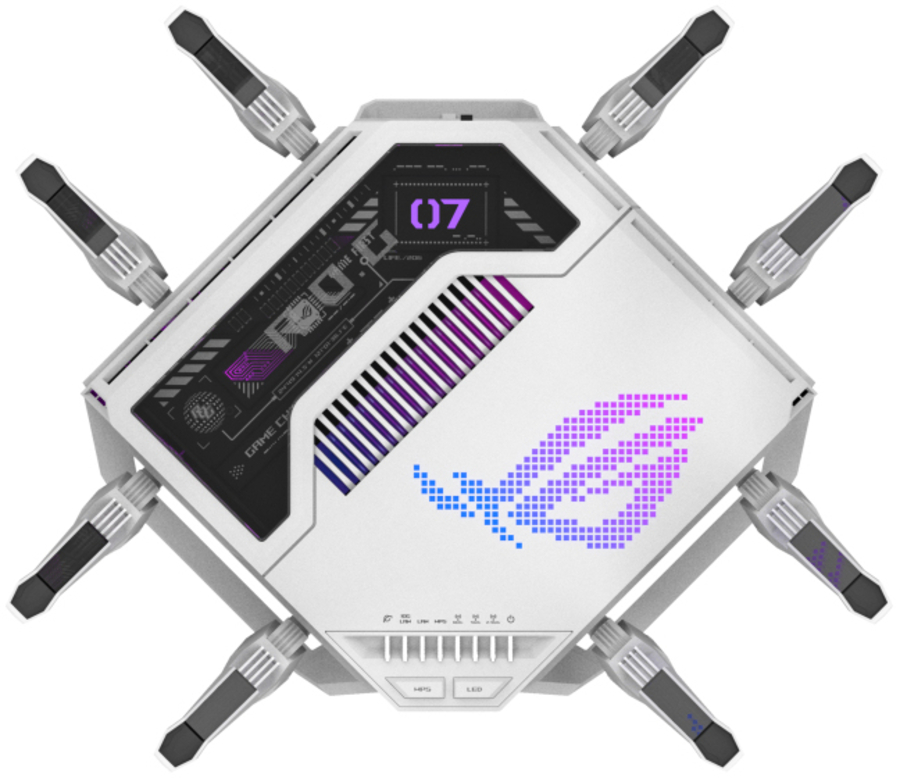

ASUS ROG Rapture GT-BE19000AI Tri-band Gaming Router, WiFi 7, 802.11be, up to 3,500 sq. ft. & 200+ devices, Triple Level Security, Support AiMesh Whole Home Mesh WiFi, Dual 10G ports, AI WAN detection, Energy Saving Mode, AI Game Boost, Gaming Network, Guest Network Pro
|
|
WAN connection |
|
Ethernet WAN |
Yes |
|
DSL WAN |
No |
|
SIM card slot |
No |
|
3G/4G USB modem compatibility |
No |
|
WAN connection type |
RJ-45 |
|
Wireless LAN features |
|
Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
|
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
|
WLAN data transfer rate (max) |
11529 Mbit/s |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
|
WLAN data transfer rate (first band) |
1376 Mbit/s |
|
WLAN data transfer rate (second band) |
5764 Mbit/s |
|
WLAN data transfer rate (third band) |
11529 Mbit/s |
|
Modulation |
4096-QAM, OFDMA |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN interface type |
10 Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000,2500,10000 Mbit/s |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
|
Port forwarding |
Yes |
|
Port triggering |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
SSID-based VLAN assignment |
Yes |
|
VPN support |
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion |
|

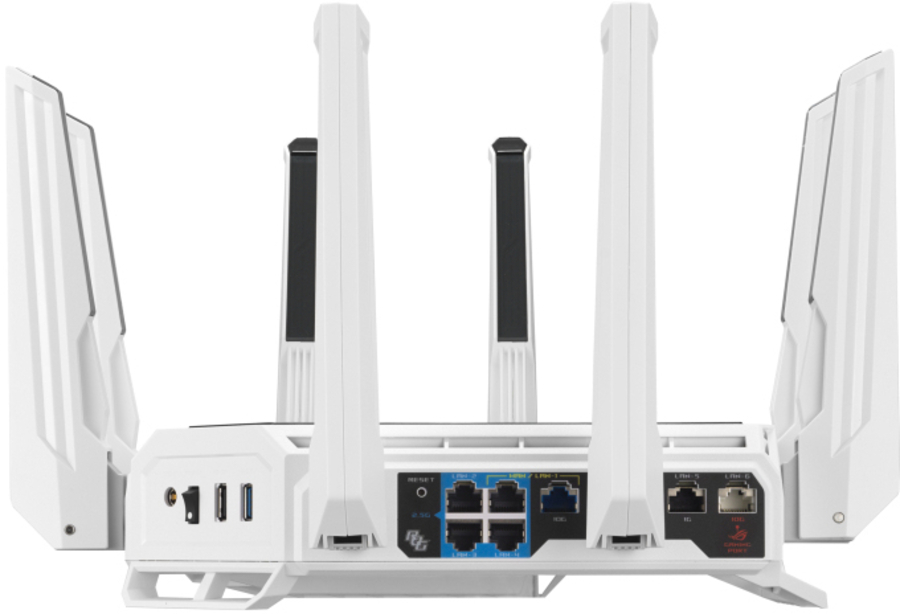

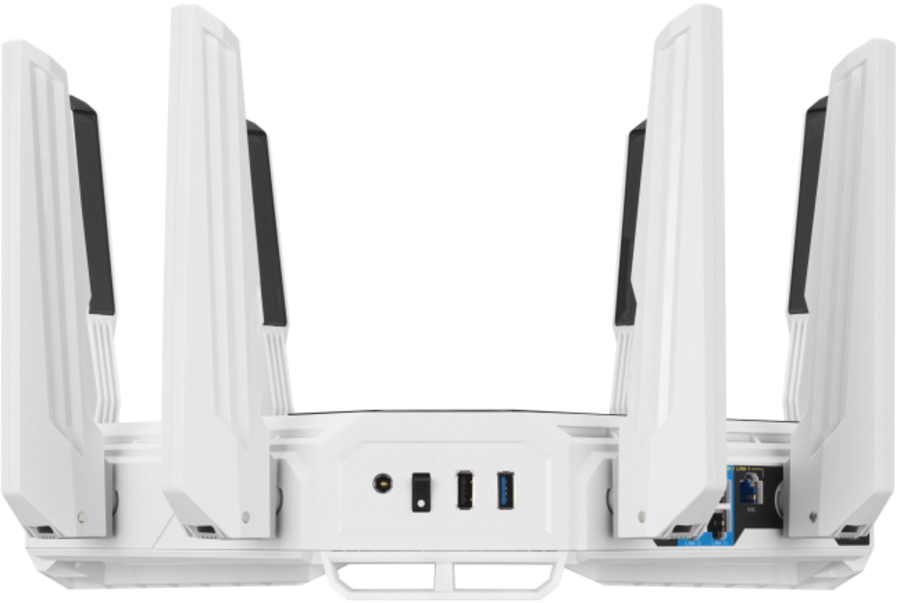

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
7 |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
Management features |
|
Reset button |
Yes |
|
WPS push button |
Yes |
|
MU-MIMO technology |
Yes |
|
Security |
|
Security algorithms |
WPA, WPA2, WPA3-Enterprise, WPA3-Personal |
|
Firewall |
Yes |
|
Firewall security |
Keyword Filter; Network Service Filter; URL Filter |
|
Guest access |
Yes |
|
Schedule access |
Yes |
|
Parental control |
Yes |
|
Filtering |
Yes |
|
MAC address filtering |
Yes |
|
URL filtering |
Yes |
|
DMZ support |
Yes |
|
Network address translation (NAT) |
Yes |
|
NAT functionality |
PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
|
Protocols |
|
DHCP server |
Yes |
|
Design |
|
Product type |
Tabletop router |
|
Product colour |
White |
|
LED indicators |
LAN, Power, WAN |
|
On/off switch |
Yes |
|
Packaging content |
|
Cables included |
LAN (RJ-45) |
|
AC adapter included |
Yes |
|
Warranty card |
Yes |
|
Quick start guide |
Yes |
|

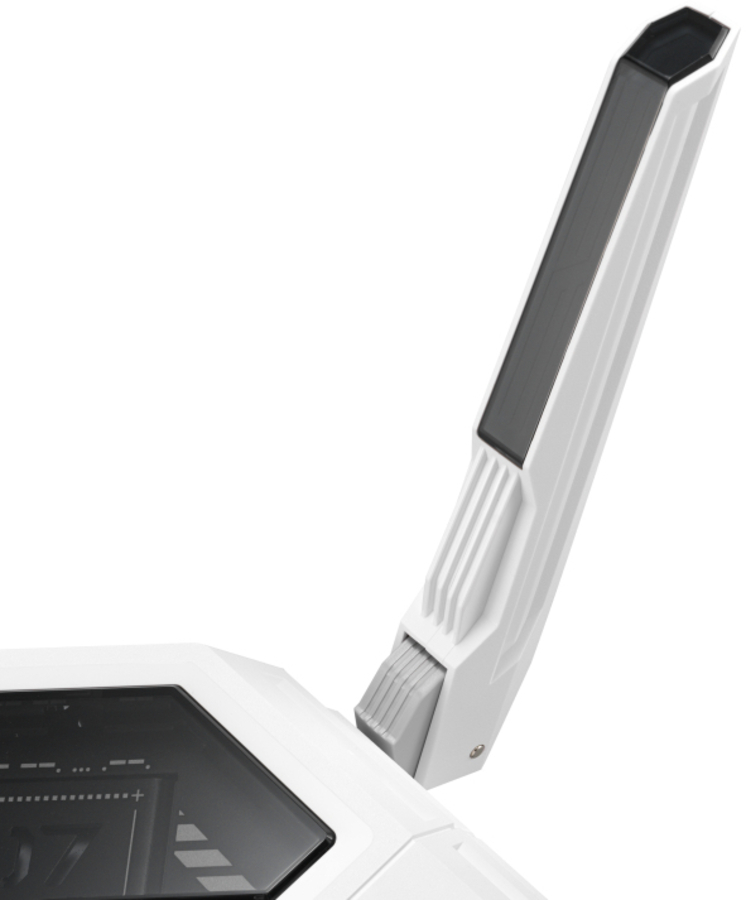

Antenna |
|
Antenna design |
External |
|
Antennas quantity |
8 |
|
Features |
|
Built-in processor |
Yes |
|
Processor frequency |
2600 MHz |
|
Processor cores |
4 |
|
Internal memory |
8000 MB |
|
Flash memory |
64 MB |
|
Power |
|
Power source type |
AC, DC |
|
AC input voltage |
110 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Output voltage |
12 V |
|
Output current |
5 A |
|
Weight & dimensions |
|
Width |
350.4 mm |
|
Depth |
350.4 mm |
|
Height |
220.6 mm |
|
Weight |
2 kg |
|
Packaging data |
|
Package width |
384 mm |
|
Package depth |
383 mm |
|
Package height |
141 mm |
|
Package weight |
4.85 kg |
|
Package type |
Box |
|
Number of products included |
1 pc(s) |
|
