General Information |
|
Summary |
A power user’s PC

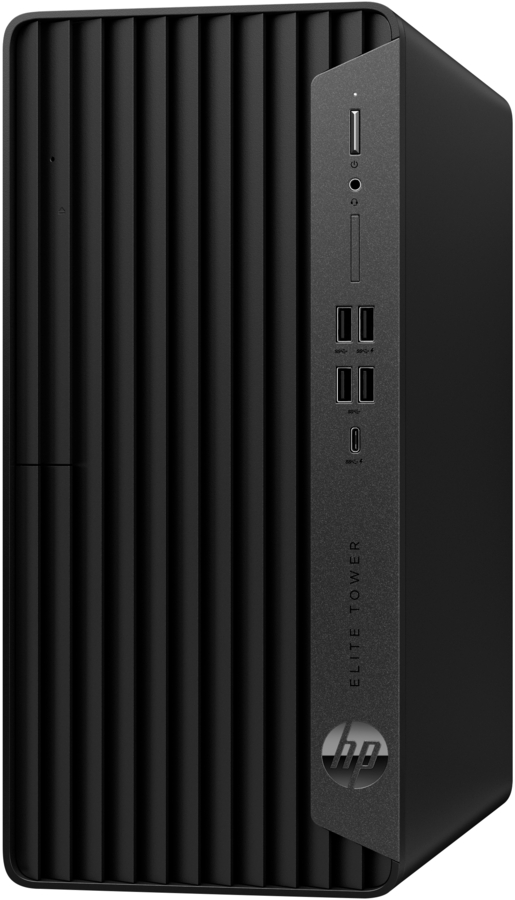

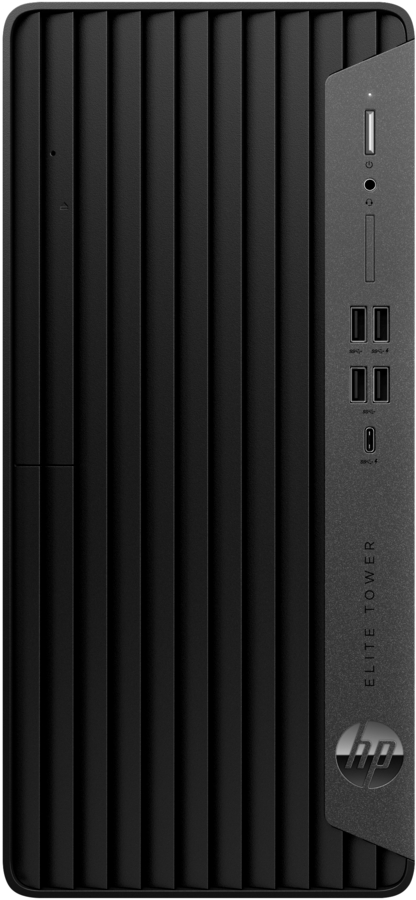

The HP Elite Tower 800 delivers the high-performance needed for power users whose workloads include handling complex programs, rendering, and demanding graphics content. Equipped with the latest Intel processor[2], speedy storage, and memory, this is the right PC for your most demanding tasks. |
|
Processor |
|
Processor family |
Intel® Core™ i7 |
|
Processor manufacturer |
Intel |
|
Processor model |
i7-13700 |
|
Processor generation |
13th gen Intel® Core™ i7 |
|
Processor cores |
16 |
|
Processor threads |
24 |
|
Processor boost frequency |
5.2 GHz |
|
Performance cores |
8 |
|
Efficient cores |
8 |
|
Performance-core Max Turbo Frequency |
5.1 GHz |
|
Efficient-core Max Turbo Frequency |
4.1 GHz |
|
Performance-core base frequency |
2.1 GHz |
|
Efficient-core base frequency |
1.5 GHz |
|
Processor cache |
30 MB |
|
Processor cache type |
L3 |
|
Processor base power |
65 W |
|
Maximum turbo power |
219 W |
|
Memory |
|
Internal memory |
16 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory layout (slots x size) |
1 x 16 GB |
|
Memory slots |
4x DIMM |
|
Memory clock speed |
4800 MHz |
|
Storage |
|
Total storage capacity |
512 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Number of storage drives installed |
1 |
|
Total SSDs capacity |
512 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
512 GB |
|
SSD memory type |
TLC |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel UHD Graphics 770 |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® UHD Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
No |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
HDMI version |
1.4 |
|
DisplayPorts quantity |
2 |
|
DisplayPort version |
1.4a |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
Yes |
|
Line-out |
Yes |
|
Line-in |
Yes |
|
Combo headphone/mic port |
Yes |
|
Expansion slots |
|
PCI Express x1 (Gen 3.x) slots |
2 |
|
PCI Express x16 (Gen 3.x) slots |
1 |
|
PCI Express x16 (Gen 4.x) slots |
1 |
|
Design |
|
Chassis type |
Tower |
|
Product colour |
Black |
|
Colour name |
Jack black |
|
Number of 3.5" bays |
2 |
|
Country of origin |
China, Mexico, Czech Republic, India |
|
Performance |
|
Product type |
PC |
|
Market positioning |
Premium |
|
Motherboard chipset |
Intel Q670 |
|
Audio chip |
Realtek ALC3252 |
|
Password protection |
Yes |
|
Password protection type |
BIOS, Power on |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Software |
|
Operating system installed |
Windows 10 Pro |
|
Pre-installed software |
HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP Desktop Support Utilities; HP Easy Clean; HP Setup Integrated OOBE; Buy Microsoft Office (sold separately); HP Services Scan |
|
Processor special features |
|
Intel® Turbo Boost Technology |
Yes |
|
Brand-specific features |
|
HP Support Assistant |
Yes |
|
HP Security tools |
HP Sure Run; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); HP Sure Start; HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Recover; HP Sure Admin; HP Client Security Manager Gen7; HP Tamper Lock |
|
HP Management tools |
HP Client Catalog (download); HP Driver Packs (download); HP Cloud Recovery; HP Image Assistant Gen 5 (download); HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download) |
|
HP segment |
Business |
|
HP GTIN (EAN/UPC) |
196337524538 |
|
Power |
|
Power supply |
260 W |
|
Power supply input voltage |
100 - 240 V |
|
Power supply input frequency |
50 - 60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR |
|
Sustainable technologies and materials |
Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and I/O strip; 60% post-consumer recycled plastic; 10% ITE-derived closed loop plastic; 80 Plus® Platinum power supplies available |
|
Sustainability compliance |
Yes |
|
Weight & dimensions |
|
Width |
337 mm |
|
Depth |
308 mm |
|
Height |
337 mm |
|
Weight |
6.15 kg |
|
Package width |
287 mm |
|
Package depth |
400 mm |
|
Package height |
499 mm |
|
Package weight |
8.87 kg |
|
Packaging content |
|
Keyboard included |
Yes |
|
Keyboard connectivity |
Wired |
|
Input device model |
HP 125 Wired Mouse |
|
Display |
|
Display included |
No |
|
Technical details |
|
General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
|
Other features |
|
Manufacturer warranty |
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
|
UNSPSC-code |
43211507 |
