General Information |
|
Summary |

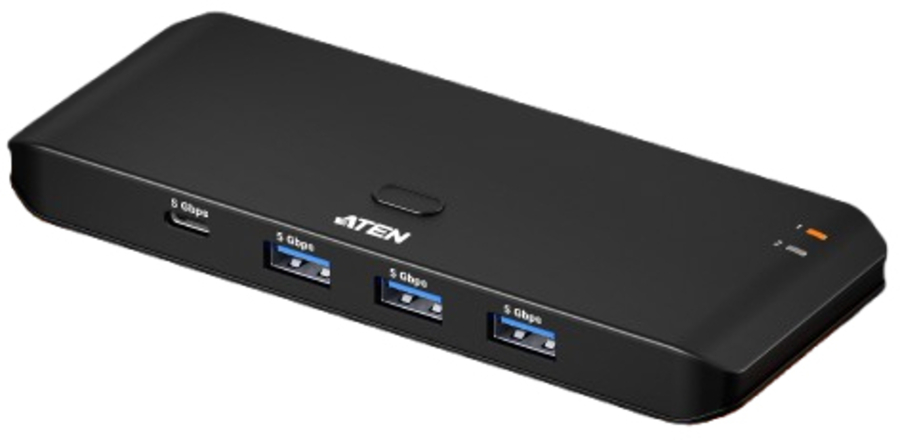

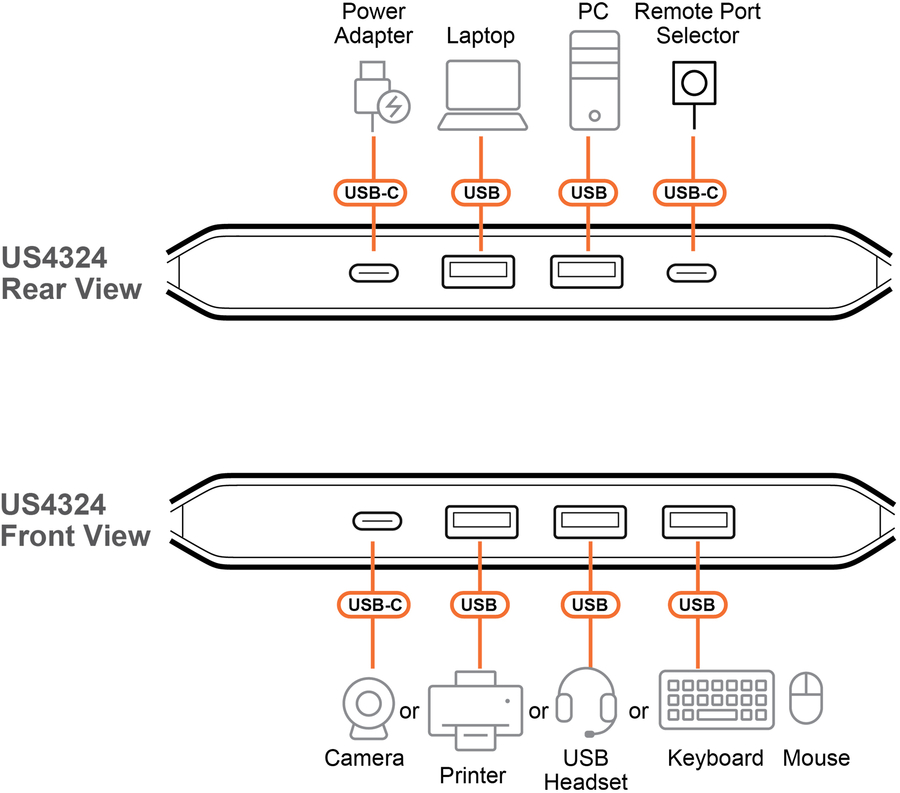

Share 4 Peripherals (USB-A + USB-C) between 2 PCs
Switch Smart Among Four Peripherals. Clutter-Free Control.
The US4324 is a 2-Port USB 3.2 Gen 1 Sharing Switch designed to accommodate the mix of USB-A and USB-C devices required for modern workspaces. Powered by InstaSync™, you can easily switch control of up to four peripherals between two computers in an instant, ensuring dual-computer workflows remain responsive, efficient, and easy to manage while maintaining a space-efficient desktop.
Sleek.
Compact.
Portable.

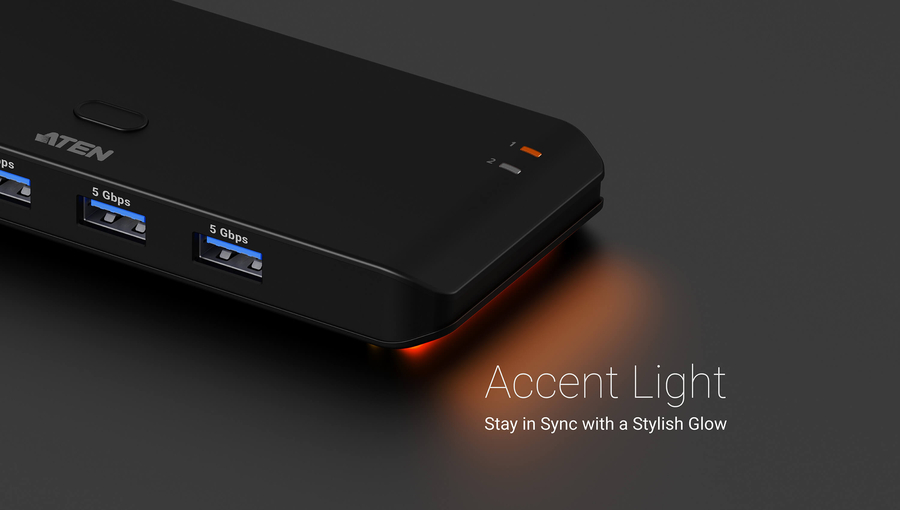

Accent Light
Stay in Sync with a Stylish Glow
Share All Devices with One-Button Switch
Flexible Bus-Powered Design

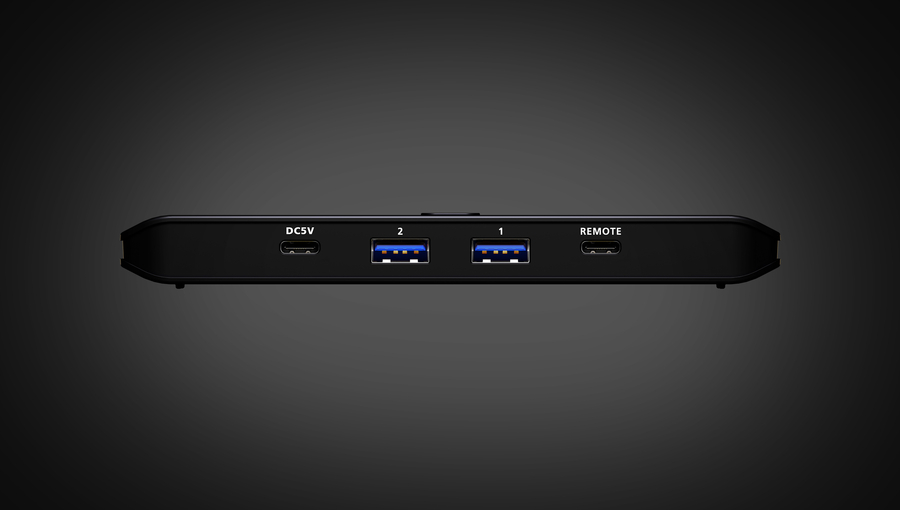

The switch automatically powers on when connected to a computer. For setups involving power-intensive peripherals, an auxiliary USB-C port is available to connect a power adapter, guaranteeing stable performance and reliability.

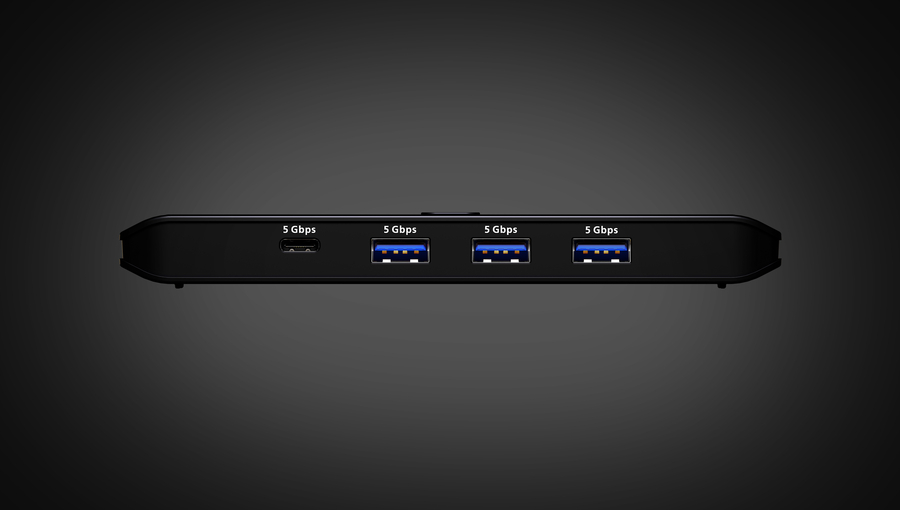

Save Time with 5 Gbps
SuperSpeed Data Transfer
One Switch. Unlimited Possibilities. |
|
Ports & interfaces |
|
Host interface |
USB Type-A |
|
Output interface |
USB Type-A/USB Type-C |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
Host ports quantity |
2 |
|
Output ports quantity |
4 |
|
USB version |
3.2 Gen 1 (3.1 Gen 1) |
|
Remote control port type |
USB Type-C |
|
Performance |
|
Maximum data transfer rate |
5 Gbit/s |
|
Remote control function |
Yes |
|
Remote control included |
Yes |
|
LED indicators |
Power, Selected |
|
Hot-Plug support |
Yes |
|
Power connector |
USB Type-C |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
Plug and Play |
Yes |
|
Technical details |
|
Push button |
Yes |
|
Power |
|
Power source |
USB |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 80% |
|
Weight & dimensions |
|
Width |
56.5 mm |
|
Depth |
145 mm |
|
Height |
15.2 mm |
|
Weight |
77 g |
|
Packaging content |
|
Cables included |
USB Type-A - USB Type-A |
|
Logistics data |
|
Products per master (outer) case |
20 pc(s) |
