General Information |
|
Summary |

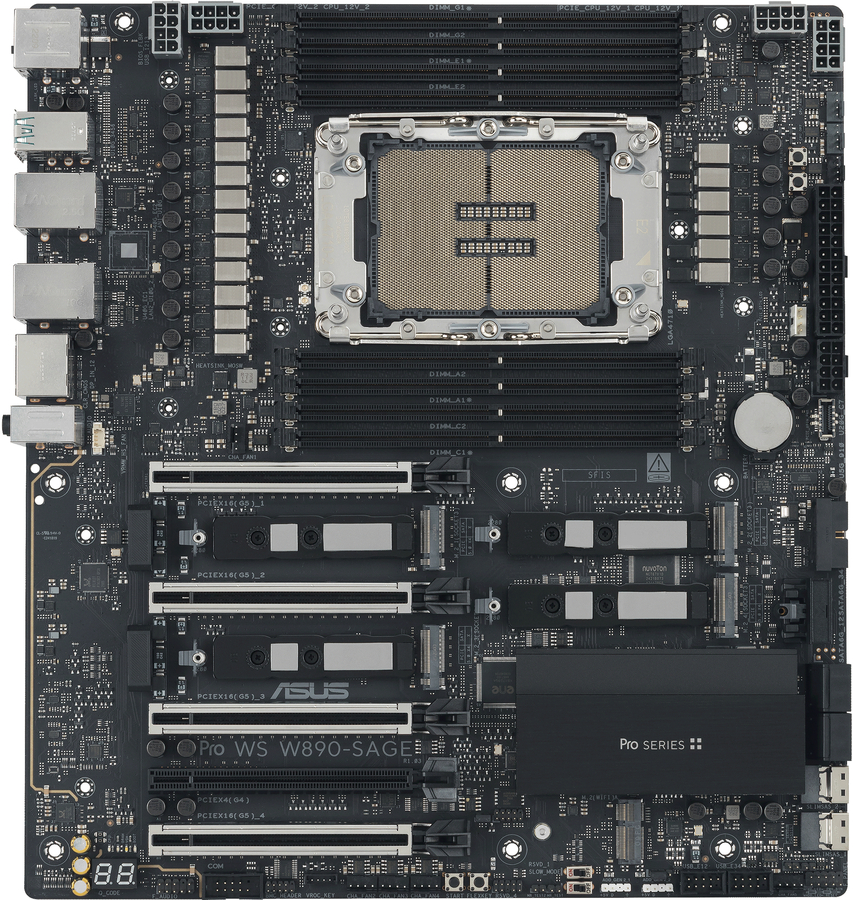

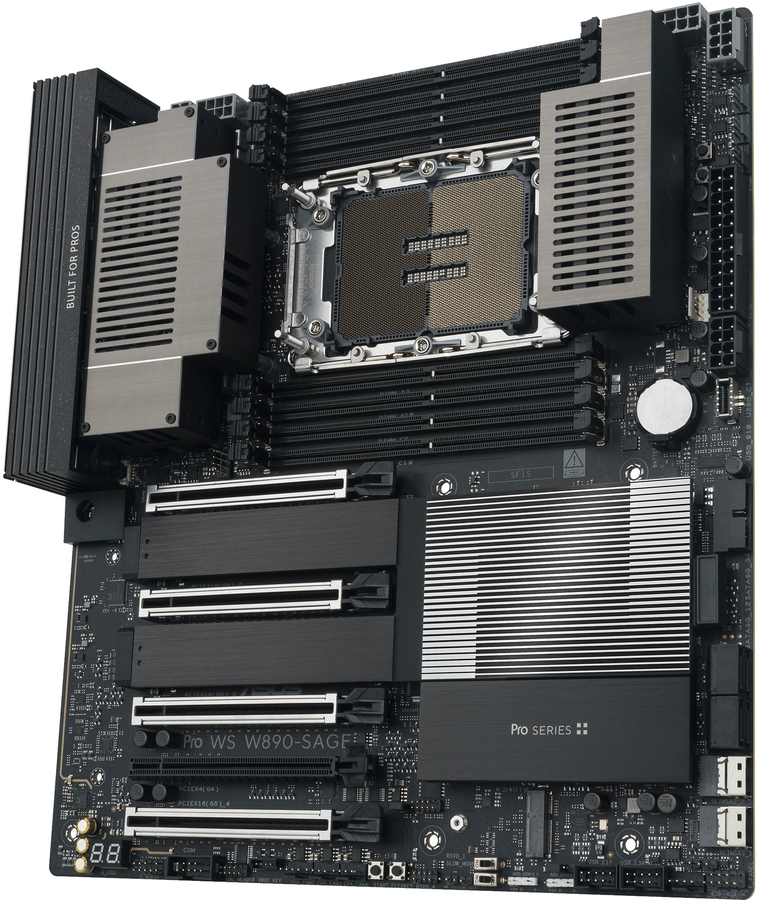

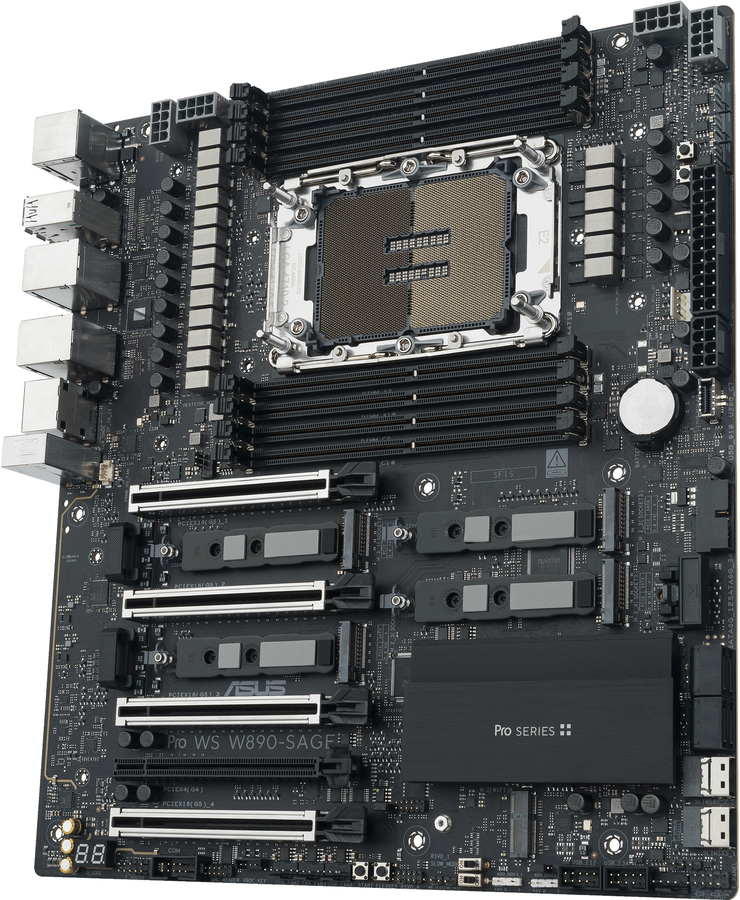

The Pro WS W890-SAGE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, ready for server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890-SAGE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890-SAGE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Compatible processor series |
Intel® Xeon® |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
8 |
|
Memory slots type |
DIMM |
|
Memory channels |
Quad-channel |
|
ECC сompatibility |
ECC |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III, SlimSAS |
|
Supported storage drive types |
HDD & SSD |
|
Number of HDDs supported |
4 |
|
Number of storage drives supported |
10 |
|
RAID support |
Yes |
|
RAID levels |
0, 5, 1, 10 |
|
Graphics |
|
Parallel processing technology support |
Not supported |
|
Maximum resolution |
7680 x 4320 pixels |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
|
Number of SATA III connectors |
4 |
|
Front panel audio connector |
Yes |
|
Front panel connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of CPU fan connectors |
2 |
|
Number of chassis fan connectors |
5 |
|
Chassis intrusion connector |
Yes |
|
EPS power connector (8-pin) |
Yes |
|
Number of EPS power connectors (8-pin) |
5 |
|
Number of COM connectors |
1 |
|
12V power connector |
Yes |
|
Integrated SAS ports |
2 |
|
Number of water pump connectors |
1 |
|
Number of temperature sensor headers |
1 |
|
RGB LED pin header |
Yes |
|
Number of RGB LED pin headers |
2 |
|

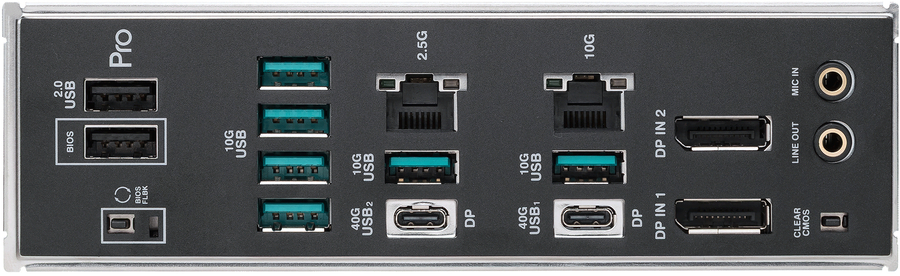

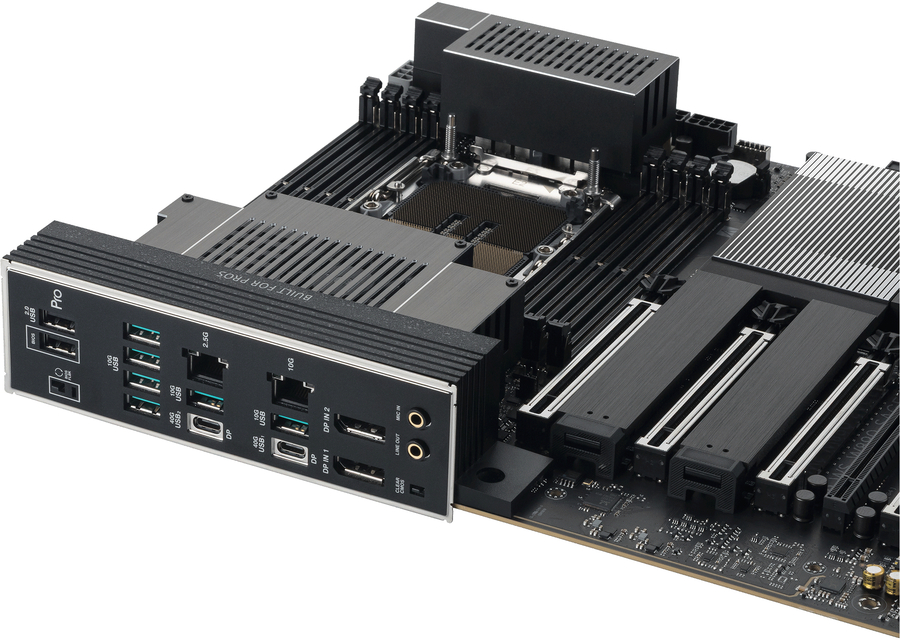

Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
0 |
|
DVI-D ports quantity |
0 |
|
USB4 Gen 3x2 ports quantity |
2 |
|
DisplayPorts quantity |
2 |
|
DisplayPort version |
1.4 |
|
Headphone outputs |
1 |
|
Line-in |
Yes |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
|
Features |
|
Component for |
Workstation |
|
Motherboard form factor |
CEB |
|
Motherboard chipset family |
Intel |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC1220P |
|
Product colour |
Black |
|
Cooling type |
Passive |
|
Power source type |
ATX |
|
Windows operating systems supported |
Windows 11 |
|
Expansion slots |
|
PCI Express x16 (Gen 4.x) slots |
1 |
|
PCI Express x16 (Gen 5.x) slots |
4 |
|
Number of M.2 (M) slots |
4 |
|
1st M.2 largest key size |
2280 |
|
1st M.2 highest PCI Express generation |
5.0 |
|
2nd M.2 largest key size |
2280 |
|
2nd M.2 highest PCI Express generation |
5.0 |
|
3rd M.2 largest key size |
2280 |
|
3rd M.2 highest PCI Express generation |
5.0 |
|
4th M.2 largest key size |
2280 |
|
4th M.2 highest PCI Express generation |
5.0 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
512 Mbit |
|
Clear CMOS button |
Yes |
|
BIOS flashback button |
Yes |
|

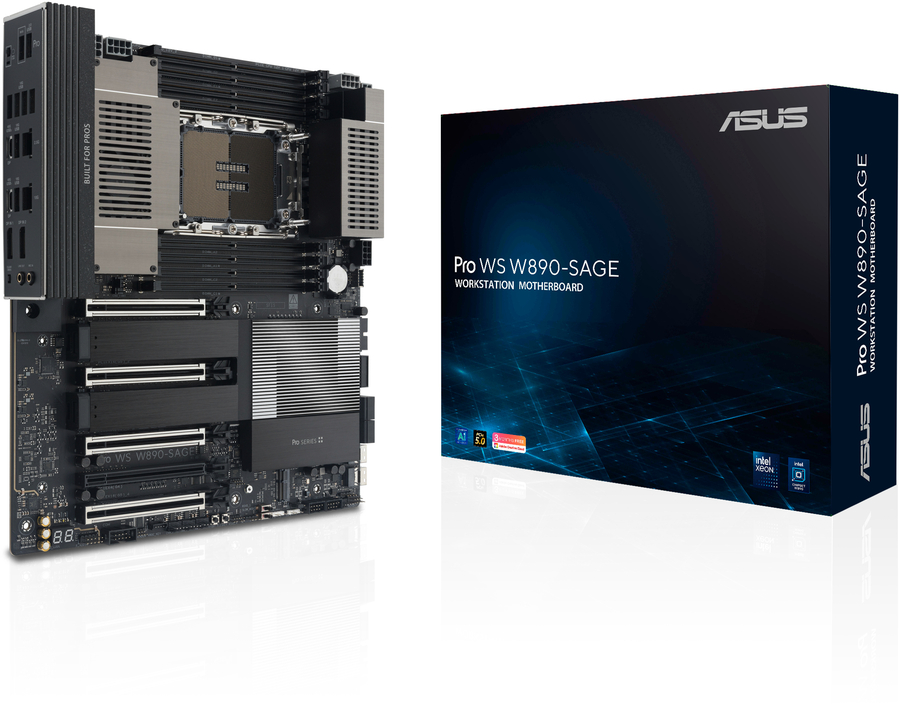

Packaging data |
|
Package width |
376 mm |
|
Package depth |
320 mm |
|
Package height |
100 mm |
|
Package weight |
4.12 kg |
|
Weight & dimensions |
|
Width |
305 mm |
|
Depth |
280 mm |
|
Height |
50 mm |
|

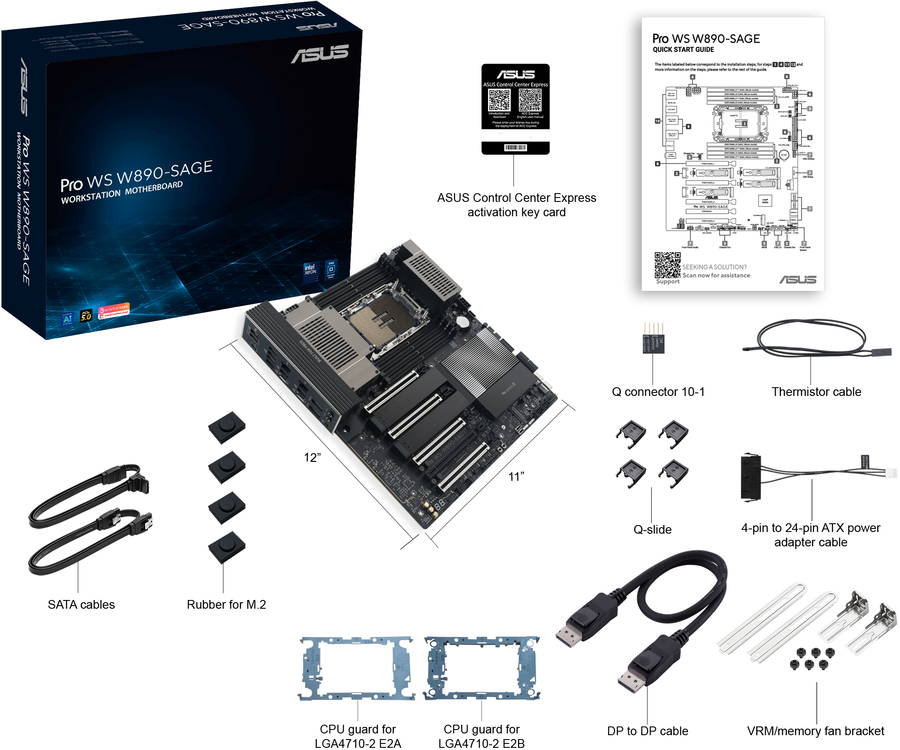

Packaging content |
|
Cables included |
SATA, DisplayPort |
|
Screws included |
Yes |
|
Other features |
|
Weight |
2.75 kg |
|
Number of M.2 (E) slots |
1 |
