General Information |
|
Summary |

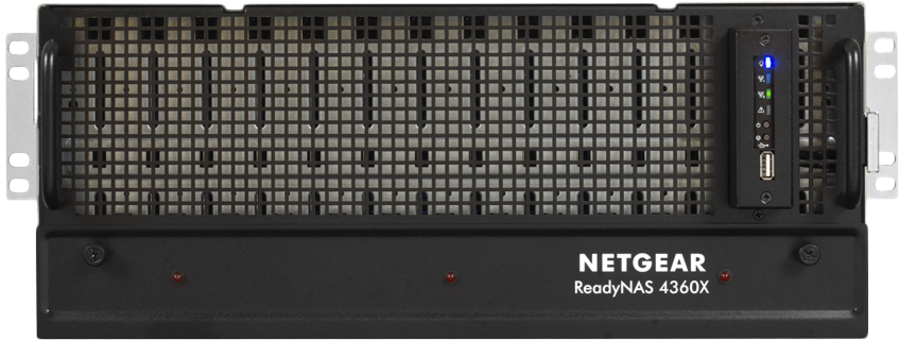

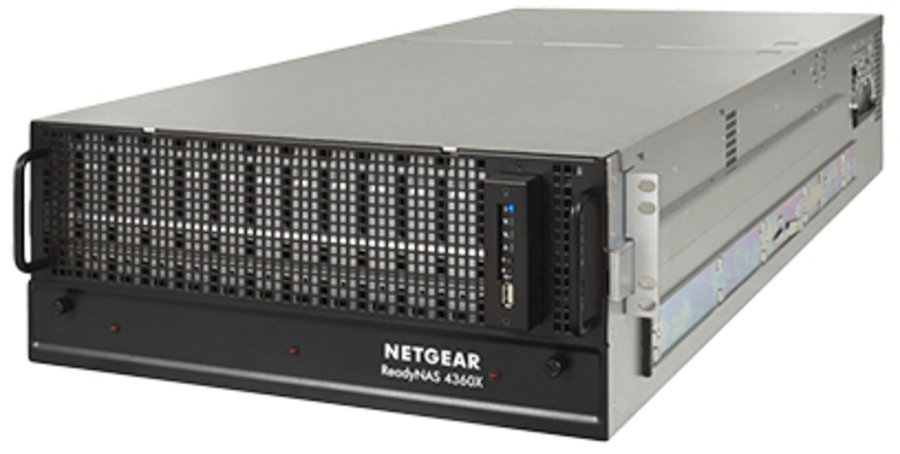

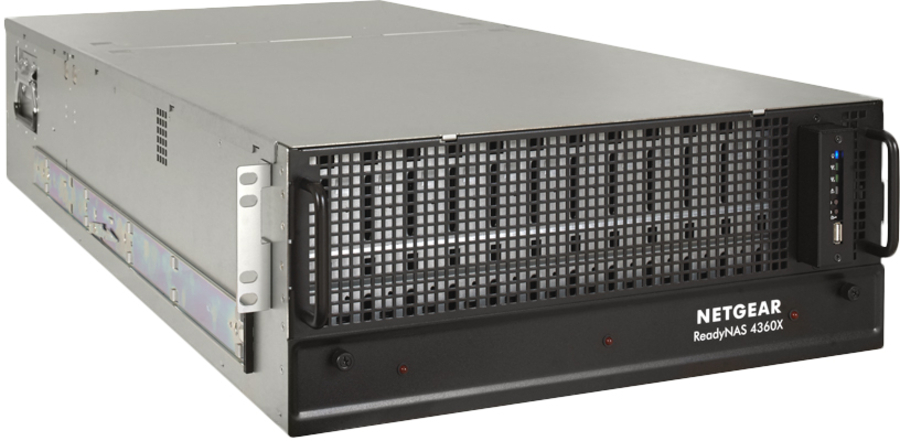

10Gigabit 60-bay 1+ Petabyte Total Storage with Expansion
Industry highest capacity data storage for SMBs. Ultimate performance 4U Rackmount NAS for backup, file serving, collaboration and virtualization environments with dual 10GbE
Largest and most secure Data Protection for SMB
With 5 levels of unrivaled data protection and ReadyDR backup and disaster recovery, the RR4360X Network Storage offers outstanding performance, scalability and multi-point fault tolerance with the lowest Total Cost of Ownership (TCO) ever and the easiest management. The RR4360X can now be setup, monitored and managed from the palm of your hand with NETGEAR Insight management app for iOS and Android.
High Capacity, Performance and Reliability to Meet the Most Demanding Business Needs
Get the most storage bang for your IT buck. ReadyNAS 4360X offers unmatched performance, capacity and reliability storage solution to the SMB. Unlimited snapshots, anti-virus, encryption, block level multi-site backup and recovery, RAID 50 and RAID 60 for enhanced performance and multi-point fault tolerance. In short, ReadyNAS 4360X is the critical component in your data storage, protection and business continuity strategy.
Ultimate capacity Rackmount ReadyNAS Now Available
Industry’s ultimate performance high density storage and backup up solution – NETGEAR RR4360X - Highest density 60-Bay 10GbE Rackmount network storage System for Small and Medium Size Business, expandable to 132 drive bays and over 1 Petabyte, based on industry leading data reliability ReadyNAS OS with 5 levels of data protection, including Snapshot and Disaster Recovery Capabilities.
5 levels of data protection
- Flex-RAID, including RAID 50 and RAID 60 for enhanced performance and fault tolerance
- Built-in anti-virus
- Incremental backup copies with unlimited snapshots
- Bit-rot protection against media degradation
- Easy-to-setup replication and backup services to public cloud or a second ReadyNAS for disaster recovery
All-inclusive backup and recovery
Store data from your computers to your ReadyNAS, backup data between your ReadyNAS either locally or externally seamlessly and instantly with ReadyDR, included in ReadyNAS.
ReadyNAS OS6 also allows automatic bi-direction synchronization between ReadyNAS OS6 models and data storage offered by public cloud services such as Amazon Cloud Drive and Dropbox
Virtualized storage for the office
ReadyNAS is also VMWare vSphere ESXi 6.0 certified for high-performance virtualized storage with workload-heavy VM support. Build your own Private Cloud for data compliance and privacy which might not be compatible with public cloud solutions. |
|
Storage |
|
Storage drives installed |
No |
|
Total installed storage capacity |
0 TB |
|
Number of storage drives installed |
0 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive interface |
Serial ATA III |
|
RAID support |
Yes |
|
Storage drive size |
3.5" |
|
Maximum supported storage capacity |
600 TB |
|
RAID levels |
0, 1, 5, 6, 10, 50, 60 |
|
Hot-swap drive bays |
Yes |
|
Processor |
|
Processor family |
Intel® Xeon® E3 v5 |
|
Processor manufacturer |
Intel |
|
Processor model |
E3-1225V5 |
|
Processor frequency |
3.3 GHz |
|
Processor boost frequency |
3.7 GHz |
|
Processor cores |
4 |
|
Processor threads |
4 |
|
Processor cache |
8 MB |
|
Bus type |
DMI3 |
|
CPU configuration (max) |
1 |
|
ECC supported by processor |
Yes |
|
PCI Express configurations |
1x16, 1x8+2x4, 2x8 |
|
PCI Express slots version |
3.0 |
|
Processor cache type |
Smart Cache |
|
Processor codename |
Skylake |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor package size |
37.5 x 37.5 mm |
|
Processor series |
Intel Xeon E3-1200 v5 |
|
Processor socket |
LGA 1151 (Socket H4) |
|
Scalability |
1S |
|
System bus rate |
8 GT/s |
|
Thermal Design Power (TDP) |
80 W |
|
On-board graphics card model |
Intel® HD Graphics P530 |
|
Maximum internal memory supported by processor |
64 GB |
|
Memory bandwidth supported by processor (max) |
34.1 GB/s |
|
Conflict-Free processor |
Yes |
|
Memory |
|
Internal memory |
16 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Wi-Fi |
No |
|
iSCSI support |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Fiber ports quantity |
2 |
|
Fiber optic connector |
SFP+ |
|
eSATA ports quantity |
2 |
|
External mini-SAS ports |
3 |
|
Graphics |
|
On-board graphics card base frequency |
400 MHz |
|
On-board graphics card dynamic frequency (max) |
1150 MHz |
|
On-board graphics card DirectX version |
12.0 |
|
On-board graphics card OpenGL version |
4.4 |
|
On-board graphics card ID |
0x191D |
|
Maximum on-board graphics card memory |
1.7 GB |
|
Number of displays supported (on-board graphics) |
3 |
|
Design |
|
Chassis type |
Rack (4U) |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
5 fan(s) |
|
Performance |
|
Type |
NAS |
|
Device class |
Large Enterprise Business |
|
Backup function |
Yes |
|
Number of users |
160 user(s) |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
700 W |
|
Number of power supply units |
2 |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
445 mm |
|
Depth |
922 mm |
|
Height |
175 mm |
|
Weight |
33.2 kg |
|
Processor special features |
|
Embedded options available |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Execute Disable Bit |
Yes |
|
Graphics & IMC lithography |
14 nm |
|
Idle States |
Yes |
|
Intel 64 |
Yes |
|
Intel Clear Video Technology |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Trusted Execution Technology |
Yes |
|
Intel TSX-NI |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
|
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
|
Intel® Insider™ |
Yes |
|
Intel® InTru™ 3D Technology |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel® Quick Sync Video Technology |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® Smart Cache |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Intel® Wireless Display (Intel® WiDi) |
Yes |
|
Maximum number of PCI Express lanes |
16 |
|
Thermal Monitoring Technologies |
Yes |
|
Memory channels supported by processor |
Dual |
|
Memory types supported by processor |
DDR3L-SDRAM, DDR4-SDRAM |
|
Memory voltage supported by processor |
1.35 V |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
|
Other features |
|
Processor ARK ID |
88168 |
