General Information |
|
Summary |

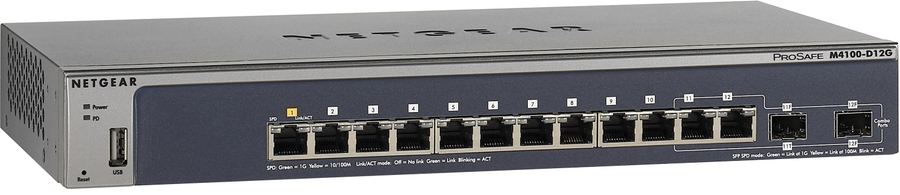

The NETGEAR Intelligent Edge M4100 series consists of 12 fully managed switches, ranging from 8-port Fast Ethernet to 50-port Gigabit Ethernet.
They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.
As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.
Layer 2+ with static routing
- M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions
- L3 fixed routes to the next hop towards the destination network are added to the routing table
- L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)
Engineered for convergence
- Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol
- Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration
- Advanced classifier-based hardware for L2, L3, L4 security and prioritization
- Advanced Multicast filtering with IGMP and MLD snooping and querier modes
High-value performance and IPv6 ready
- 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet
- IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)
High availability and PoE/PoE+ full power capability
- Redundant power supply option for uninterruptible operation (RPS)
- External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W)
Industry standard management
- Industry standard command line interface (CLI)
- Fully functional NETGEAR web interface (GUI) |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2+ |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
12 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP module slots quantity |
2 |
|
USB 2.0 ports quantity |
1 |
|
Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Rate limiting |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
Port-based VLAN |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
24 Gbit/s |
|
Throughput |
17.857 Mpps |
|
Security |
|
IGMP snooping |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Blue, Grey |
|
Performance |
|
Mean time between failures (MTBF) |
214142 h |
|
Power |
|
Power consumption (typical) |
18.8 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 3000 m |
|
Heat dissipation |
64 BTU/h |
|
Weight & dimensions |
|
Width |
328 mm |
|
Depth |
169 mm |
|
Height |
43.2 mm |
|
Weight |
1.33 kg |
|
Packaging content |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
